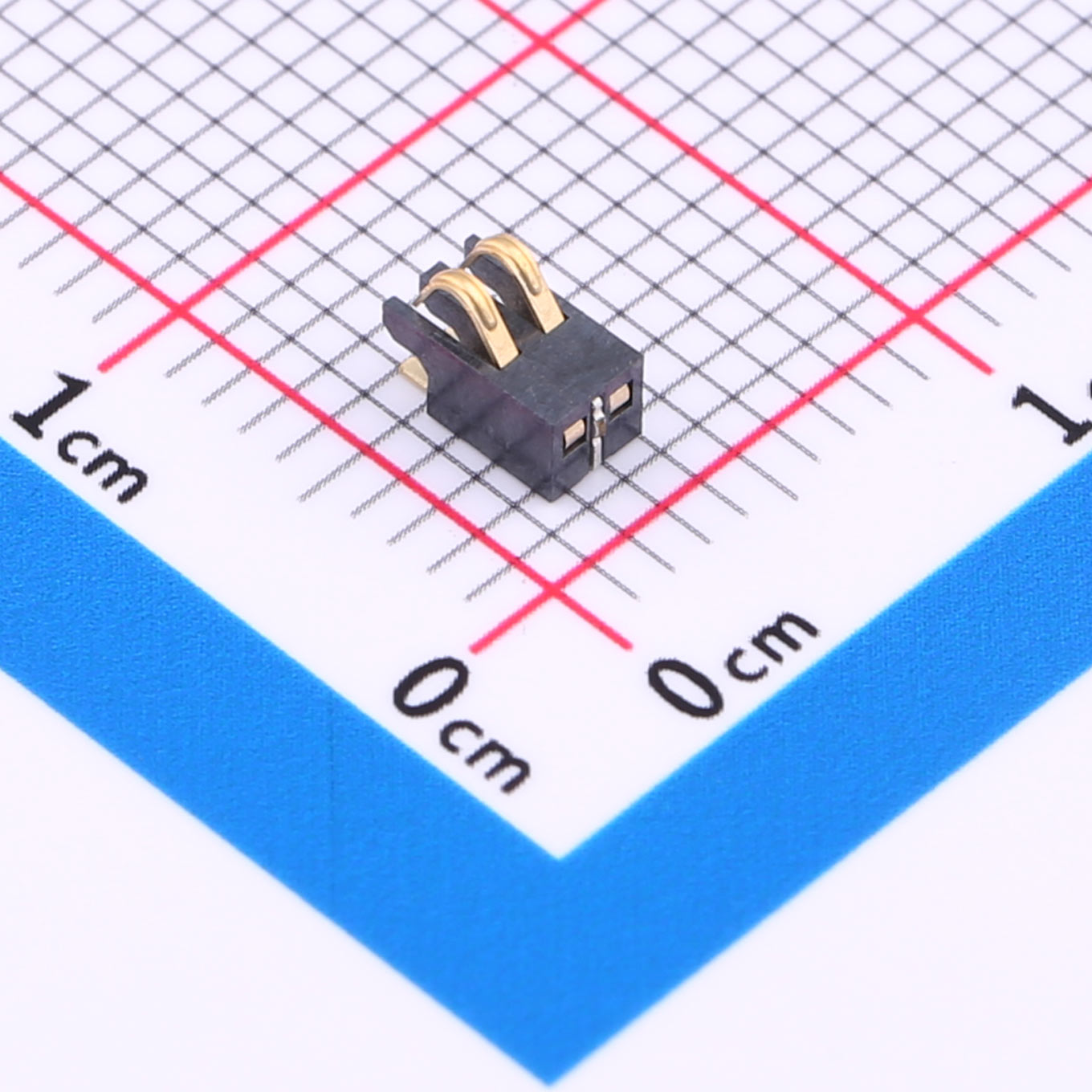

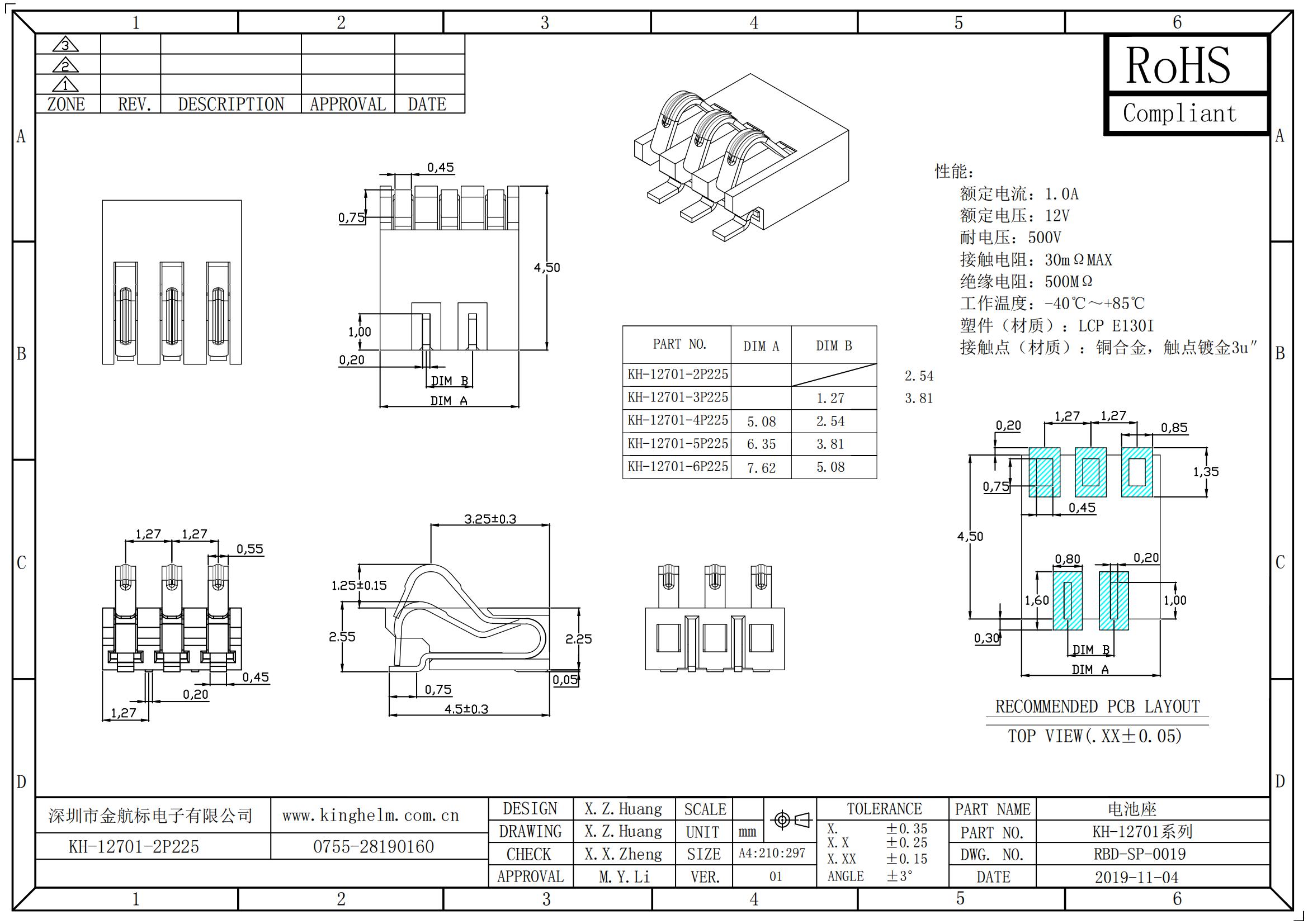

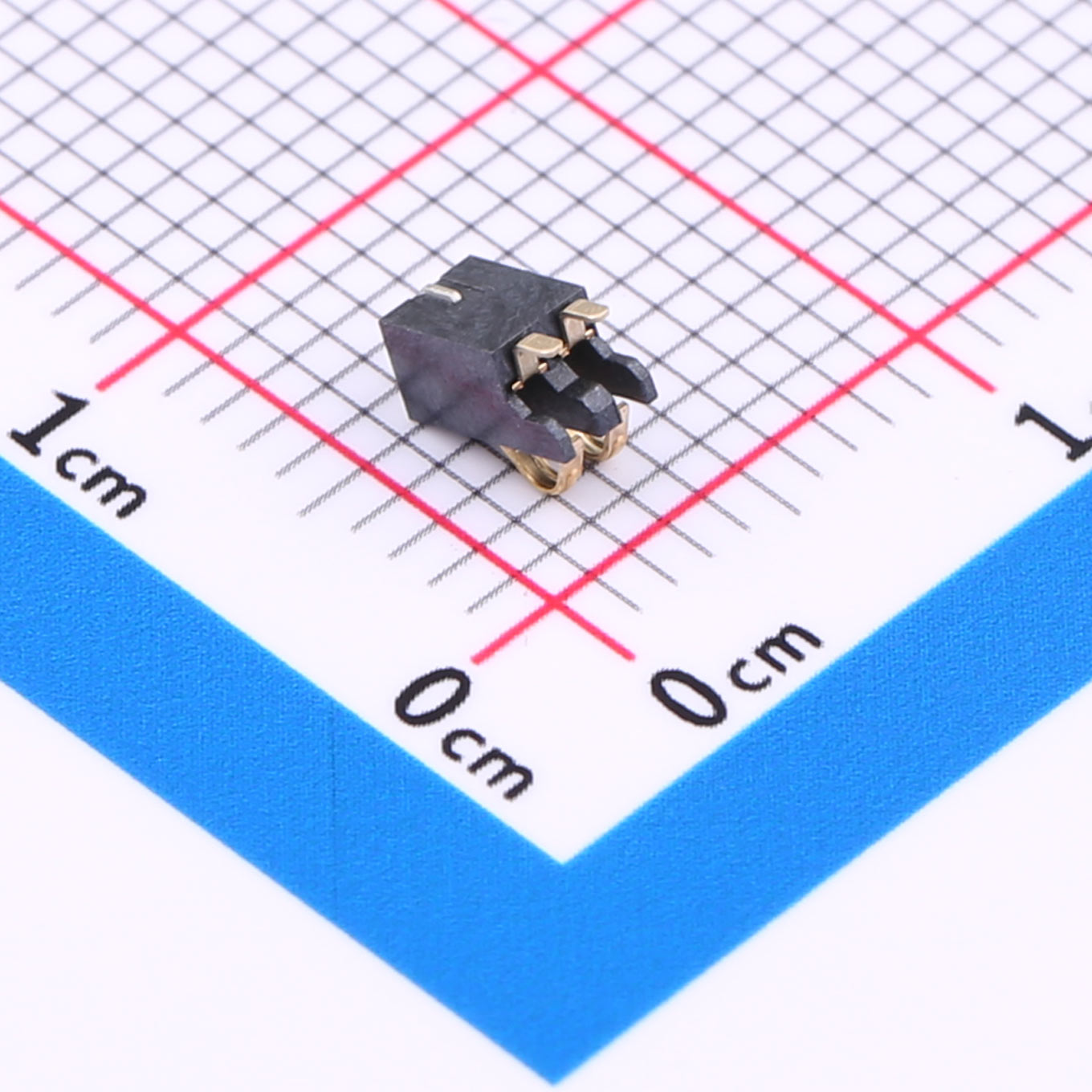

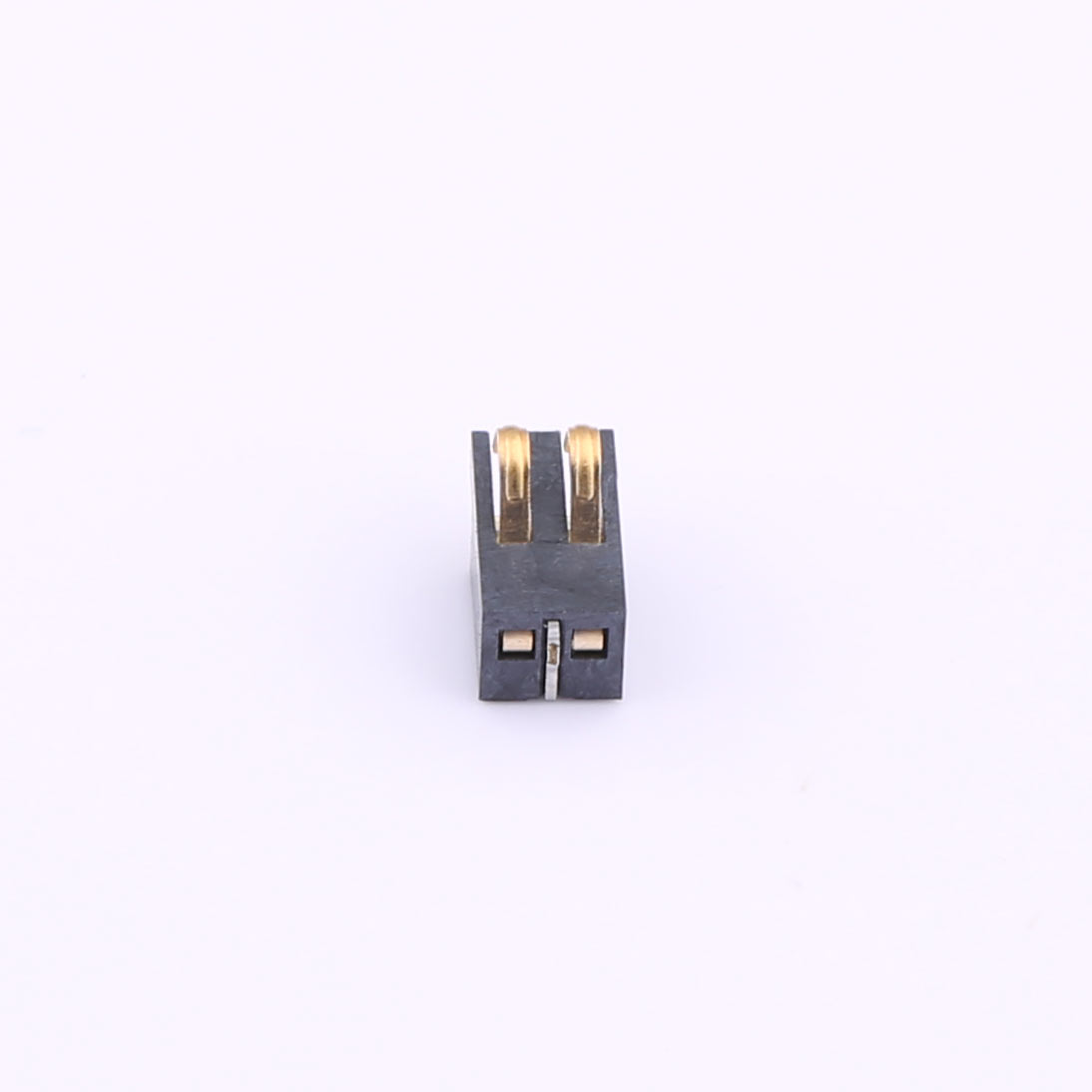

Button And Strip Battery Connector, SMD, KH-12701-2P225

Button And Strip Battery Connector, SMD, KH-12701-2P225

Rated current: 1.0 A
Rated voltage: 12 V
Withstand voltage: 500 V
Contact resistance: 30 mΩ MAX
Insulation resistance: 500 MΩ
Operating temperature: -40°C to +85°C

Inquiry Datasheet

Product Details

Product Benefits
● Compact size
● 12V rated voltage
● Reliable connection
● Wide operating range (-40°C to +85°C)
● High durability

Product Application
● Power connections
● Consumer electronics
● Household appliances
● Industrial devices
