Home -Product -Connector/Plug-in Unit -Connector -Battery Connector -Button And Strip Battery Connector, KH-BS-9
Button And Strip Battery Connector, KH-BS-9 Button And Strip Battery Connector, KH-BS-9 Button And Strip Battery Connector, KH-BS-9

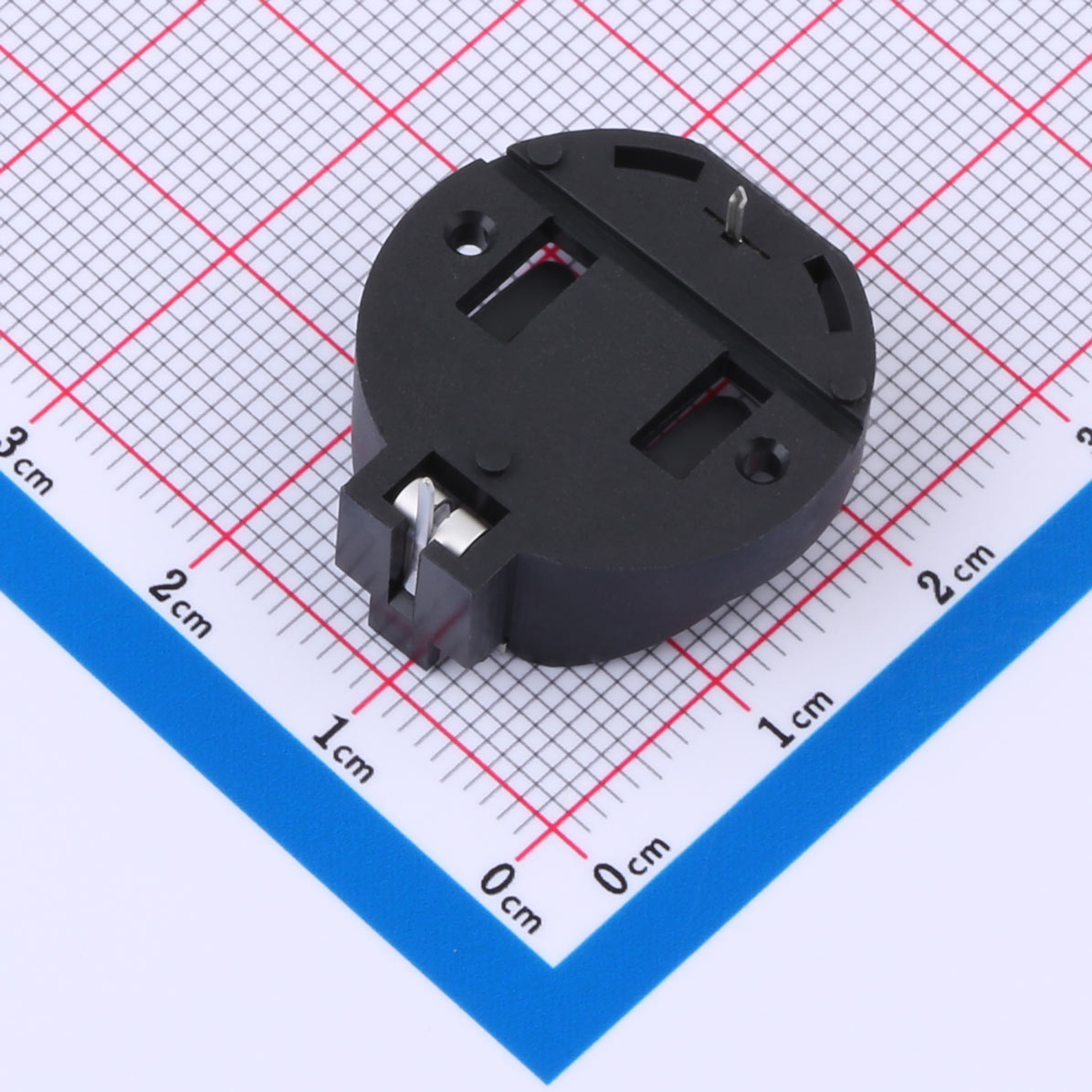

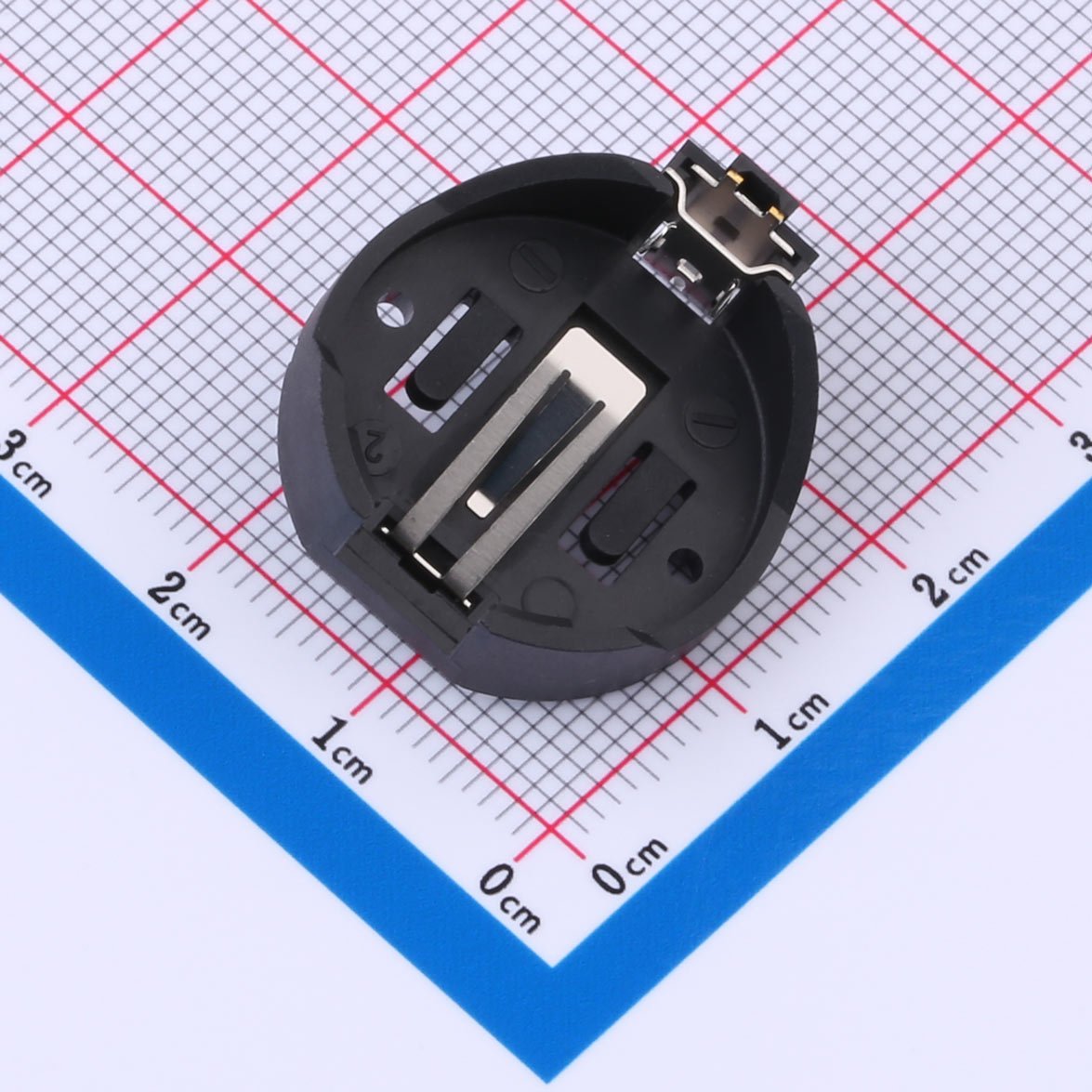

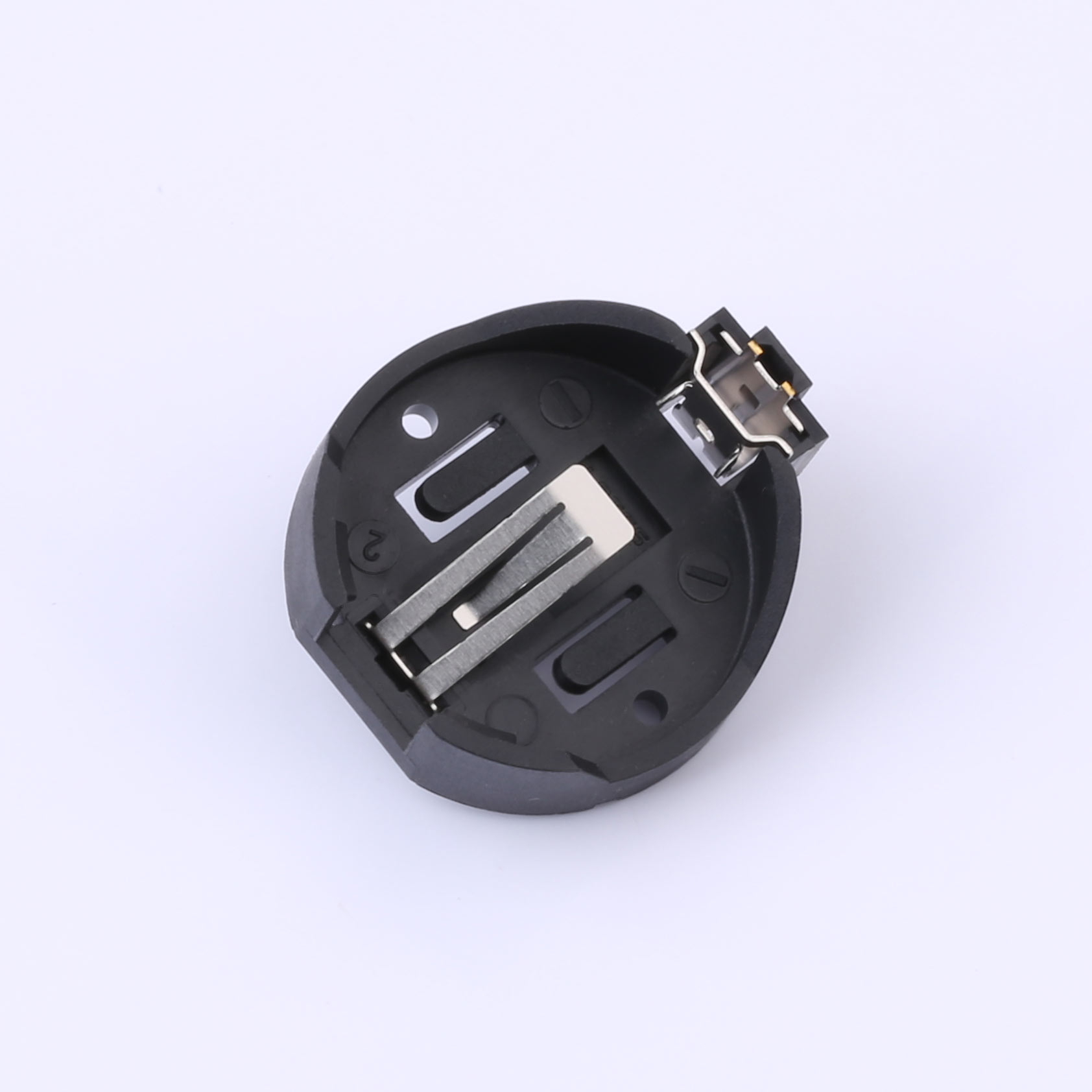

Button And Strip Battery Connector, KH-BS-9

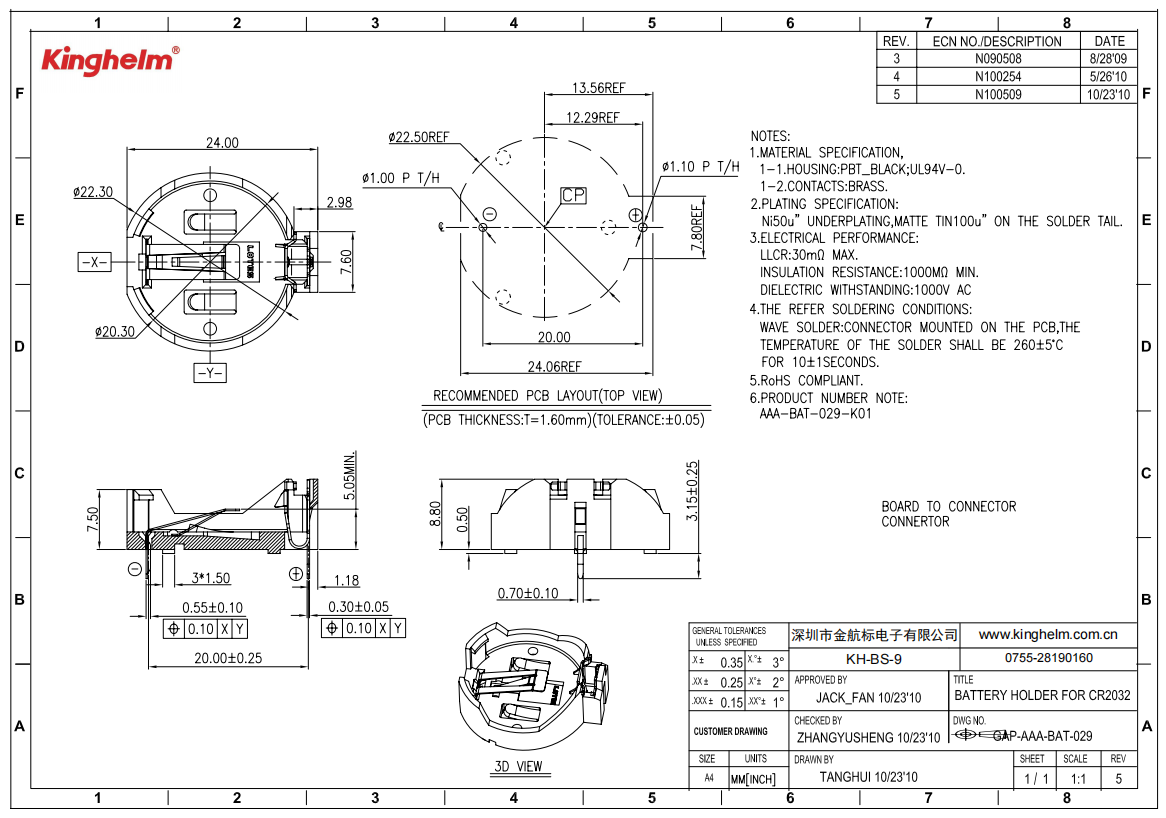

1. MATERIAL SPECIFICATION
1-1. HOUSING: PBT, black; UL94V-0
1-2. CONTACTS: Brass
2. Electrical Performance：
2-1. LLCR: 30 mΩ MAX
2-2. Insulation Resistance: 100 Ω MIN
2-3. Dielectric Withstanding Voltage: 1000 V AC
Inquiry Datasheet

Product Details

Product Benefits
● PBT housing, UL94V-0 rated
● Brass contacts for reliable conductivity
● Low contact resistance (30 mΩ MAX)
● High insulation resistance (100 Ω MIN)
● 1000V AC dielectric withstand voltage

Product Application
● Battery connections
● Power supply systems
● Consumer electronics
● Industrial equipment
● Automotive applications
