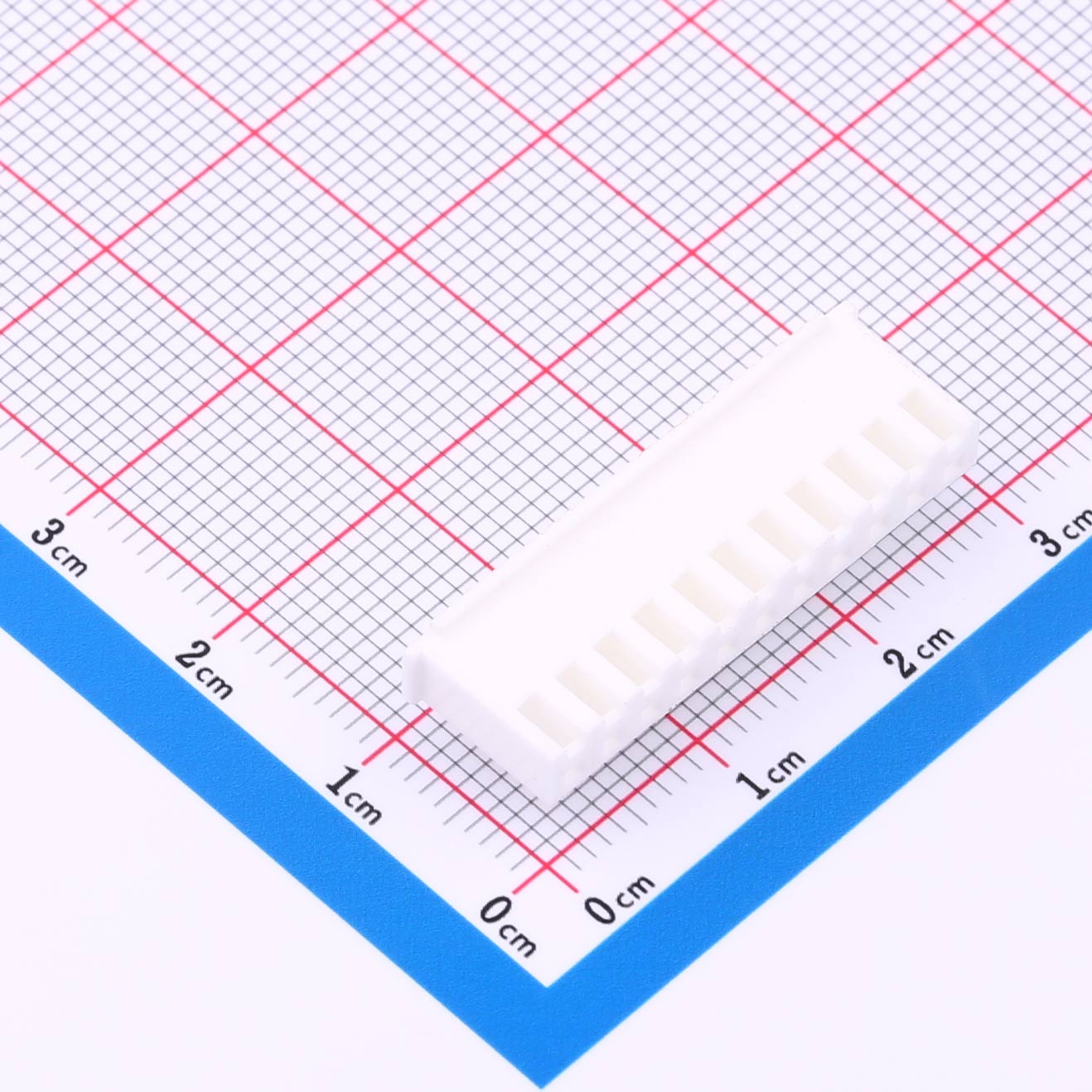

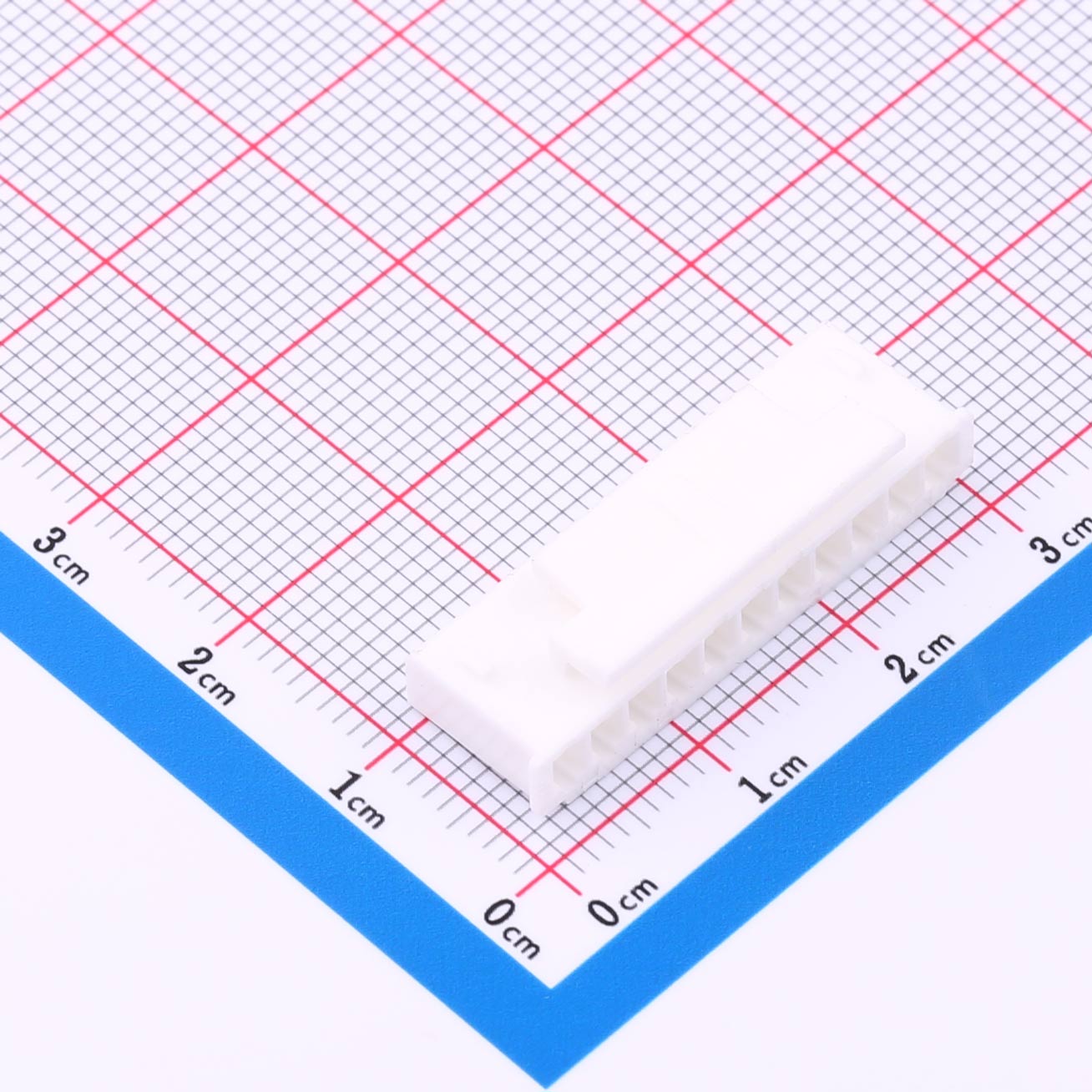

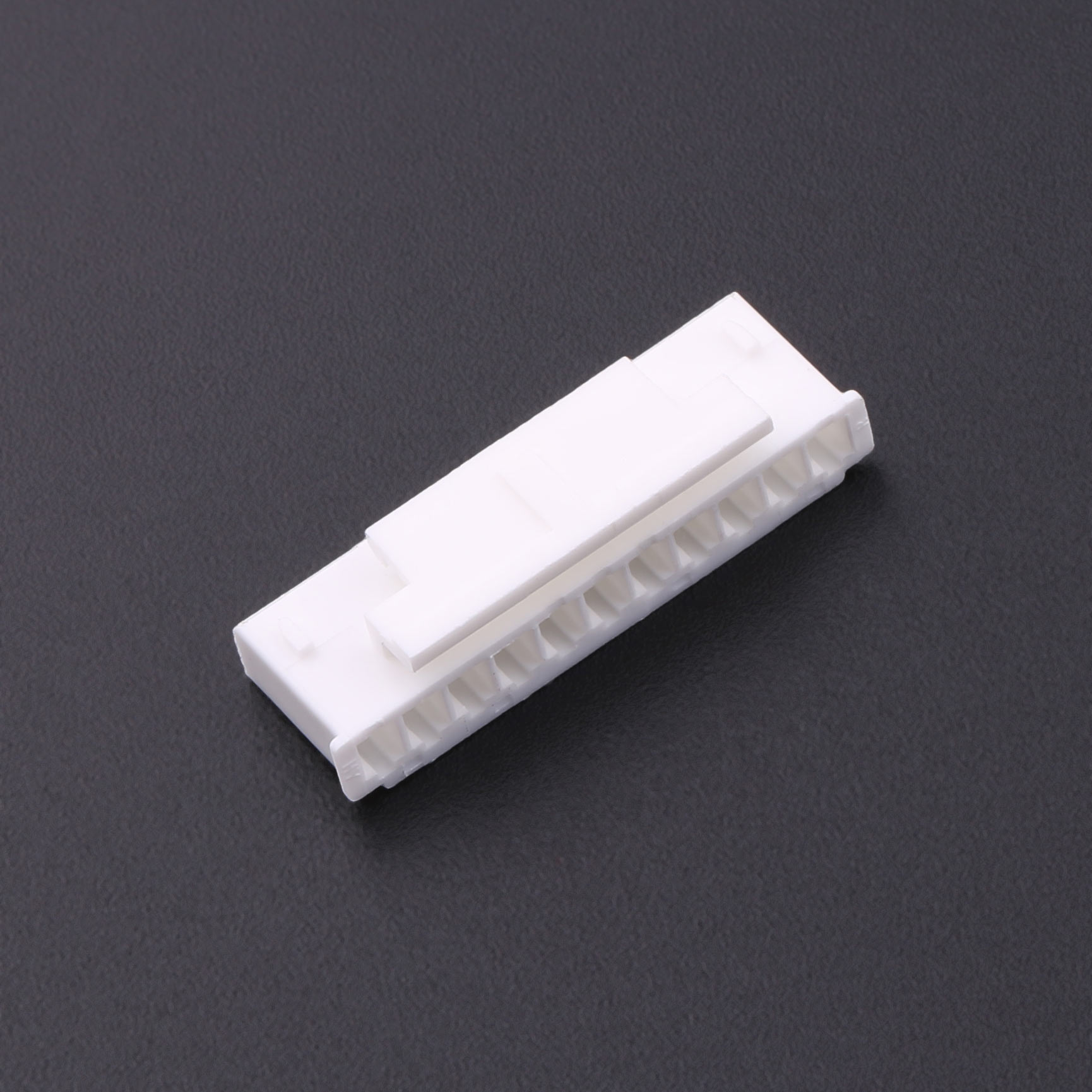

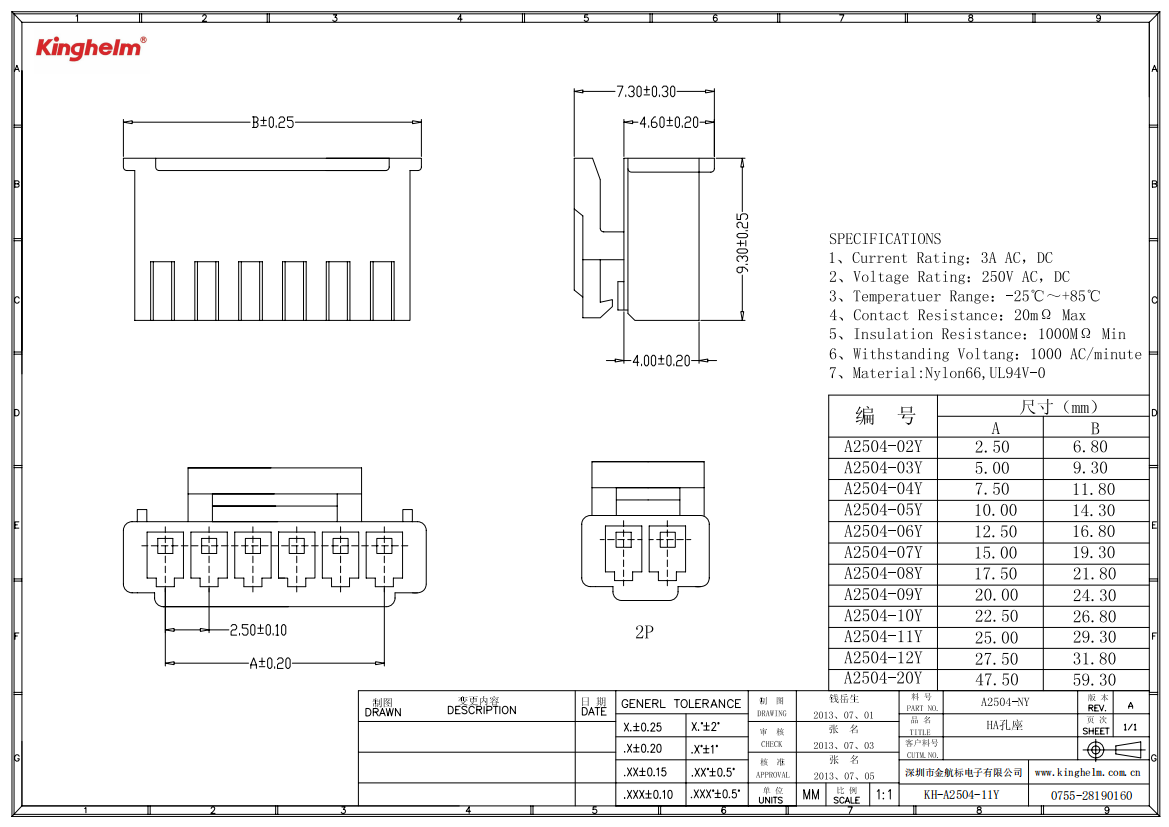

Crimp Terminal Shell, 2.5mm Pitch, 1x11P, with Locking Buckle, KH-A2504-11Y
Current Rating: 3A (AC, DC)
Voltage Rating: 250V (AC, DC)
Temperature Range: -25°C to +85°C
Contact Resistance: ≤ 20mΩ
Insulation Resistance: ≥ 1000MΩ
Withstanding Voltage: 1000V AC/minute
Product Benefits
● 2.5mm pitch for compact layout
● 11 pins per row for efficient space use
● Locking buckle ensures a secure connection
● Flame-retardant Nylon 66 material
● UL94V-0 rated for enhanced safety
● Quick and easy crimp termination
● Provides reliable electrical stability
Product Application
● LED lighting systems
● Robotics wiring
● Home appliance connections
● Networking equipment
● Medical device assemblies
● Consumer product interconnections
