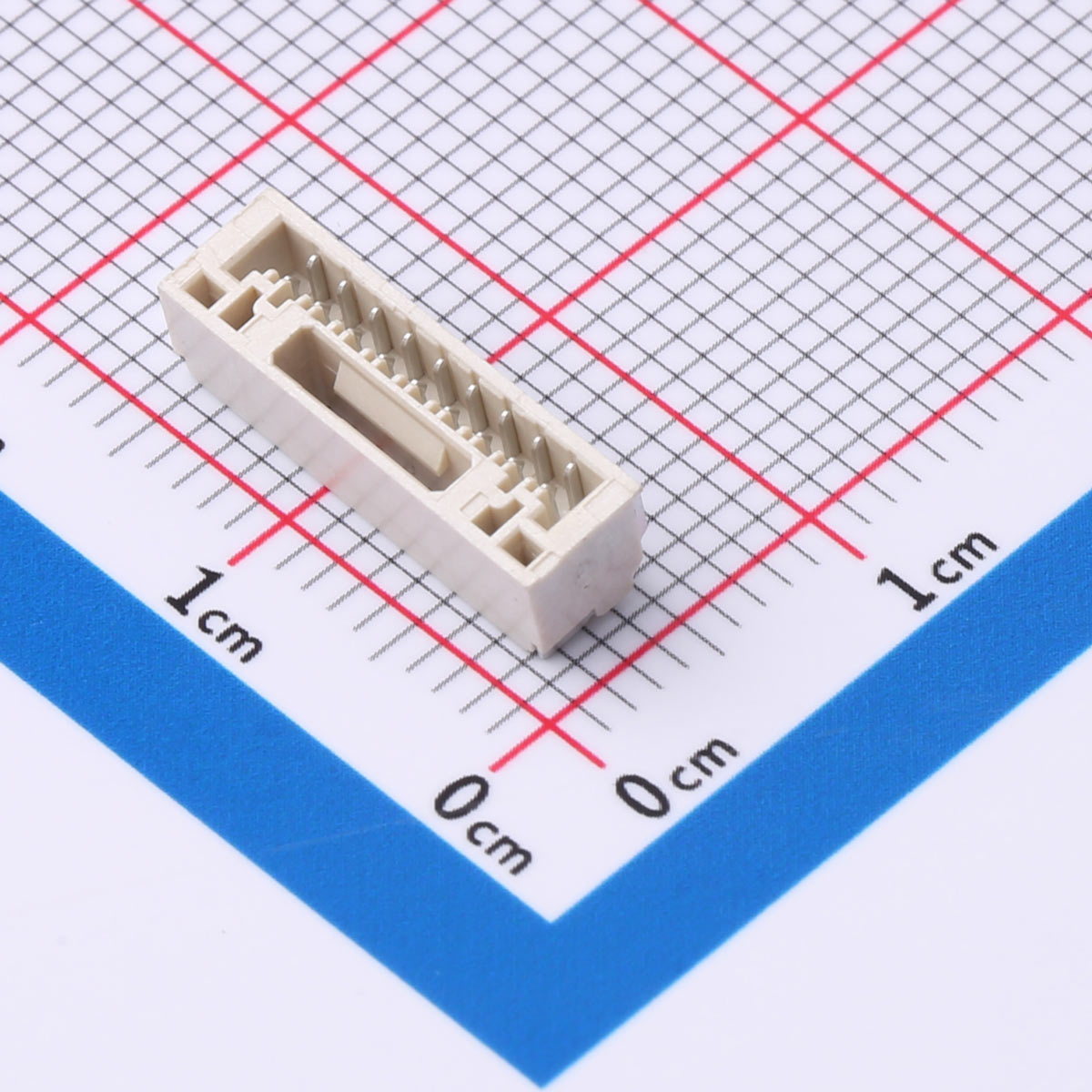

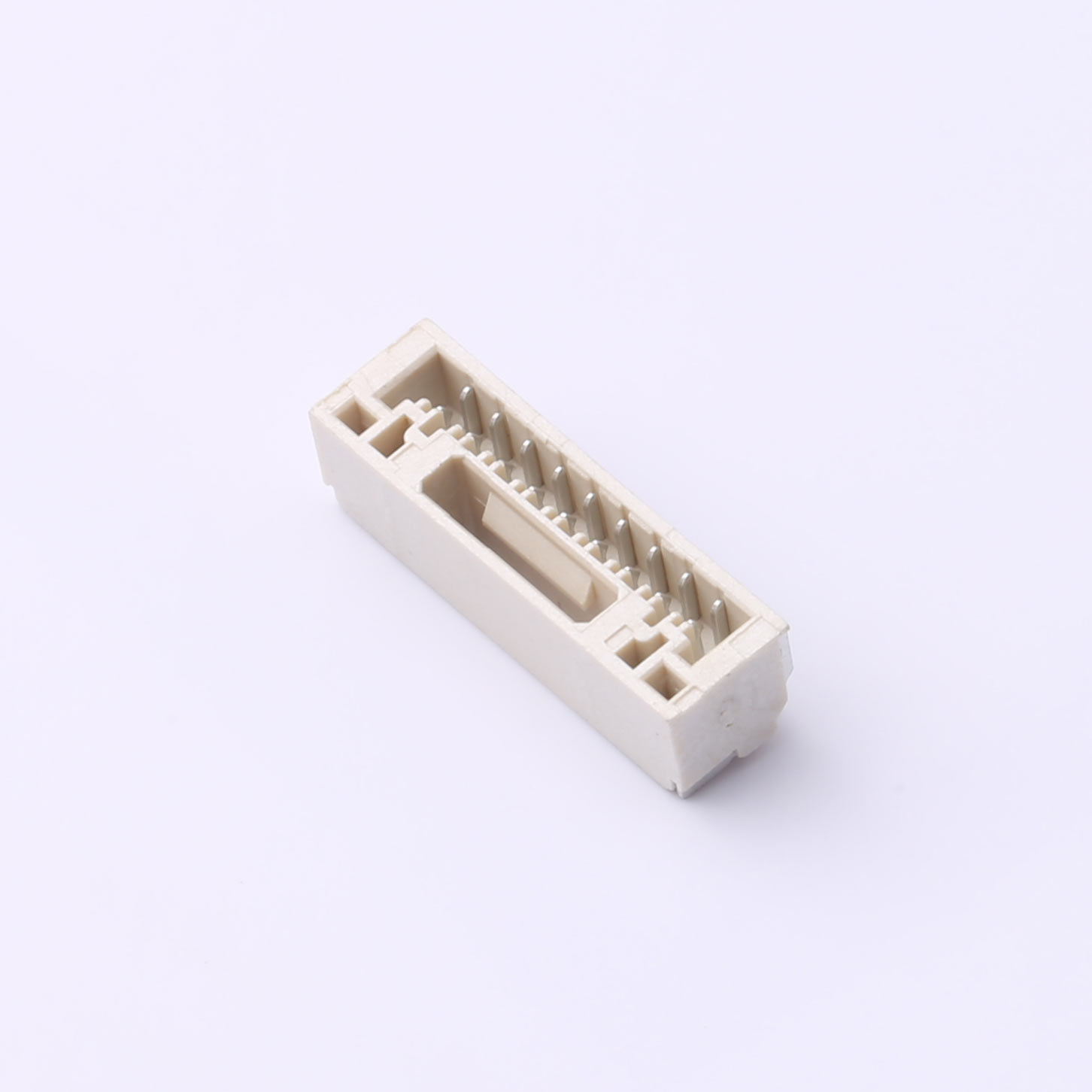

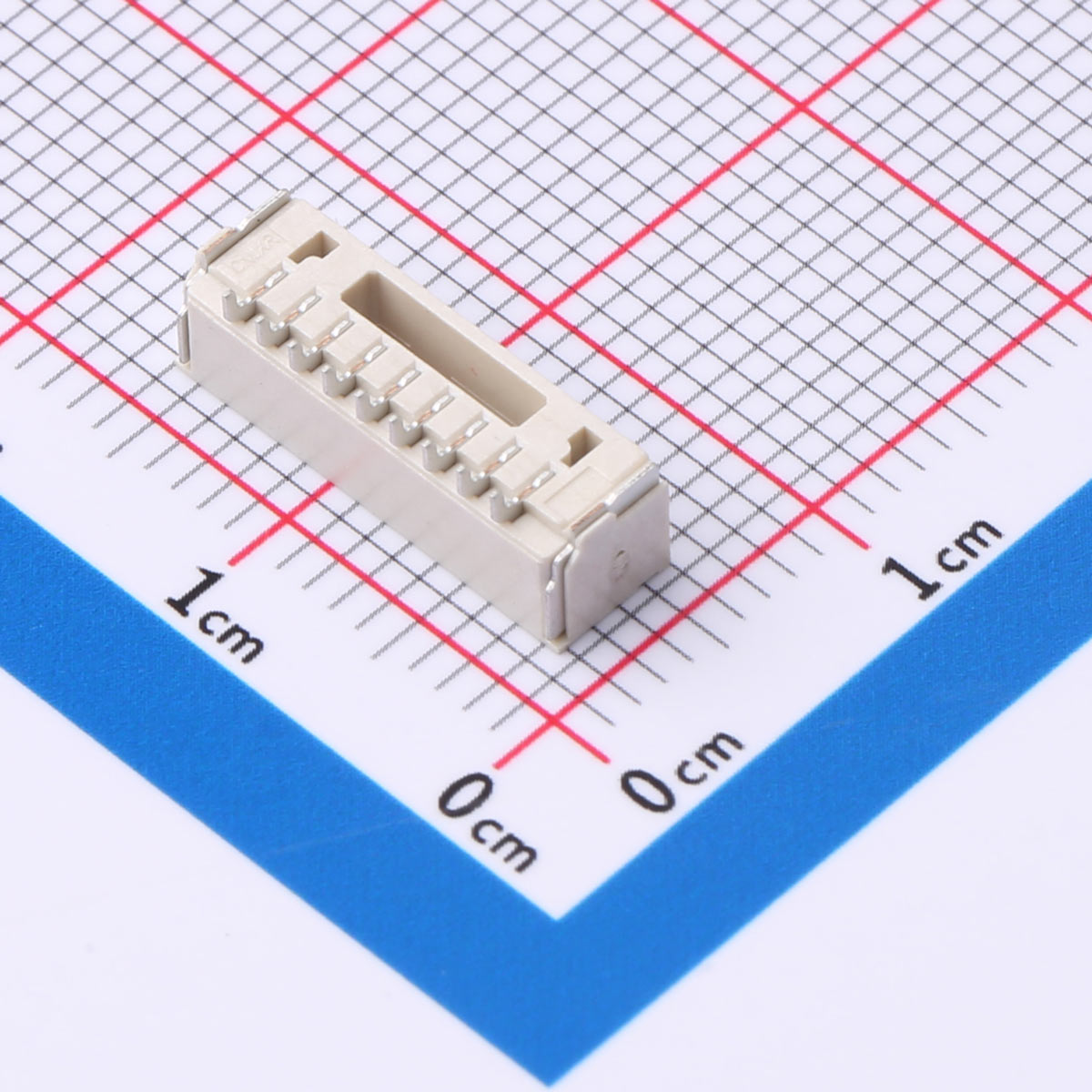

Wire-to-Board Connector, 1.25mm Pitch, 1x9P, SMD, KH-A1252RS-9P

Wire-to-Board Connector, 1.25mm Pitch, 1x9P, SMD, KH-A1252RS-9P

Current Rating: 1A AC,DC
Voltage Rating: 100V AC,DC
Temperature Range: -25°C to +85°C
Contact Resistance: 30mΩ Max
Insulation Resistance: 100MΩ Min

Inquiry Datasheet

Product Details

Product Features
● 1.25mm pitch, single row, 9 positions
● Surface Mount Device (SMD) type
● Horizontal mounting configuration
● Rated current: 1A AC/DC
● Rated voltage: 100V AC/DC
● Operating temperature: -25°C to +85°C
● Contact resistance: Max 30mΩ
● Insulation resistance: Min 100MΩ

Product Benefits
● Excellent for compact, low-pin designs
● Reliable and stable electrical connection
● Automated assembly process compatibility
● Horizontal mounting saves valuable space
● Performs reliably under extreme conditions

Product Applications
● Consumer electronics
● Miniature sensors
● Power supplies
● Industrial controllers
● LED modules
