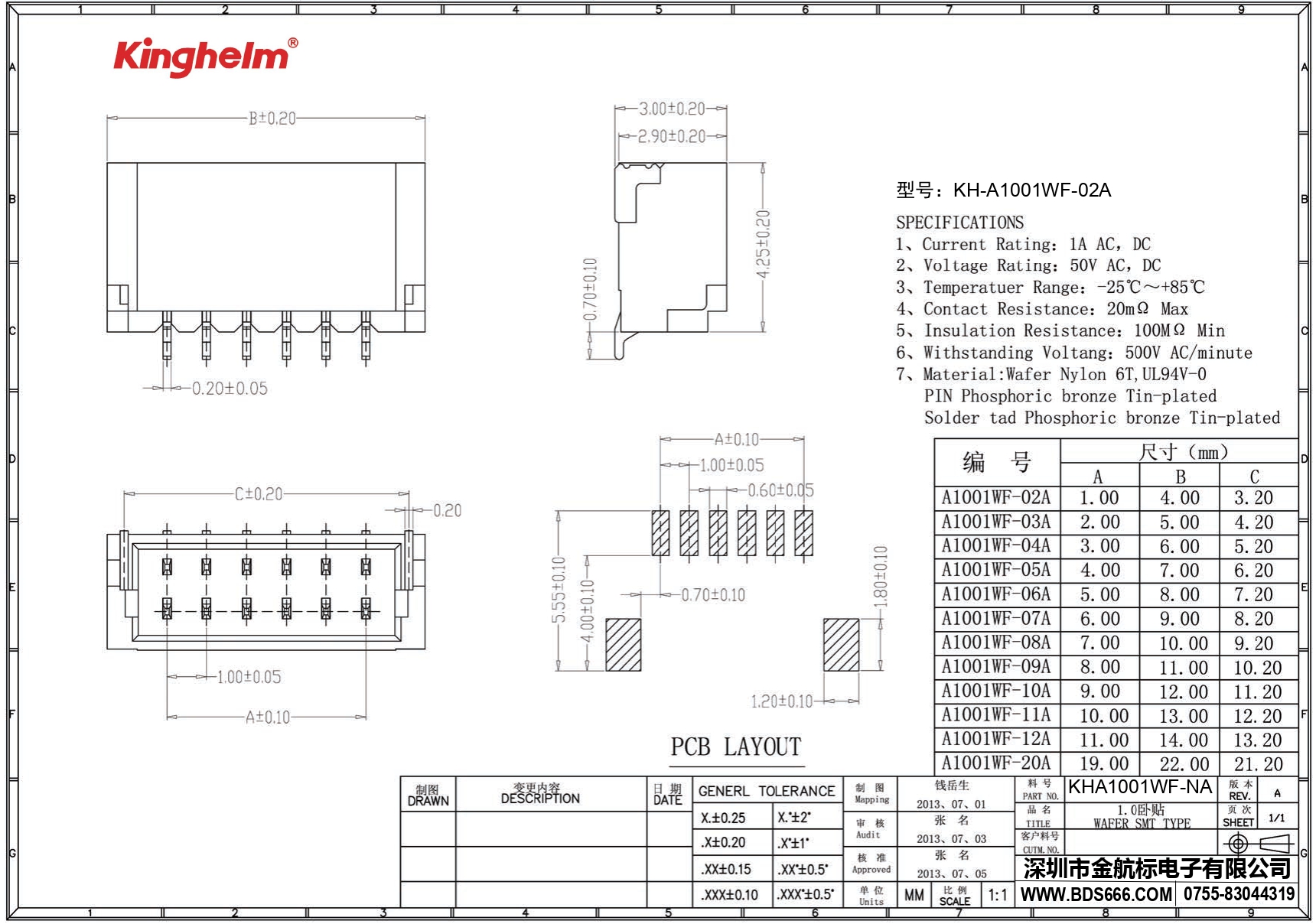

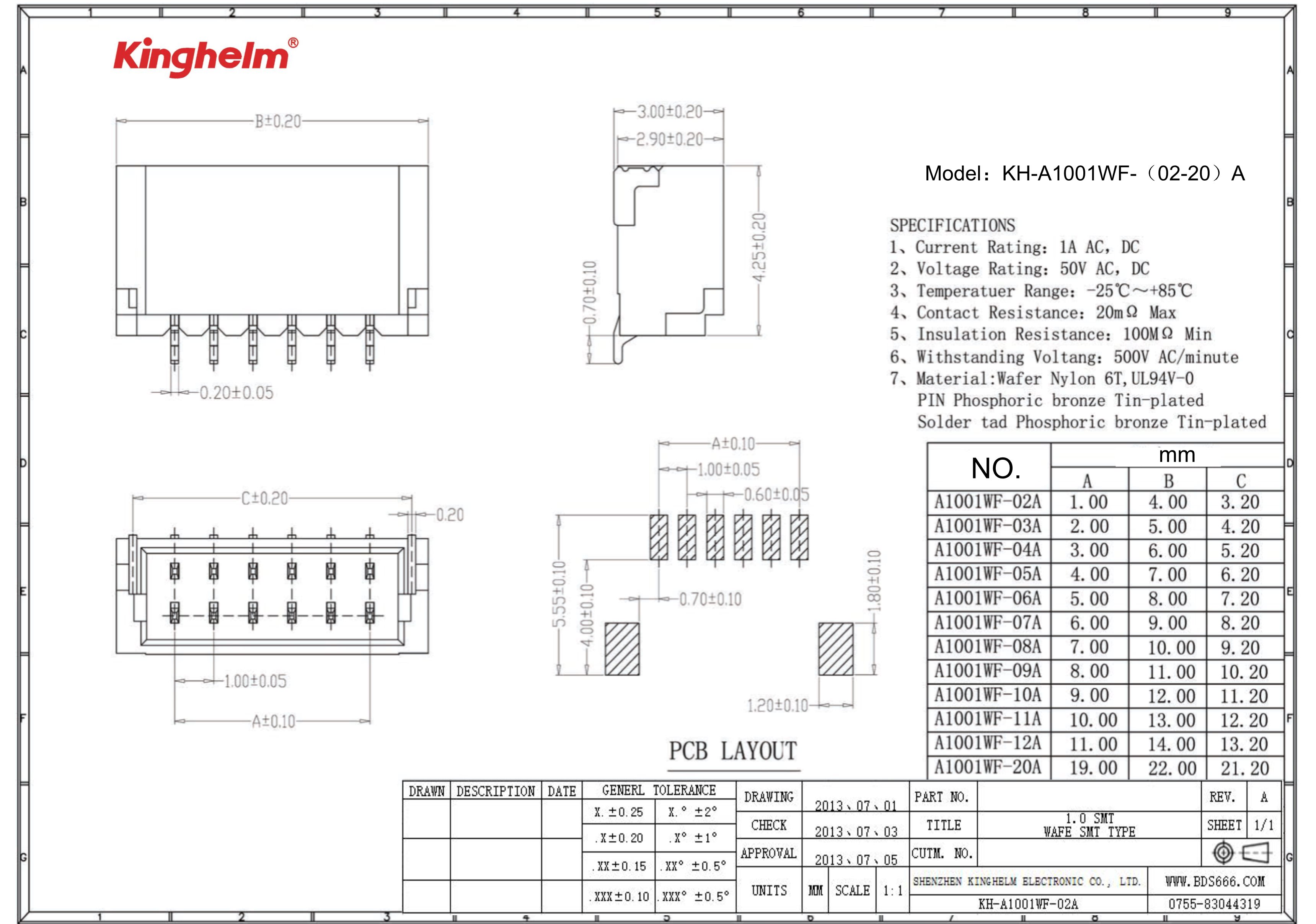

Wire to Board Connector, 1mm Pitch, 1x2P, SMD, KH-A1001WF-02A
Current Rating: 1A AC/DC
Voltage Rating: 50V AC/DC
Temperature Range: -25℃ to +85℃
Contact Resistance: 20mΩ Max
Insulation Resistance: 100MΩ Min
Product Features
● 1.0mm pitch
● 1x2P single row
● Right angle SMD type
● Temperature range: -25℃ to +85℃
● Current rating: 1A
● Voltage rating: 50V AC/DC
Product Benefits
● Compact and low profile
● Supports horizontal connections
● Compatible with SMT lines
● Stable contact performance
● Suitable for compact designs
Product Applications
● Battery connectors
● LED terminals
● Sensor links
● Wireless gadgets
● Embedded modules
