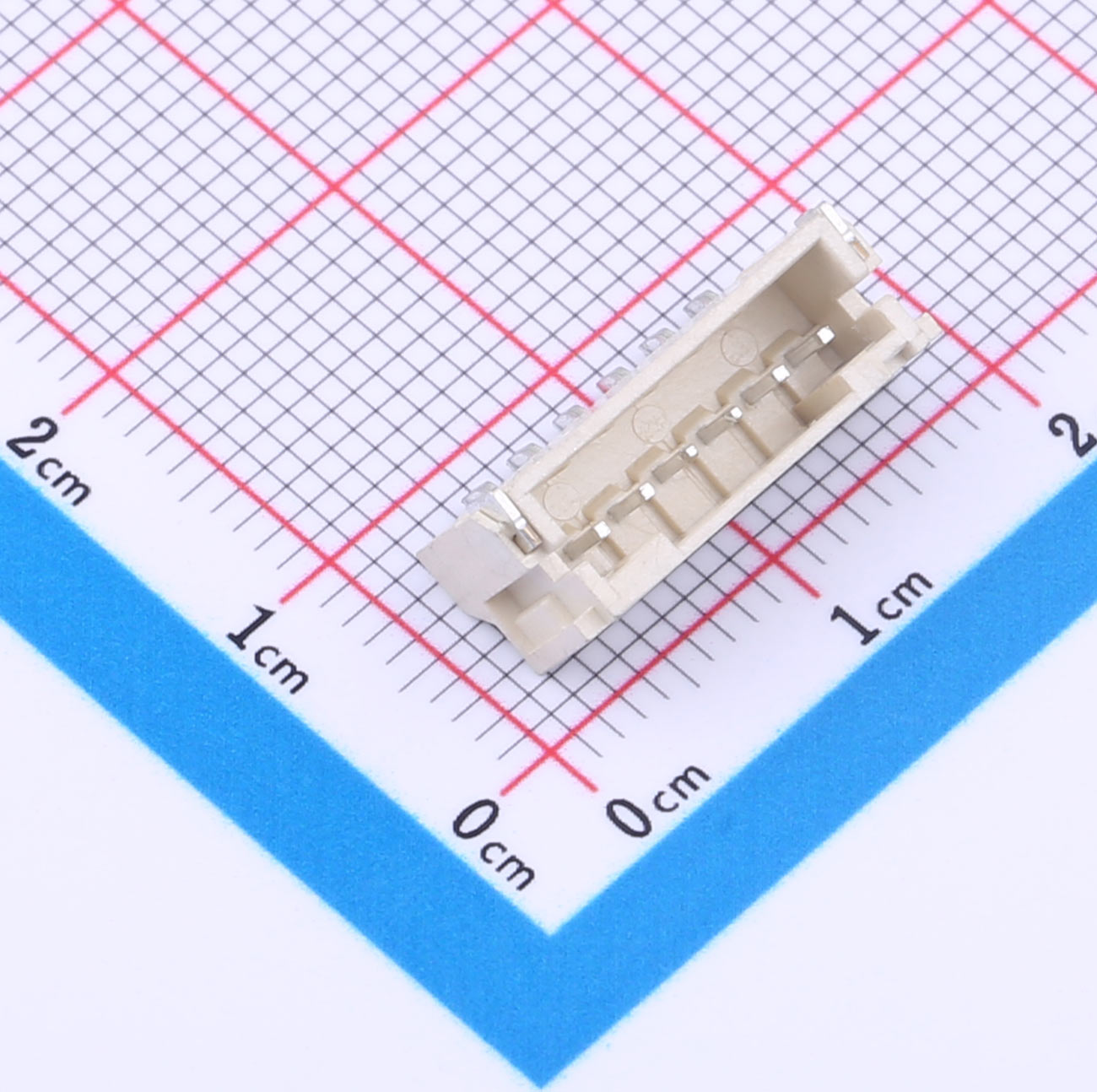

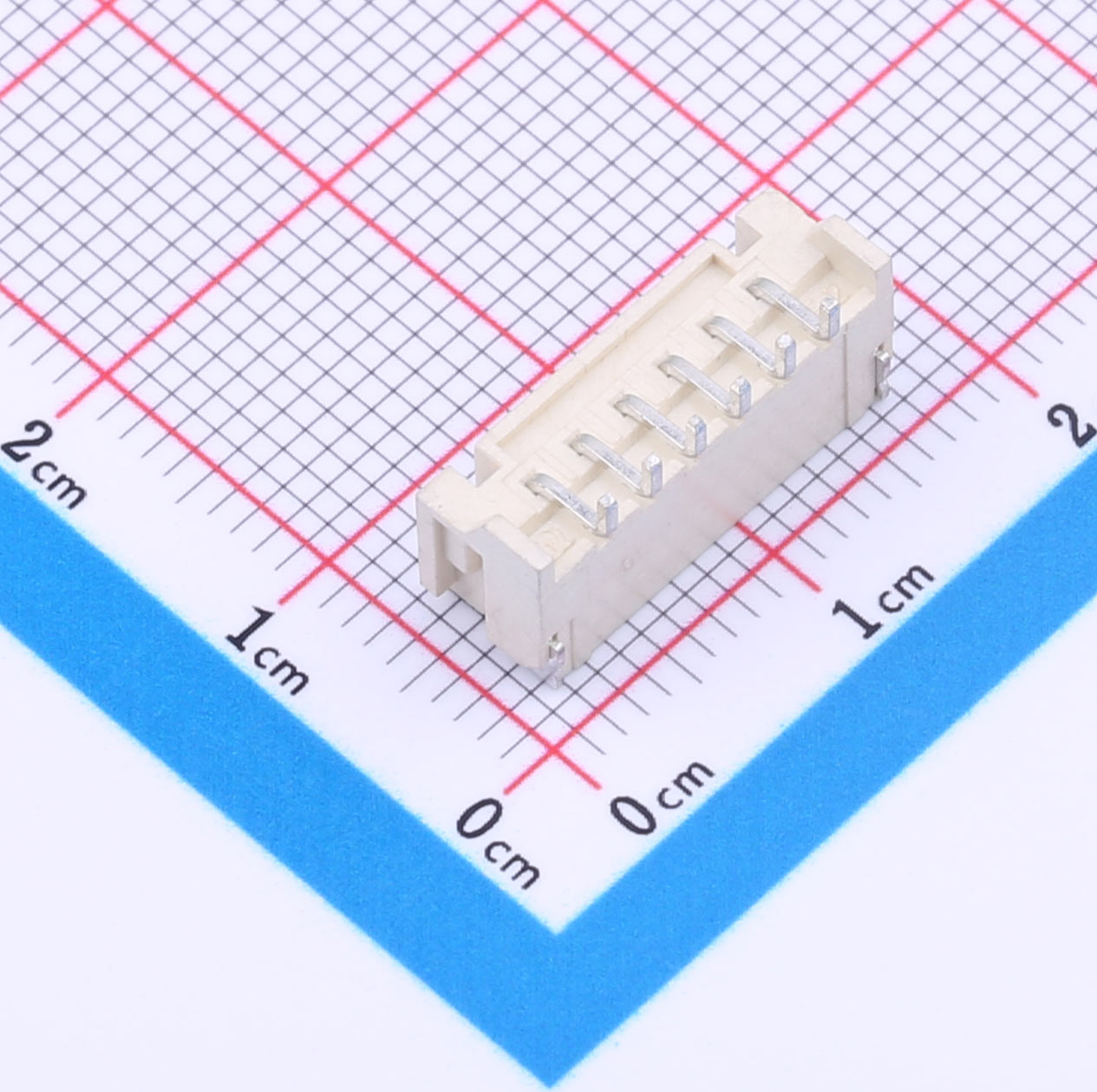

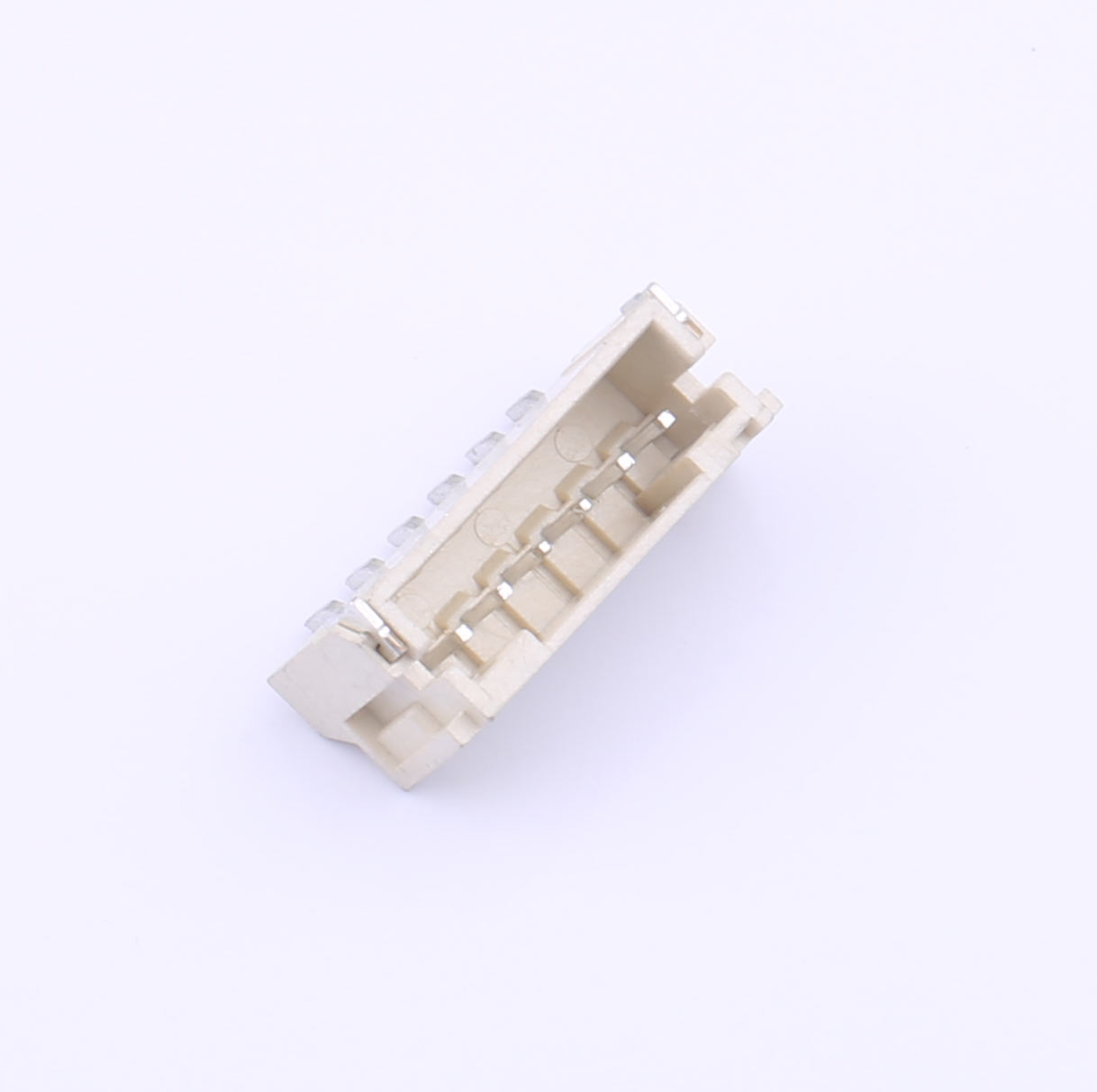

Wire-to-Board Connector, 2mm Pitch, 1x6P, SMD, KH-A2001WF-06A

Current Rating: 2A AC/DC
Voltage Rating: 250V AC/DC
Temperature Range: -25℃ ~ +85℃
Contact Resistance: 20mΩ Max
Insulation Resistance: 1000MΩ Min

Product Details

Product Features
● 2.0mm pitch for compact design
● 1x6P pin layout
● Surface mount (SMD) mounting type
● PH series compatible structure
● Reliable tin-plated terminals
● Single-row, 6-pin configuration

Product Benefits
● Space-saving for high-density PCB layouts
● Easy SMT processing
● Stable signal and current transmission
● Compatible with standard PH connector housings
● Operates in a wide temperature range (-25℃ to +85℃)
● Rated for up to 2A current

Product Applications
● Consumer electronics
● LED lighting systems
● Office automation equipment
● Small appliances
● Industrial control modules
● Communication devices
