Wire to Board Connector, VH connector, 3.96mm Pitch, 1x3P, KH-VH-3P-Z

Wire to Board Connector, VH connector, 3.96mm Pitch, 1x3P, KH-VH-3P-Z

Current Rating: 7A AC/DC
Voltage Rating: 250V AC/DC
Temperature Range: -25℃ to +85℃
Contact Resistance: 20mΩ Max
Insulation Resistance: 1000MΩ Min

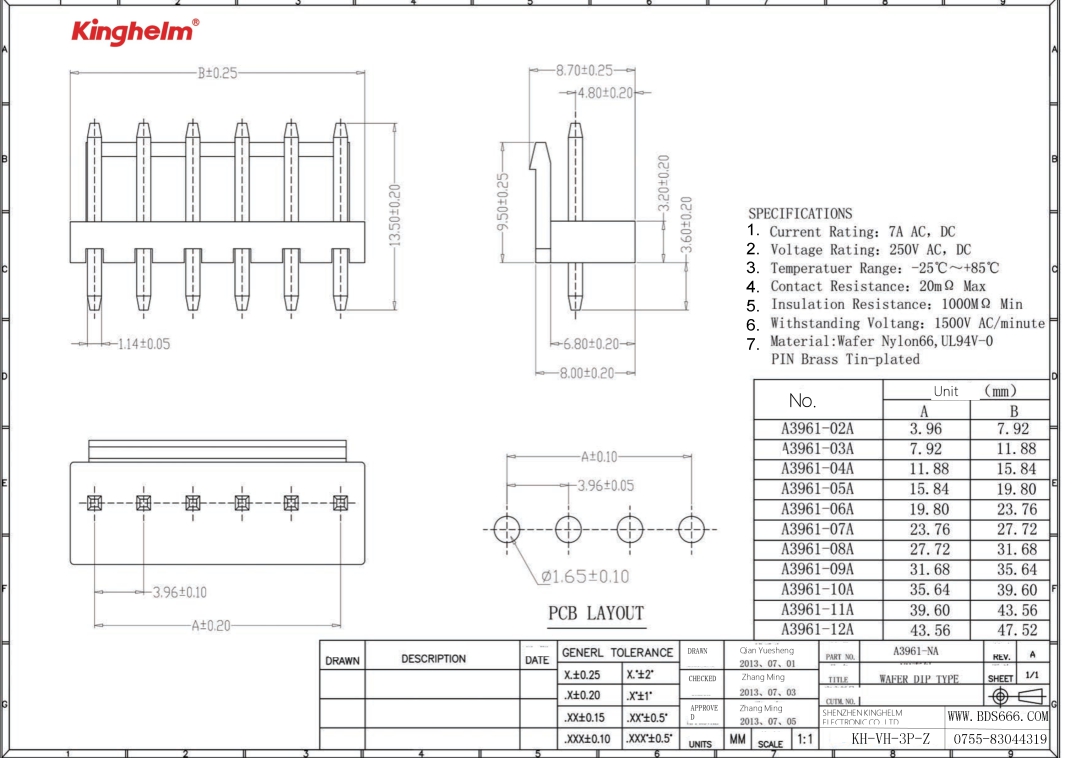

Inquiry Datasheet

Product Details

Product Features
● 3.96mm pitch, VH series
● 1x3P, single row
● Straight mount type
● Plugin style connector
● 7A current rating
● -25℃ to +85℃ operating range

Product Benefits
● Stable current capacity
● Easy PCB installation
● Compact 3-pin layout
● Reliable electrical contact
● Cost-effective solution

Product Applications
● Power wiring in small appliances
● Control boards in air purifiers
● Signal wiring in LED modules
● Internal wiring in thermostats
● Connection in sensor devices
