Product Description:

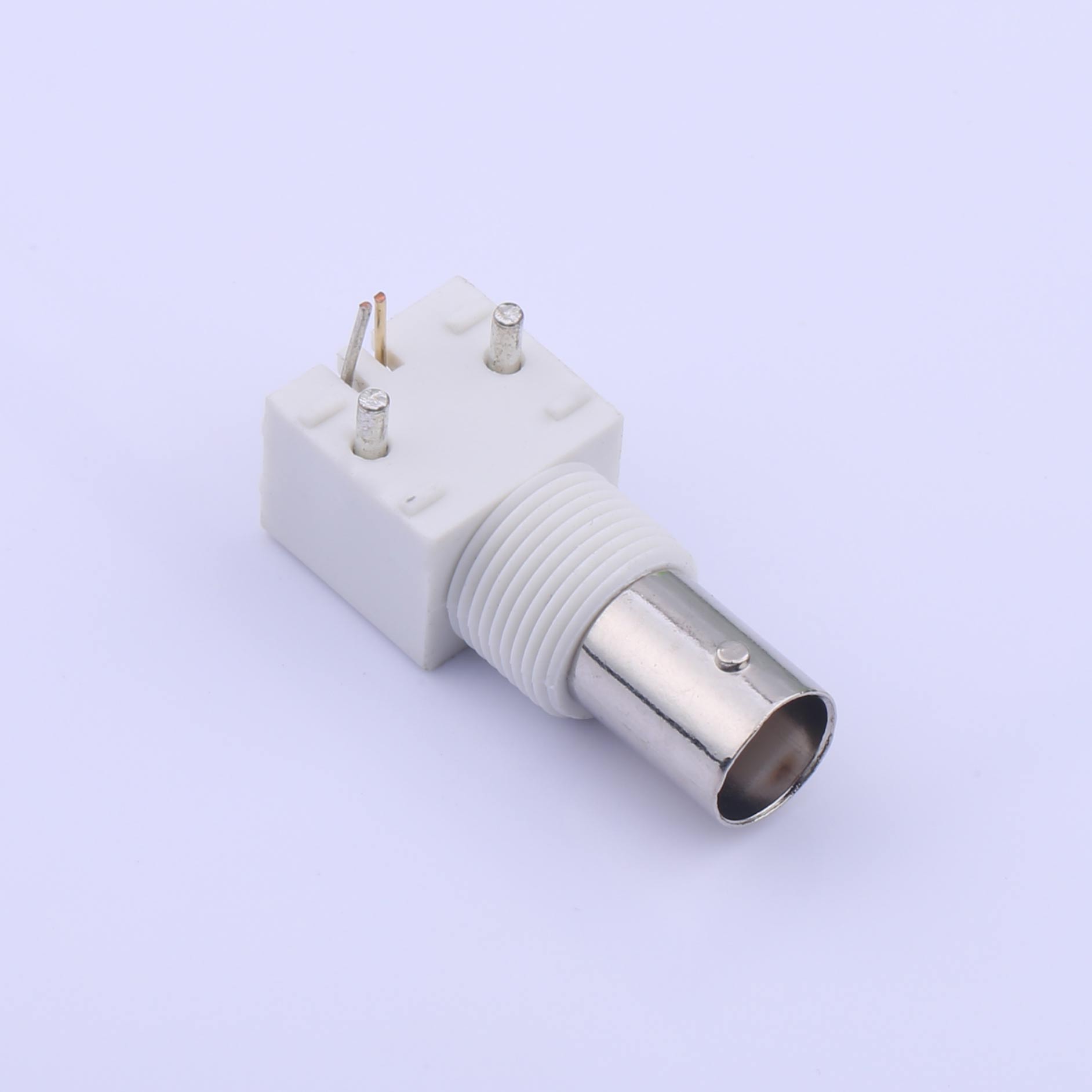

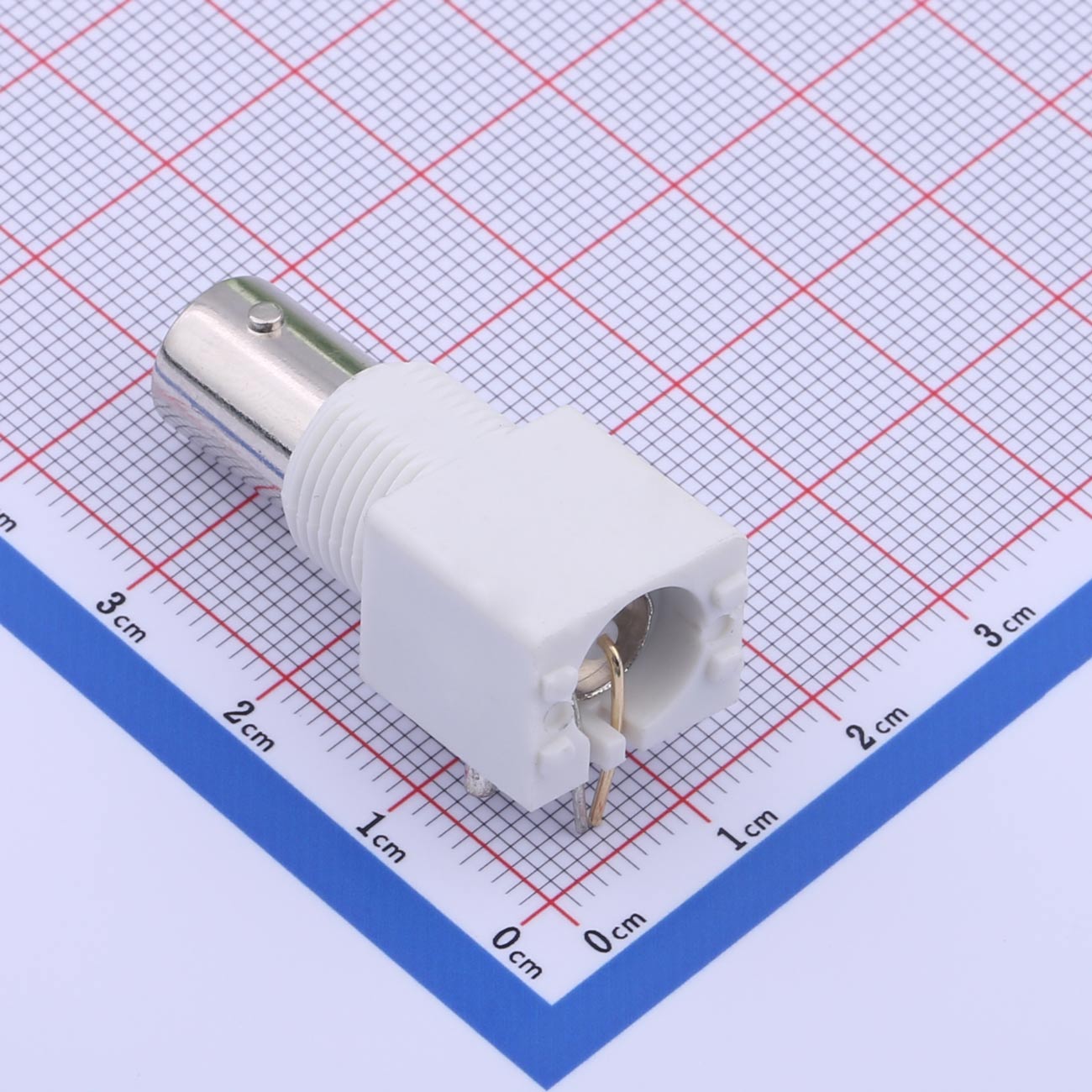

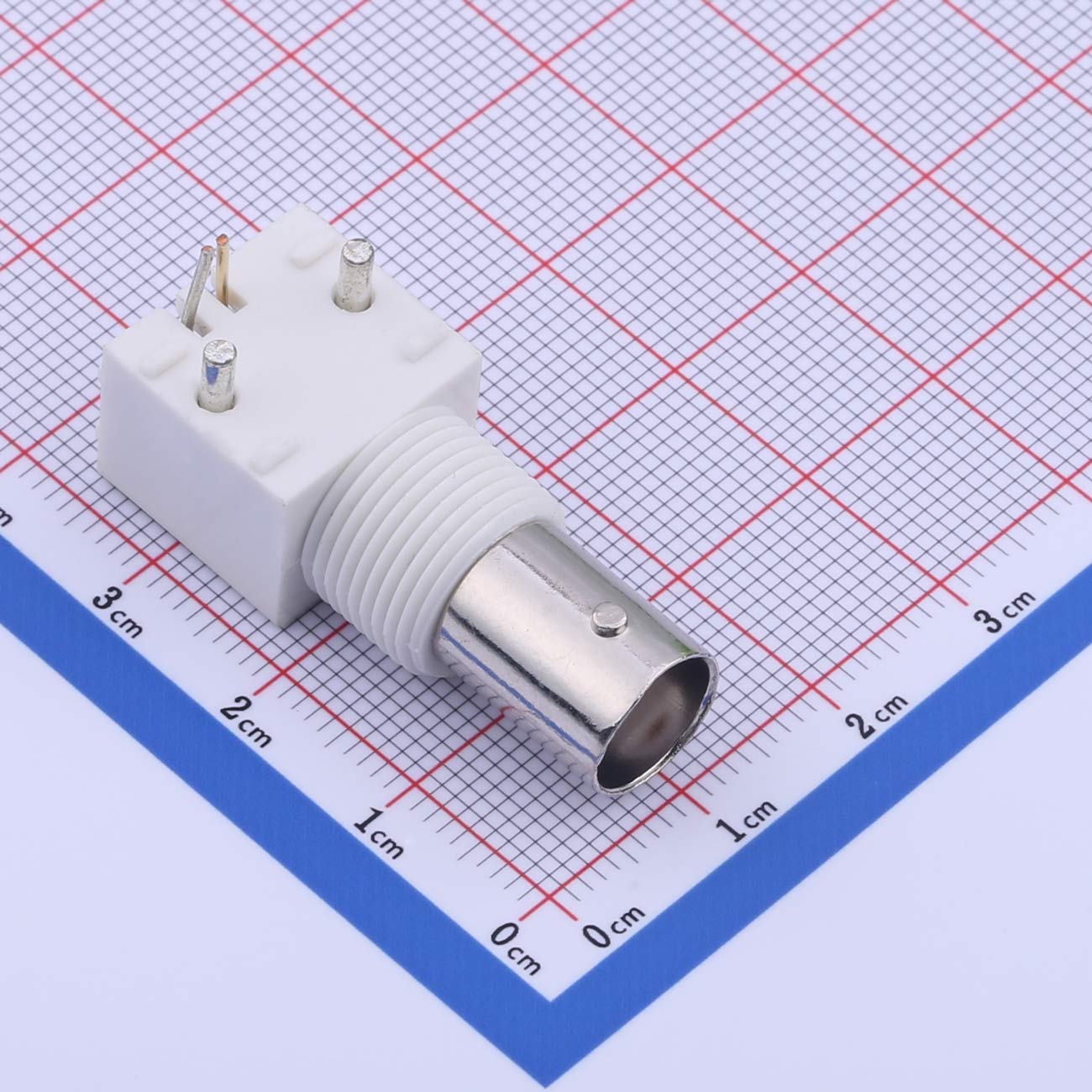

The Kinghelm BNC Connector RF Coaxial Connector Diameter 9.5 mm - KH-BNC50-3511 is a high-quality product designed for use in electronic devices that require high-frequency signal transmission. It is commonly used in communication equipment, such as antennas, transmitters, and receivers.
This connector is made of high-quality materials, including a gold-plated brass body and a PTFE insulator, which ensures excellent electrical performance and durability. It is compatible with BNC connectors and can be easily installed on the PCB board.
The KH-BNC50-3511 connector has an impedance of 50 Ohms, a frequency range of DC to 3 GHz, and a maximum VSWR of 1.3. It also has a working voltage of 500V rms at sea level and an insulation resistance of 5000 Ohms min. The temperature range for this connector is -55℃ to +155℃, and the relative temperature is ≤95%(40° C±2°C). The product is also in line with ROHS standards.
Overall, the Kinghelm BNC Connector RF Coaxial Connector Diameter 9.5 mm - KH-BNC50-3511 is a reliable and high-performance product that can meet the demands of various electronic devices that require high-frequency signal transmission.

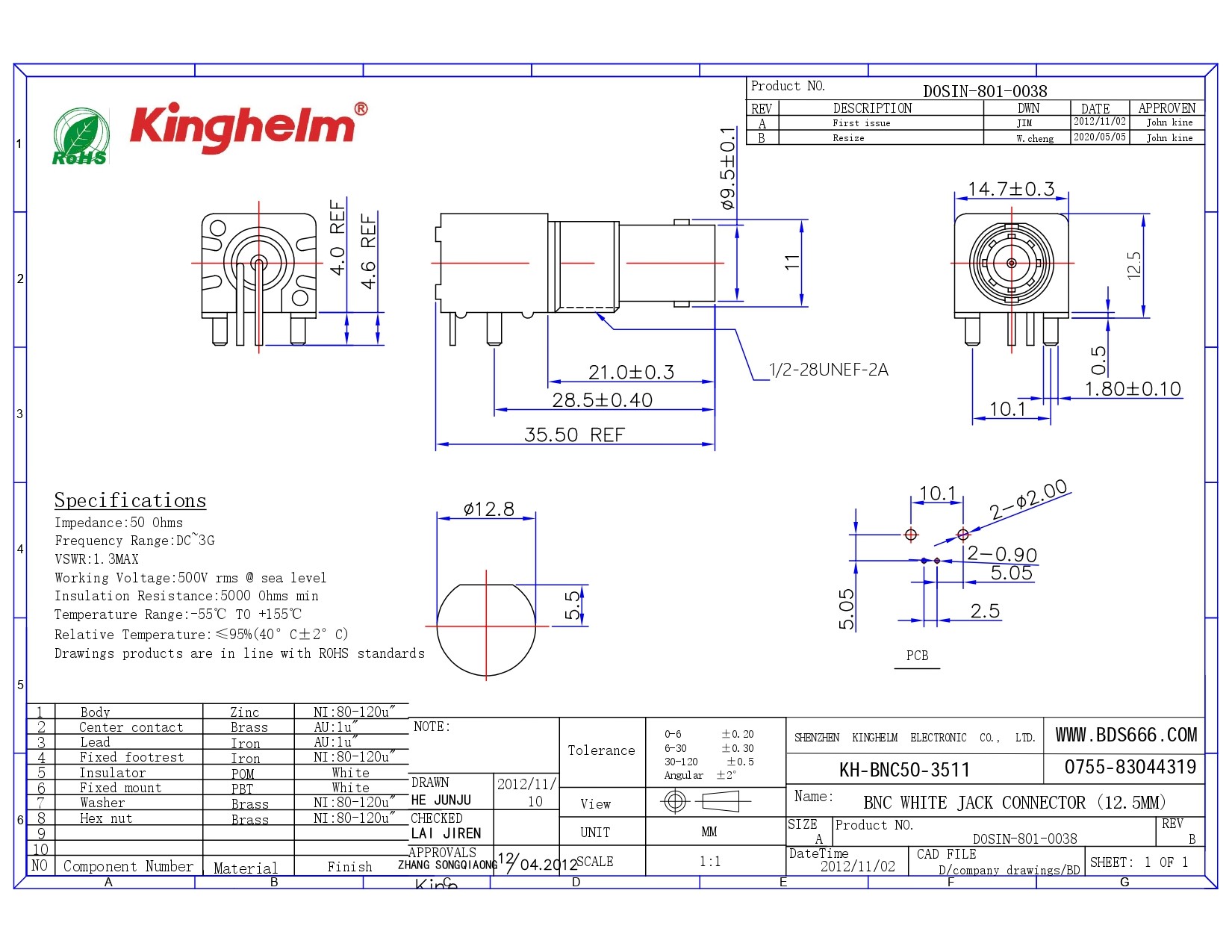

Product Specifications:
Specifications |
|
Impedance |
50 Ohms |
Frequency Range |
DC~3G |
VSWR |
1.3 MAX |
Working Voltage |
500V rms @ sea level |
Insulation Resistance |
5000 Ohms min |
Temperature Range |
-55℃ TO +155℃ |
Relative Temperature |
≤95%(40° C±2°C) |
