Home -Products -RF Series -Beidou/GPS GNSS Antenna -Kinghelm GNSS Glonass Antenna Positioning Antenna Frequency Range: 1575.42±2MHz - KH1GPC-01
Kinghelm GNSS Glonass Antenna Positioning Antenna Frequency Range: 1575.42±2MHz - KH1GPC-01 Kinghelm GNSS Glonass Antenna Positioning Antenna Frequency Range: 1575.42±2MHz - KH1GPC-01
Kinghelm GNSS Glonass Antenna Positioning Antenna Frequency Range: 1575.42±2MHz - KH1GPC-01
Antenna frequency can be customized.

Product Details

Product Description:

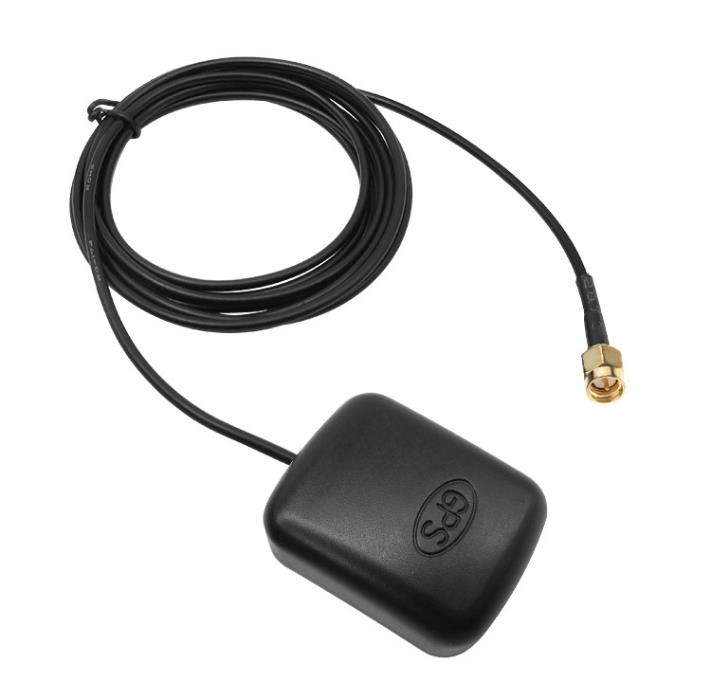

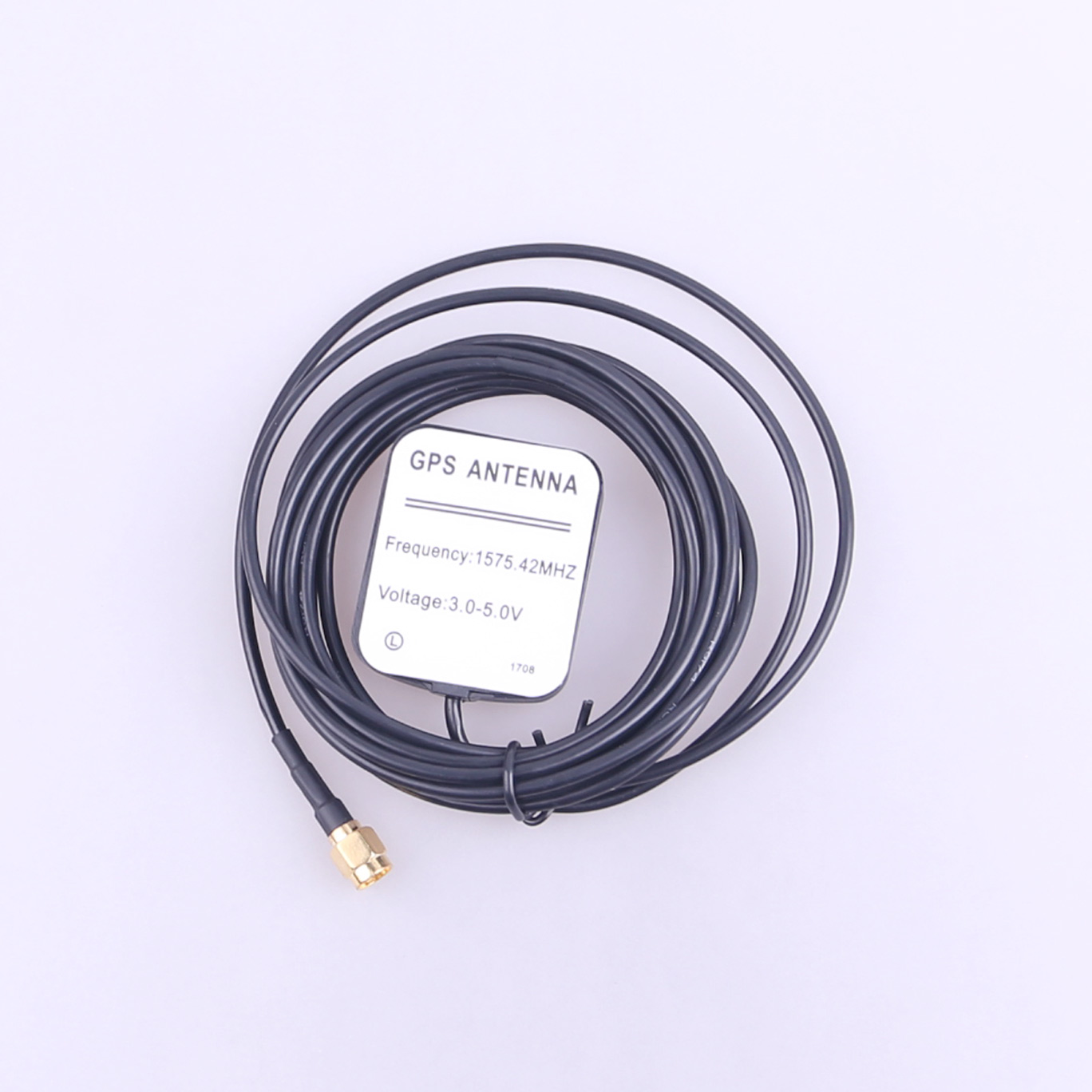

The Kinghelm GNSS Glonass Antenna (KH1GPC-01) is a high-performance positioning antenna designed for use with GNSS systems. It is an external antenna that can be easily mounted on a variety of surfaces, making it ideal for use in a wide range of applications.


Product Features:

-High-performance GNSS positioning antenna

-Supports both GPS and Glonass systems

-Frequency range of 1575.42±2MHz

-External antenna design for easy mounting

-Compact and lightweight design


Product Specifications:

Antenna Type

 GNSS Antenna

Frequency Range

 1575.42±2MHz

Impedance

 50Ω

VSWR

 ≤1.5

Polarization

 RHCP

Gain

 28±2dB

Noise Figure

 ≤1.5dB

Operating Temperature

 -40°C to +85°C

Connector Type

 SMA Male

Cable Length

 5m

Dimensions

 46mm x 46mm x 15mm

Weight

 50g


Applications Areas:
The Kinghelm GNSS Glonass Antenna is ideal for use in a wide range of applications, including:

Precision agriculture/Surveying and mapping/Fleet management/Asset tracking/Navigation systems/Timing and synchronization


Brand Certifications:
Kinghelm is a trusted brand in the GNSS industry, with a reputation for producing high-quality and reliable products. The KH1GPC-01 antenna is certified by FCC, CE, and RoHS, ensuring that it meets the highest standards of quality and safety.


Product Packaging:
The Kinghelm GNSS Glonass Antenna (KH1GPC-01) comes in a compact and durable package, designed to protect the antenna during shipping and storage. The package includes the antenna, a 5m cable, and a user manual.

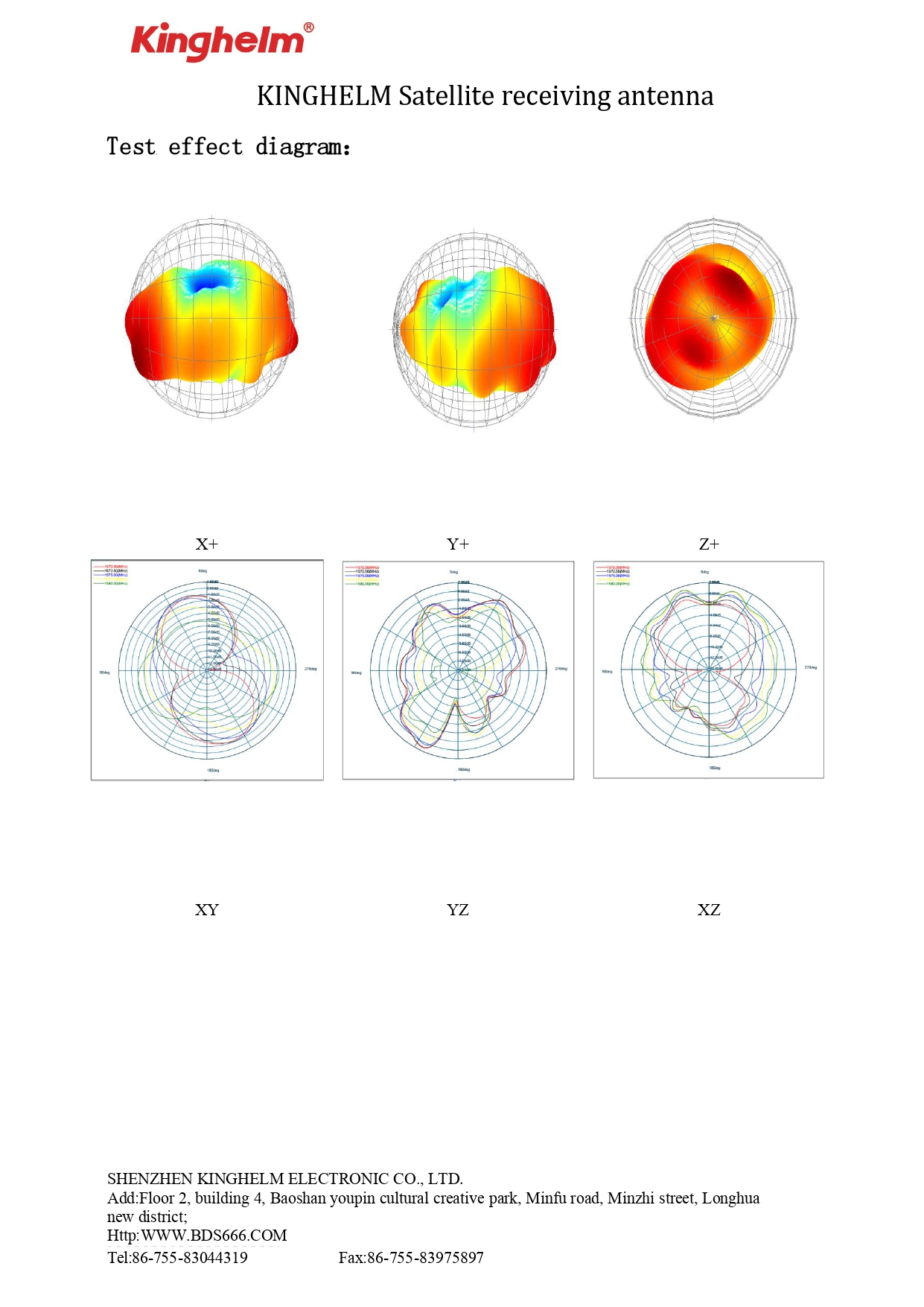

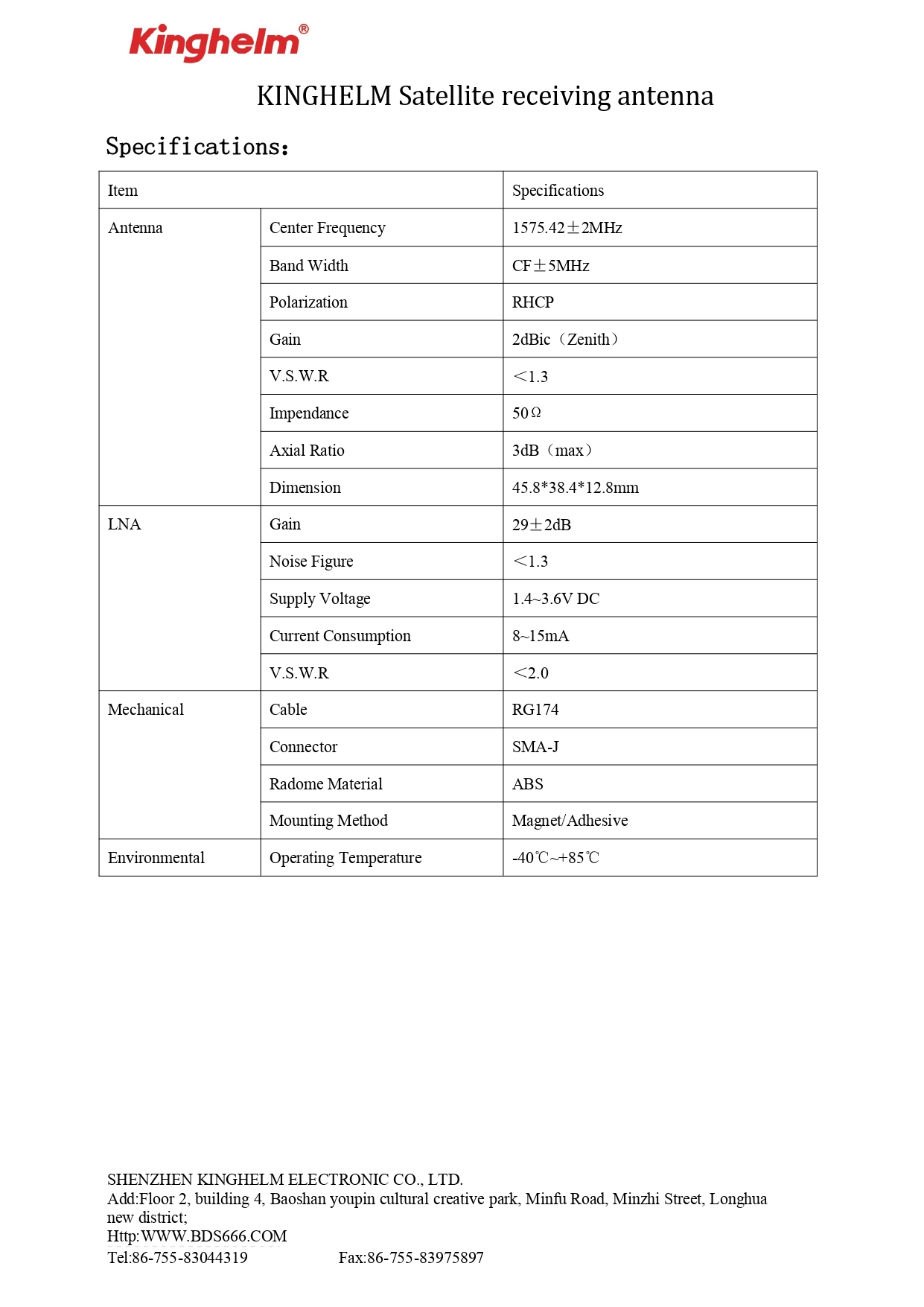

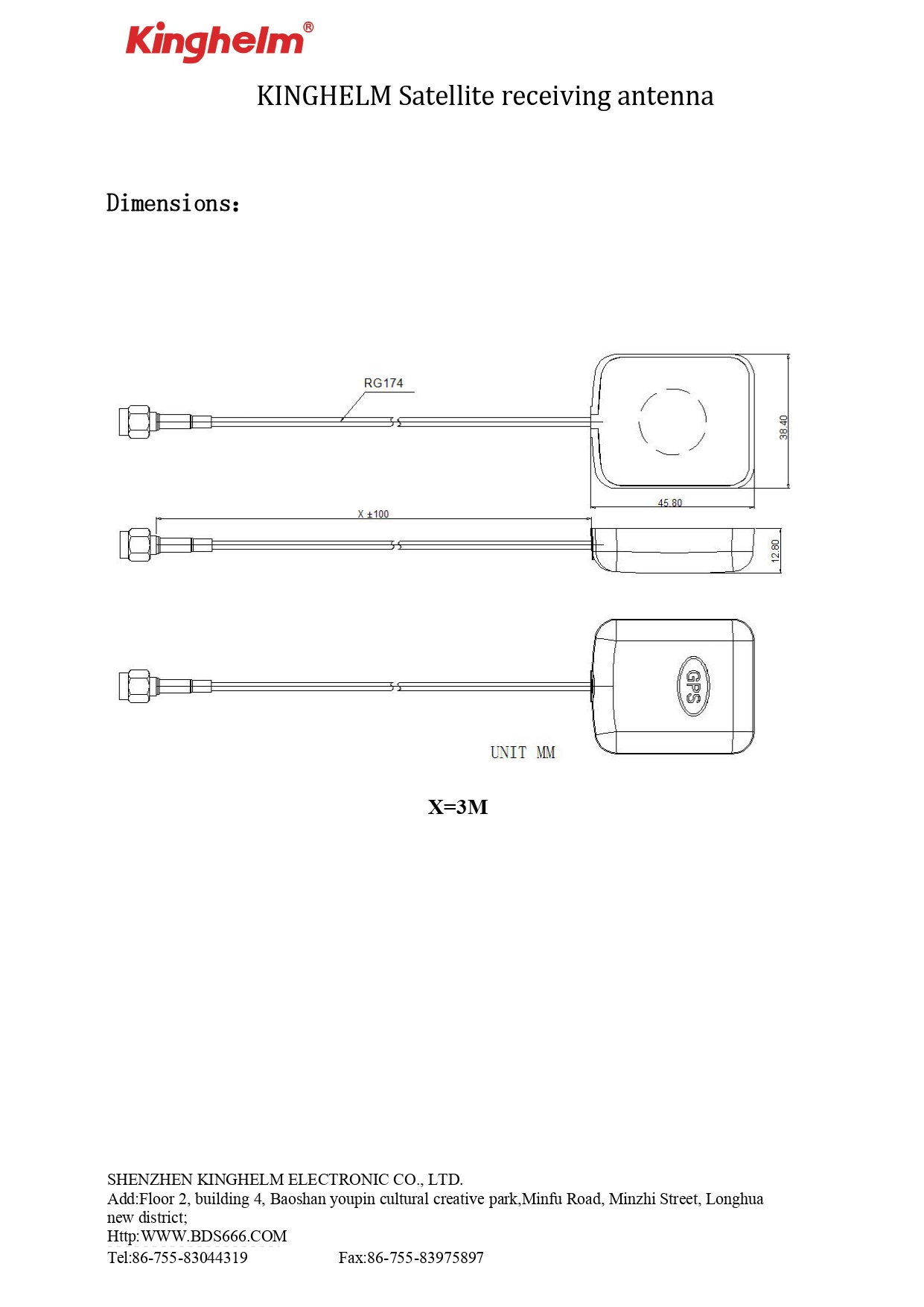

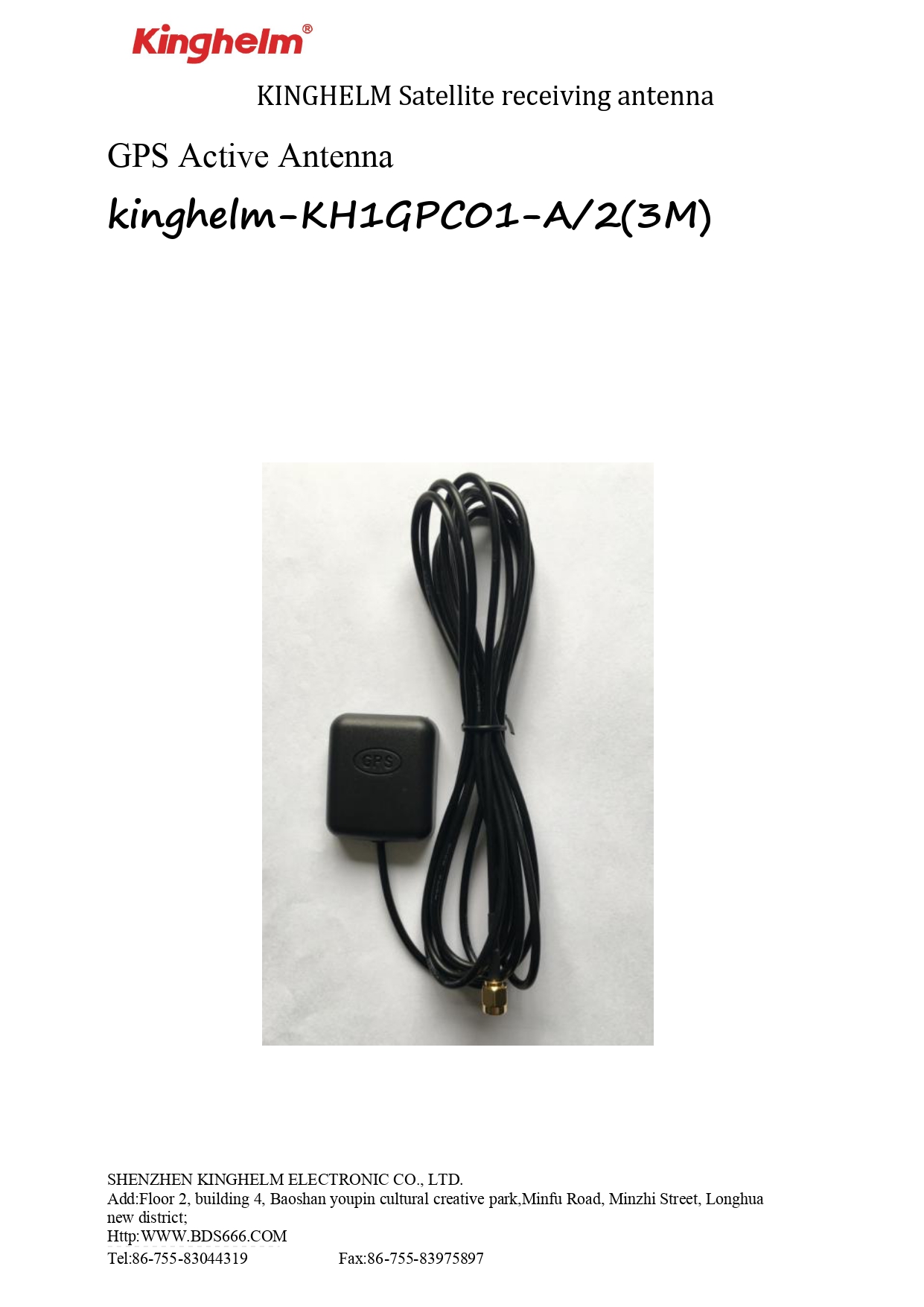

KH1GPC-01_page-0004.jpgKH1GPC-01_page-0003.jpgKH1GPC-01_page-0002.jpgKH1GPC-01_page-0001.jpg
