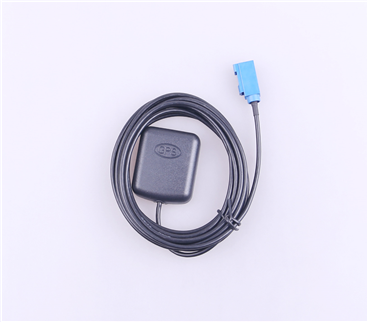

Kinghelm GNSS GPS Antenna Wifi WLAN Antenna 2 in 1- KH-GNSS.WLAN-FAKRA-L3M

Brand: KINGHELM
Factory Model: KH-GNSS.Wlan-FAKRA-L3M
Package: SMD, 93x46mm
Gross Weight: 176 grams (g)

Contact Download

Product Details

Product Description:
The Kinghelm GNSS GPS Antenna Wifi WLAN Antenna 2 in 1- KH-GNSS.WLAN-FAKRA-L3M is a high-performance antenna designed for use in various applications. It is a combination of a GNSS GPS antenna and a Wifi WLAN antenna, making it a versatile and efficient solution for wireless communication and positioning.

Product Features:

-Dual-function antenna: GNSS GPS and Wifi WLAN

-High gain and low noise amplifier

-FAKRA connector for easy installation

-Compact and lightweight design

-Wide operating temperature range

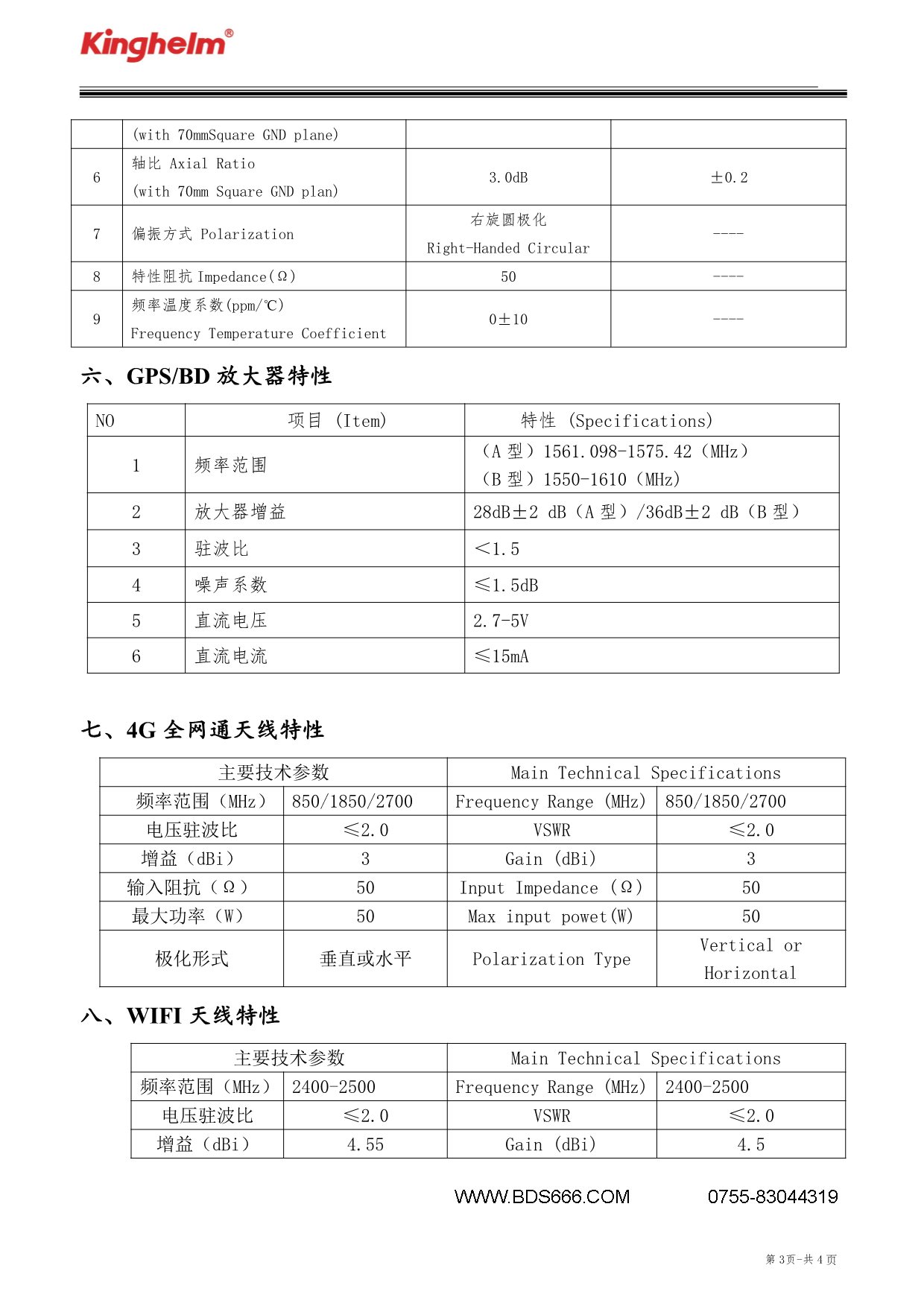

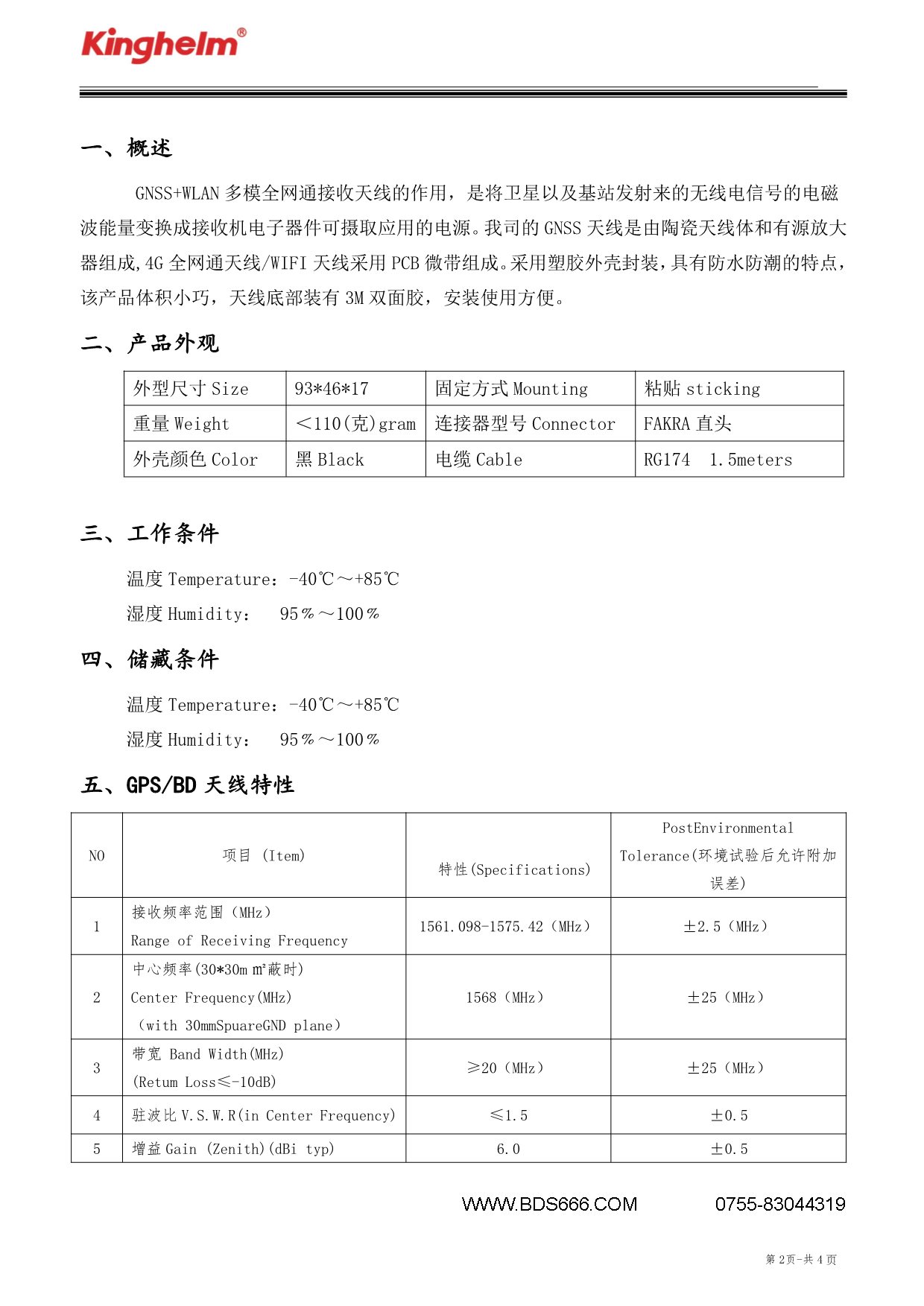

Product Specifications:

Frequency range
GNSS GPS	1575.42MHz
Wifi WLAN	2.4GHz/5.8GHz
Gain
GNSS GPS	28dB;
Wifi WLAN	5dBi
Noise figure
GNSS GPS	≤1.5dB;
Wifi WLAN	≤2.0dB
Impedance	50Ω
VSWR	≤1.5
Operating temperature	-40°C to +85°C
Connector	FAKRA-L3M
Dimensions	93x46mm
Weight	176g

Application Areas:
The Kinghelm GNSS GPS Antenna Wifi WLAN Antenna 2 in 1- KH-GNSS.WLAN-FAKRA-L3M is suitable for a wide range of applications, including vehicle tracking, navigation, wireless communication, and more.

Brand Certificate:
Kinghelm is a reputable brand that specializes in the design and manufacture of high-quality antennas. Our products are certified by various international standards, ensuring their reliability and performance.

Product Packaging:
The Kinghelm GNSS GPS Antenna Wifi WLAN Antenna 2 in 1- KH-GNSS.WLAN-FAKRA-L3M is packaged in an SMD package, measuring 93x46mm. The gross weight of the package is 176g, making it easy to transport and store .

KH-GNSS.WLAN-Fakra-L3M-1.jpg KH-GNSS.WLAN-Fakra-L3M-2.jpg KH-GNSS.WLAN-Fakra-L3M-3.jpg KH-GNSS.WLAN-Fakra-L3M-4.jpg KH-GNSS.WLAN-Fakra-L3M-5.jpg
