Home -Product -RF Series -RF Cable Assembly -IPEX to SMA -Kinghelm Coaxial connector Rotor RF, IPEX to SMA gold-plated external thread inner hole, RG178, L 150mm, four-piece set - KHB(RG178)-150-28

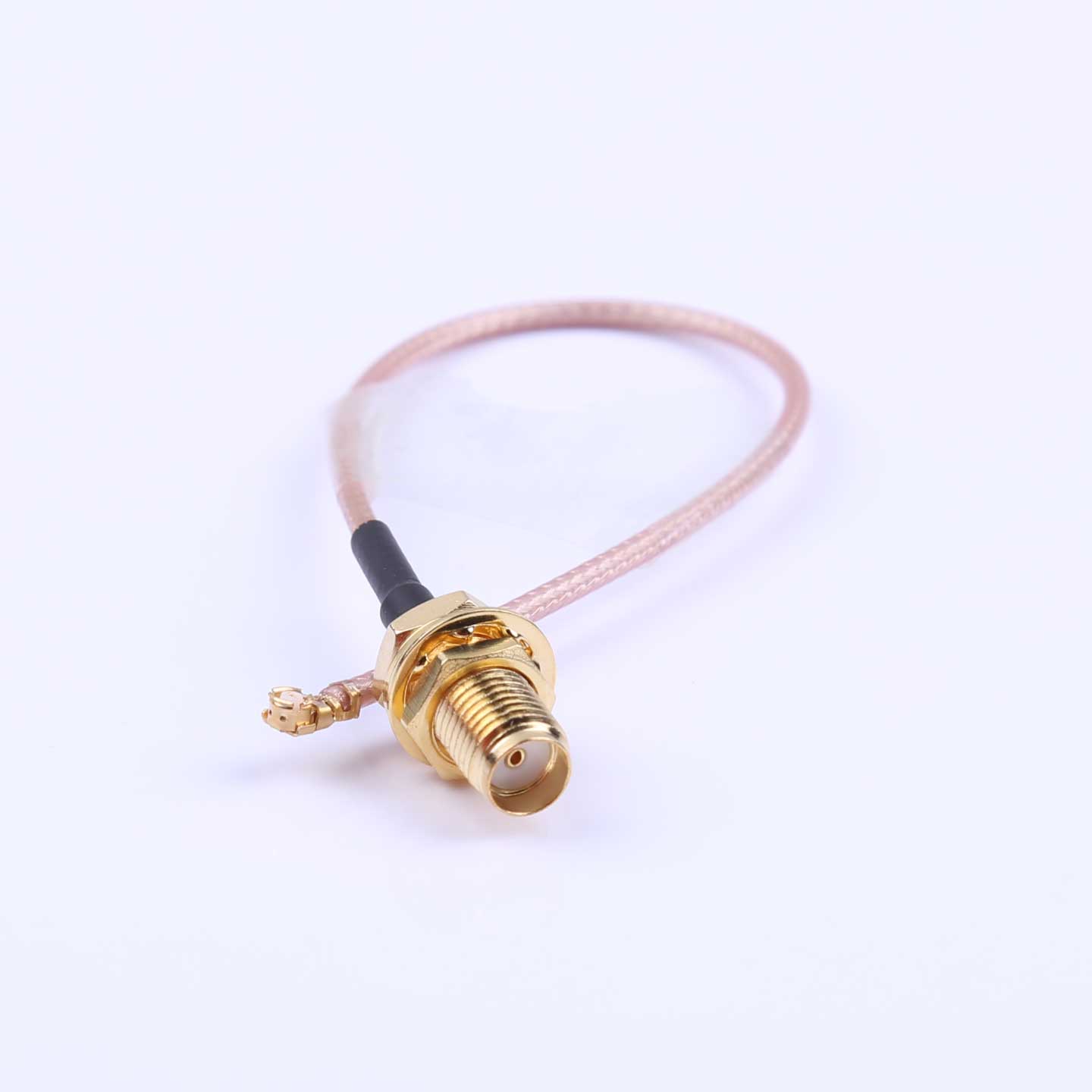

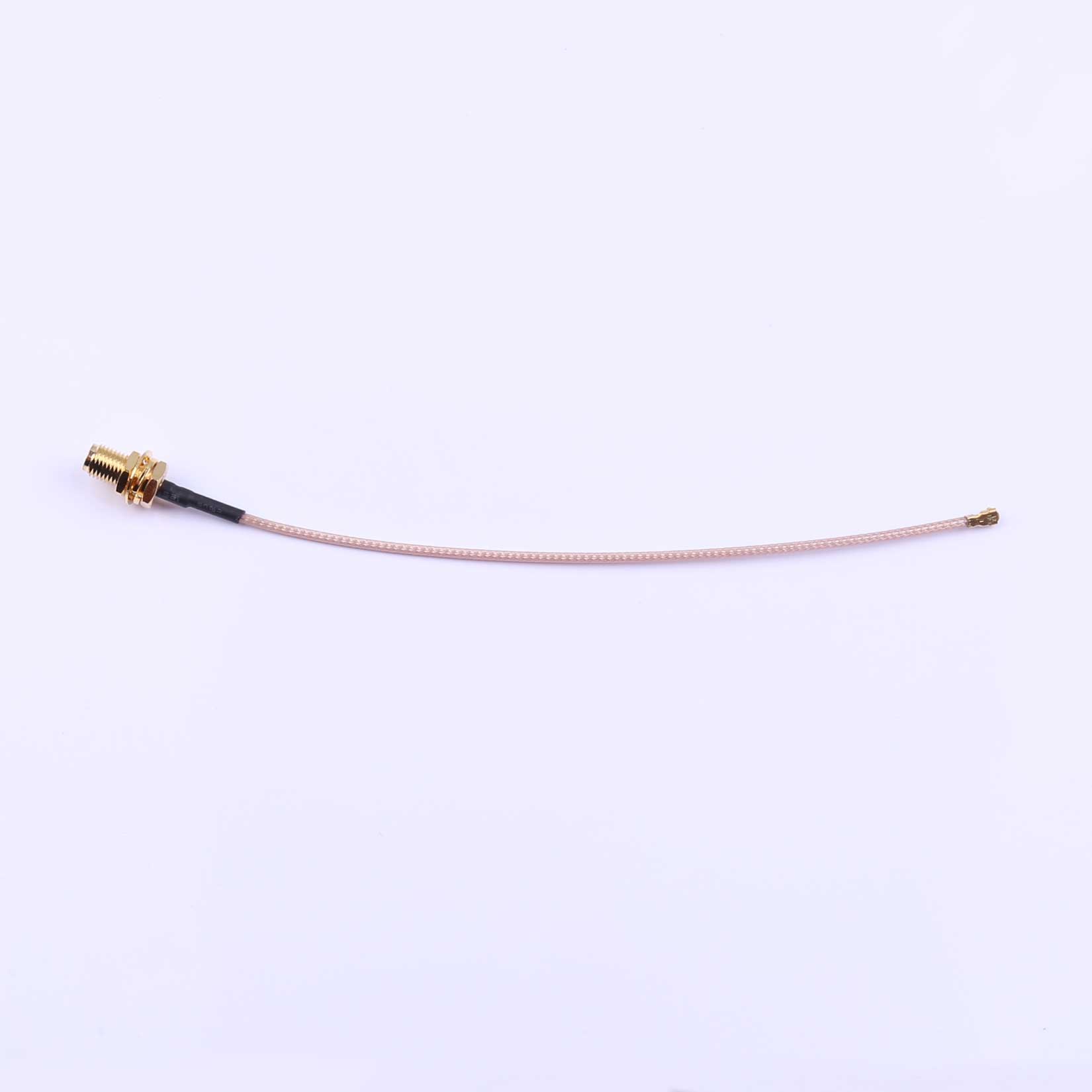

Kinghelm Coaxial connector Rotor RF, IPEX to SMA gold-plated external thread inner hole, RG178, L 150mm, four-piece set - KHB(RG178)-150-28 Kinghelm Coaxial connector Rotor RF, IPEX to SMA gold-plated external thread inner hole, RG178, L 150mm, four-piece set - KHB(RG178)-150-28 Kinghelm Coaxial connector Rotor RF, IPEX to SMA gold-plated external thread inner hole, RG178, L 150mm, four-piece set - KHB(RG178)-150-28
Kinghelm Coaxial connector Rotor RF, IPEX to SMA gold-plated external thread inner hole, RG178, L 150mm, four-piece set - KHB(RG178)-150-28
Brand: KINGHELM
Manufacturer Model: KHB(RG178)-150-28
Gross Weight: 4.38 grams (G)

Product Details

Product Description:



Electrical Specifications:



●Voltage Rating: DC 300V for 10 milliseconds

●Conductance Resistance: Maximum of 3.0 ohms

●Insulation Resistance: Minimum of 5.0 megaohms

●Quality Assurance: The cable undergoes a 100% electrical test to ensure its reliability.

●Reliability Standards: The cable is designed to have no open/short circuits, miswiring, or intermittent failures.


Material Specifications:

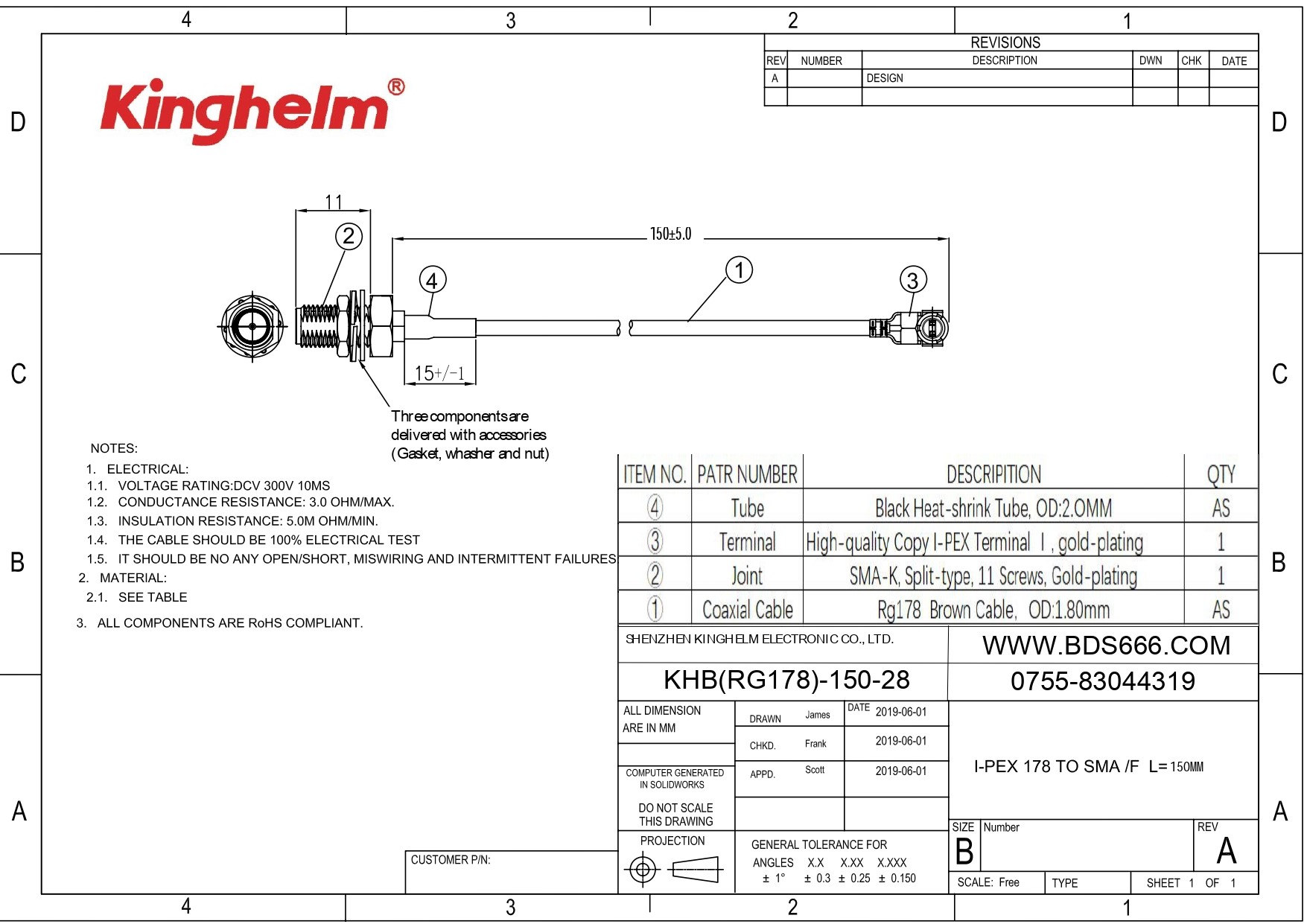

●Composition: Please refer to the provided table for detailed material information.


Compliance:



●RoHS Compliance: All components used in the cable comply with RoHS regulations, ensuring environmental safety.
