Home -Product -RF Series -RF Cable Assembly -IPEX to SMA -RF Connector,RF Cable,IPEX to SMA,RF1.13,Black Color,55mm,KHB(RG113)-55-29
RF Connector,RF Cable,IPEX to SMA,RF1.13,Black Color,55mm,KHB(RG113)-55-29 RF Connector,RF Cable,IPEX to SMA,RF1.13,Black Color,55mm,KHB(RG113)-55-29 RF Connector,RF Cable,IPEX to SMA,RF1.13,Black Color,55mm,KHB(RG113)-55-29

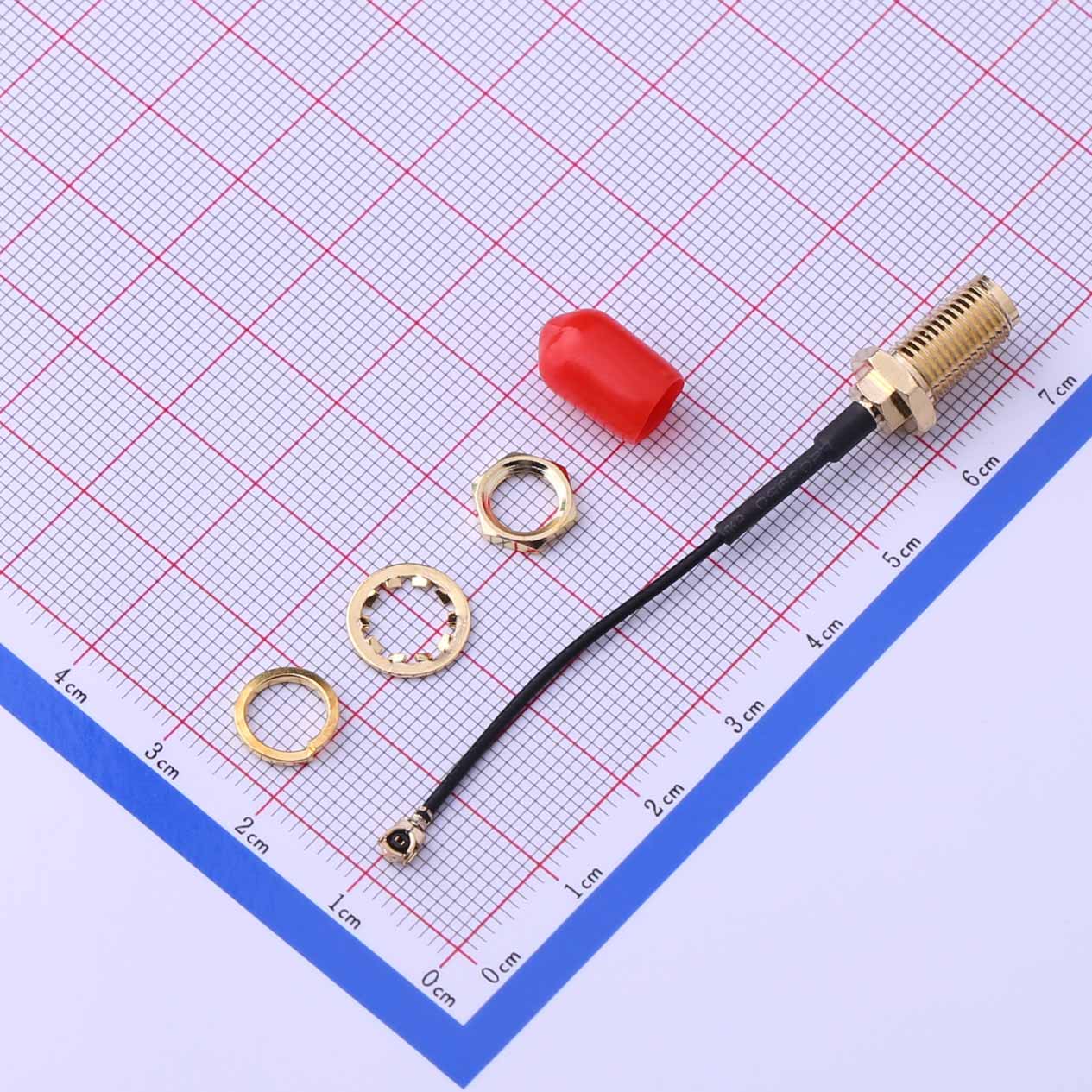

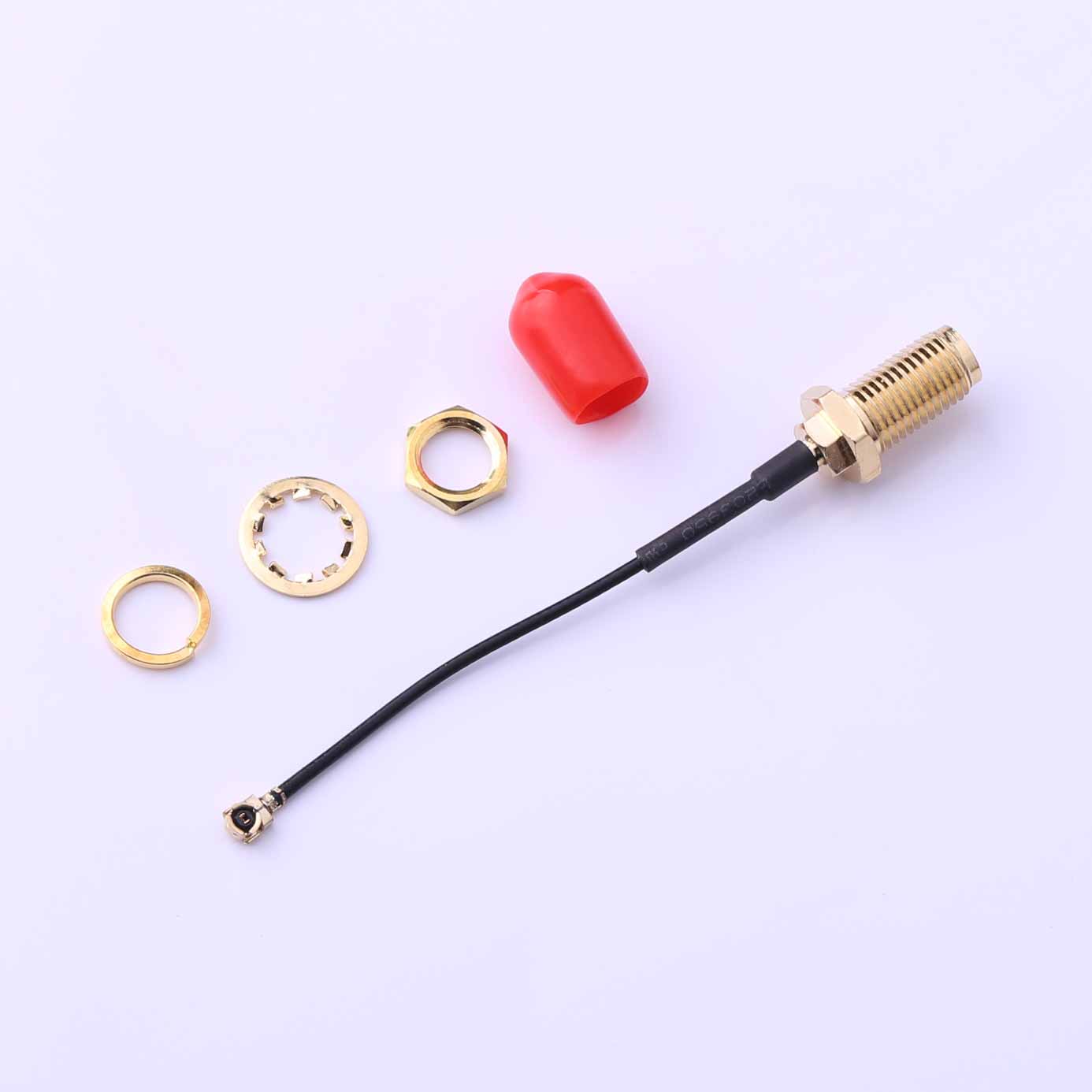

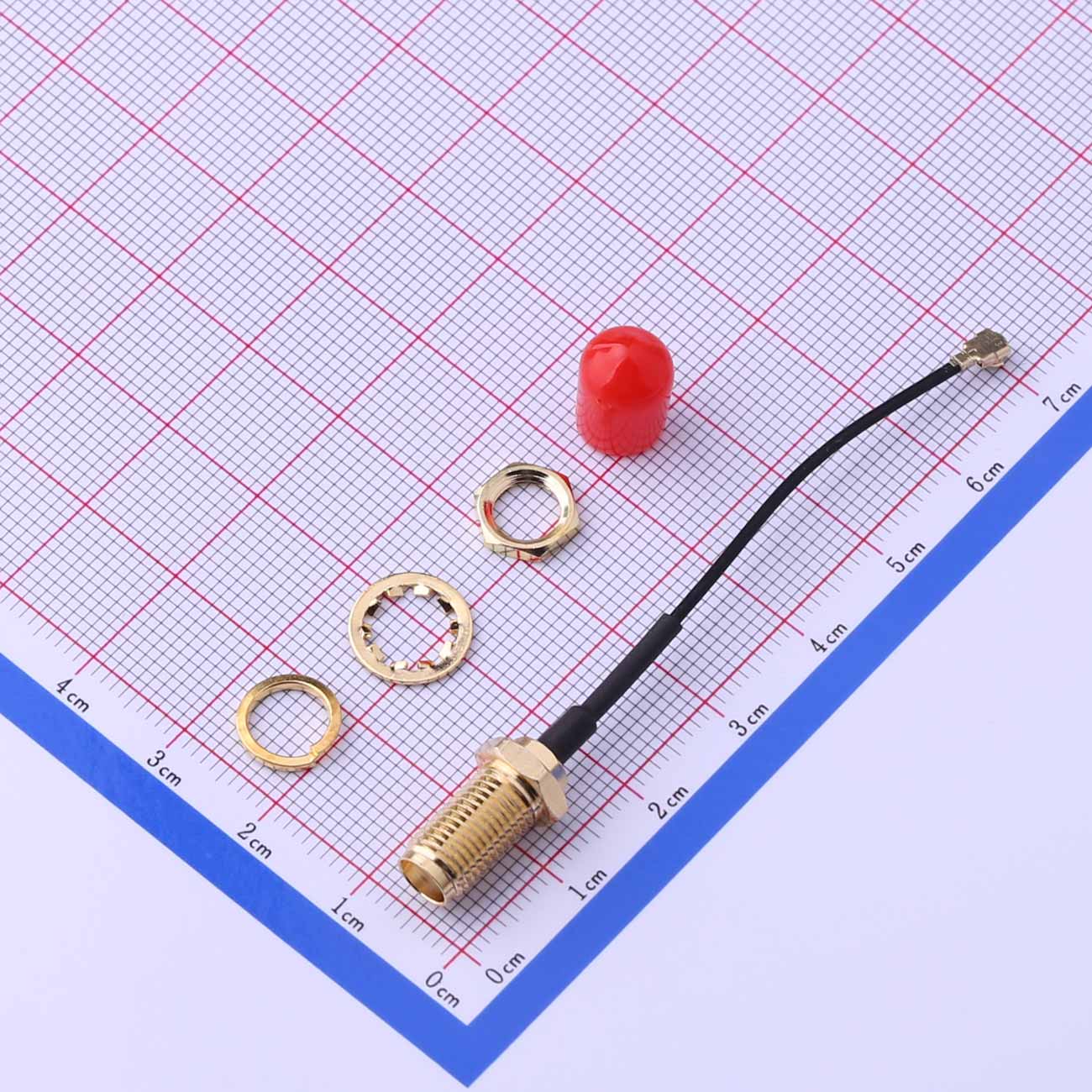

RF Connector,RF Cable,IPEX to SMA,RF1.13,Black Color,55mm,KHB(RG113)-55-29
Brand: KINGHELM
Manufacturer Model: KHB (RG113) -55-29
Gross Weight: 3.79 grams (G)

Product Details

Product Description

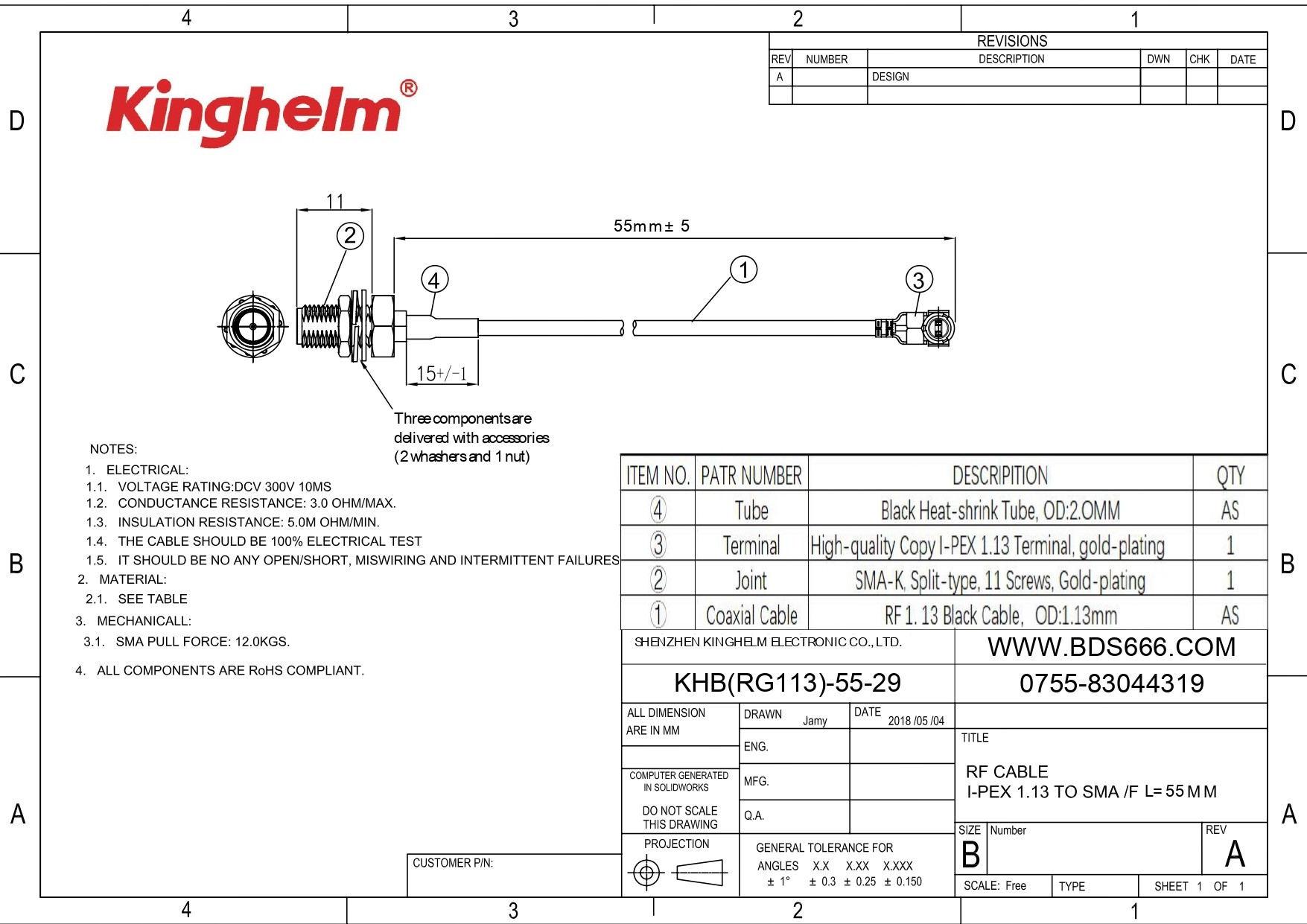

Electrical Specifications:

●Voltage Rating: Can withstand DCV 300V for 10 milliseconds.

Conductance Resistance: Maintains a maximum of 3.0 ohms for efficient electrical conductivity.

Insulation Resistance: Offers a minimum insulation resistance of 5.0M ohms, ensuring effective electrical insulation.

Testing Standards: The cable undergoes 100% electrical testing to ensure its quality and performance.

Quality Assurance: Ensures absence of open circuits, short circuits, miswiring, and intermittent failures.


Material Specifications:

Material Composition: Refer to the provided table for details regarding the materials used in construction.


Mechanical Specifications:

SMA Pull Force: Withstands a pull force of 12.0 kgs, ensuring secure and reliable connections.


Compliance:

RoHS Compliance: All components are compliant with RoHS standards, ensuring environmental friendliness and safety.
