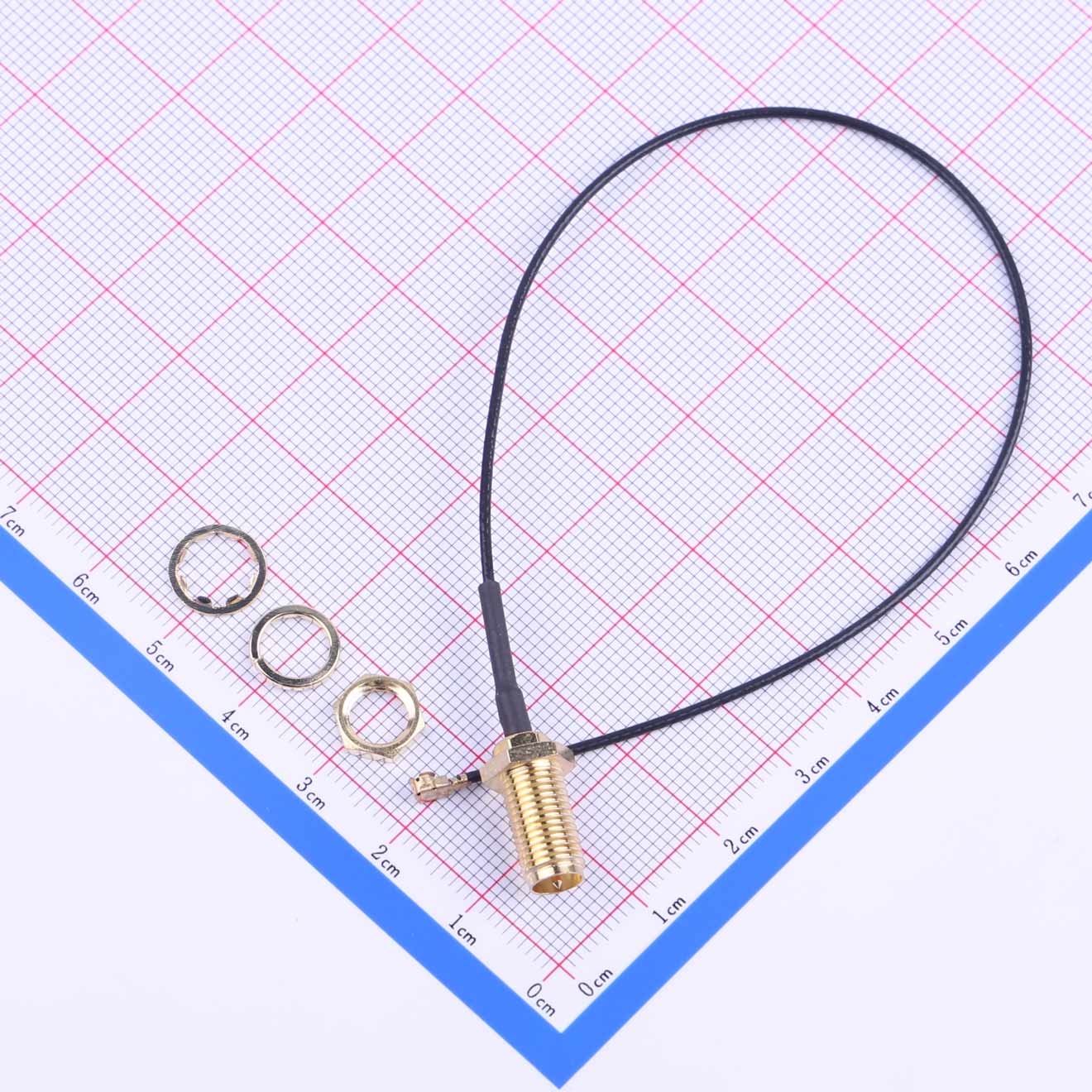

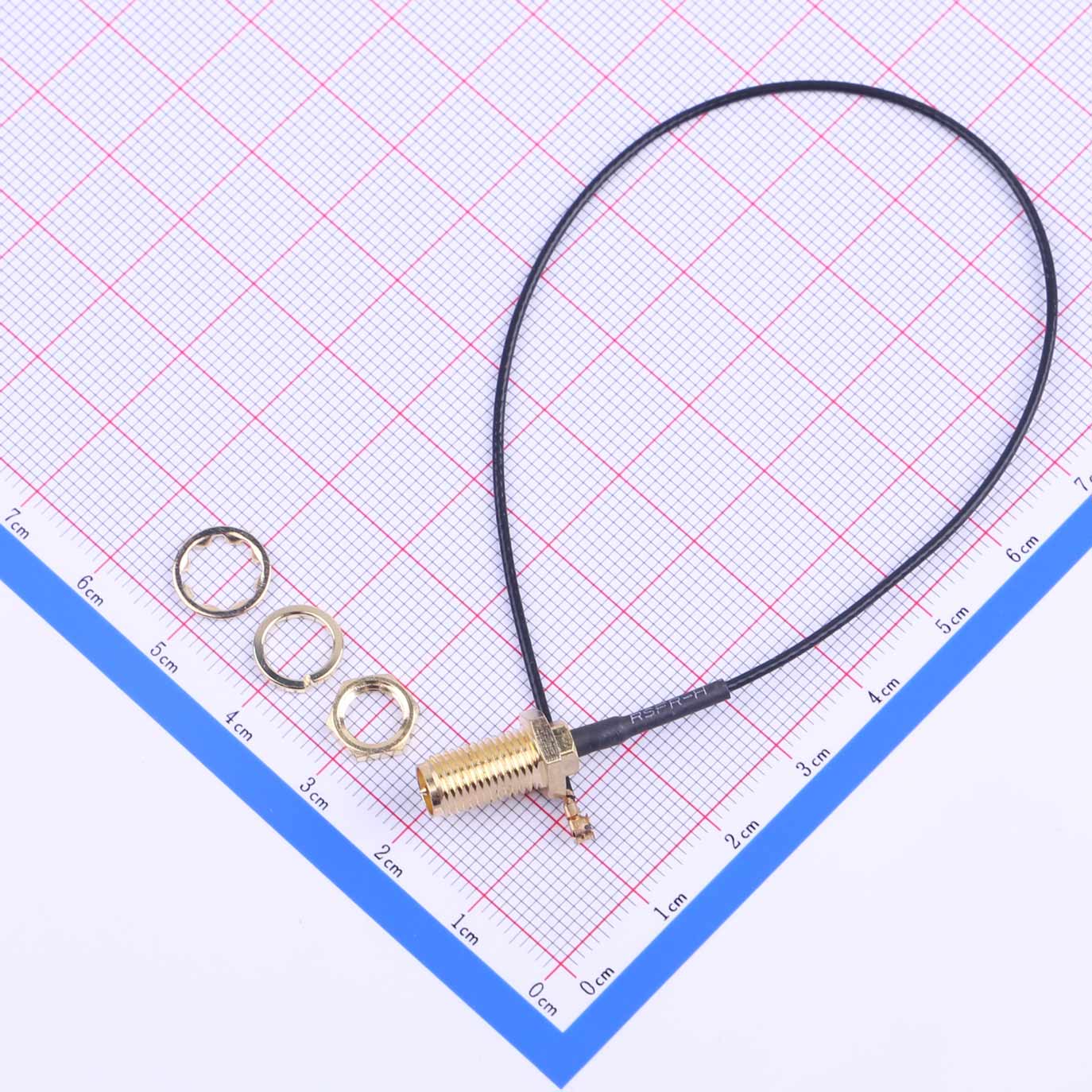

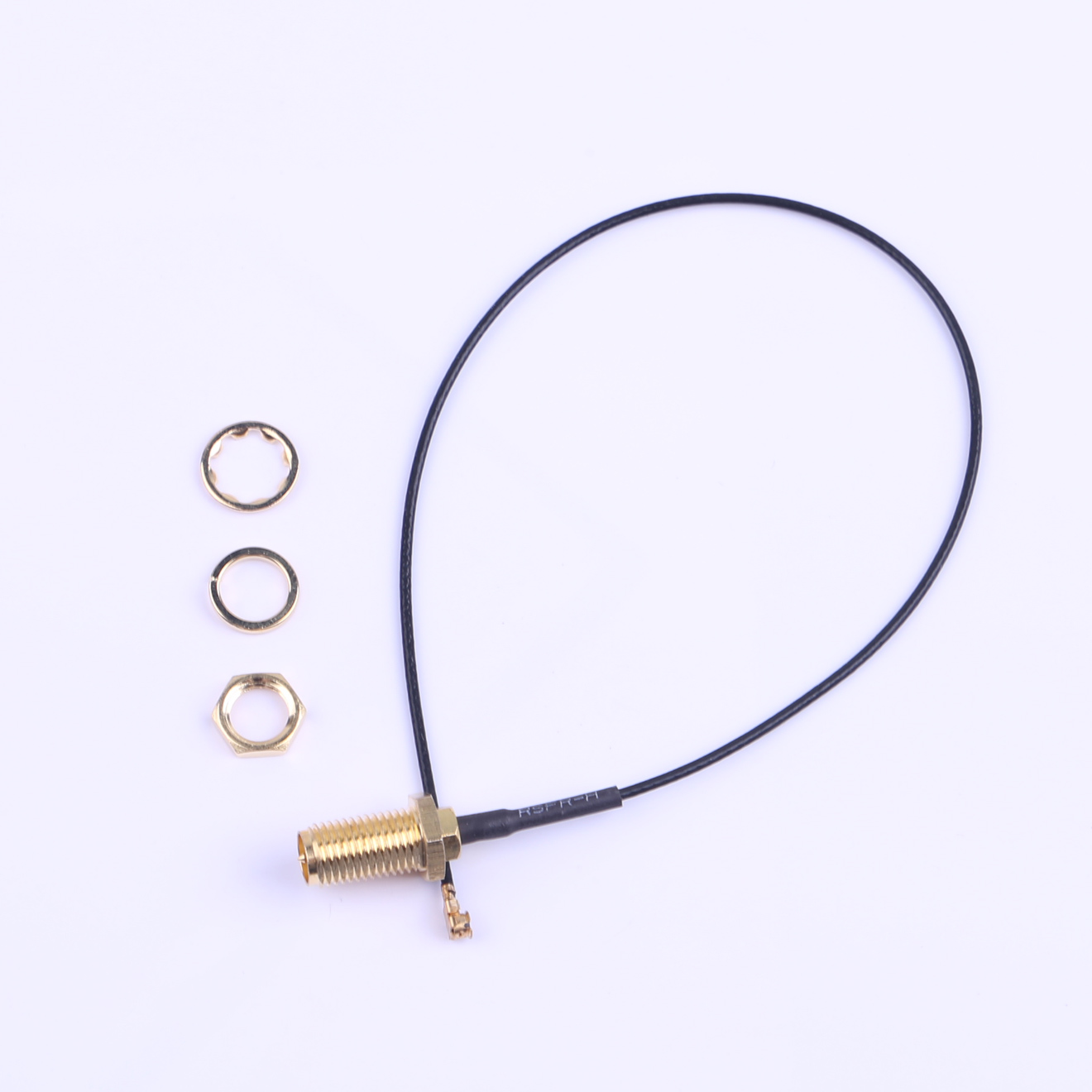

Kinghelm Coaxial connector IPEX to SMA to wiring L 200mm RG113 (four-piece set) - KHB200-38(11)-28

Brand: KINGHELM
Manufacturer Model: KHB200-38(11)-28
Gross Weight: 4.45 grams (G)

Inquiry Datasheet

Product Details

Product Description:

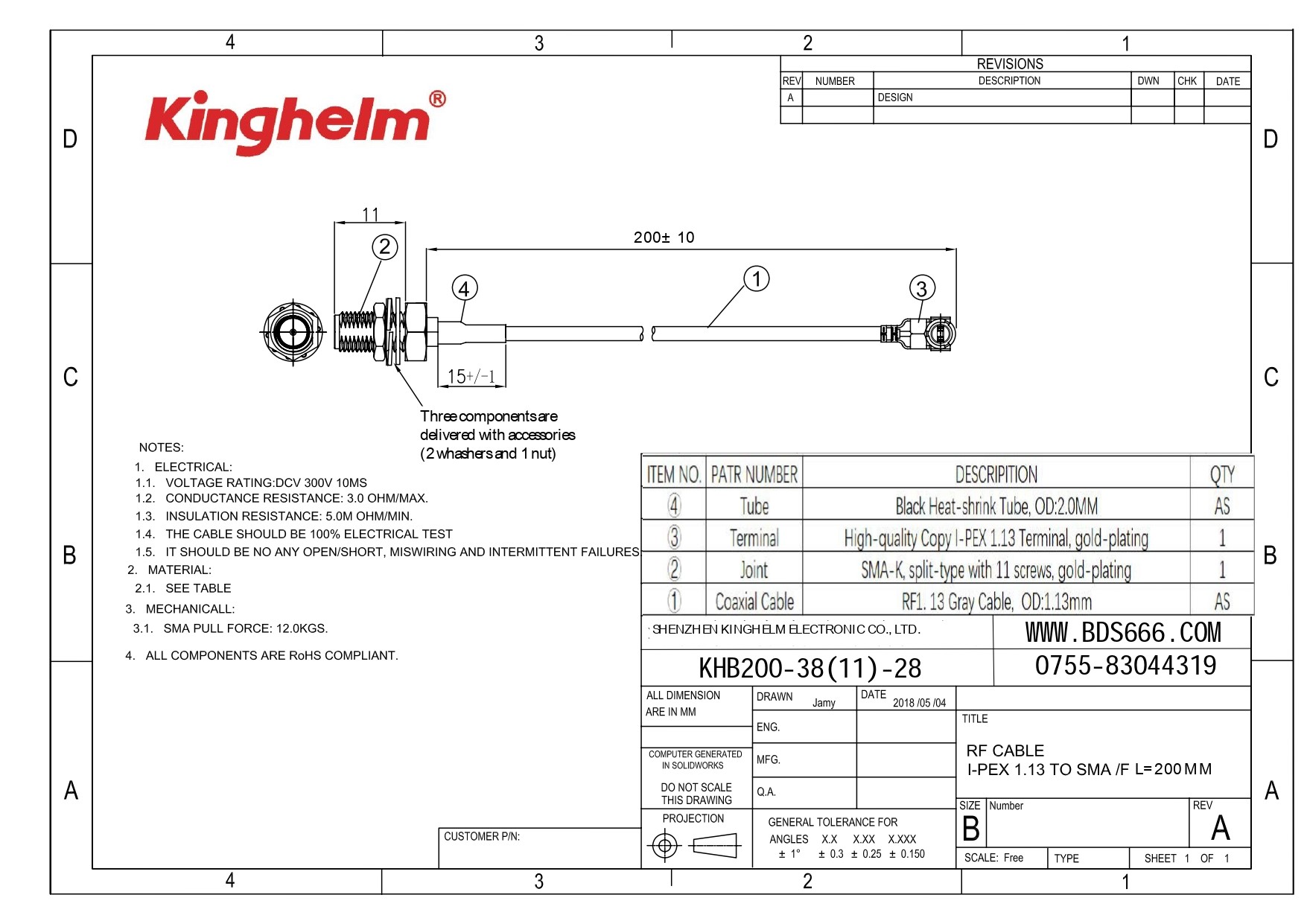

Electrical Specifications:

●Voltage Rating: DC 300V for 10 milliseconds

●Conductance Resistance: Maximum 3.0 ohms

●Insulation Resistance: Minimum 5.0M ohms

●100% electrical testing conducted

●No open circuits, short circuits, miswiring, or intermittent failures permitted

Material Compliance:

●Components meet RoHS regulations

Mechanical Requirements:

●SMA pull force requirement: 12.0 kilograms
