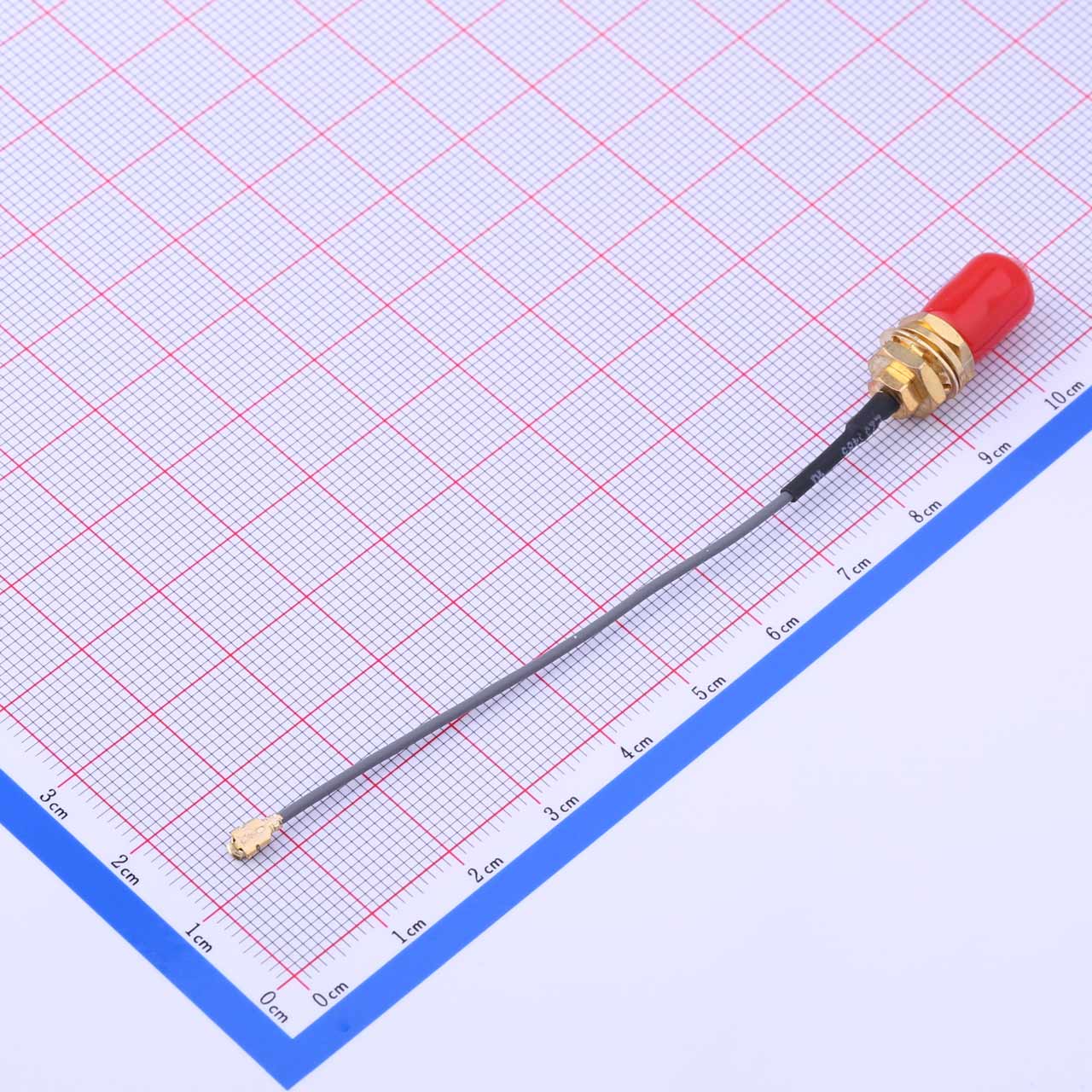

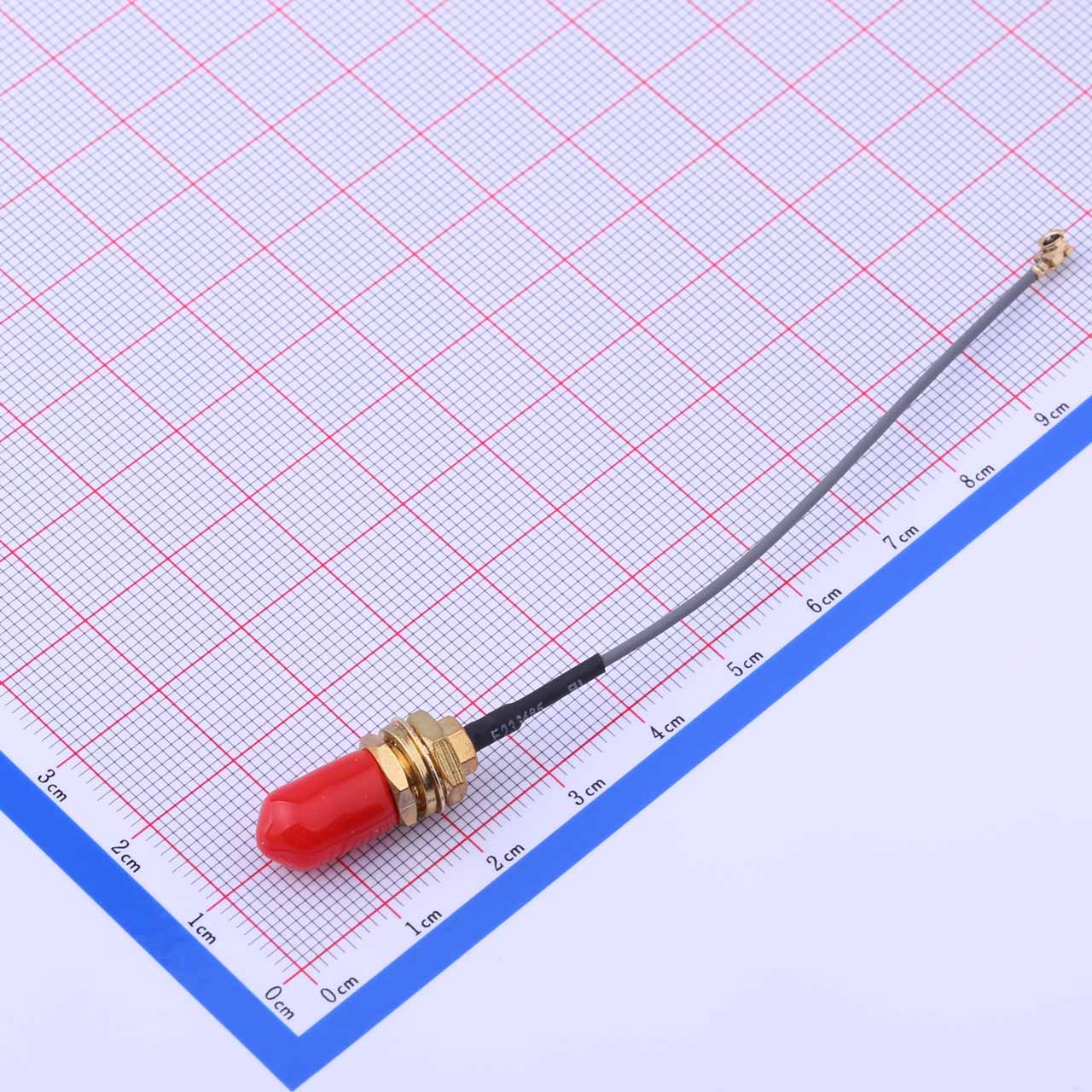

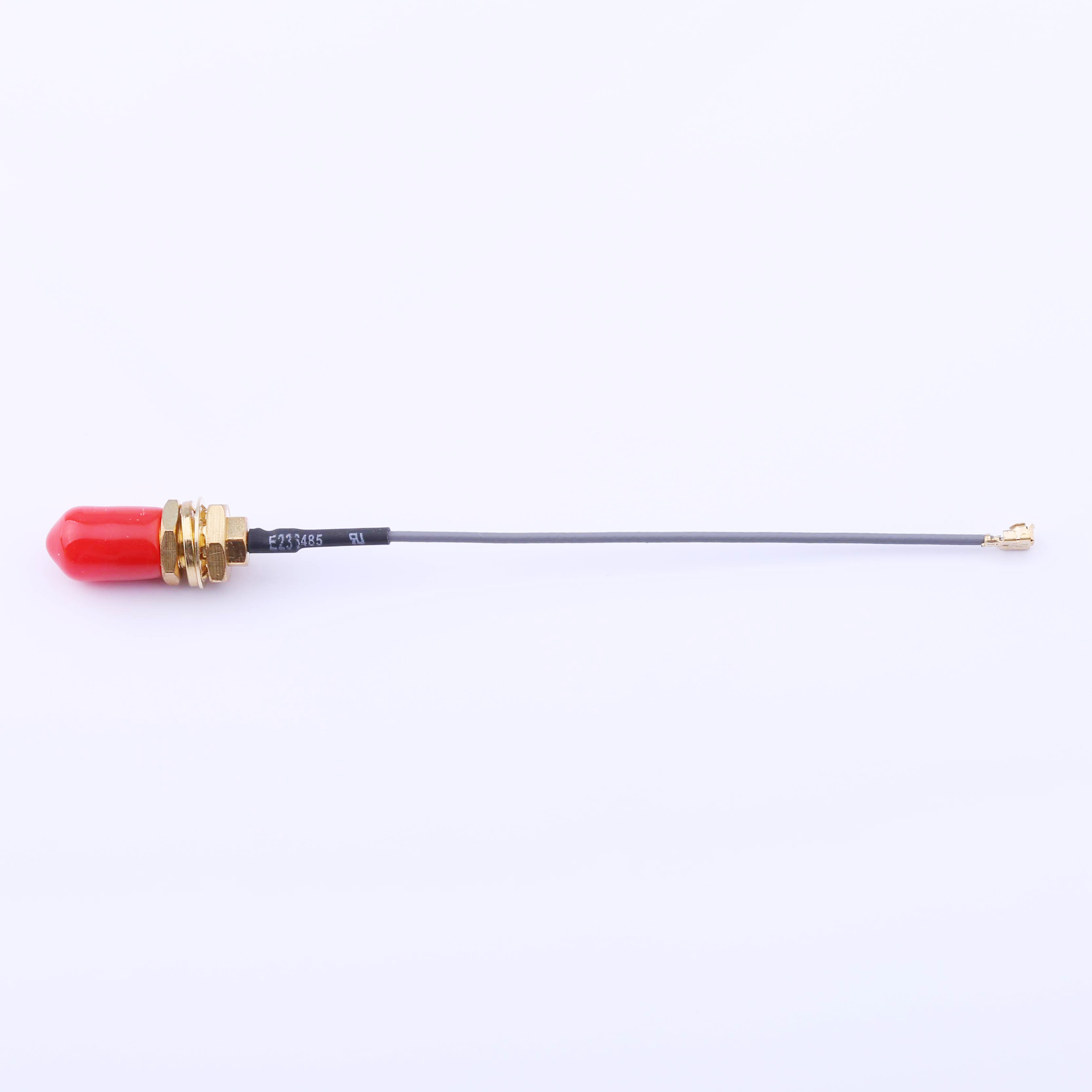

Kinghelm Coaxial connector IPEX to SMA antenna adapter 80mm cable welded I-PEX 1.13 terminal gold plating SMA split type With 11mm screw

Brand: KINGHELM
Manufacturer Model: KHB80-37 (11) -28
Packaging: 80mm
Gross Weight: 4 grams (g)

Inquiry Datasheet

Product Details

Product Description:

Electrical Specifications:

●Voltage Rating: DC 300V for 10 milliseconds

●Conductance Resistance: Maximum 3.0 ohms

●Insulation Resistance: Minimum 5.0M ohms

●100% electrical testing conducted

●No open circuits, short circuits, miswiring, or intermittent failures permitted

Material Compliance:

●Components meet RoHS regulations

Mechanical Requirements:

●SMA pull force requirement: 12.0 kilograms
