Kinghelm 2.4G Small Rubber Stick Antenna, SMA Straight Head Inner Thread Inner Needle - KH-SMA(ZJ)-2.4G Kinghelm 2.4G Small Rubber Stick Antenna, SMA Straight Head Inner Thread Inner Needle - KH-SMA(ZJ)-2.4G Kinghelm 2.4G Small Rubber Stick Antenna, SMA Straight Head Inner Thread Inner Needle - KH-SMA(ZJ)-2.4G

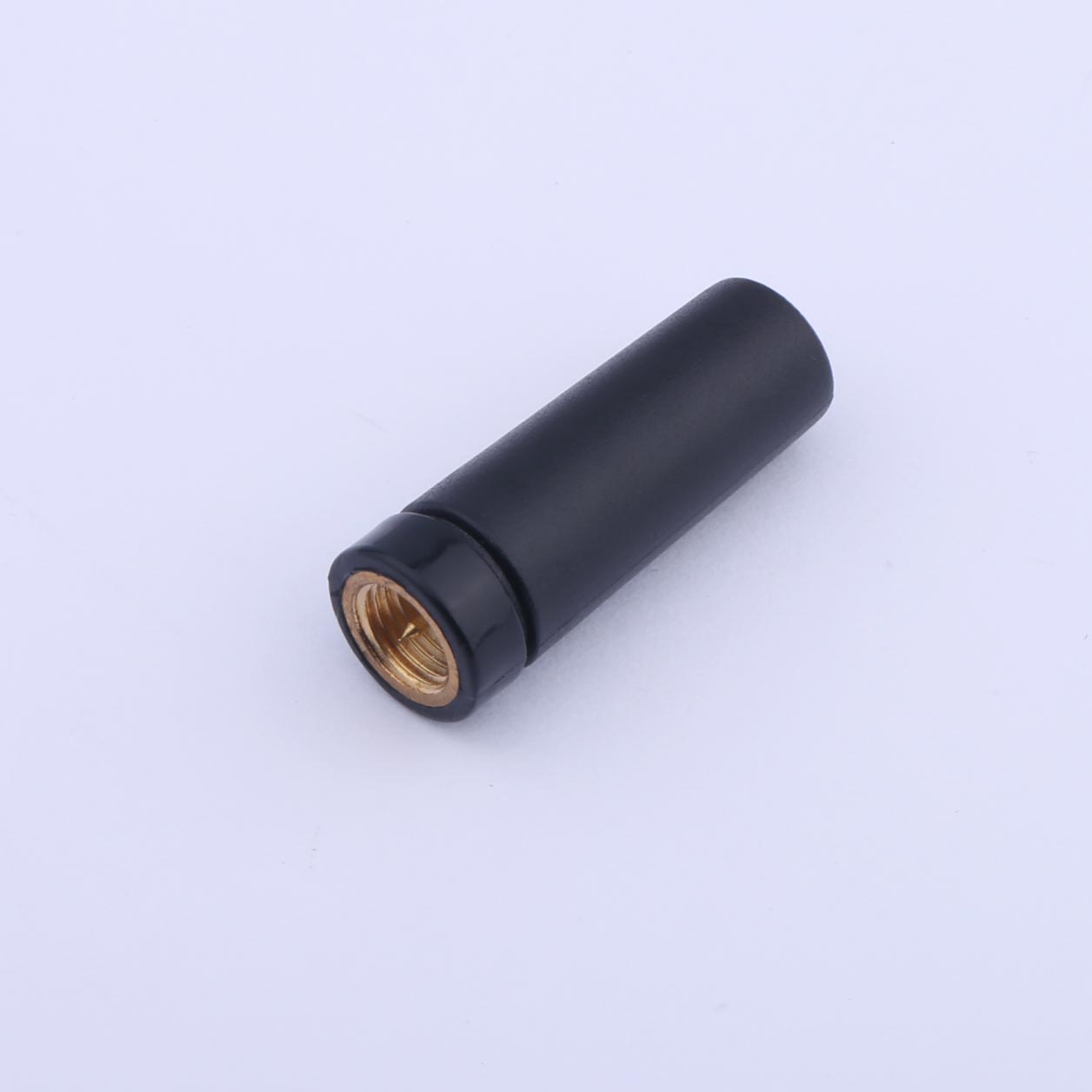

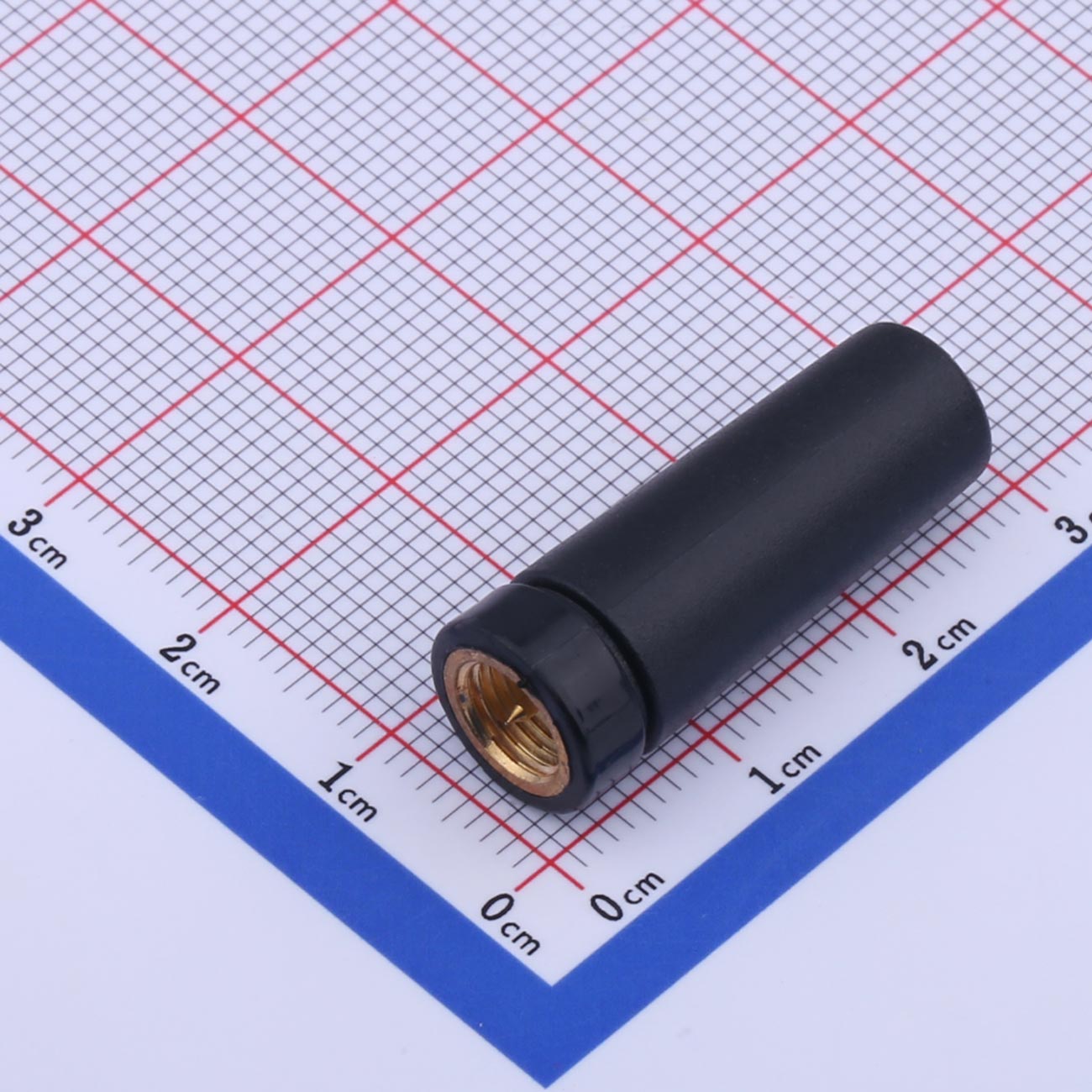

Kinghelm 2.4G Small Rubber Stick Antenna, SMA Straight Head Inner Thread Inner Needle - KH-SMA(ZJ)-2.4G
Brand: KINGHELM
Manufacturer Model: KH-SMA (ZJ) -2.4G
Gross Weight: 2.43 grams (G)

Product Details

Product Description:
The Kinghelm 2.4G Small Rubber Stick Antenna, SMA Straight Head Inner Thread Inner Needle (KH-SMA (ZJ) -2.4G) is a high-performance antenna designed for use in a variety of wireless communication systems. It features a compact and lightweight design, with a black housing color and spiral fixation for easy installation. The antenna is equipped with an SMAJ gold-plating connector and has a frequency range of 2400-2500MHz. It also has a vertical polarization and omnidirectional radiation direction, with a gain of ≥1dBi and a maximum input power of 5W.


Product Features:

--Compact and lightweight design

--Black housing color with spiral fixation for easy installation

--SMAJ gold-plating connector

--Frequency range of 2400-2500MHz

--Vertical polarization and omnidirectional radiation direction

--Gain of ≥1dBi and maximum input power of 5W

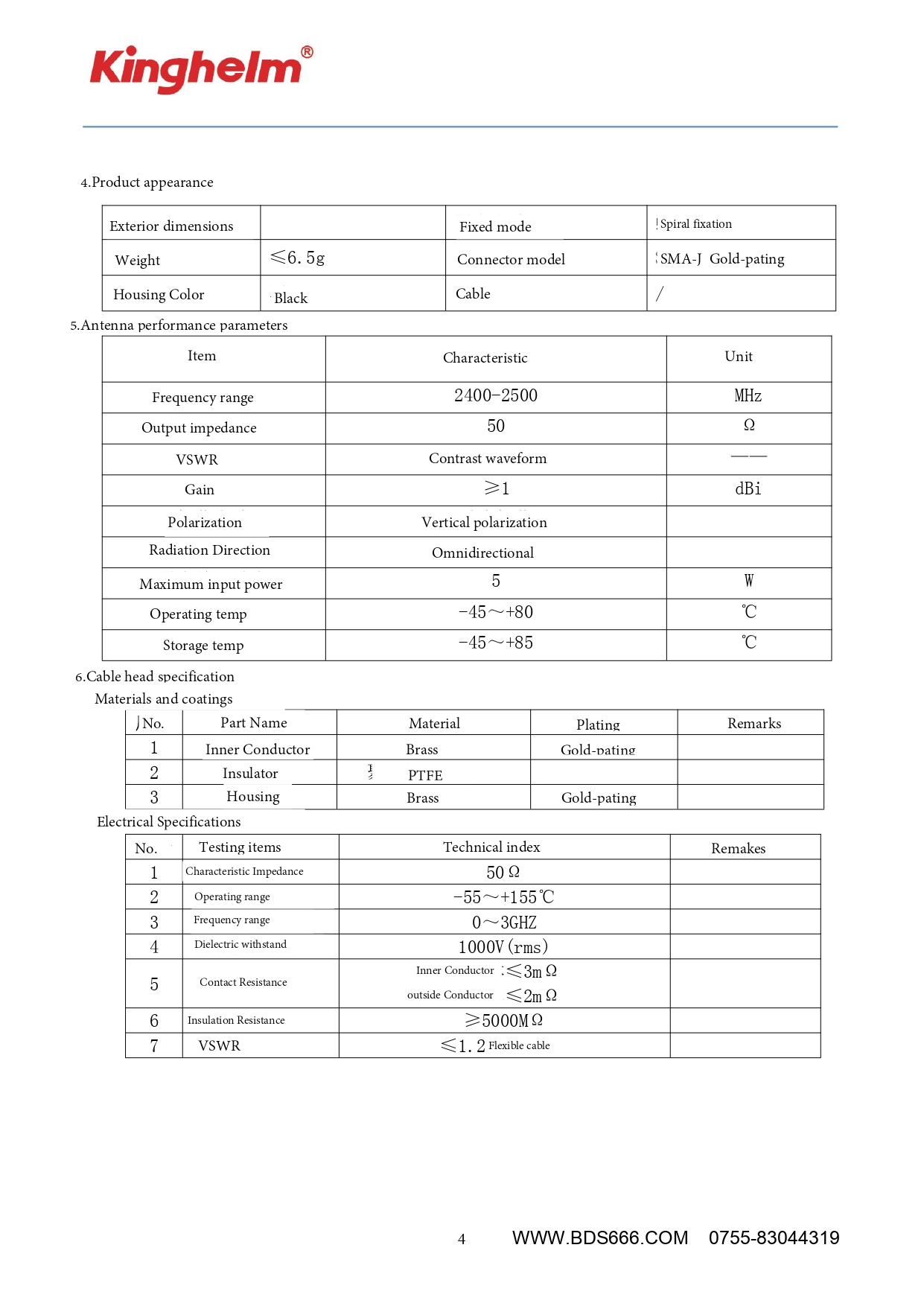

Product Specifications:

Exterior dimensions

Weight

 ≤6.5g

Housing color

 Black

Fixed mode

 Spiral fixation

Connector model

 SMAJ gold-plating


Antenna performance parameters

Frequency range

 2400-2500MHz

Output impedance

 50Ω

VSWR

 ≤1.2

Gain

 ≥1dBi

Polarization

 Vertical polarization

Radiation direction

 Omnidirectional

Maximum input power

 5W

Operating temperature range

 -45~+80℃

Storage temperature range

 -45~+85℃


Electrical Specifications

Characteristic impedance

 50Ω

Operating range

 -55~+155℃

Frequency range

 0~3GHz

Dielectric withstand

 1000V(rms)

Insulation resistance

 ≥5000MΩ

VSWR

 ≤1.2 flexible cable

Inner conductor

 ≤3mΩ,

Outside conductor

 ≤2mΩ


Application Fields:
The Kinghelm 2.4G Small Rubber Stick Antenna, SMA Straight Head Inner Thread Inner Needle (KH-SMA (ZJ) -2.4G) is suitable for use in a variety of wireless communication systems, including remote monitoring, IoT devices, and more.


Brand Certificate:
Kinghelm is a trusted brand in the field of wireless communication and IoT devices. Our products are designed to provide reliable and stable performance in harsh outdoor environments.


Product Packaging:
The Kinghelm 2.4G Small Rubber Stick Antenna, SMA Straight Head Inner Thread Inner Needle (KH-SMA (ZJ) -2.4G) comes in a sturdy and durable packaging to ensure safe and secure delivery.

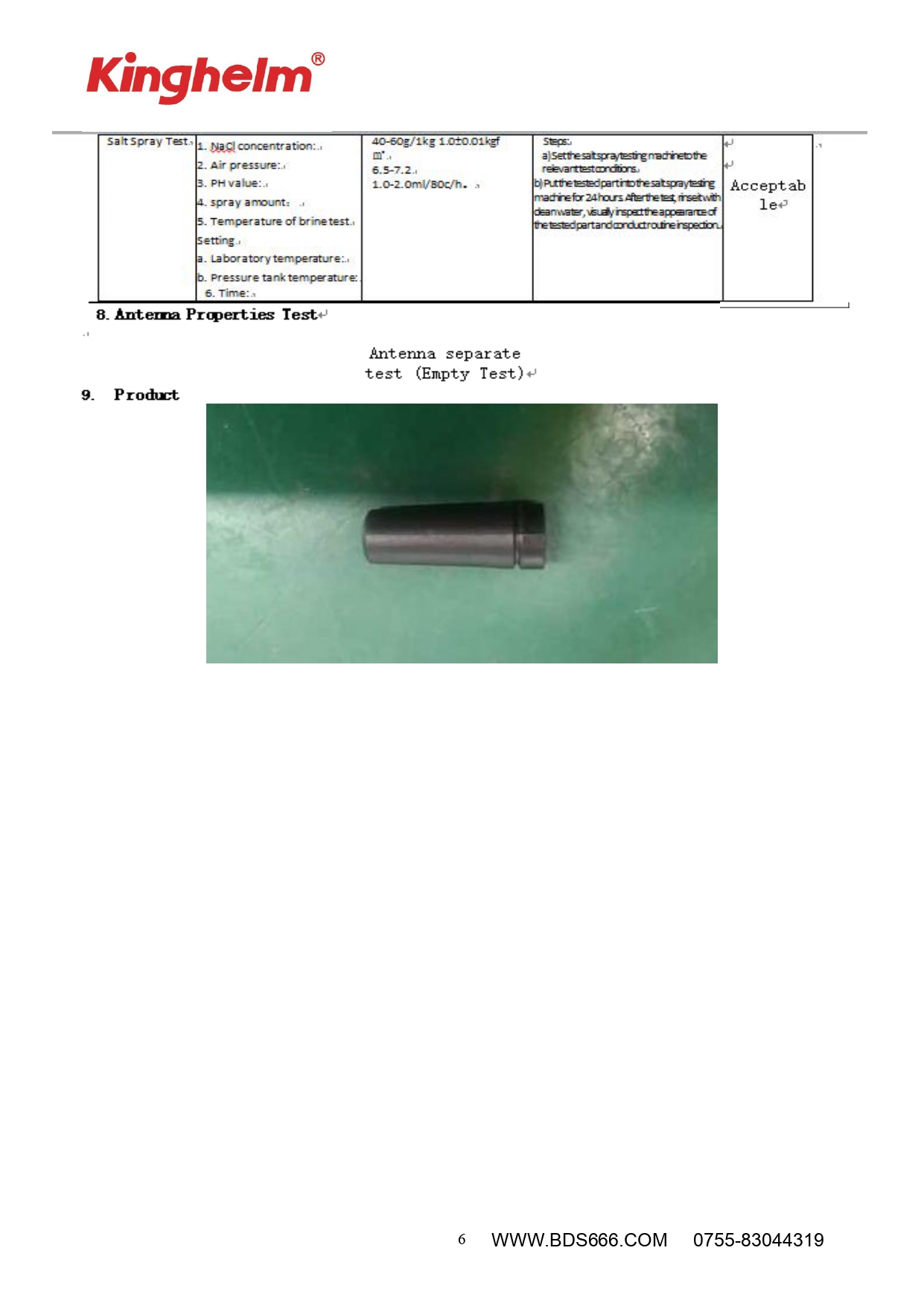

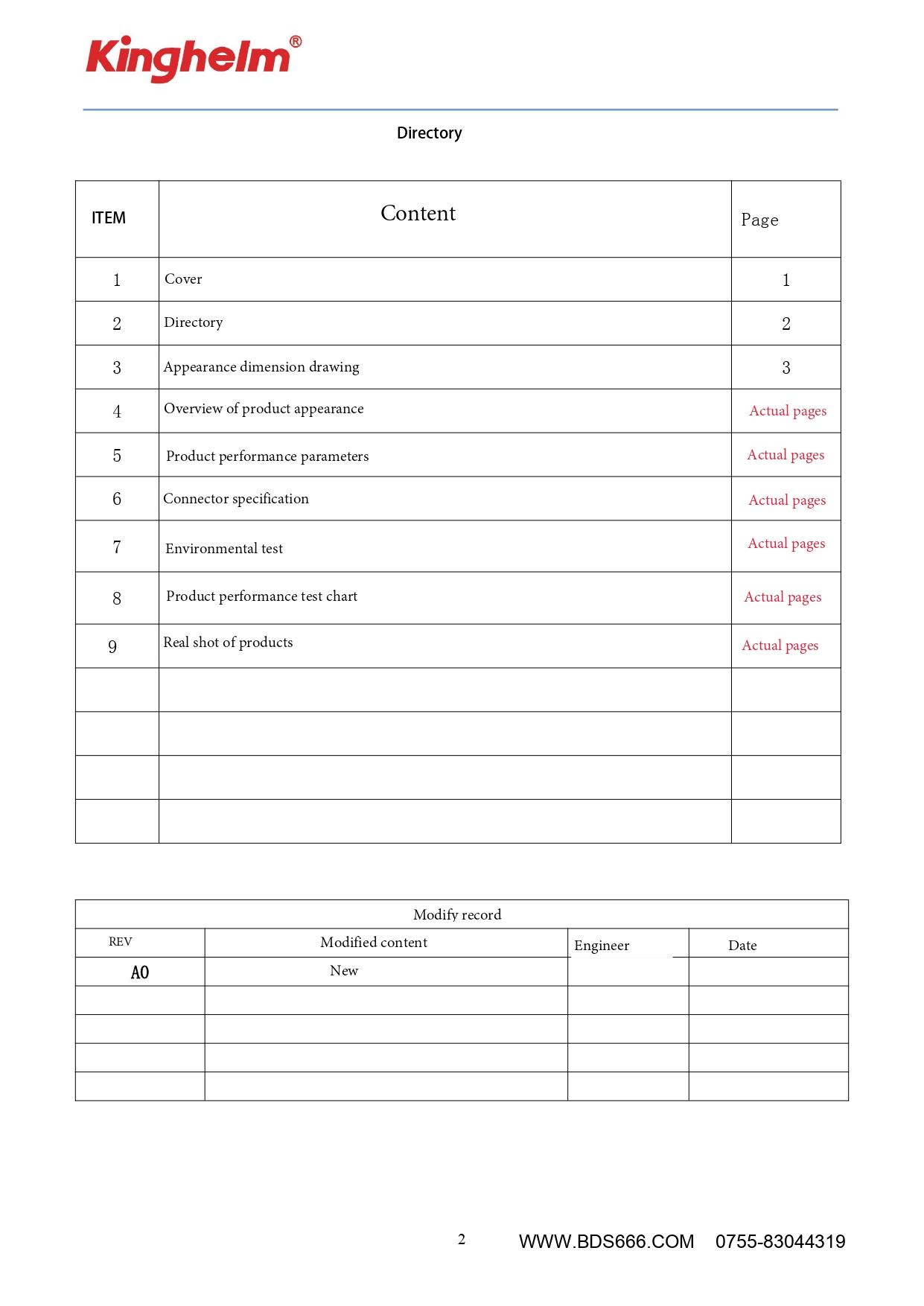

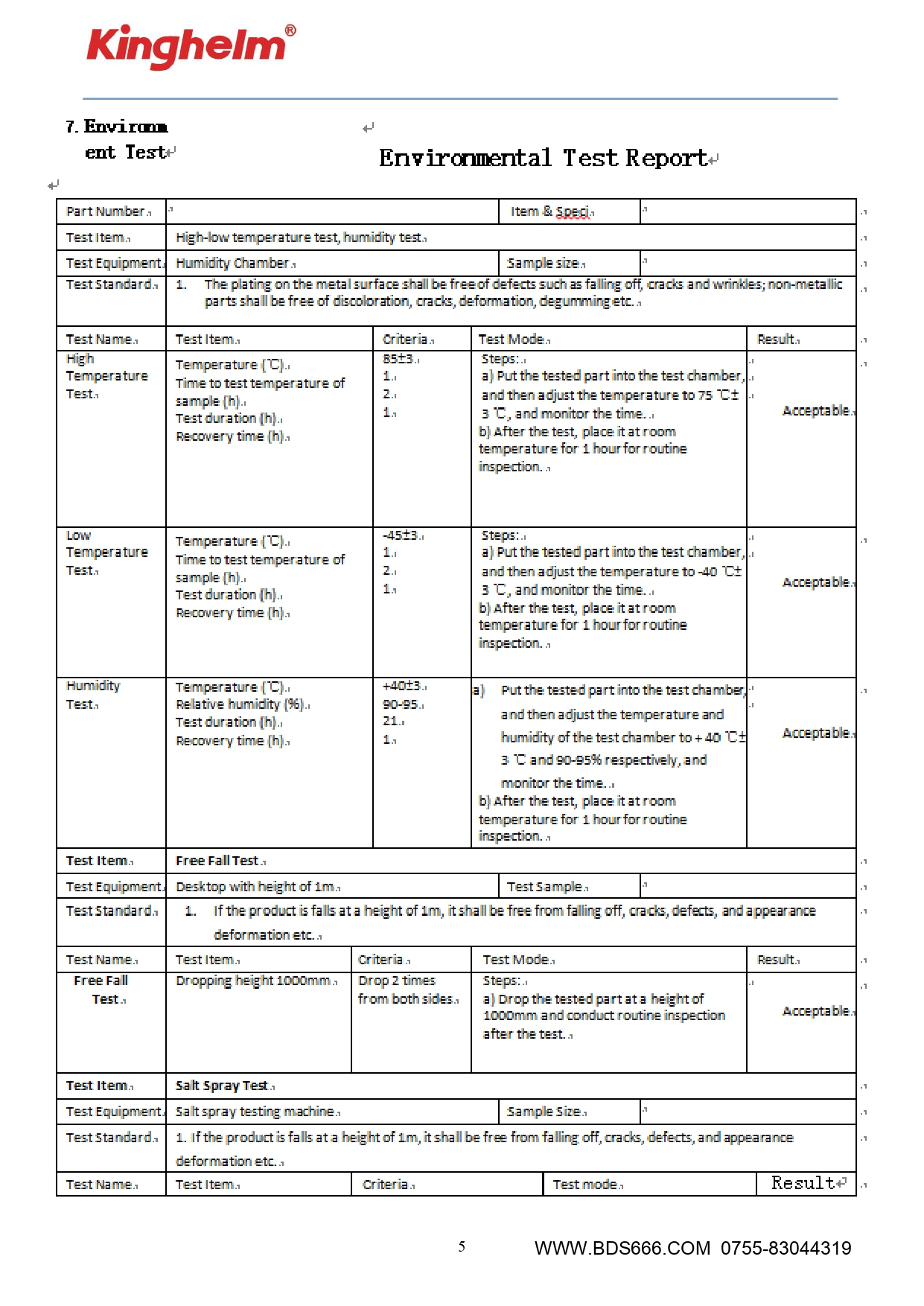

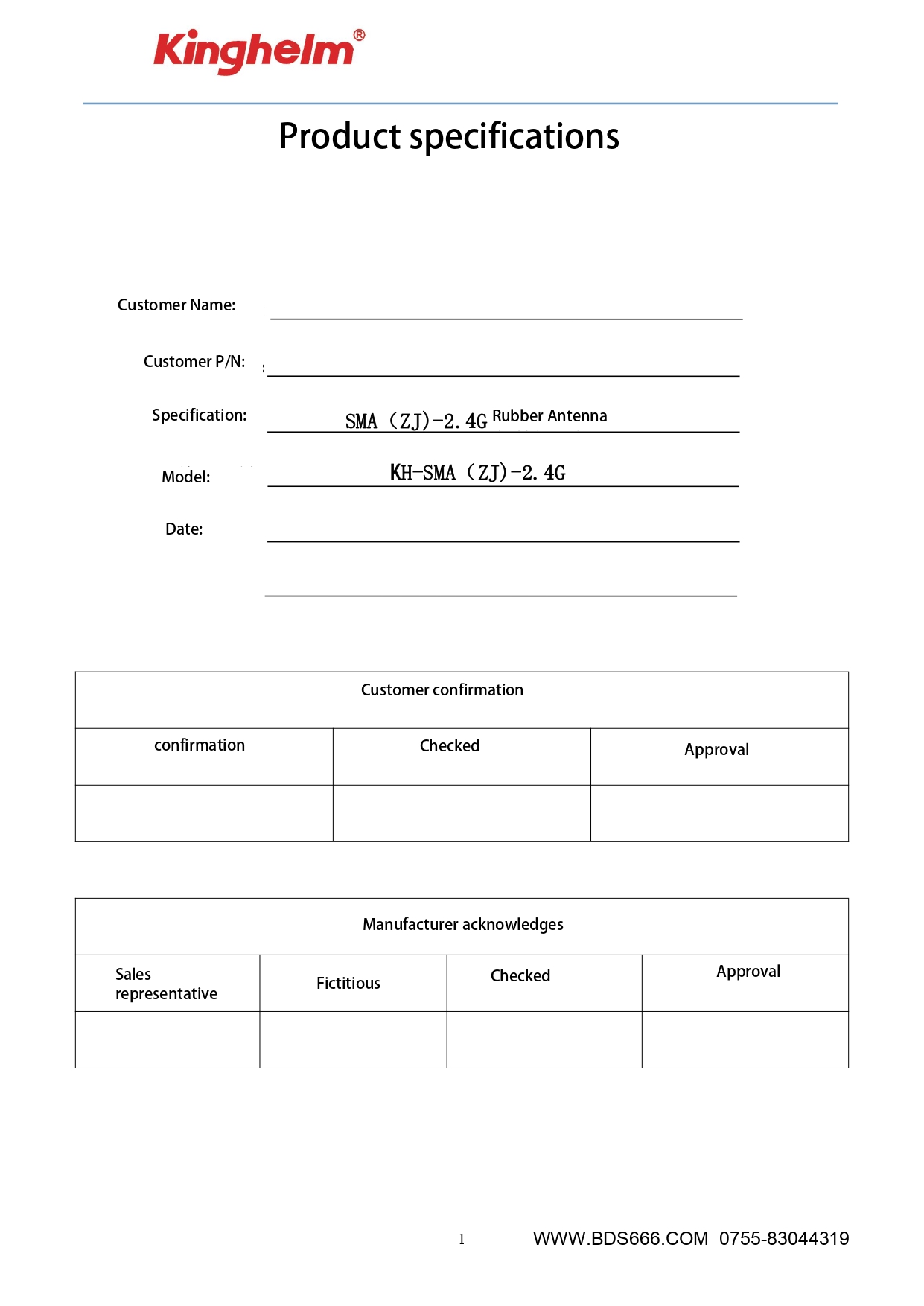

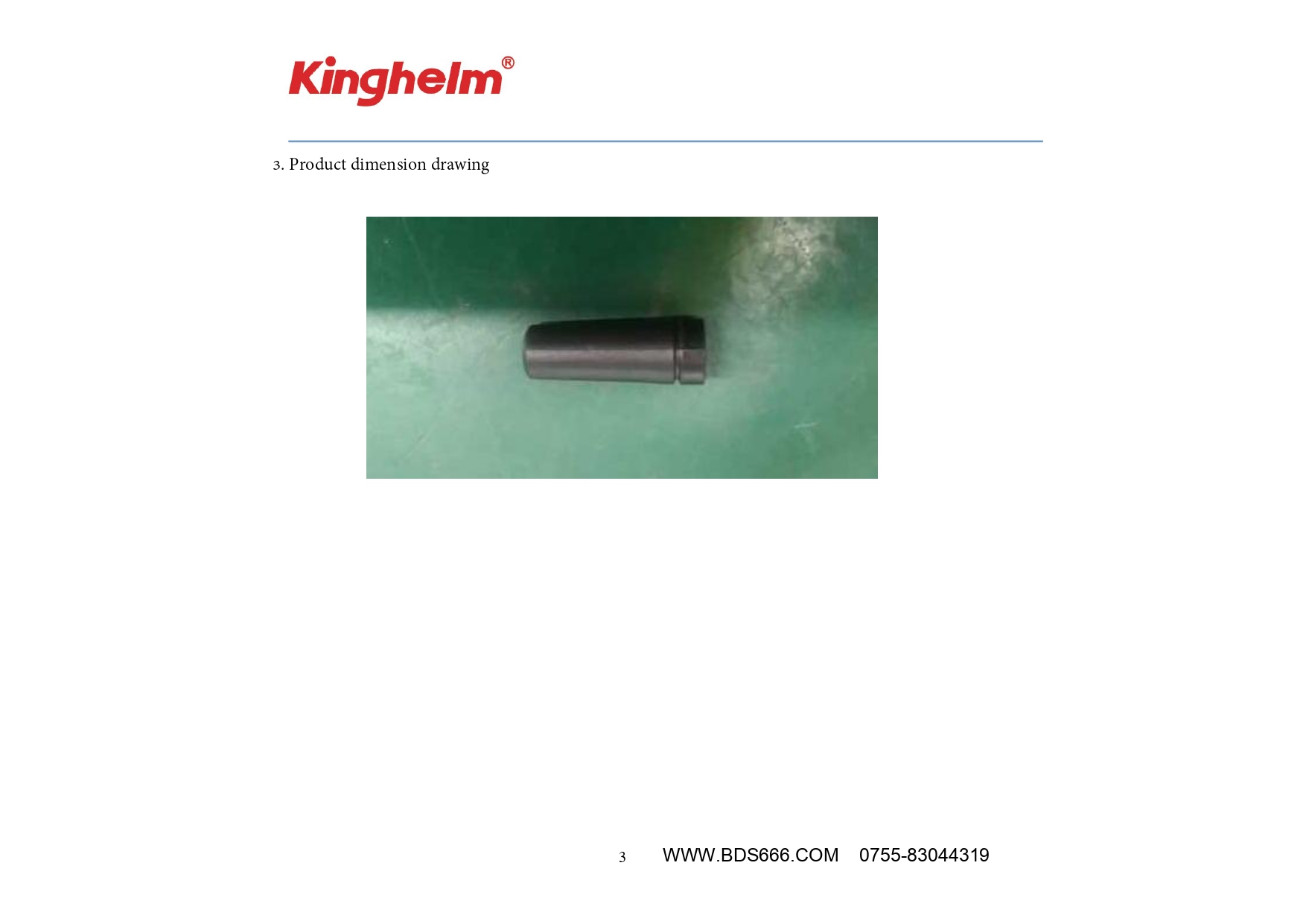

KH-SMA(ZJ)-2.4G_page-0001.jpgKH-SMA(ZJ)-2.4G_page-0002.jpgKH-SMA(ZJ)-2.4G_page-0003.jpgKH-SMA(ZJ)-2.4G_page-0004.jpgKH-SMA(ZJ)-2.4G_page-0005.jpgKH-SMA(ZJ)-2.4G_page-0006.jpg
