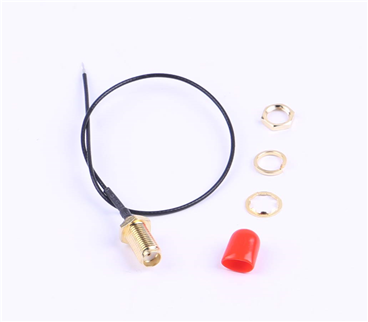

Kinghelm Coaxial connector IPEX to SMA antenna adapter cable welded I-PEX 1.13 terminal gold plating SMA split type With 11mm screw

Brand: KINGHELM
Manufacturer Model: KH-IPEXA-Smakwe-B080H
Gross  Weight: 4.31 grams (G)

Inquiry Datasheet

Product Details

Product Description:

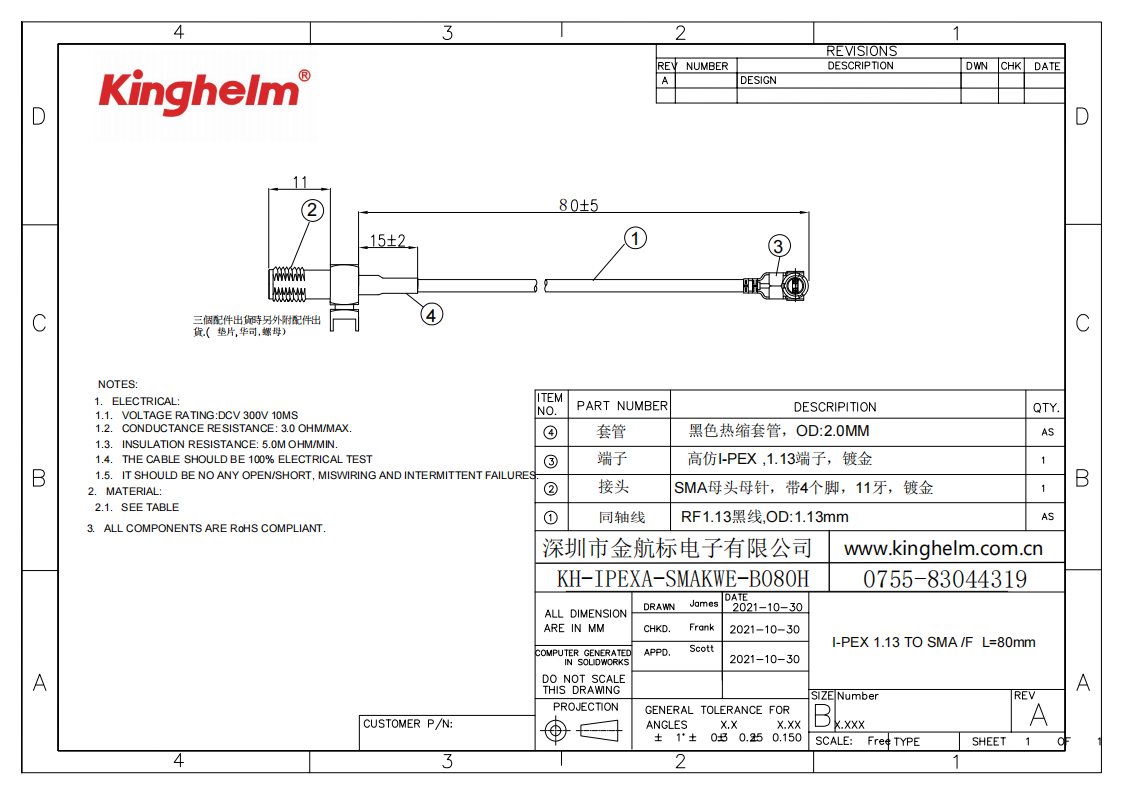

Electrical Specifications:

●Voltage Rating: DC 300V for 10 milliseconds

●Conductance Resistance: Maximum of 3.0 ohms

●Insulation Resistance: Minimum of 5.0 megaohms

●Quality Assurance: The cable undergoes a 100% electrical test to ensure its reliability.

●Reliability Standards: The cable is designed to have no open/short circuits, miswiring, or intermittent failures.

Material Specifications:

●Composition: Please refer to the provided table for detailed material information.

Compliance:

●RoHS Compliance: All components used in the cable comply with RoHS regulations, ensuring environmental safety.
