Home -Product -RF Series -RF Cable Assembly -SMA to MCX -Kinghelm Coaxial connector Radio frequency adapter (set of four) - KHB(RG316)-MCX-50-28
Kinghelm Coaxial connector Radio frequency adapter (set of four) - KHB(RG316)-MCX-50-28 Kinghelm Coaxial connector Radio frequency adapter (set of four) - KHB(RG316)-MCX-50-28 Kinghelm Coaxial connector Radio frequency adapter (set of four) - KHB(RG316)-MCX-50-28

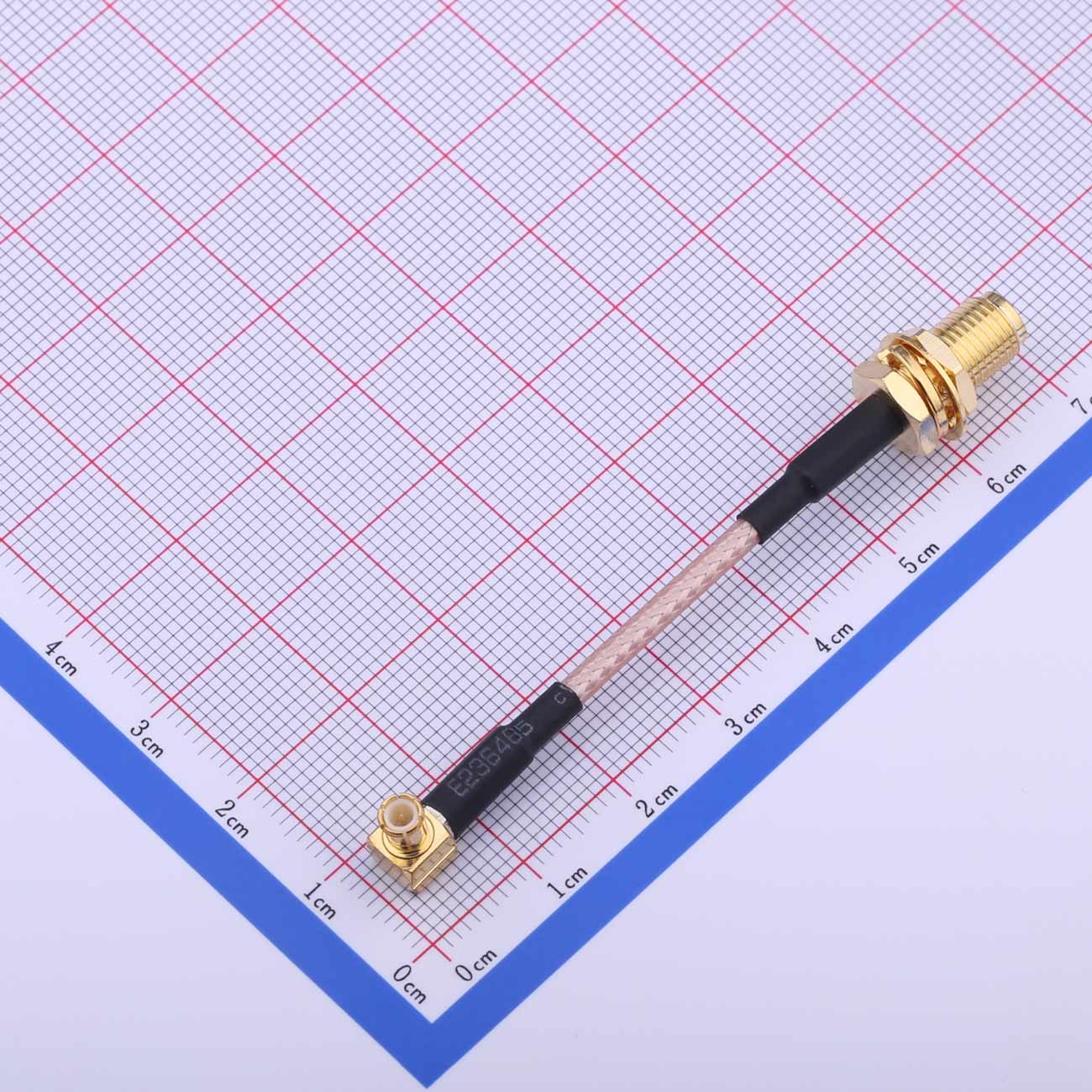

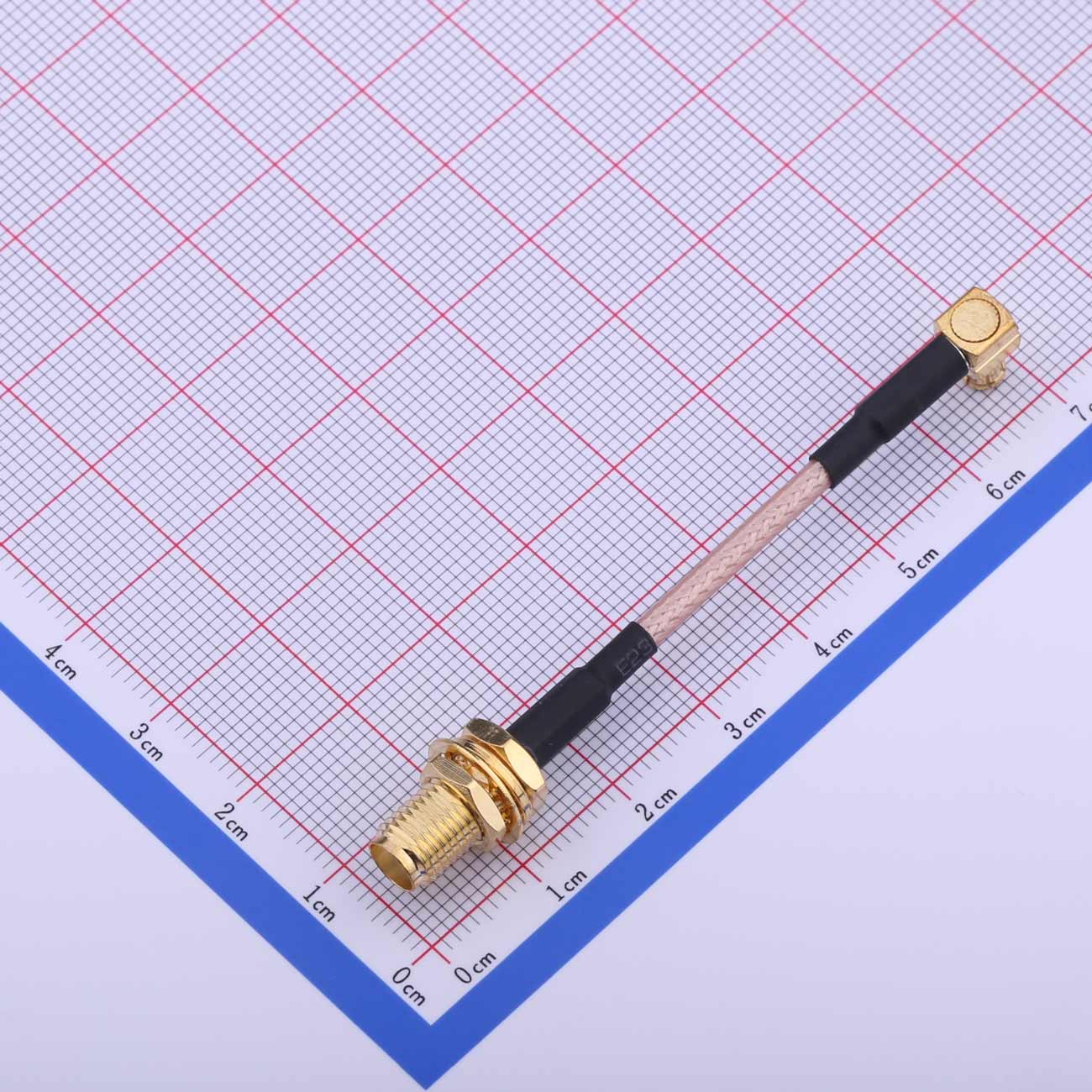

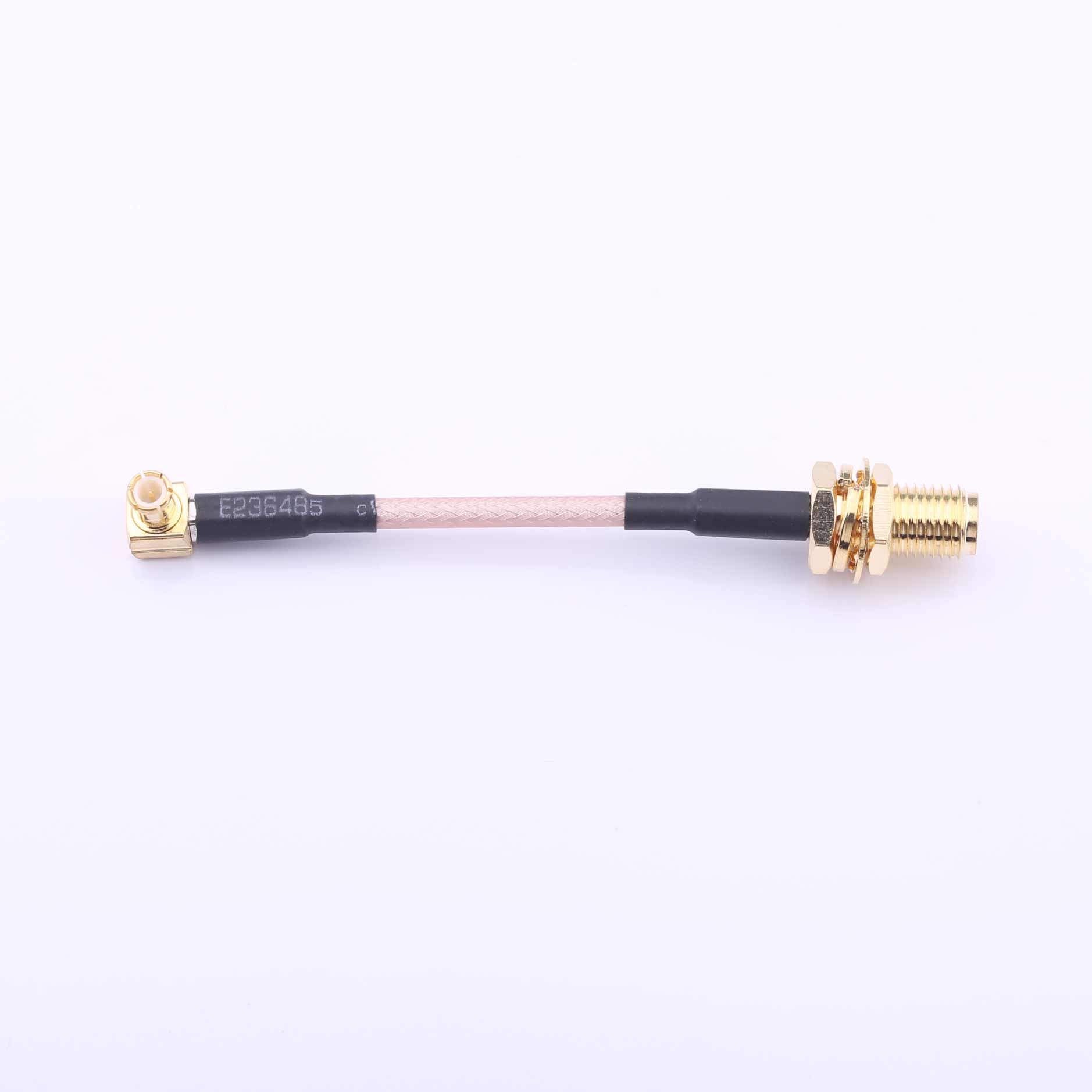

Kinghelm Coaxial connector Radio frequency adapter (set of four) - KHB(RG316)-MCX-50-28
Brand: KINGHELM
Manufacturer Model: KHB (RG316) -MCX-50-28
Gross Weight: 5.5 grams (G)
Inquiry Datasheet

Product Details

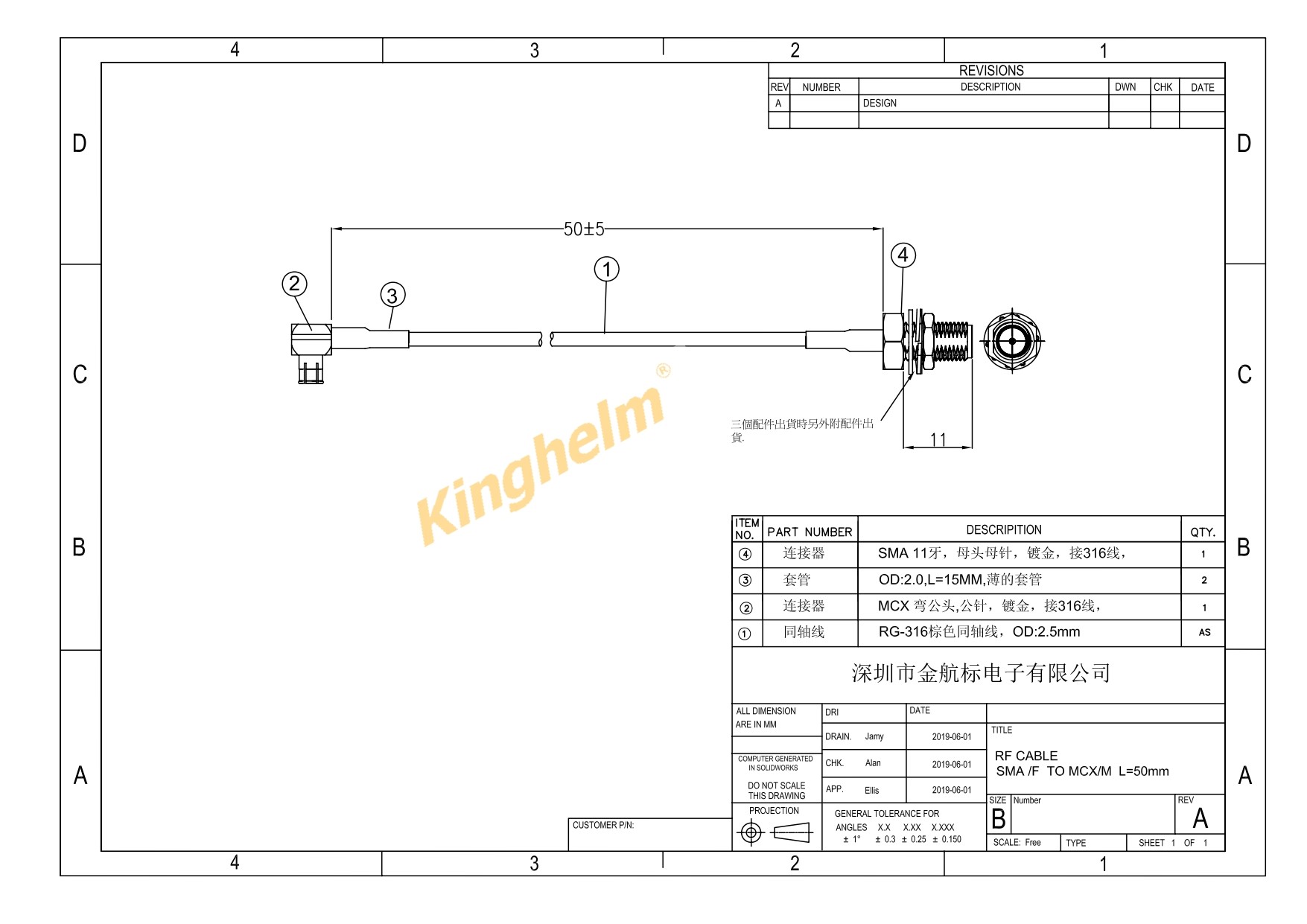

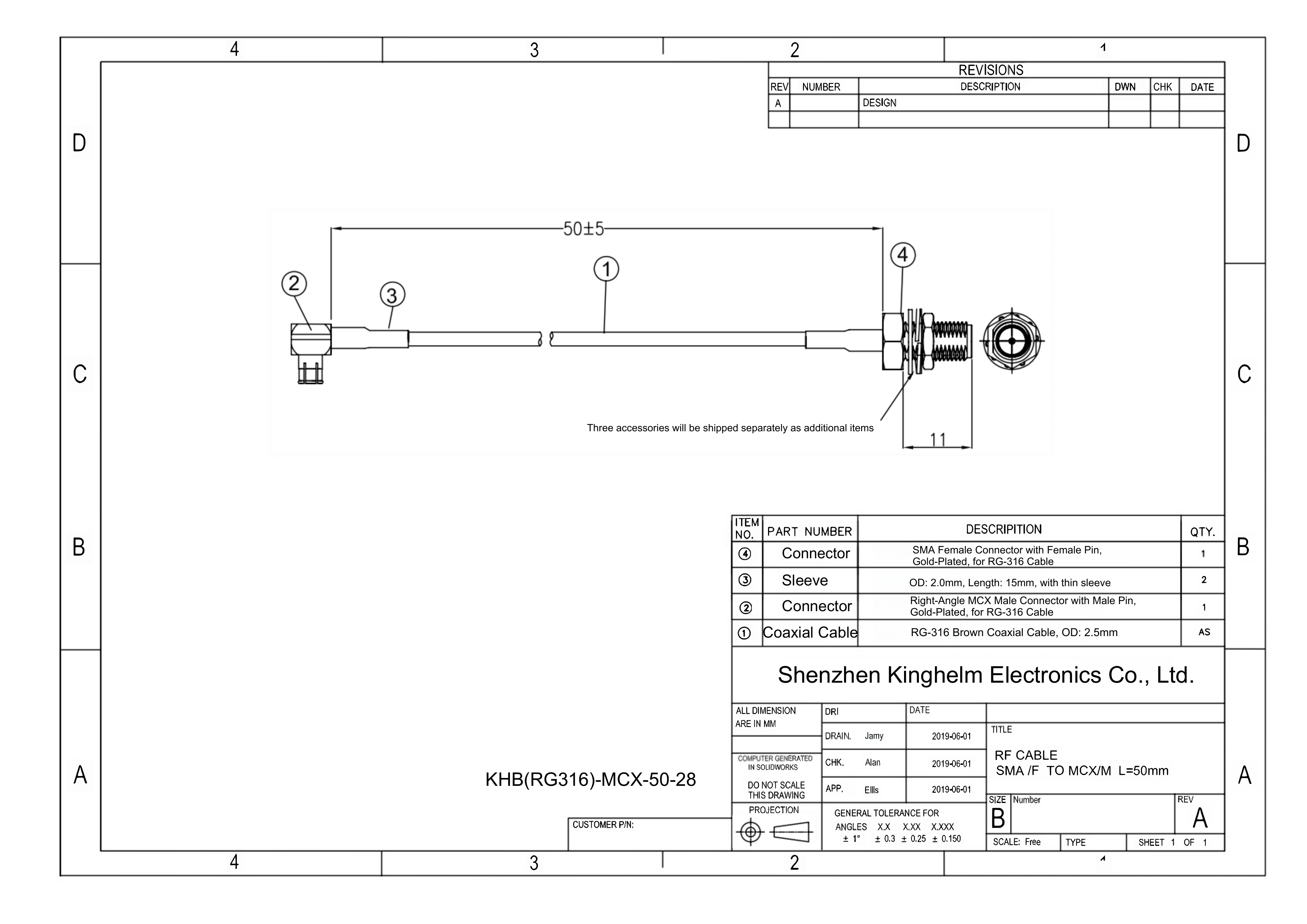

Product Description:

●Connectors:

  ●Type: SMA connectors with 11 teeth, featuring female and male parts, gold-plated, designed to connect to RG-316 coaxial cable.


●Insulation Sleeve:

  ●Specifications: Thin insulation sleeve with an outer diameter of 2.0mm and a length of 15mm.


●MCX Connector:

  ●Type: MCX bent male connector with a male pin, gold-plated, intended for connection to RG-316 coaxial cable.


●Coaxial Cable:

  ●Type: RG-316 coaxial cable in brown color with an outer diameter of 2.5mm.


Prev：Kinghelm Coaxial connector Wiring RF wire, MCX to SMA gold-plated external screw inner hole, RG31 — KHB (RG316)-MCX-80-28
