Kinghelm 2.4G Small Rubber Stick Antenna, SMA Straight Head Inner Thread Inner Needle - KH-SMA (ZJ) -2.4G

Kinghelm 2.4G Small Rubber Stick Antenna, SMA Straight Head Inner Thread Inner Needle - KH-SMA (ZJ) -2.4G

Brand: KINGHELM
Manufacturer Model: KH-SMA (ZJ) -2.4G
Gross Weight: 2.43 grams (G)

Inquiry Datasheet

Product Details

Product Description:
The Kinghelm 2.4G Small Rubber Stick Antenna, SMA Straight Head Inner Thread Inner Needle (KH-SMA (ZJ) -2.4G) is a high-performance antenna designed for use in a variety of wireless communication systems. It features a compact and lightweight design, with a black housing color and spiral fixation for easy installation. The antenna is equipped with an SMAJ gold-plating connector and has a frequency range of 2400-2500MHz. It also has a vertical polarization and omnidirectional radiation direction, with a gain of ≥1dBi and a maximum input power of 5W.

Product Features:

--Compact and lightweight design

--Black housing color with spiral fixation for easy installation

--SMAJ gold-plating connector

--Frequency range of 2400-2500MHz

--Vertical polarization and omnidirectional radiation direction

--Gain of ≥1dBi and maximum input power of 5W

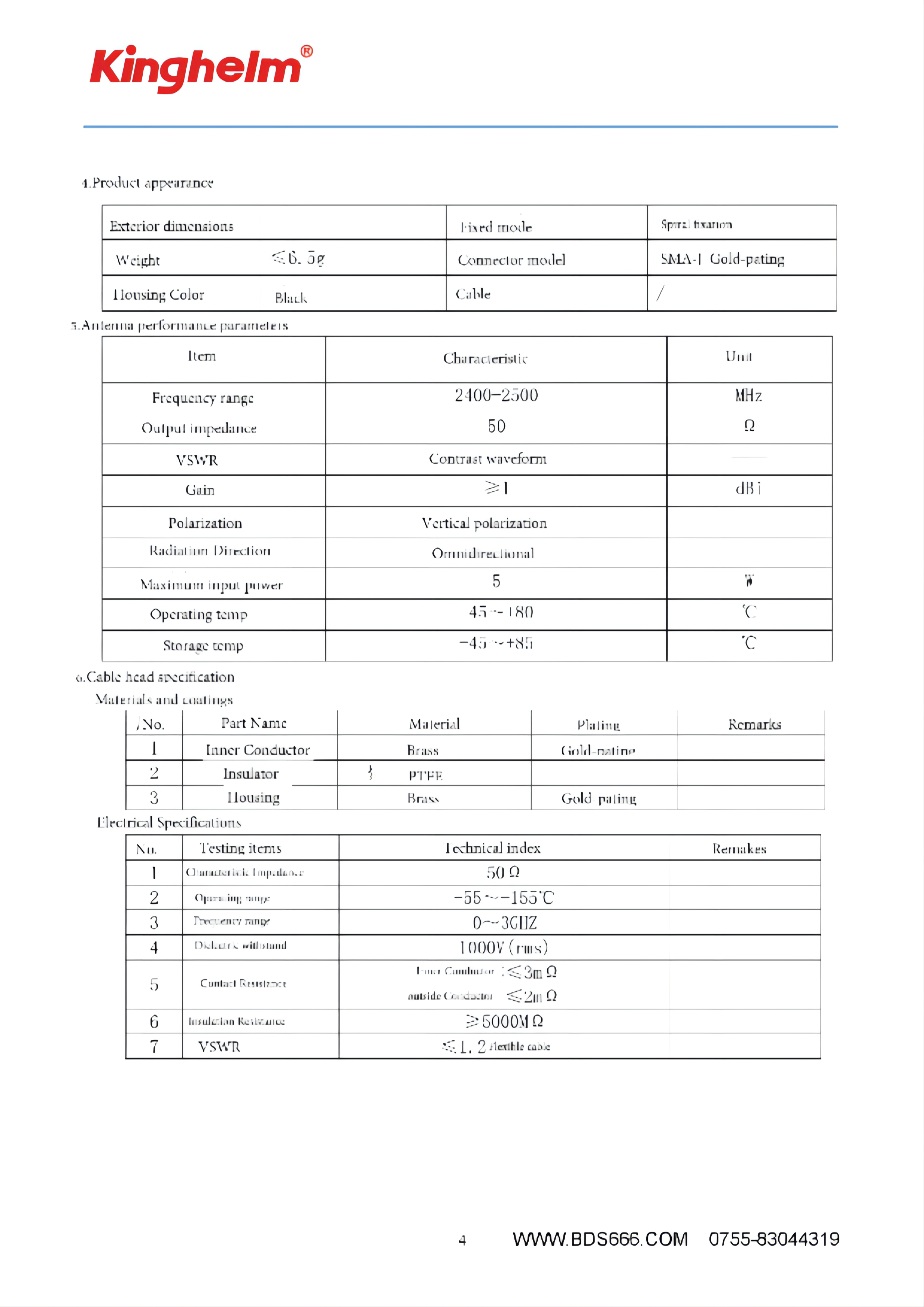

Product Specifications:

Exterior dimensions
Weight	≤6.5g
Housing color	Black
Fixed mode	Spiral fixation
Connector model	SMAJ gold-plating

Antenna performance parameters
Frequency range	2400-2500MHz
Output impedance	50Ω
VSWR	≤1.2
Gain	≥1dBi
Polarization	Vertical polarization
Radiation direction	Omnidirectional
Maximum input power	5W
Operating temperature range	-45~+80℃
Storage temperature range	-45~+85℃

Electrical Specifications
Characteristic impedance	50Ω
Operating range	-55~+155℃
Frequency range	0~3GHz
Dielectric withstand	1000V(rms)
Insulation resistance	≥5000MΩ
VSWR	≤1.2 flexible cable
Inner conductor	≤3mΩ,
Outside conductor	≤2mΩ

Application Fields:
The Kinghelm 2.4G Small Rubber Stick Antenna, SMA Straight Head Inner Thread Inner Needle (KH-SMA (ZJ) -2.4G) is suitable for use in a variety of wireless communication systems, including remote monitoring, IoT devices, and more.

Brand Certificate:
Kinghelm is a trusted brand in the field of wireless communication and IoT devices. Our products are designed to provide reliable and stable performance in harsh outdoor environments.

Product Packaging:
The Kinghelm 2.4G Small Rubber Stick Antenna, SMA Straight Head Inner Thread Inner Needle (KH-SMA (ZJ) -2.4G) comes in a sturdy and durable packaging to ensure safe and secure delivery.
