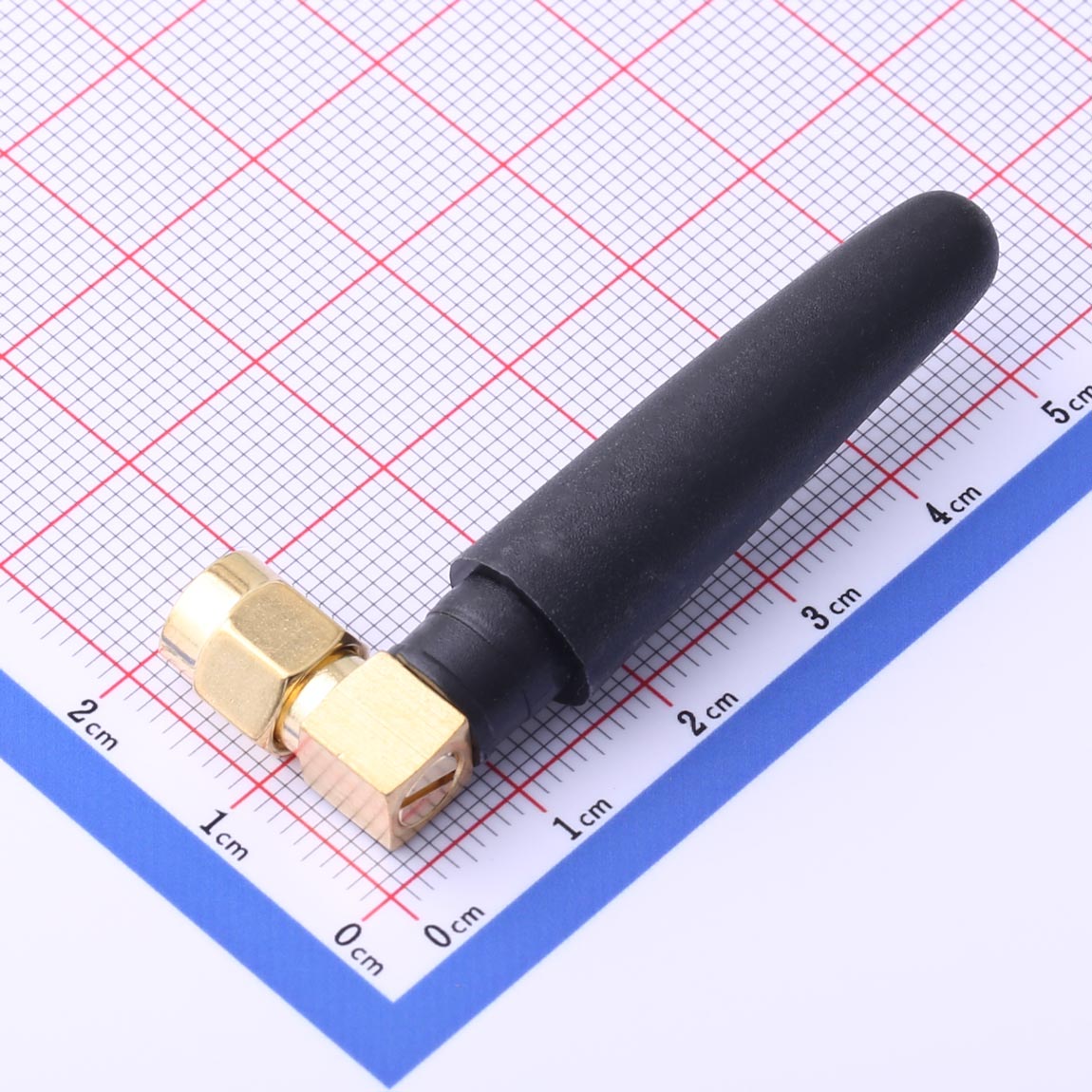

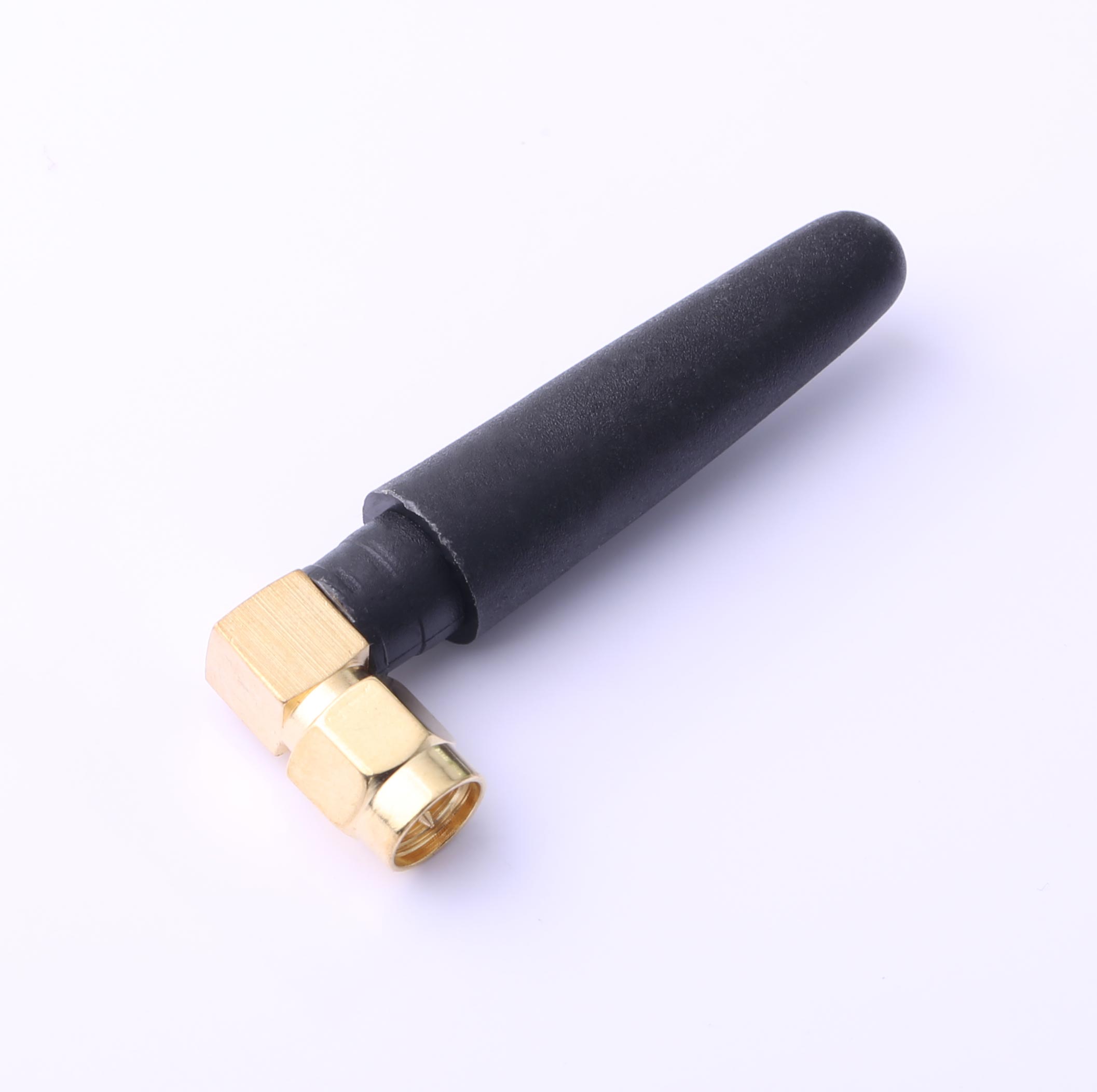

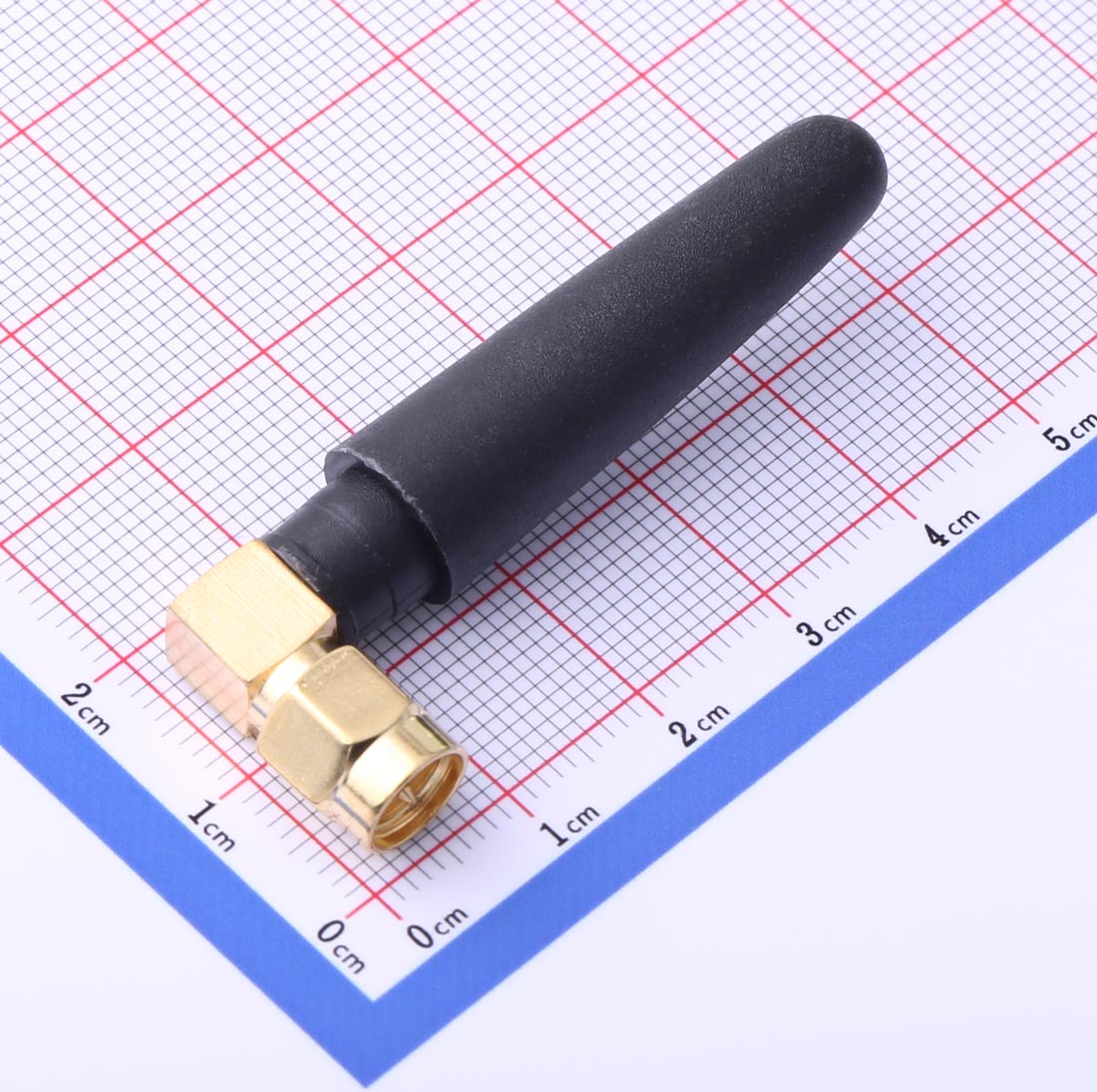

Kinghelm Small Pepper Antenna/2.4g/WiFi/ Bluetooth/Gold-plated SMA Elbow KH-(2400)-K503-JB

Kinghelm Small Pepper Antenna/2.4g/WiFi/ Bluetooth/Gold-plated SMA Elbow KH-(2400)-K503-JB

Brand: Kinghelm
Manufacturer Model: KH-(2400)-K503-JB
Gross Weight: 6.06 grams (g)
Packing: Bag

Inquiry Datasheet

Product Details

Product Description:
The Kinghelm Small Pepper Antenna KH-(2400)-K503-JB is a high-quality antenna designed for 2.4g WiFi and Bluetooth applications. It is a high-quality 2.4~2.5GHz 2dBi Router WiFi 2.4G Antenna with SMA-JW Rubber 850/900/1800/1900MHz Vertical 2G GSM Antenna.The antenna features a gold-plated SMA elbow connector for reliable and stable connectivity. The KH-(2400)-K503-JB model is designed to provide excellent performance and reliability for various wireless applications.

Product Features:

SMA Meander Antenna
Gold-plated SMA Elbow Connector
Frequency Range	2400-2500MHZ
Impedance	50Ω
VSWR	1:1.5
Gain	2.15dB
Polarization	Vertical
Radiation	Omnidirectional
Max Power	20W
Height	50mm
Connector	SMA JW
Lighting Protection	DC Grounding

Product Specifications:

The KH-(2400)-K503-JB antenna has a maximum diameter of 10.3mm and a minimum diameter of 6.5mm. It has a height of 50mm and is designed with an SMA JW connector. The antenna has a frequency range of 2400-2500MHZ, an impedance of 50Ω, and a VSWR of 1:1.5. It has a gain of 2.15dBI and a vertical polarization. The radiation pattern is omnidirectional, and the maximum power is 20W.

Application Fields:
This antenna is suitable for various wireless applications that require reliable and stable connectivity, such as routers, access points, and other wireless devices. It is ideal for 2.4g WiFi and Bluetooth applications.

Brand Certificate:
Kinghelm is a trusted brand that provides high-quality wireless communication products. The KH-(2400)-K503-JB antenna is designed and manufactured to meet the highest standards of quality and performance.

Product Packaging:
The KH-(2400)-K503-JB antenna is carefully packaged to ensure safe and secure delivery. The package includes the antenna and all necessary accessories for easy installation.
