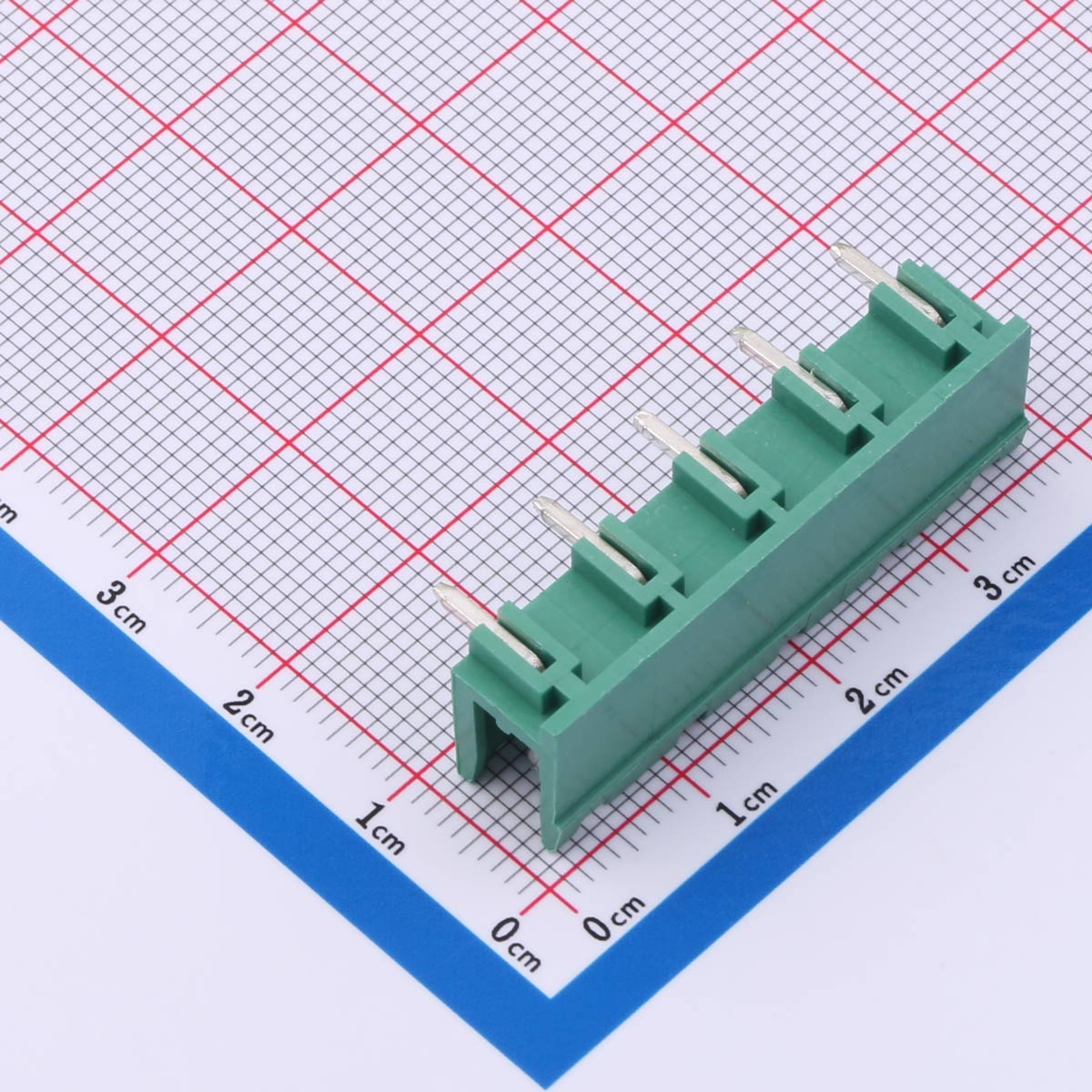

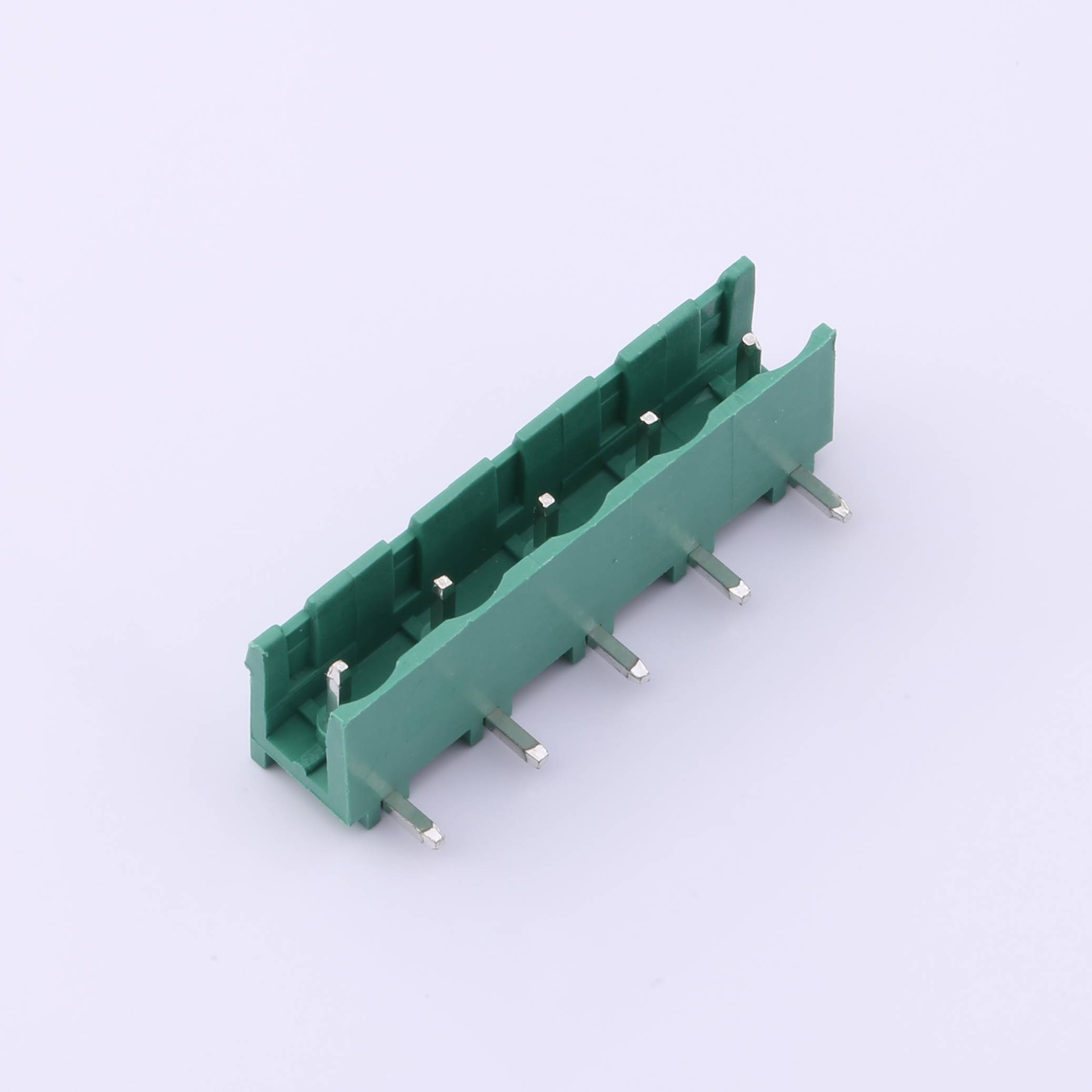

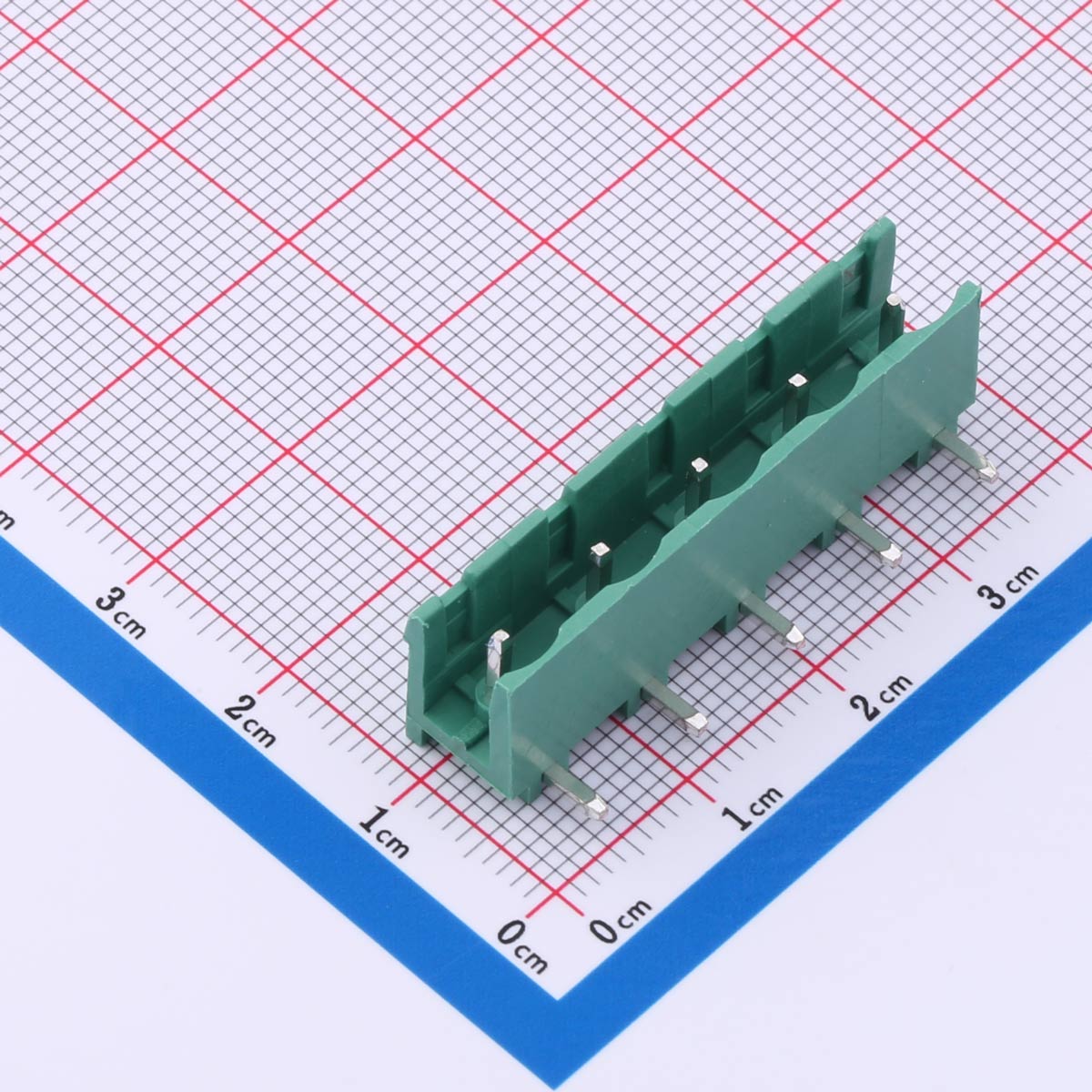

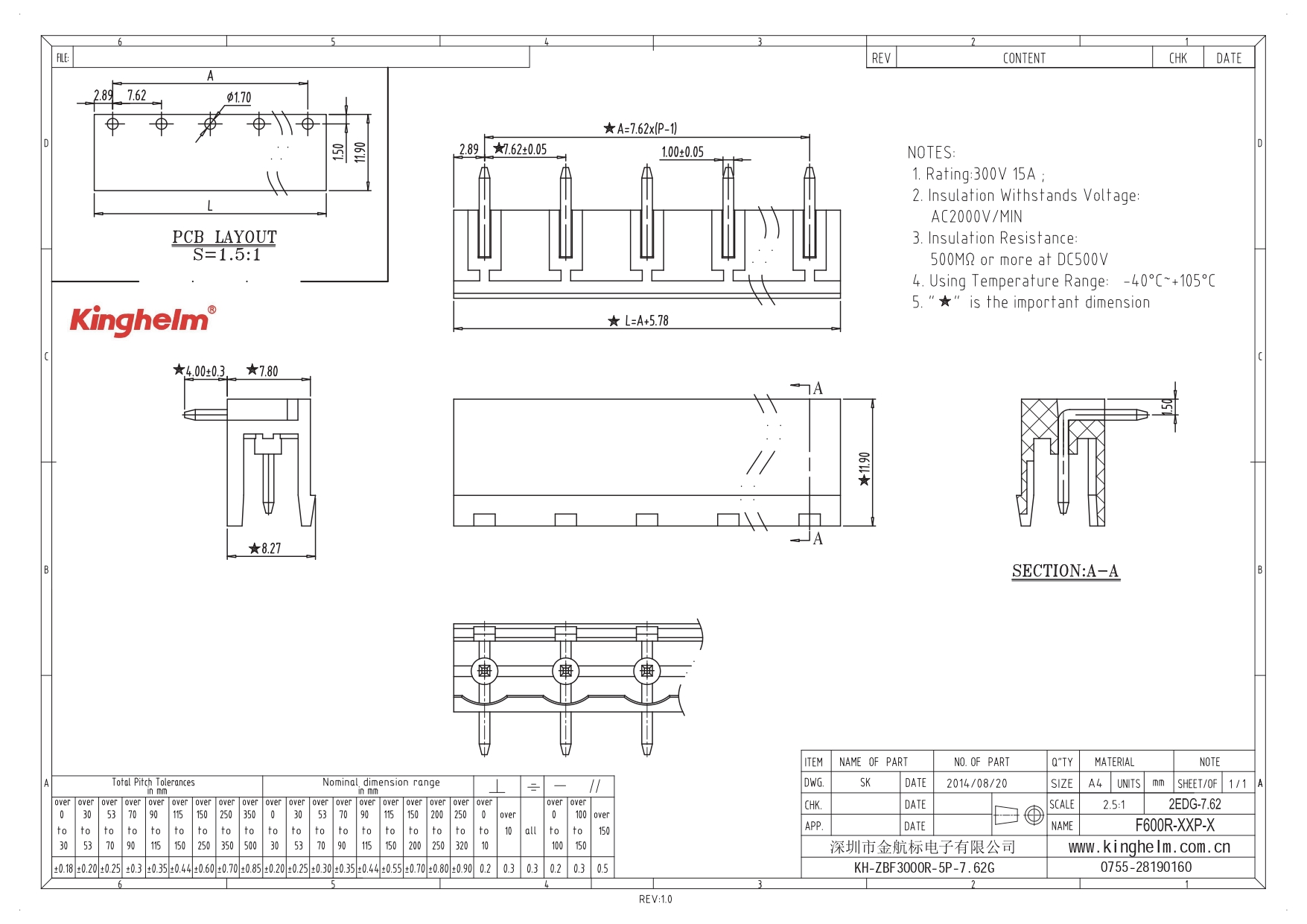

Pluggable Terminal Block, 7.62mm pitch, 5 pin, 15A 300V, KH-ZBF3000R-5P-7.62G
Rating: 300V, 15A
Insulation Withstand Voltage: AC 2000V/min
Insulation Resistance: ≥500MΩ at DC 500V
Operating Temperature Range: -40°C to +105°C
Standards: RoHS compliant
Product Features
● 5-pin horizontal connection
● Sturdy right-angle contacts
● Standard 7.62 mm spacing
● Secure terminal lock design
● High-quality plastic insulation
Product Benefits
● Simple installation process
● Reliable under load
● Space-saving for compact PCBs
● Reduces maintenance time
● High resistance to heat and vibration
Product Application
● Sensor and actuator wiring
● Control circuit connections
● Alarm and safety systems
● Home automation hubs
● Electric heating systems
