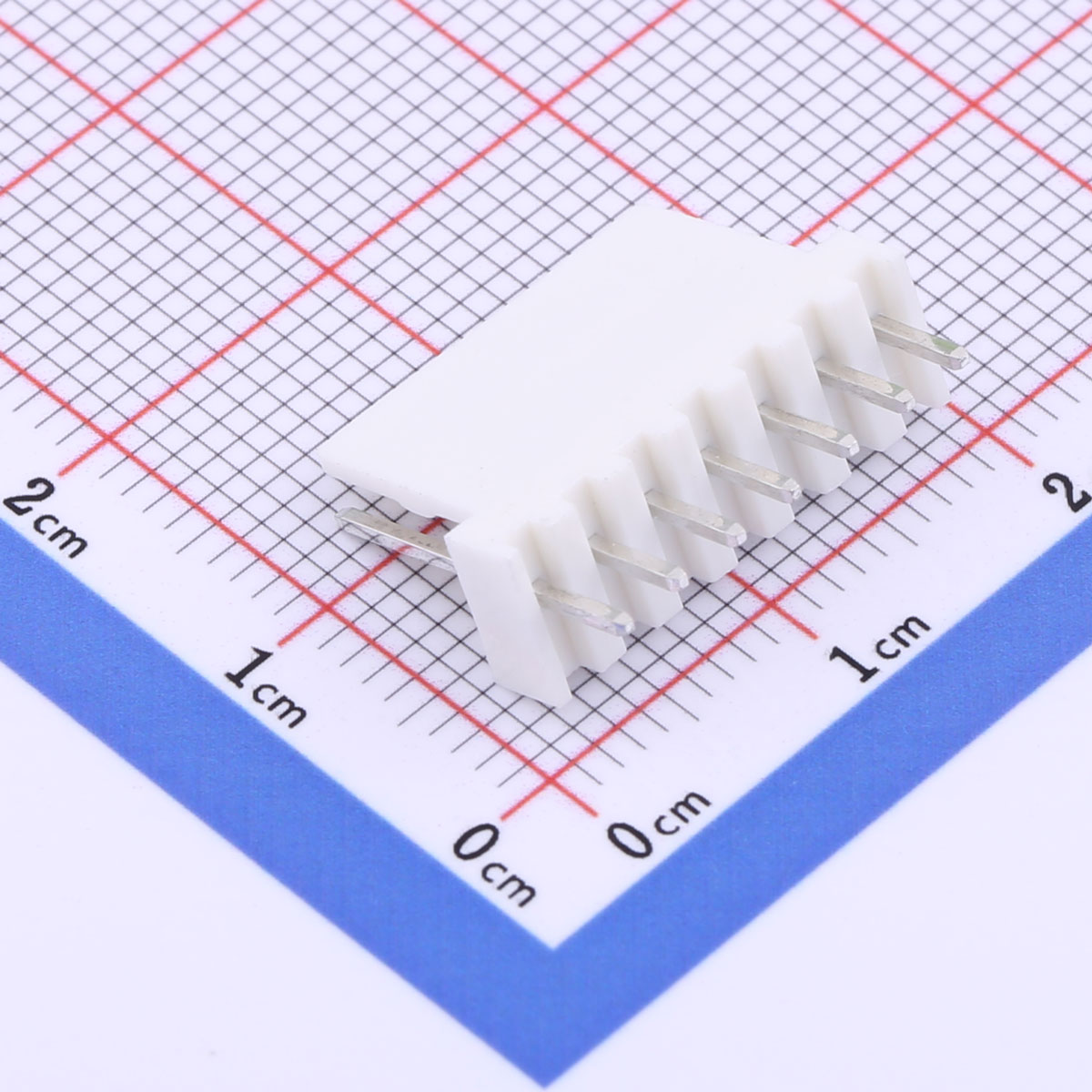

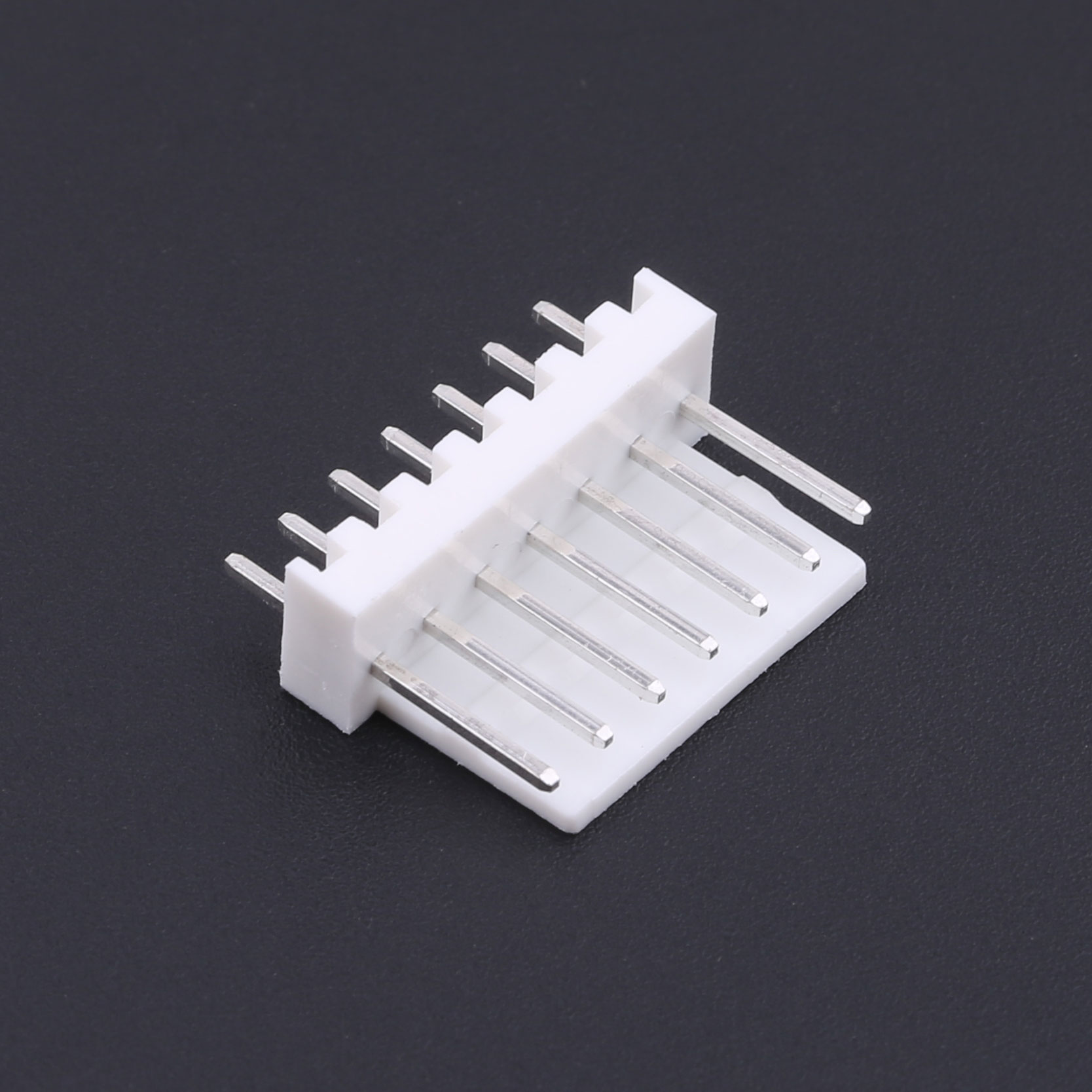

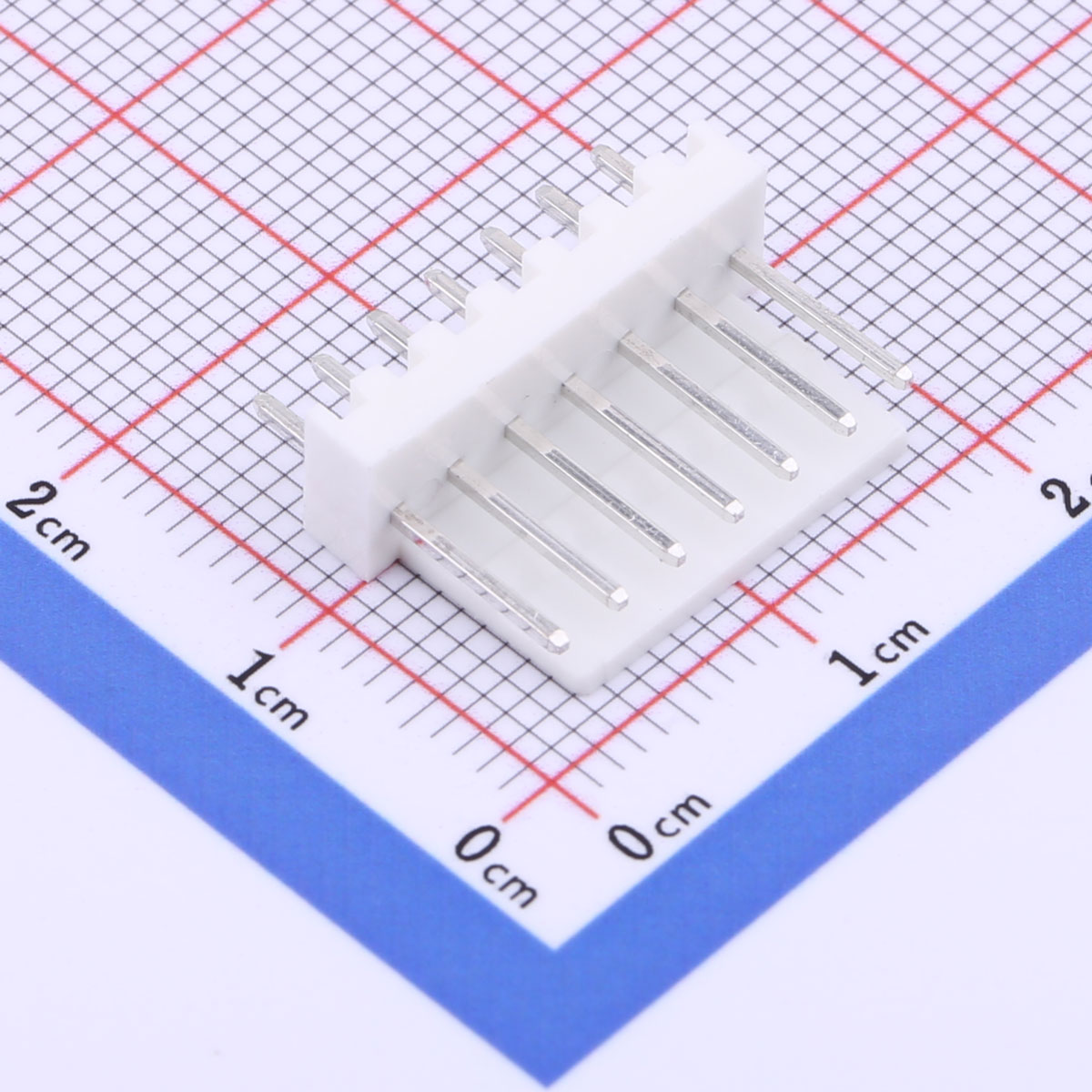

Wire-to-Board Connector, 2.54mm Pitch, 1x7P, KH-HX2.54-07Z

Wire-to-Board Connector, 2.54mm Pitch, 1x7P, KH-HX2.54-07Z

Current Rating: 4A AC/DC
Voltage Rating: 250VAC/DC
Temperature Range: -25℃ to +85℃
Contact Resistance: 20mΩ (Max)
Insulation Resistance: 1000MΩ (Min)

Inquiry Datasheet

Product Details

Product Features
● 2.54mm pitch, precise spacing
● Single row, 7 pins configuration
● Straight plug-in installation
● Durable Nylon66, UL94V-0 rated
● Complies with RoHS standards

Product Benefits
● Simplifies PCB layout design
● Compact and efficient footprint
● Ensures stable electrical connections
● Made with flame-resistant materials
● Built for reliable long-term use

Product Applications
● Electronic consumer devices
● LED lighting fixtures
● Industrial automation controls
● Telecommunication equipment
● Electronics prototyping and repair
