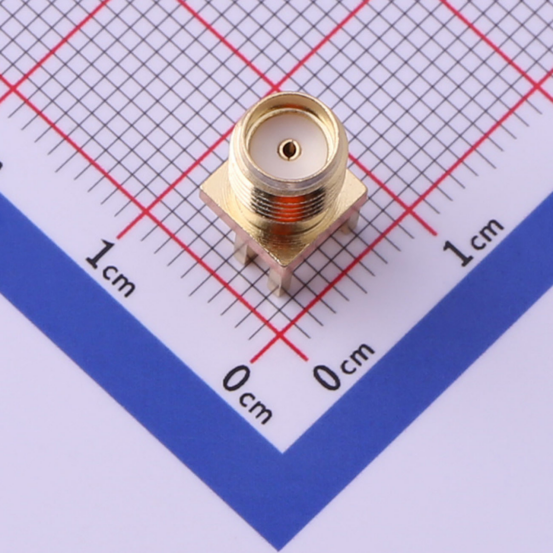

SMA antenna head is a miniature RF connector commonly used to connect RF equipment and antennas. When using an SMA antenna head, the signal transmission may be affected by a certain degree of attenuation due to passing through the connector, which can affect the transmission quality.

Regarding the attenuation problem of the SMA antenna head, the frequency range must be considered first. SMA connectors are usually suitable for high-frequency applications with a frequency range of up to 18 GHz, but different types of SMA connectors have different frequency range limitations.

Secondly, the attenuation of SMA connectors is related to the manufacturing quality of the connector and the shape, length, precision, and other factors of the contact portion. This means that the attenuation value of SMA connectors from different brands, models, or even different batches may vary.

Third, the characteristic impedance of the cable and antenna also affects the attenuation. If the characteristic impedance of the cable and antenna does not match that of the SMA connector, it can also cause signal attenuation.

In summary, the attenuation value of the SMA antenna head depends on multiple factors, including the frequency range of the connector, manufacturing quality, shape, length, precision of the contact portion, and the characteristic impedance of the cable and antenna. Under different conditions, the attenuation value of SMA connectors may vary.

Generally, the attenuation value of SMA connectors is between 0.1 dB to 0.3 dB, but there are also some high-precision SMA connectors that can achieve lower attenuation values, such as 0.05 dB or lower. Therefore, when choosing an SMA connector, it is necessary to select based on specific application scenarios and requirements, and carefully inspect and test the manufacturing quality of the connector to ensure stable and reliable transmission quality.
