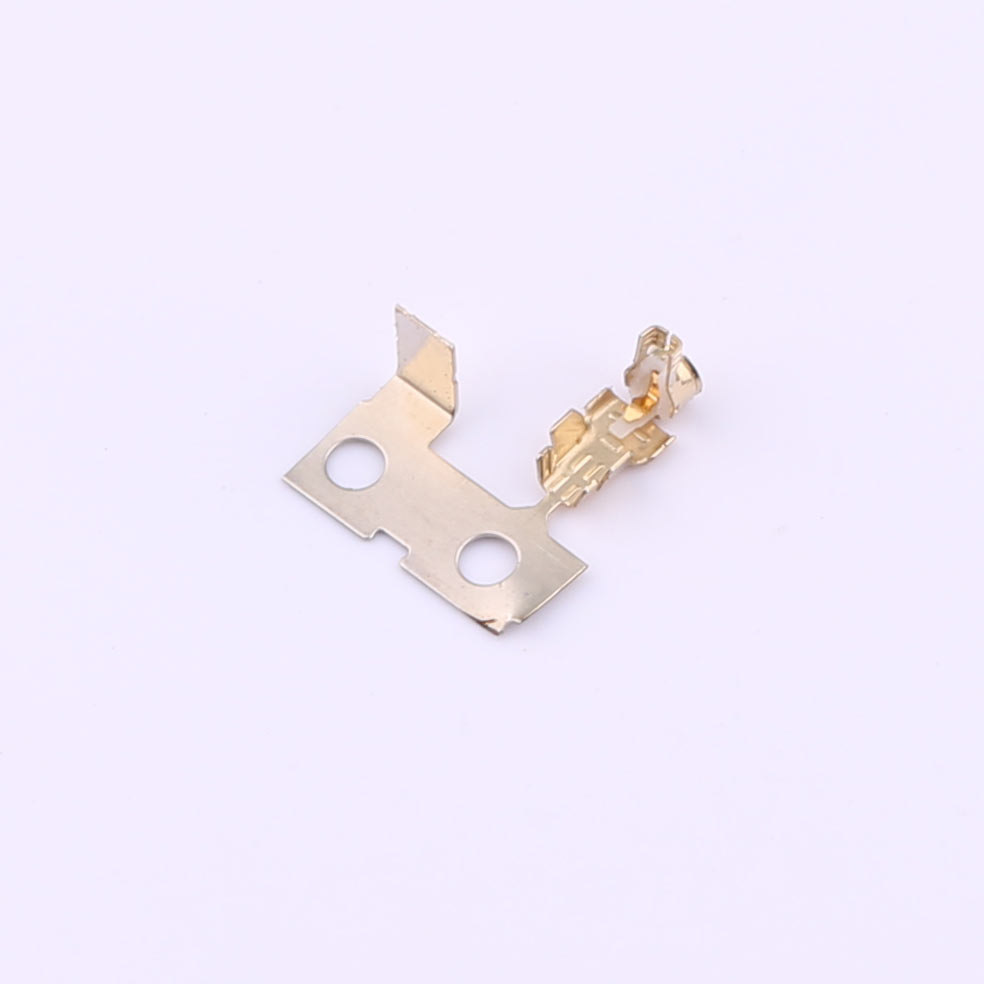

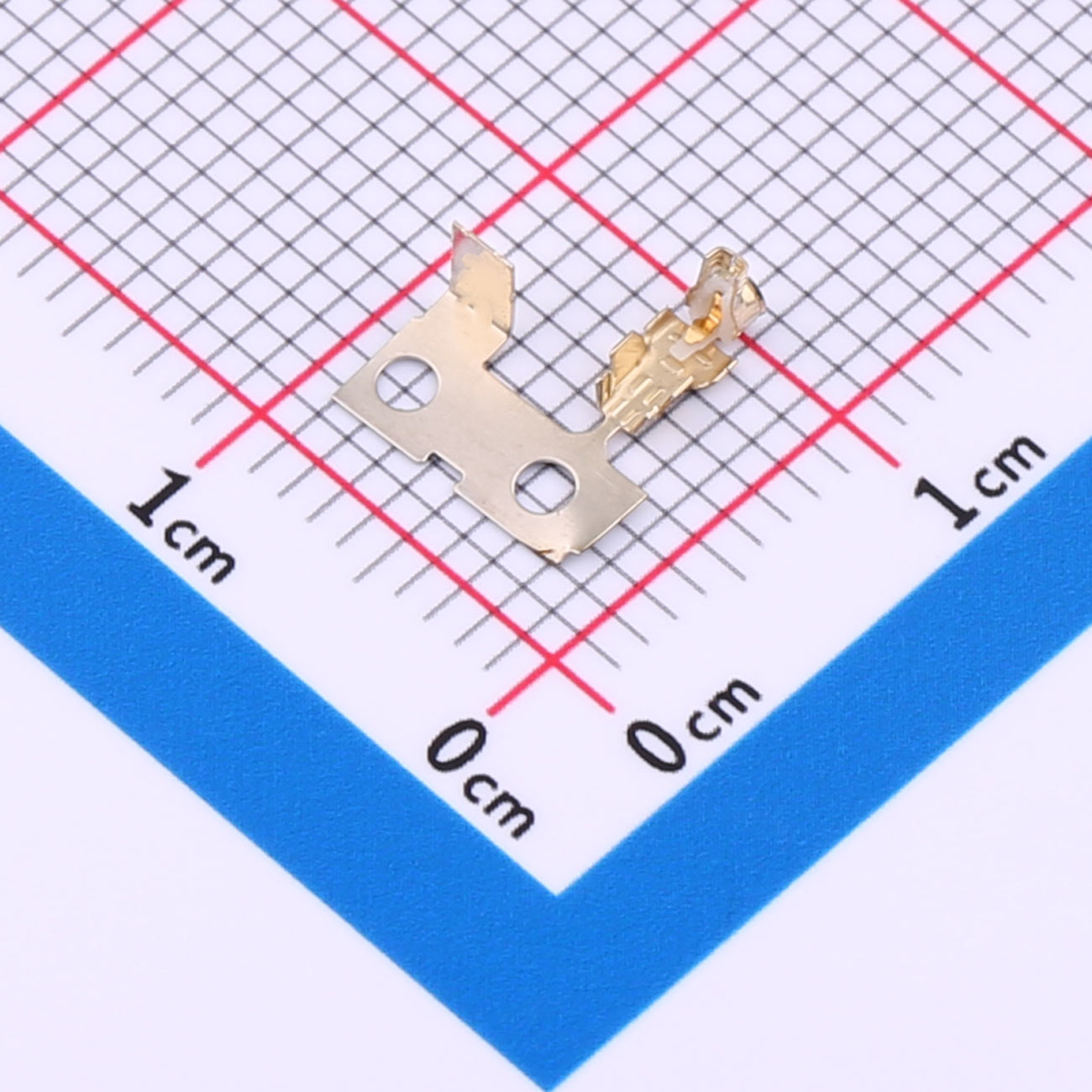

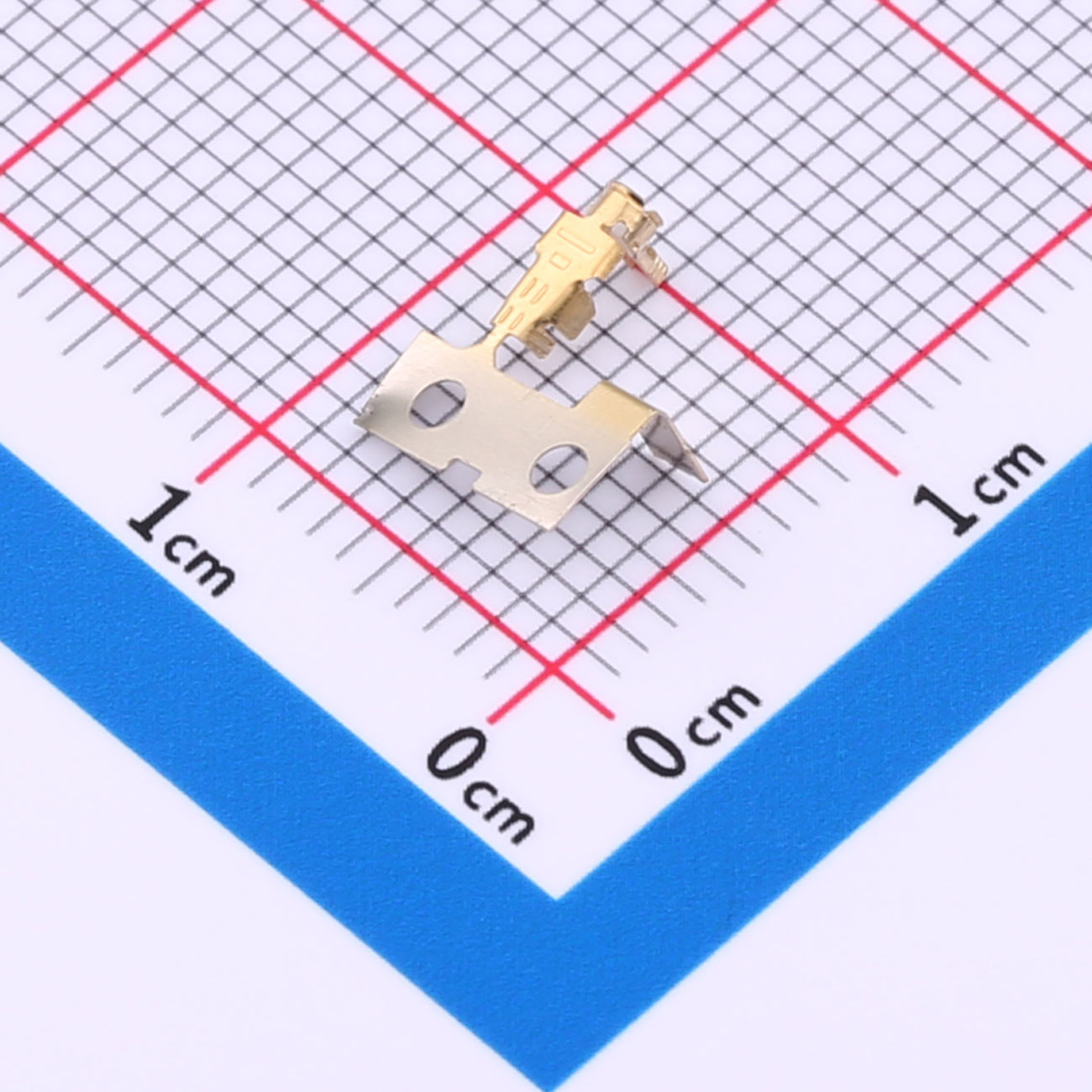

Kinghelm IPEX Female Chassis Connector Line End Terminal (Connect 0.81 Wire) KH-IPEX3-0.81

Brand: Kinghelm
Model:KH-IPEX3-0.81
Gross Weight:  0.125833gram
Packing: Taping

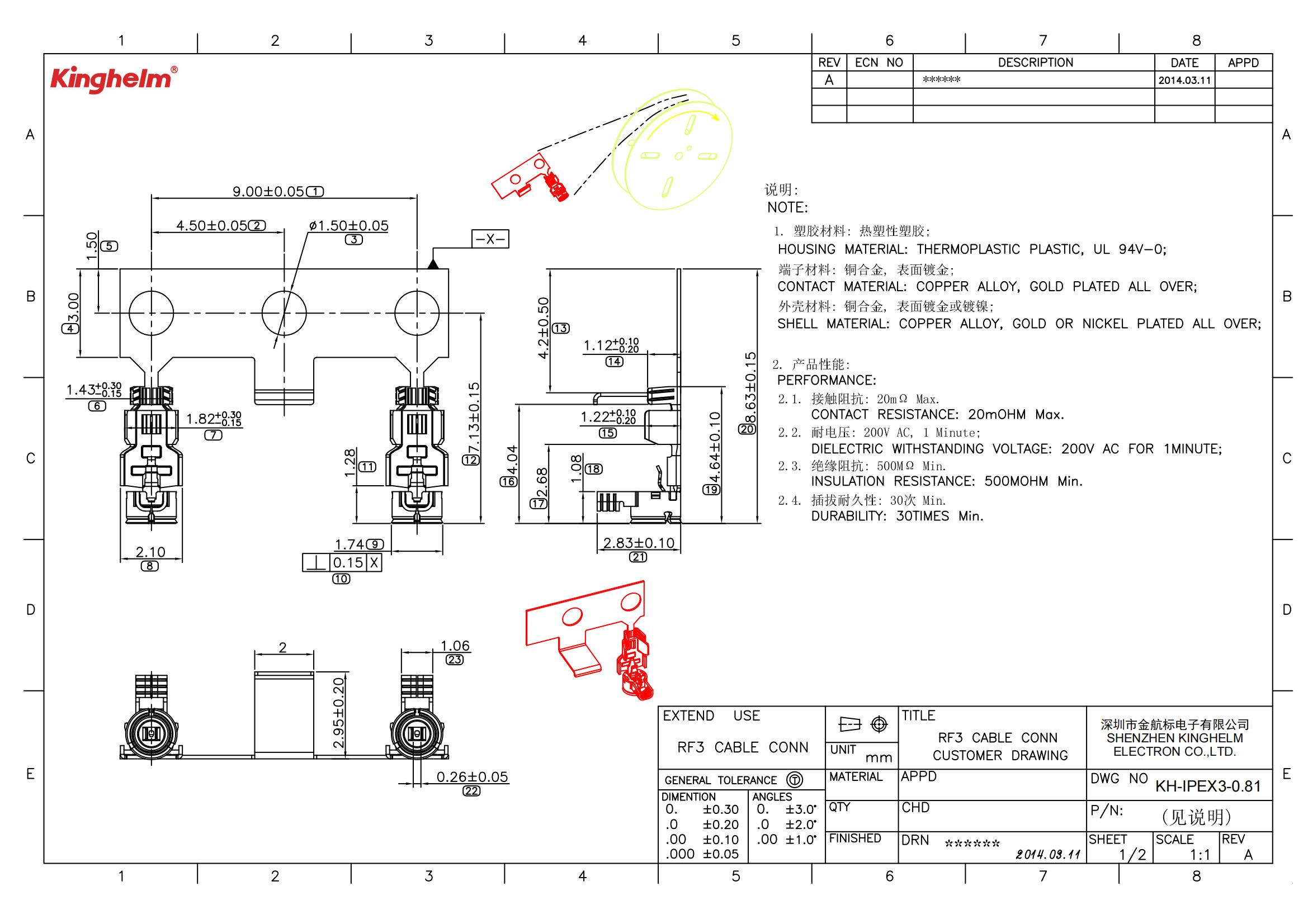

Inquiry Datasheet

Product Details

Product Overview:

1.Material:
HOUSING MATERIAL: THERMOPLASTIC PLASTIC，UL 94V-0;

CONTACT MATERIAL: COPPER ALLOY，GOLD PLATED ALL OVER;

SHELL MATERIAL: COPPER ALLOY，GOLD OR NICKEL PLATED ALL OVER:

2.Product Performance:

CONTACT RESISTANCE: 20mOHM Max.
2.2,DIELECTRIC WITHSTANDING VOLTAGE: 200V AC FOR 1MINUTE
2.3INSULATION RESISTANCE: 500MOHM Min.

2.4.DURABILITY: 30TIMES Min.
