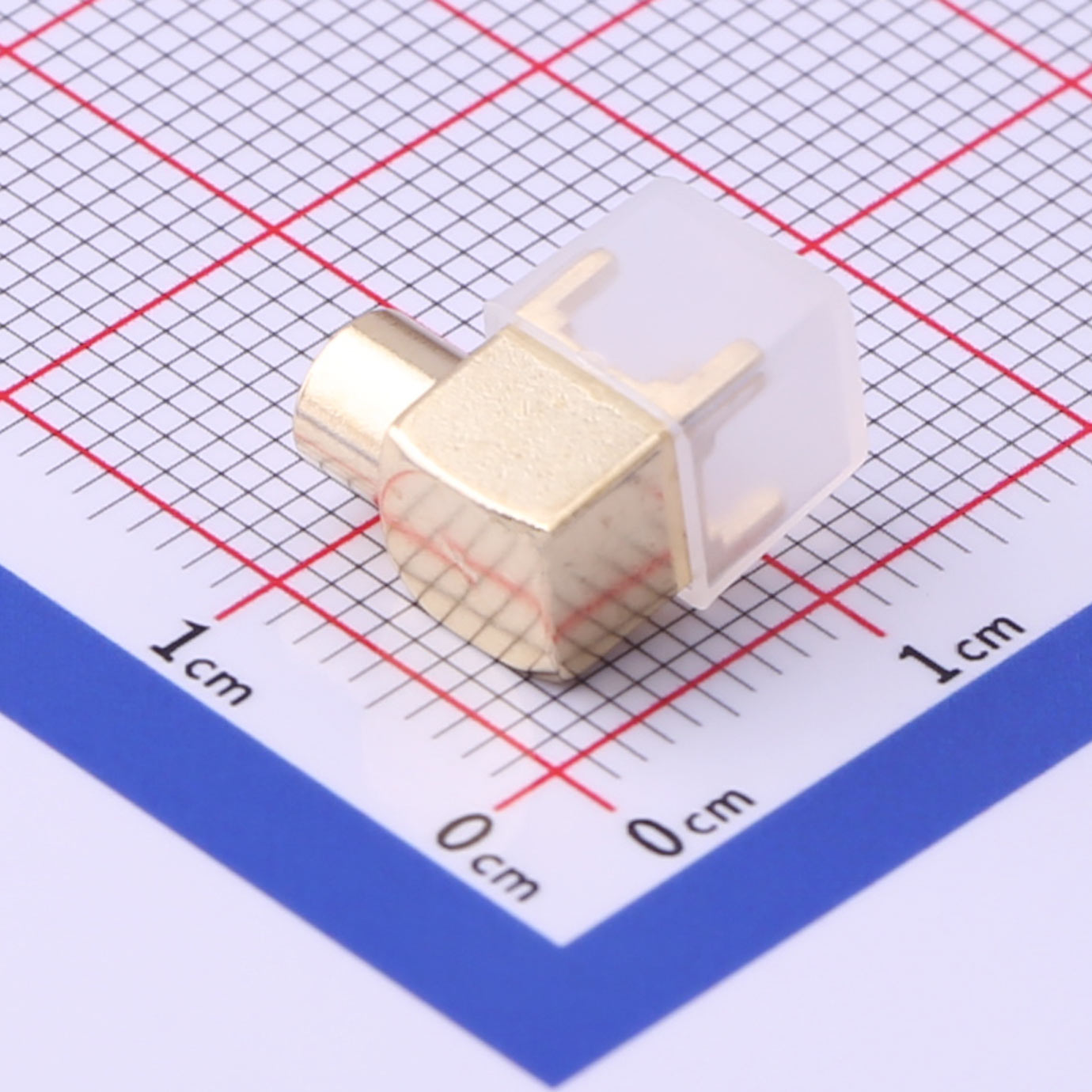

Connector Type: Board-End
Package: Plugin
Number of Ports: 1
Style: Elbow
Interface Length/Height: 3.5mm
Product Benefits
● High-quality MCX/MMCX connectors reliable performance
● Board-end design easy PCB integration
● Elbow style space-efficient connection
● 3.5mm interface length secure fit
● Easy installation plug-and-play functionality
● Durable construction long-lasting use
● Suitable for various RF applications
Product Application
● Wireless communication devices
● Mobile and portable electronics
● GPS and navigation systems
● Automotive electronics
● IoT devices
● Test and measurement equipment
● Industrial automation systems
| File Name | Title | Description |
|---|---|---|
| KH-MCX-KWE-W.pdf | KH-MCX-KWE-W | - |
Support
If you need design/technical support, please let us know and fill inResponse FormWe will get back to you as soon as possible.
Longevity
The Longevity Program is aimed to provide our customers information from time to time about the expected time that our products can be ordered. The NLP is reviewed and updated regularly by our executive Management Team. View ourlongevity programhere.
Connector Type: Board-Mount Interface Type: Female Port Quantity: 1 Interface Diameter: 4.5mm Interface Length/Height: 4.5mm
Interface: Inner pin Connector Type: Header Operating Temperature Range: -55℃~+155℃ Frequency: 18GHz Impedance: 50Ω
Connector Type: Board-Mount Interface: Inner Hole Port Quantity: 1 Interface Diameter: 3.5mm Style: Elbow
Impedance: 50Ω Frequency Range: DC to 6GHz Voltage (breakdown): ≥750V Insulation Resistance: ≥1,000MΩ Operation Temperature: -40℃ - +100℃
Impedance: 50Ω Frequency Range: DC to 3GHz Dielectric Withstanding Voltage: 500V Insulation Resistance: ≥1,000MΩ VSWR: 0-3GHz < 1.45
Insulator:PTFE Hole:(HPb59-1) AU:0.02~004um Unspecified Tolerance: ±1 Compliance:RoHS
Impedance: 50 ohms Rated Current: 0 to 18GHz Voltage Rate: 335VRMS Insulation Resistance: ≥5000MΩ
Characteristic impedance: 50Ω Rated current: 0-18GHz Dielectrically withstanding voltage: 1000VRMS Voltage rating: 335 VRMS Insulation Resistance:>5000MΩ
