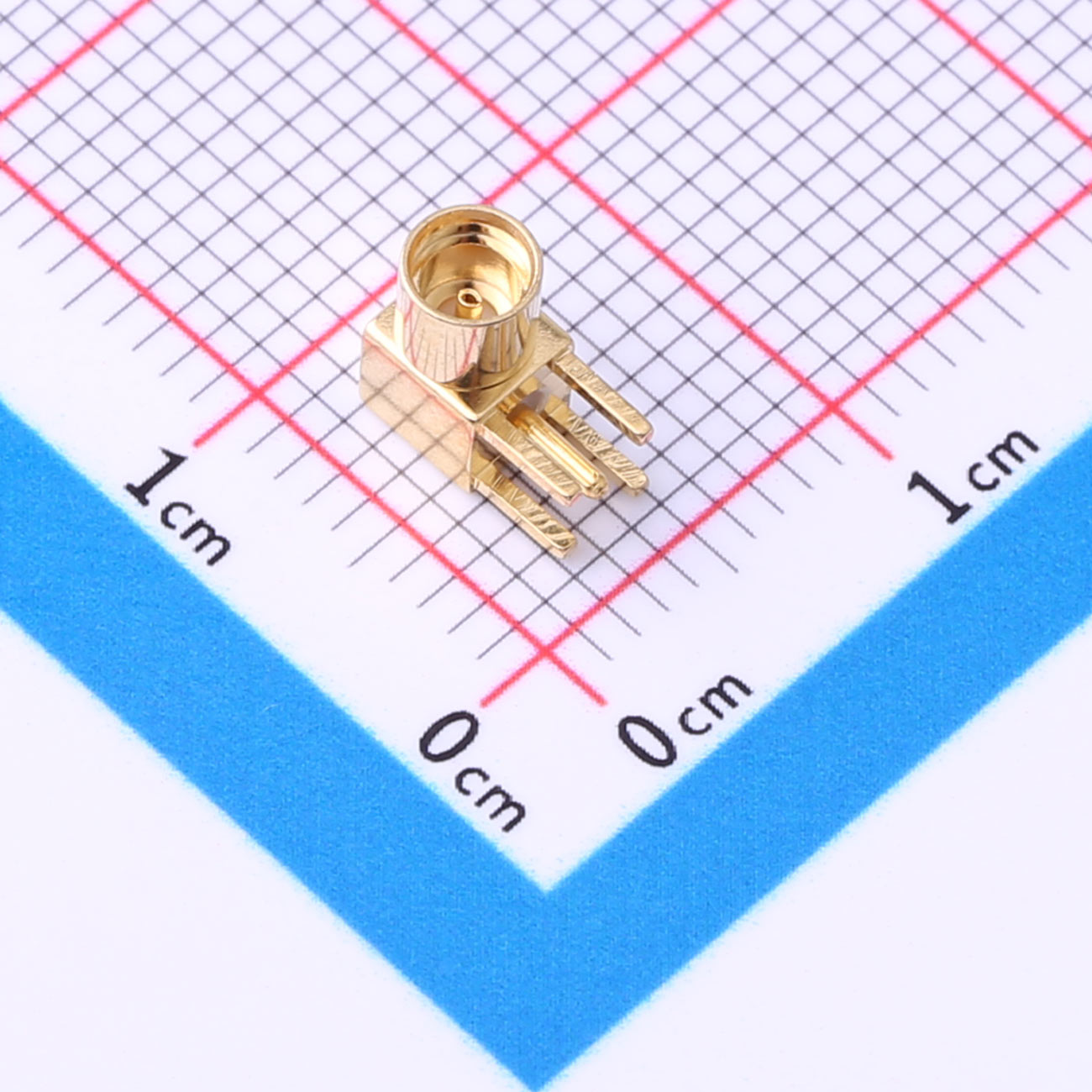

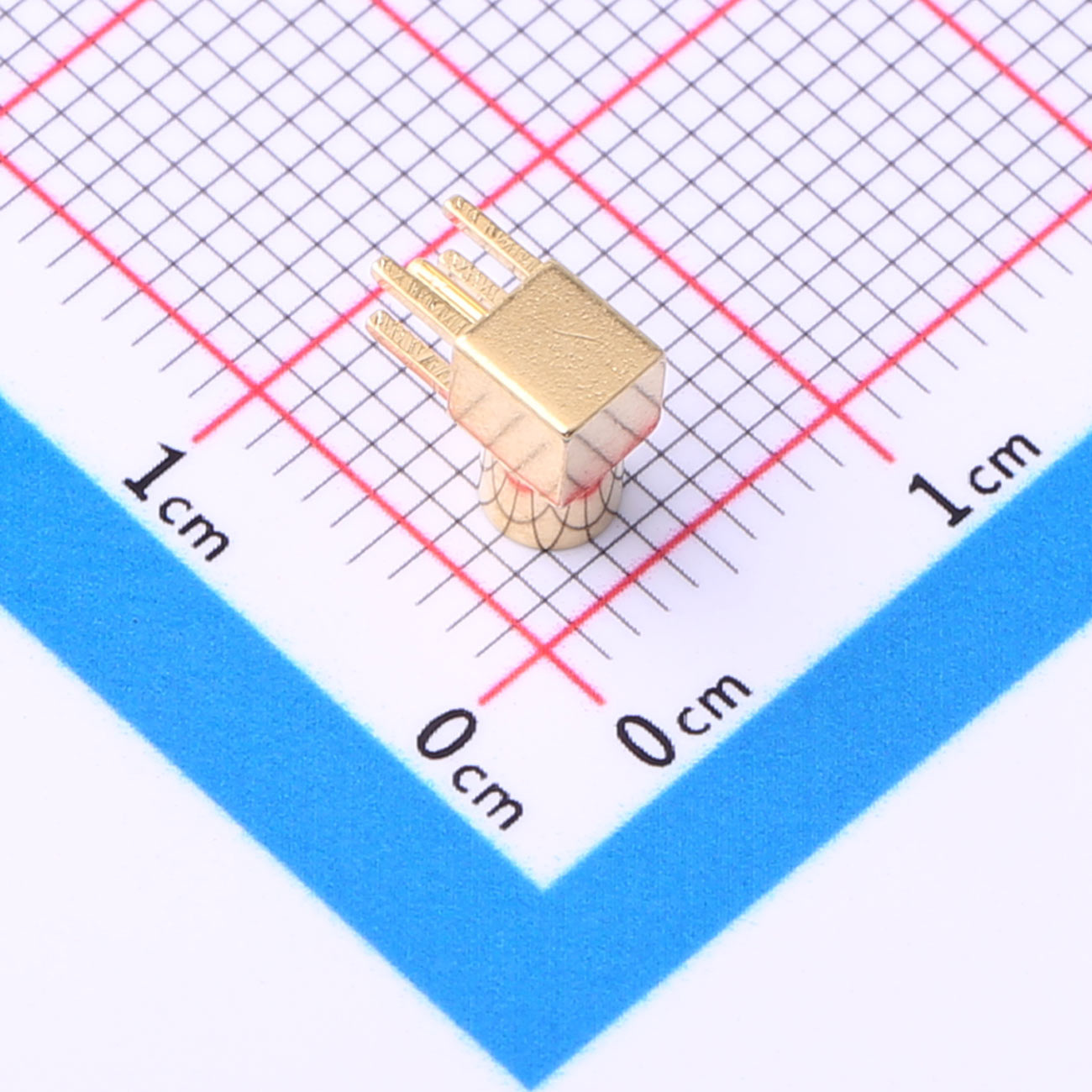

Connector Type: Board-Mount
Interface: Inner Hole
Port Quantity: 1
Interface Diameter: 3.5mm
Style: Elbow
Benefits:
Edge Mount Design: Saves space and simplifies PCB layout by mounting on the edge.
High Performance: Ensures reliable signal transmission with minimal interference.
Dual Compatibility: Supports both MCX and MMCX connectors for versatile use.
Durable and Robust: Built to withstand mechanical stress and environmental factors.
Applications:
Telecommunications: Connects antennas in communication devices and equipment.
Consumer Electronics: Used in devices like GPS receivers and wireless audio systems.
Networking Hardware: Integrates with routers and other network devices for stable RF connections.
Test and Measurement Equipment: Essential for accurate connections in RF testing and diagnostics.
| File Name | Title | Description |
|---|---|---|
| KH-MMCX-KWE-1.pdf | KH-MMCX-KWE | - |
