Daily Product - Kinghelm KH-2.54PH180-2X17P-L8.9 Connector

Release date:2023-09-15Author source:KinghelmViews:181

Product Description
The IDC connector is a type of connector that can be directly inserted into a printed circuit board (PCB). In contrast to the traditional soldering method, the IDC connector employs a unique insulation displacement technology, which automatically establishes contact between the metal conductor and the PCB by inserting the wire into slots in the connector. This innovative technique eliminates potential issues in traditional soldering, such as weak joints and poor contact, fundamentally improving the reliability and stability of the connection.

Features & Benefits

●  Versatility

●  Stability

●  Easy installation

●  Secure connection

●  Durable construction

●  Efficient space utilization

●  Cost-effective solution

KH-2.54PH180-2X17P-L8.9 Parameter





Number of Rows


Number of Pins per Row


Package Type

 Through-Hole (DIP)

Voltage Rating

 AC 500V

Operating Temperature

 -40°C to +105°C

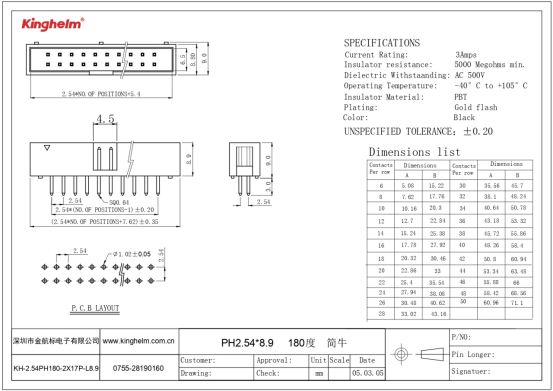

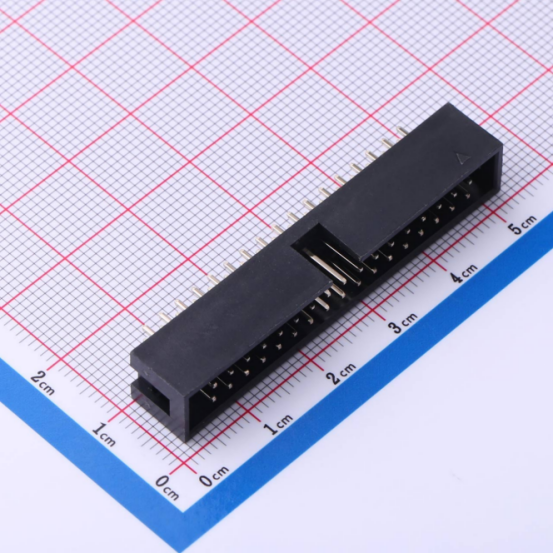

Product Images and Specifications


Application Field

●  Consumer electronics

●  Industrial automation

●  Automotive electronics

●  Medical devices

●  Aerospace and aviation

●  Telecommunications

●  Energy and power
