In the rapidly evolving landscape of electronic communication, the pivotal role played by high-performance, top-quality connector products cannot be overstated. Kinghelm (www.kinghelm.net), renowned as an expert in connectors, has introduced a range of connector products and catered to the needs of countless customers. Under the stewardship of Mr. Song Shiqiang, the General Manager of Kinghelm, the company has achieved a milestone by successfully developing products like micro signal connectors, plugs, and components. These innovations find widespread application in burgeoning domains such as car networking, Internet of Things (IoT), and smart hardware. Moreover, Kinghelm has made significant inroads into the European and American markets, serving a diverse clientele and showcasing the robust technological prowess and market competitiveness of Chinese enterprises in this sphere.

Kinghelm Awards & Honors

Today, our focus turns to the KH-FAK-K509-B FAKRA Right Angle Connector, a standout product from Kinghelm that has captured the imagination of the connector market.

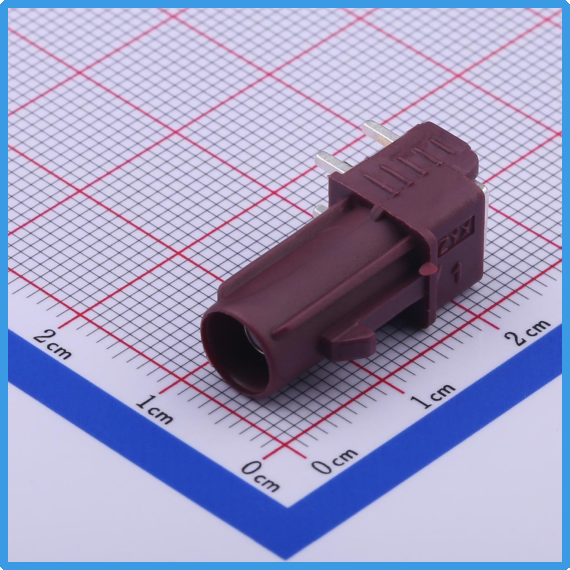

Kinghelm KH-FAK-K509-B Product Image

Electrical Performance: The KH-FAK-K509-B boasts impressive electrical performance characteristics. With a characteristic impedance of 50Ω, it ensures stable and precise signal transmission. Covering a frequency range of DC-6 GHz, it proves versatile across various high-frequency communication scenarios. Operating at a voltage of up to 335Volts rms, it meets the requirements of most application scenarios. Furthermore, the product excels in insulation resistance and contact resistance, bolstering the reliability and safety of electrical connections.

Mechanical Performance: The KH-FAK-K509-B shines in terms of mechanical performance as well. With a durability rating of up to 100 cycles, it guarantees stability and reliability during prolonged usage. Key metrics such as insertion force, extraction force, and latch retention force surpass industry standards, facilitating convenient and efficient installation and maintenance processes.

Environmental Adaptability: The KH-FAK-K509-B exhibits robust adaptability to various environmental conditions. Operating within a temperature range of -40°C to +105°C, it tackles challenges posed by harsh environments with ease. It has undergone rigorous environmental tests including thermal shock, vibration and mechanical shock, and temperature humidity cycling, underscoring its exceptional resistance to environmental interference. Moreover, with multiple soldering methods including manual and wave soldering, the product caters to diverse production process requirements. Additionally, its RoHS certification ensures compliance with environmental standards, offering users a safer and more environmentally friendly option.

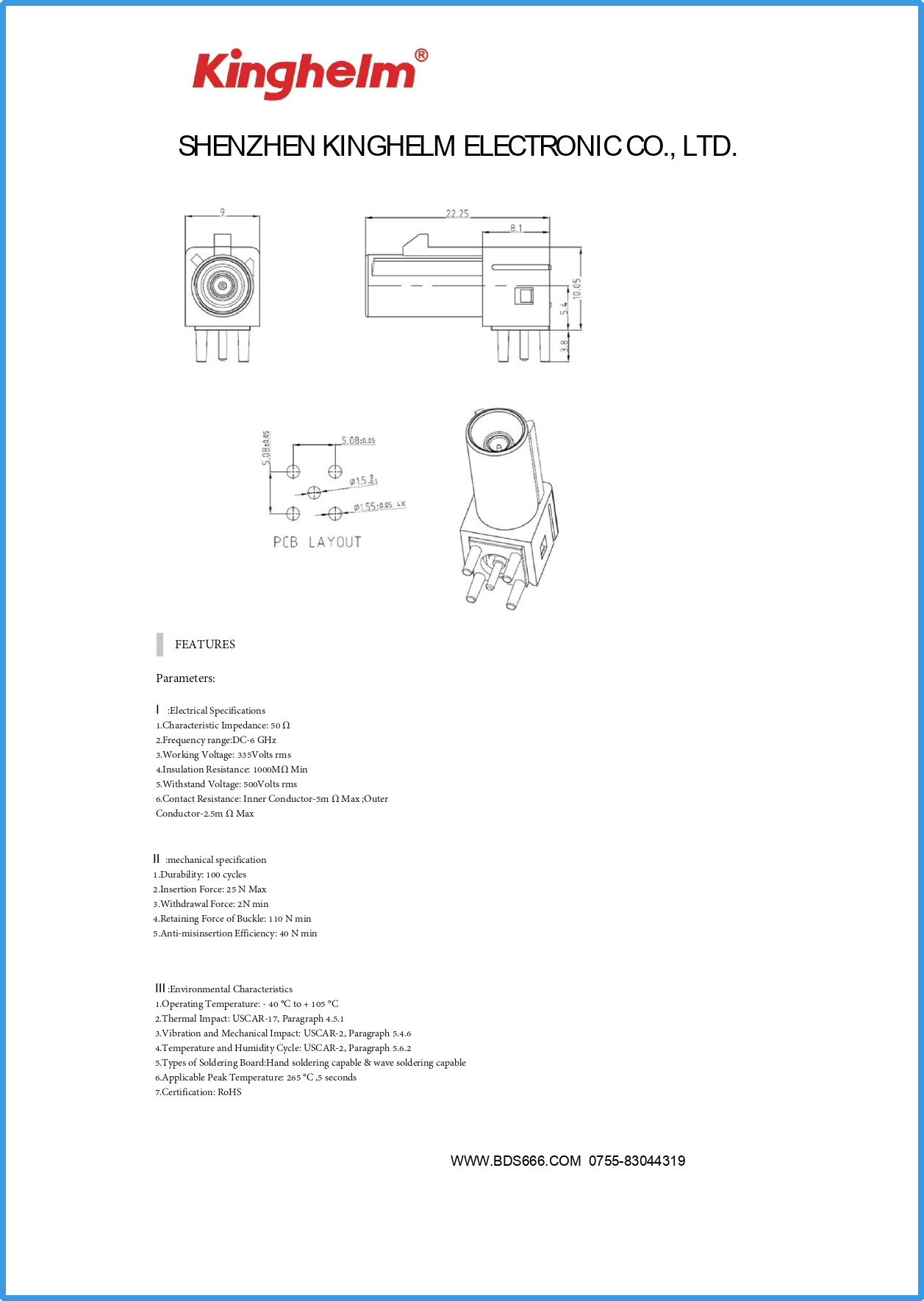

Kinghelm KH-FAK-K509-B Specification

In summary, the KH-FAK-K509-B FAKRA Right Angle Connector from Kinghelm sets a new benchmark with its outstanding electrical and mechanical performance as well as environmental adaptability. Whether in automotive manufacturing, aerospace, or consumer electronics, this product empowers users with efficient and stable communication connections. Looking ahead, we anticipate Kinghelm to continue its trajectory of innovation, enriching the electronic communication landscape with more groundbreaking products.

About Kinghelm

Shenzhen Kinghelm Electronics Co., Ltd.（www.kinghelm.net）has technical backbones from Tsinghua University and UESTC, and has introduced overseas returnee professionals. Kinghelm is able to develop highly reliable and high-performance antenna and connector products.KH series products of "Kinghelm" brand include Beidou/GPS antennas, RF adapter connectors, plug connector, electrical data connectors, terminals, and customized vehicle harnesses, industrial / medical connectors, and special antenna connectors."Kinghelm connects world", Kinghelm has grown with the development of China's Beidou industry. Starting from supplying Beidou/GPS dual mode antennas, IPEX terminals, and RF adapter cables for automotive manufacturers, Kinghelm has continuously developed products. Currently, it has a series of WiFi, Bluetooth, NB-loT, LoRa, Zigbee, UWB, and GSM antennas, RFID tags, RF adapter cables, standard microwave antennas, vehicle grade SMA, SMB, FAKRA holders, coaxial cables, and can customize non-standard antenna connectors based on customer drawings or samples.
