『Daily Highlight』IPEX Inner Pin 4th Generation --KH-IPEX4-2020

Release date:2024-02-17Author source:KinghelmViews:121

The KH-IPEX4-2020 is a board-end connector, utilizing the inner pin interface type in the 4th generation of IPEX connectors. Compared to other connectors, the RF series of KH-IPEX4-2020 is IPEX, which is highly popular due to its compact size, lightweight, and easy installation. Additionally, this connector features a compact structure and occupies minimal space, making it suitable for applications with limited space.

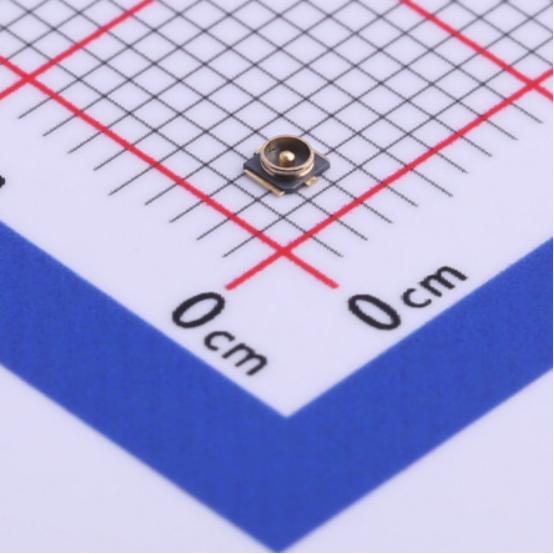

KH-IPEX4-2020 Product Image


Parameters

Number of ports

1

Interface Diameter

1.5mm

Maximum frequency:

3GHz

Impedance

50Ω

Operating Temperature Range

-40°C to +90°C


The KH-IPEX4-2020 is an excellent RF coaxial connector in the 4th generation of IPEX inner pin connectors. It boasts high quality, reliability, and stability, making it suitable for communication, aviation, medical, and other fields. Its appearance has brought users a more convenient and efficient connection experience, making it worthy of the trust and selection of users.

About Kinghelm
Shenzhen Kinghelm Electronics Co., Ltd.(www.kinghelm.net)has technical backbones from Tsinghua University and UESTC, and has introduced overseas returnee professionals. Kinghelm is able to develop highly reliable and high-performance antenna and connector products.KH series products of "Kinghelm" brand include Beidou/GPS antennas, RF adapter connectors, plug connector, electrical data connectors, terminals, and customized vehicle harnesses, industrial / medical connectors, and special antenna connectors."Kinghelm connects Beidou", Kinghelm has grown with the development of China's Beidou industry. Starting from supplying Beidou/GPS dual mode antennas, IPEX terminals, and RF adapter cables for automotive manufacturers, Kinghelm has continuously developed products. Currently, it has a series of WiFi, Bluetooth, NB-loT, LoRa, Zigbee, UWB, and GSM antennas, RFID tags, RF adapter cables, standard microwave antennas, vehicle grade SMA, SMB, FAKRA holders, coaxial cables, and can customize non-standard antenna connectors based on customer drawings or samples.

KH-IPEX4-2020To Product Page
