Daily Product - Kinghelm Type-C Female Connector with Right Angle - KH-TYPE-C-W-16P-T: A high-performance Type-C interface product that solves the existing interface difficulties and makes device interconnection easier.

Release date:2023-05-18Author source:KinghelmViews:147

Shenzhen Kinghelm Electronics Co., Ltd., under the “Kinghelm” brand, produces three major series of products: Beidou GPS antennas, miniature RF adapter components, electrical data connectors and terminal connectors, automotive wire harnesses, industrial connectors, and customized Beidou antenna connector components for military use. The backbone technical team of Kinghelm comes from Tsinghua University and the University of Electronic Science and Technology of China, with profound expertise in RF microwave technology. In the current context of domestic substitution of electronic components and the “Belt and Road” national strategy, Mr. Song Shiqiang and his colleagues at Kinghelm (www.kinghelm.net) and Slkor (www.slkoric.com) are working hard to make the greatest contribution to social development and the construction of a technology-strong country. The Type-C Female Connector product launched by Kinghelm Electronics Co., Ltd., under the Kinghelm brand KH-TYPE-C-W-16P-T, is a high-quality electronic connector product.


Kinghelm's clean and elegant office environment


The Kinghelm Type-C Female Connector with Right Angle - KH-TYPE-C-W-16P-T is a high-performance Type-C interface product. It features a core made of LCP+30%GF material and a card hook made of stainless steel, providing high durability and stability. The main characteristics of this product include a rated current of 30A, contact impedance of 40mQMAX, insulation impedance of 100MQ MIN 250V DC, withstand voltage test of 100VAC, solderability temperature of 250iA5C for 5iA0.5s, overall insertion force of 20kgfMAX, overall extraction force of 06kgf MIN, a lifespan of 5000 cycles, and an operating temperature range of -30C~+80C.

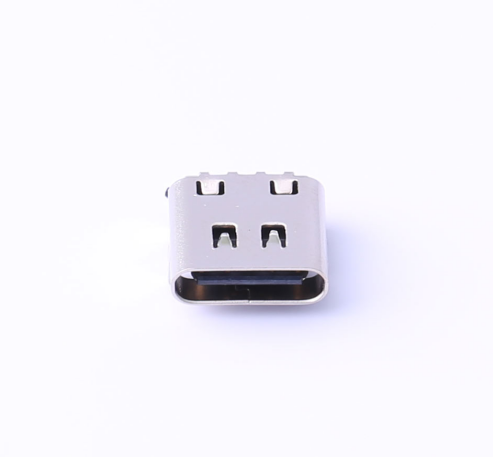

                                                                                 Product image of KH-TYPE-C-W-16P-T

These parameters reflect the high performance and stability of KH-TYPE-C-W-16P-T. For example, the rated current of 30A indicates that the product can withstand high current loads, ensuring its stability under high load conditions. The contact impeded ance of 40mQMAX and insulation impedance of 100MQ MIN 250V DC indicate that the product has low resistance and capacity, ensuring its performance in high-speed transmission and support for multiple protocols. The stand voltage test of 100VAC indicates that the product can withstand high voltage, ensuring its safety performance. The solderability temperature of 250iA5C for 5iA0.5s indicates that the product has good welding performance, ensuring its performance in manufacturing and installation. The overall insertion force of 20kgfMAX and overall extraction force of 06kgf MIN indicate that the product has good plug and play performance, ensuring its performance in terms of service life. The operating temperature range of -30C~+80C indicates that the product can work in a wide range of temperatures, ensuring its performance in various environments.

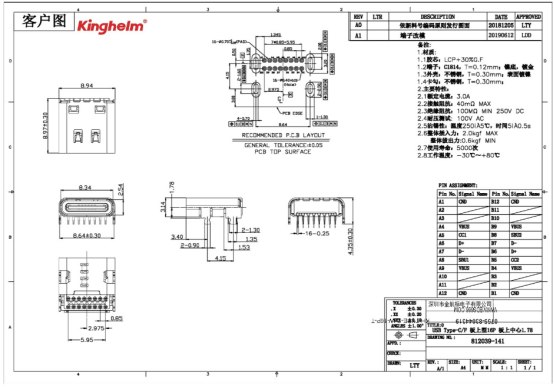

KH-TYPE-C-W-16P-T specification

The main function of KH-TYPE-C-W-16P-T is to connect electronic products, including mobile devices, laptops, external hard drives, digital cameras, etc. It can achieve bi-directional insertion and support multiple protocols and functions, support port high -speed transmission, have high reliability, and support video, audio, and power functions. The advantage of this product lies in its diversity and excellent performance, which can solve the difficulties of existing interface types and improve user experience.


KH-TYPE-C-W-16P-T has a wide range of applications and can be used to connect various electronic products, including mobile devices, laptops, external hard drives, digital cameras, etc. It can also be used on different devices such as monitors, TVs, projectors, etc., making interconnection between devices easier. In addition, this product can also be used in the fields of automotive wire harnesses, industrial connectors, and customized Beidou antenna connector components for military use.


                                                                                          Kinghelm's plug-in finished products

Kinghelm, a brand of Kinghelm Technology Co., Ltd., offers three main categories of products under the KH series brand: Beidou GPS antennas, RF adapters, and electrical data signal connectors, terminals, plugs, and customized automotive and motorcy cle wire harnesses, industrial and medical connectors, military special antenna connectors, and other products. "Kinghelm, connecting with Beidou", Kinghelm has grown with the development of Beidou, starting with supplying Beidou GPS dual-mode antennas, IPEX terminals, and RF adapters to “two passengers and one danger” vehicle manufacturers. The product range has expanded to include WiFi, Bluetooth, NB-IoT, LORA, Zigbee, UWB, GSM antenna series, RFID tags, RF adapters, national military standard RF connectors, microwave antennas , vehicle- grade SMA, SMB, FAKRA RF sockets, coaxial cables, etc. With 15 years of focus on professional research and development, production, and branding, Kinghelm is committed to accumulating strength and making breakthroughs. Shenzhen Sarko Microelectronics Co., Ltd . (www .slkormicro.com), with its core technology in silicon carbide power devices, has a research and development team from Tsinghua University in Beijing and Yonsei University in South Korea. Sarko Microelectronics has developed into a high-tech enterprise integrating design, research and development opment , manufacturing, sales, and service, and the “SLKOR” brand has been widely accepted by peers and customers. In the future, the company will actively promote the “domestic substitution” of electronic components and provide solutions to the bottleneck problem of foreign companies ' technology blockade for the country. Mr. Song Shiqiang's Sarko Microelectronics (www.slkormicro.com) is also developing rapidly and is committed to becoming a "leader in domestic semiconductor enterprises".
