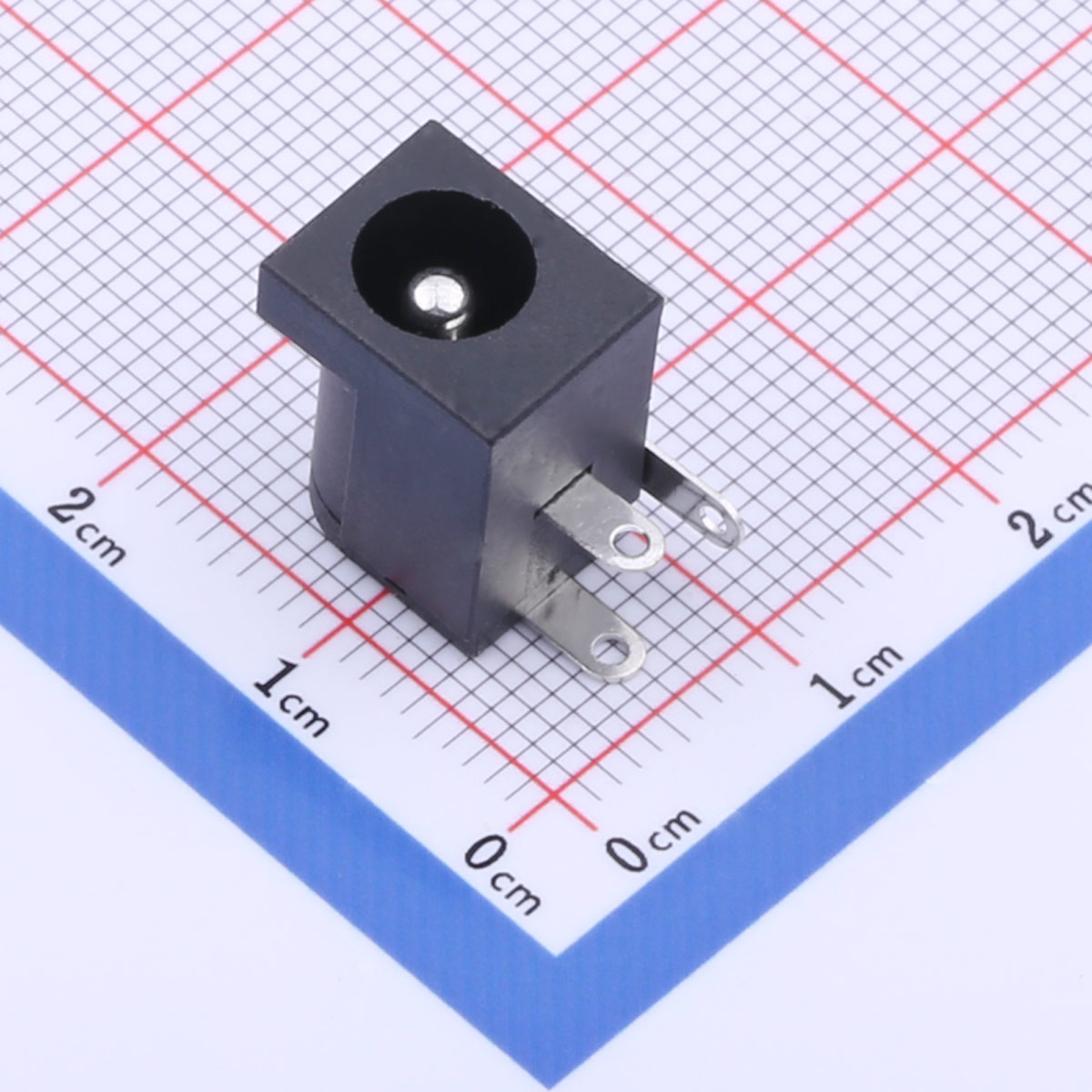

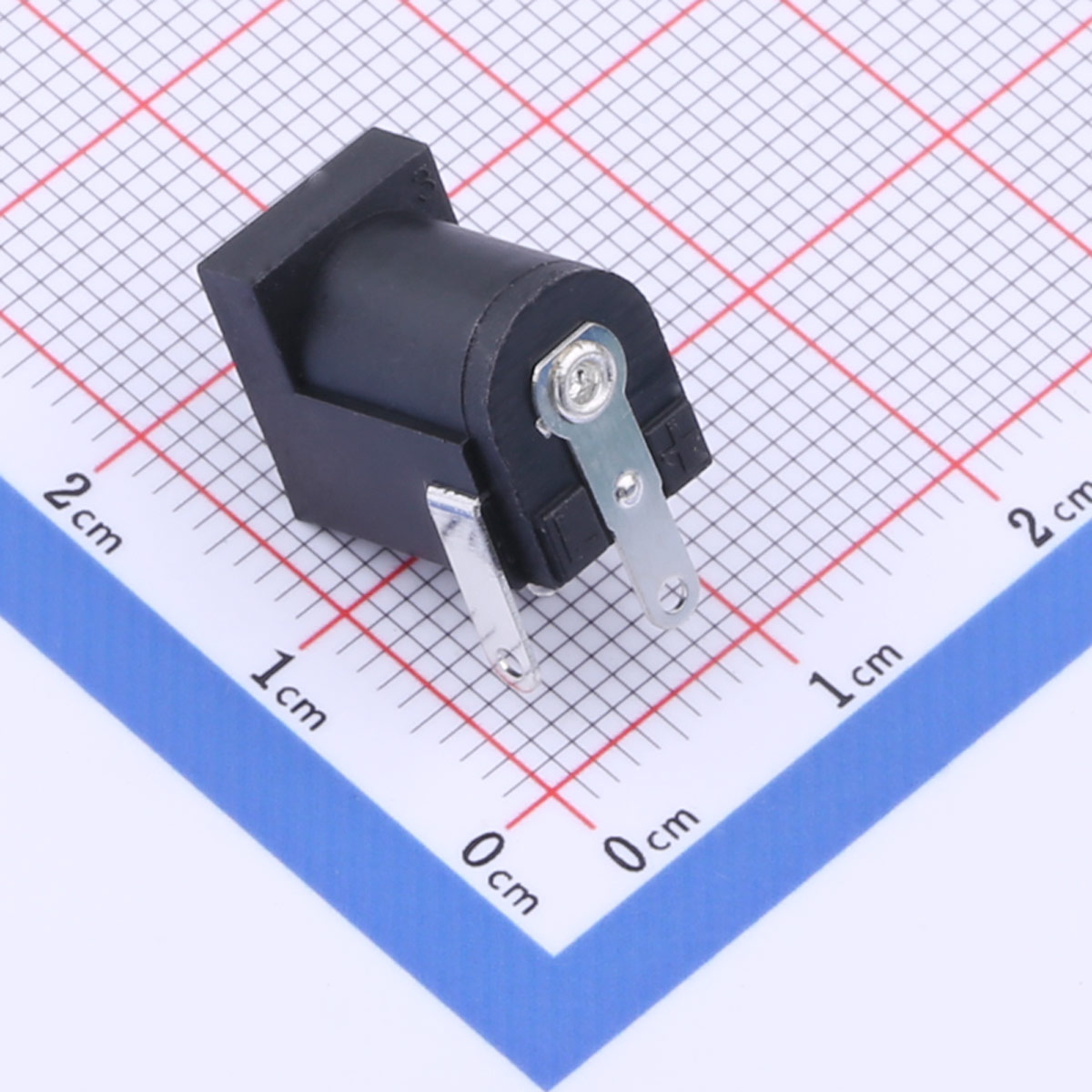

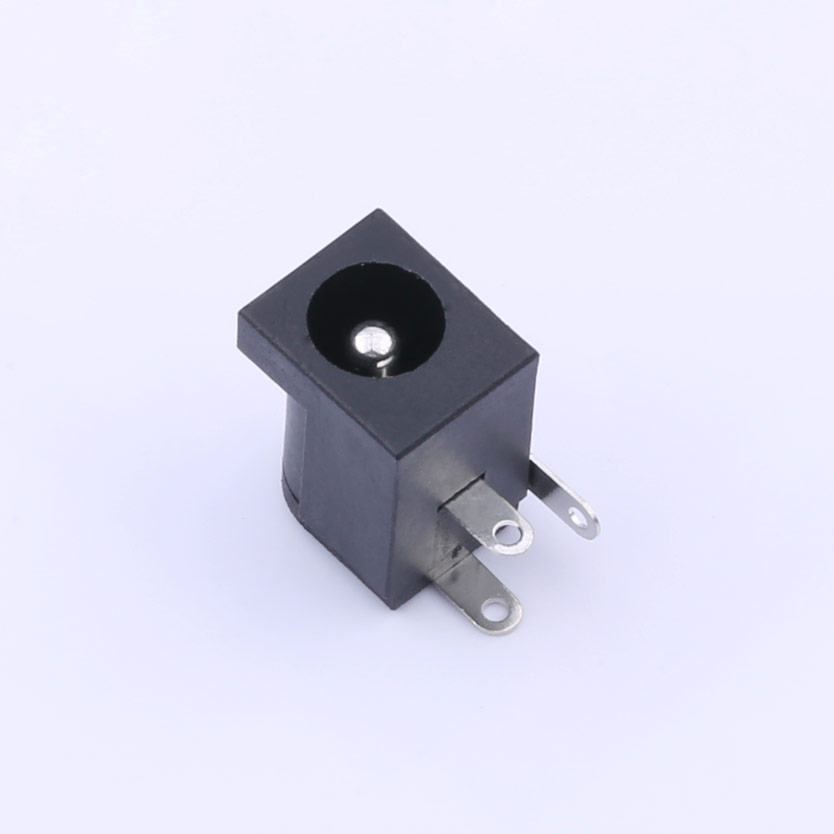

DC Power Socket, 6.4mm OD, 1A, 30V, KH-DC-005-2.5

DC Power Socket, 6.4mm OD, 1A, 30V, KH-DC-005-2.5

Operating Temperature: -25°C to +70°C
Rated Voltage & Current: DC 30V, 1A
Contact Resistance: 30mΩ Max
Insulation Resistance: 100MΩ Min
Dielectric Withstand Voltage: AC 500V
Insertion-Withdrawal Force: 3–25N

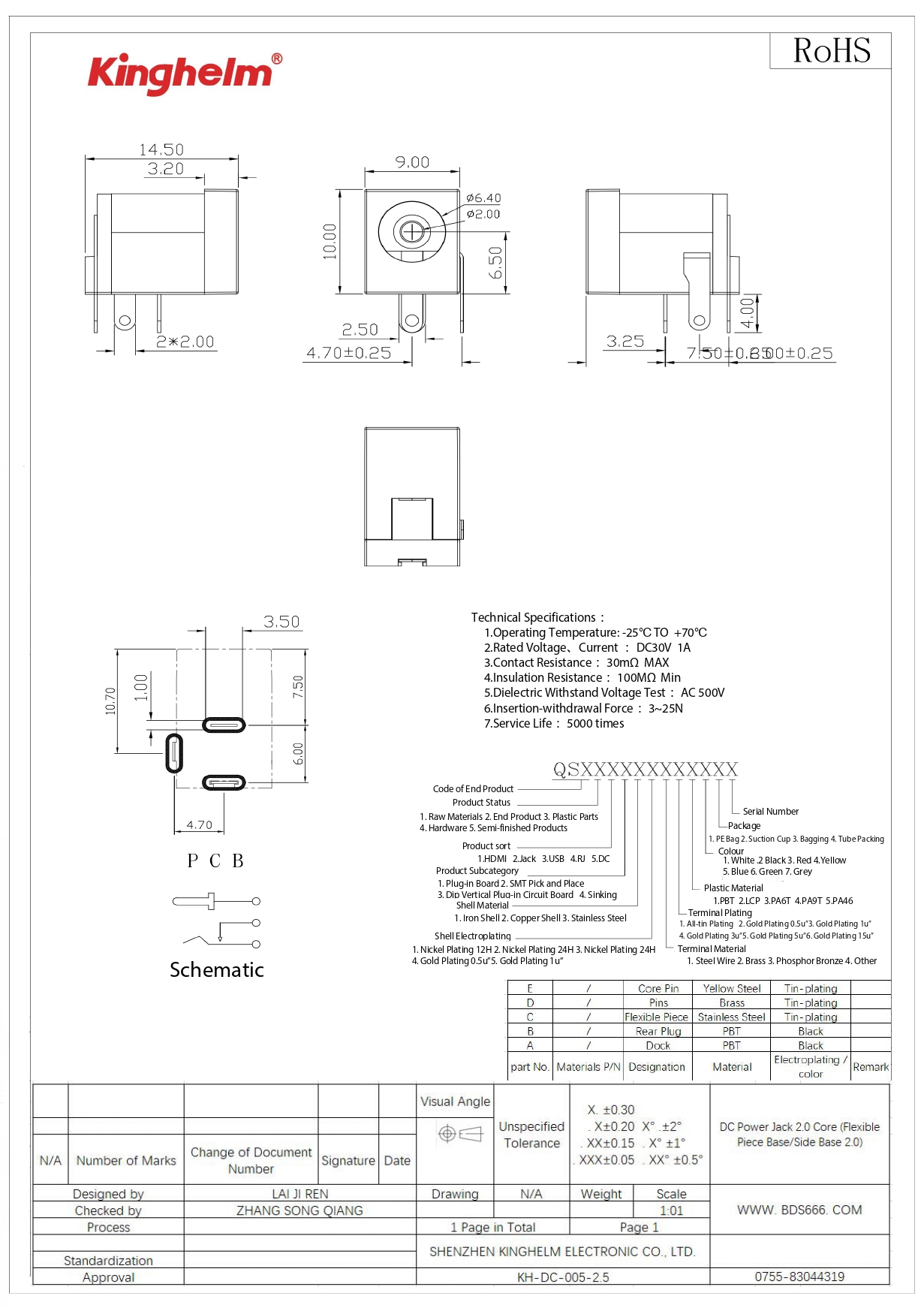

Inquiry Datasheet

Product Details

Product Overview
The KH-DC-005-2.5 is a DC power socket with a 6.4mm outer diameter, rated for 1A and 30V. It offers reliable performance across a wide temperature range and low contact resistance.

Key Features
● Rated for 1A and 30V
● Contact resistance ≤ 30mΩ
● Insulation resistance ≥ 100MΩ
● Dielectric withstand voltage of AC 500V
● Insertion-withdrawal force: 3–25N
● Operating temperature: -25°C to +70°C

Applications
● Low-power electronics
● Consumer electronics repair
● Custom power supplies and enclosures
