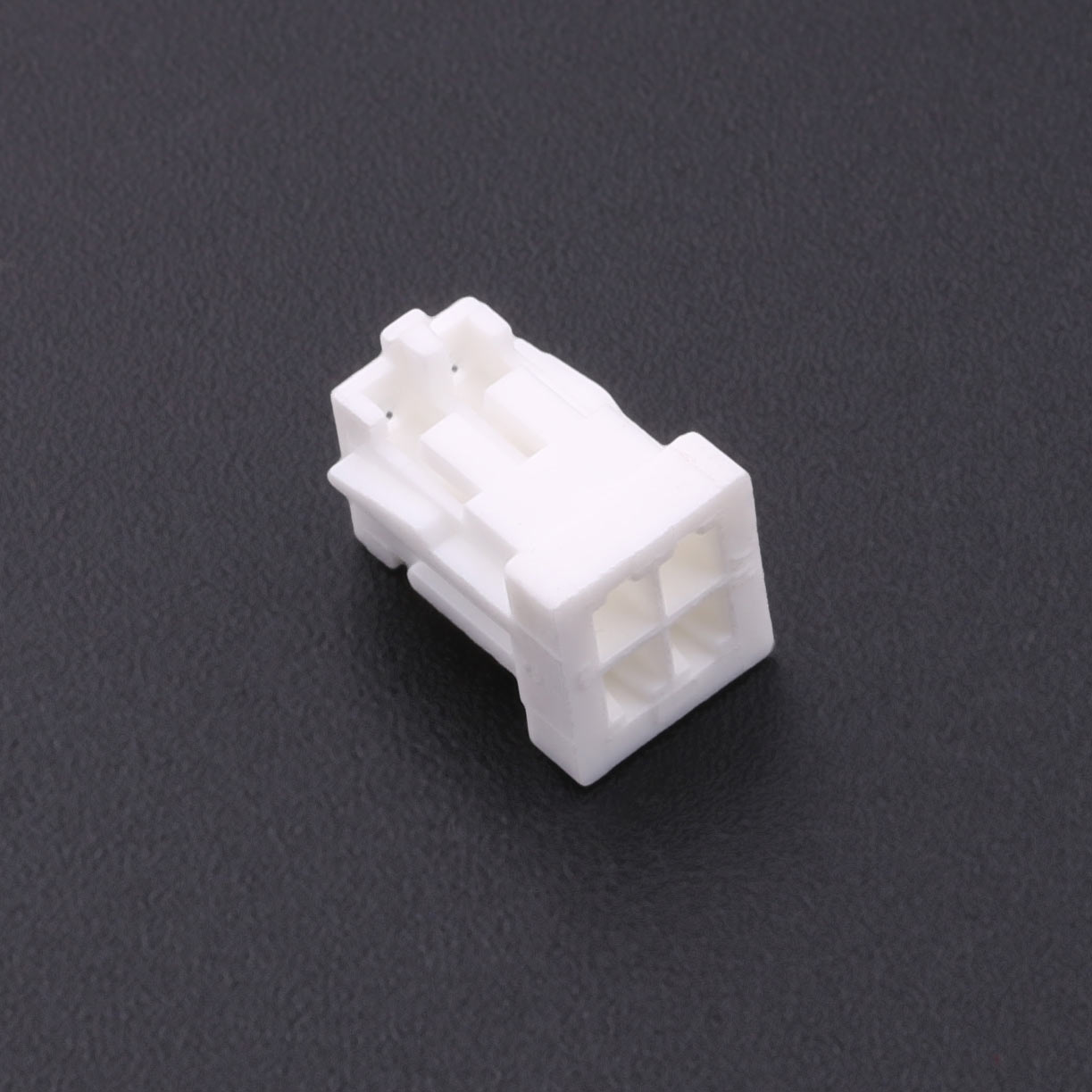

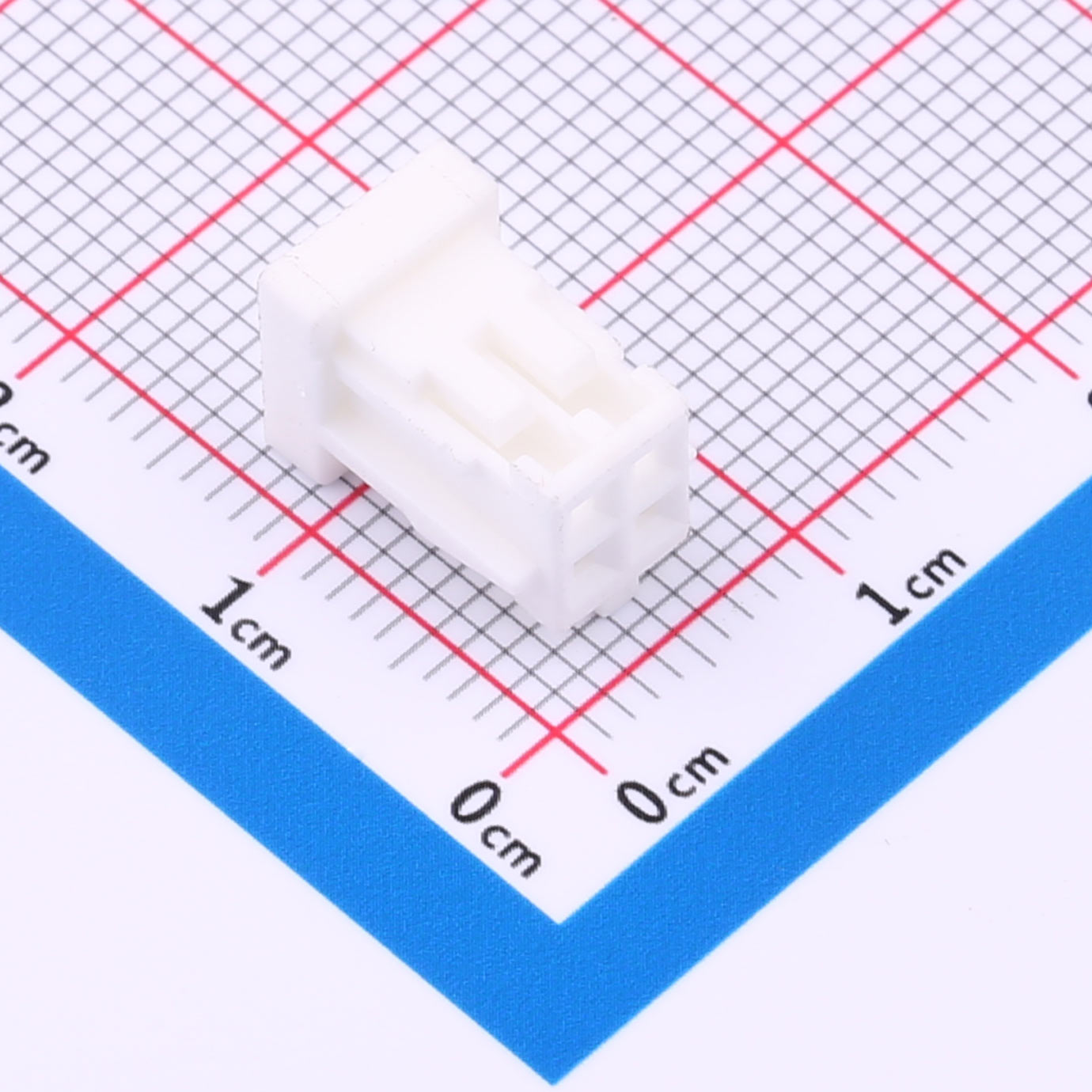

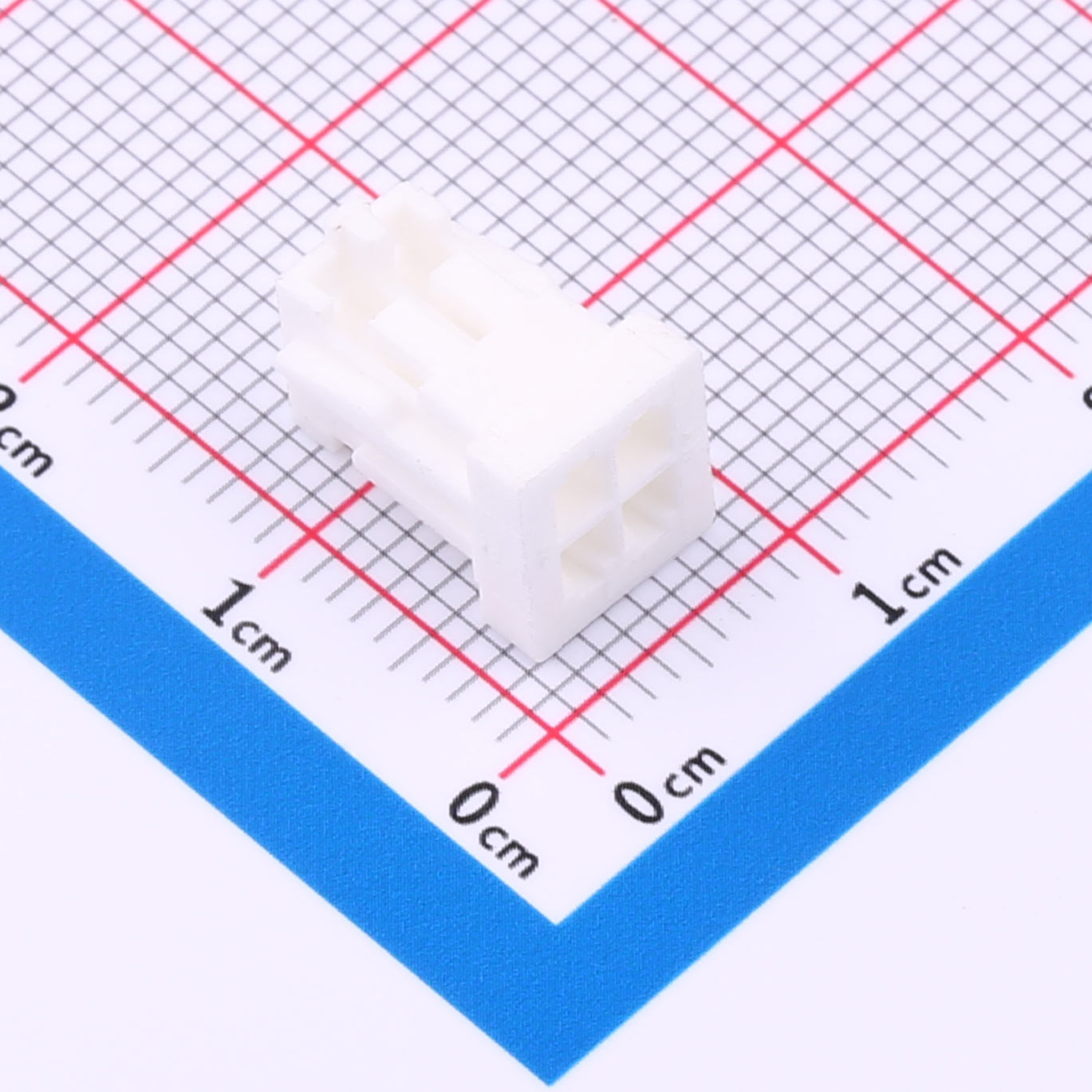

Crimp Terminal Shell, 2.5mm Pitch, 2x2P, KH-A2557-2X02Y

Crimp Terminal Shell, 2.5mm Pitch, 2x2P, KH-A2557-2X02Y

Current Rating: 3A AC, DC
Voltage Rating: 250V AC, DC
Temperature Range: -25°C ~ +85°C
Contact Resistance: ≤ 30mΩ
Insulation Resistance: ≥ 1000MΩ
Withstanding Voltage: 800V AC/minute

Inquiry Datasheet

Product Details

Product Benefits

● Compact 2-pin design

● 250V and 3A rated performance

● Stable operation in varied temperatures

● Flame-retardant and durable housing

● Quick and easy installation

Product Application

● Compact signal converters

● Sensor interface modules

● Power switches

● Micro motor connectors

● Small automation sensors

Prev：Crimp Terminal Shell, 2.5mm Pitch, 2x3P, KH-A2557-2X03Y
Next：Crimp Terminal Shell, 2.5mm Pitch, 2x11P, KH-A2508-2X11Y
