Driven by trends in intelligence and lightweight design, RF connector components are facing increasingly stringent demands on performance and size. Kinghelm’s KH-35309155-TP PCB spring contact, with its miniature dimensions and outstanding performance, has become the ideal choice for compact devices such as smart wearables, automotive terminals, and IoT modules. Its package size measures just 3.53 x 0.9 x 1.55 mm, weighing as little as 0.057 grams, significantly saving valuable PCB space and offering designers greater flexibility—perfectly suited for applications highly sensitive to size and weight, including smartwatches, fitness bands, and tracking devices.

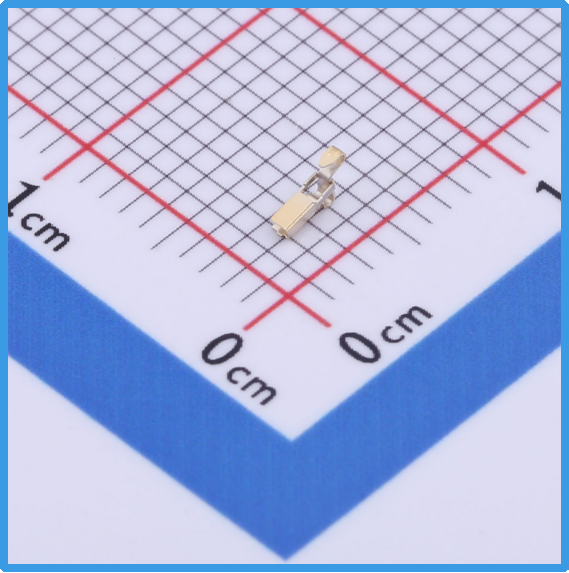

Kinghelm KH-35309155-TP Product Image

This spring contact is made of high-strength SUS301 stainless steel, featuring excellent elasticity and mechanical strength. It withstands twisting of 45° per 1000 mm and arch deformation of 5 mm per 1000 mm, delivering stable and reliable performance. With a lifespan exceeding 20,000 cycles, it guarantees long-term durability and greatly reduces maintenance and replacement frequency. The plating process is strictly controlled, with a nickel base layer thickness between 50 and 80 microns. Both the welding and contact areas are gold plated, with the contact area gold thickness no less than 1 micron, ensuring low contact resistance and oxidation resistance, effectively safeguarding stable and efficient signal transmission.

In complex environments such as automotive terminals and vehicle networking modules, the KH-35309155-TP PCB spring contact also performs excellently. It has passed a 48-hour salt spray test, demonstrating superior corrosion resistance, capable of withstanding humidity and salt fog erosion, ensuring long-term stable operation of connectors under harsh conditions. Its tape-and-reel packaging suits high-speed surface-mount technology (SMT) production lines, facilitating automated mass production, improving manufacturing efficiency, and reducing costs to meet the dual demands of quality and efficiency in modern manufacturing.

Additionally, the KH-35309155-TP’s design fully considers ease of integration and installation in real applications, allowing quick adaptation to various terminal devices, shortening production cycles, and enhancing assembly flexibility. Whether in consumer-grade smart wearables or stringent automotive electronic systems, this product delivers both performance and quality assurance.

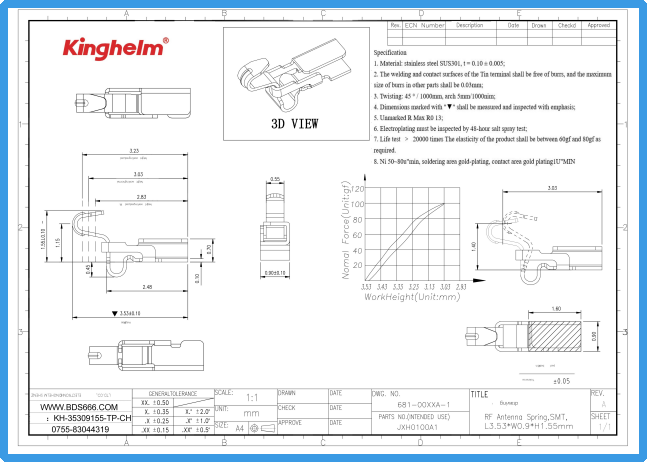

Kinghelm KH-35309155-TP Specification

As a high-quality RF connector product under the Kinghelm brand, the KH-35309155-TP PCB spring contact excels not only in structural and electrical performance but also enjoys broad recognition in practical applications. It provides reliable signal connection solutions for smart devices and automotive terminals, promoting intelligent products toward higher performance and lighter designs. It stands as one of the key products in the future RF connector market. With excellent quality control and continuous technological innovation, Kinghelm continues to deliver stable and efficient connection experiences to global customers, empowering smart hardware toward a better future.
