Home -Product -Connector/Plug-in Unit -Pin Socket -Female Header -2.54mm Female Header Connector, 1X16P, 3A, KH-2.54FH90-1X16P-H8.5
2.54mm Female Header Connector, 1X16P, 3A, KH-2.54FH90-1X16P-H8.5 2.54mm Female Header Connector, 1X16P, 3A, KH-2.54FH90-1X16P-H8.5 2.54mm Female Header Connector, 1X16P, 3A, KH-2.54FH90-1X16P-H8.5

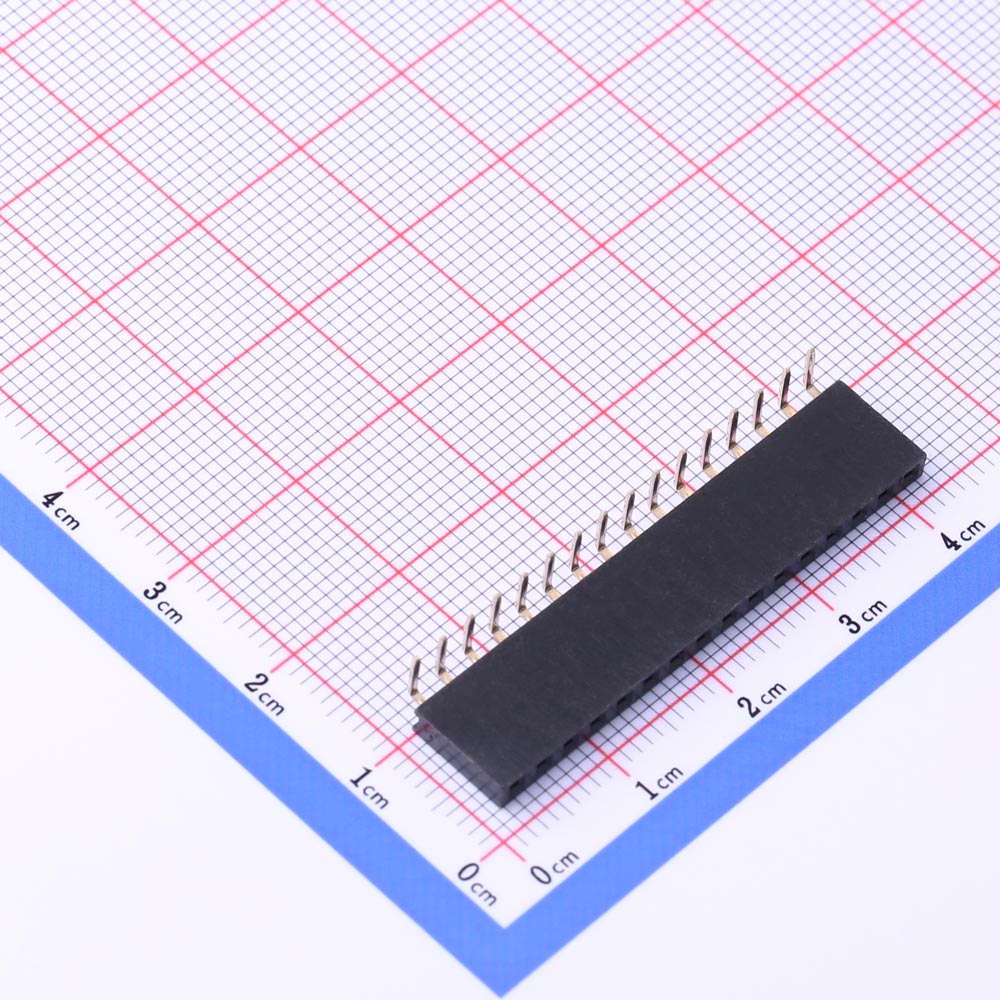

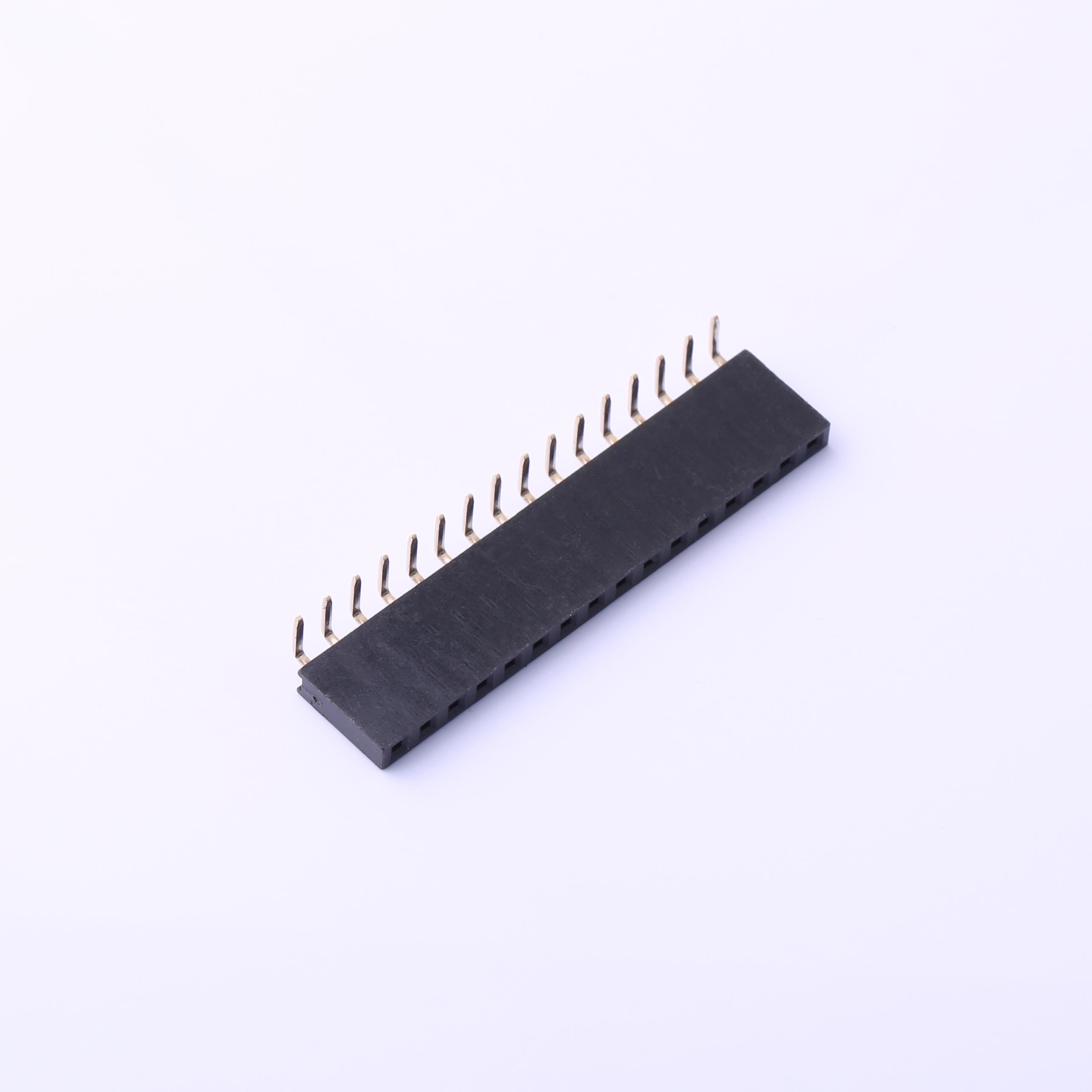

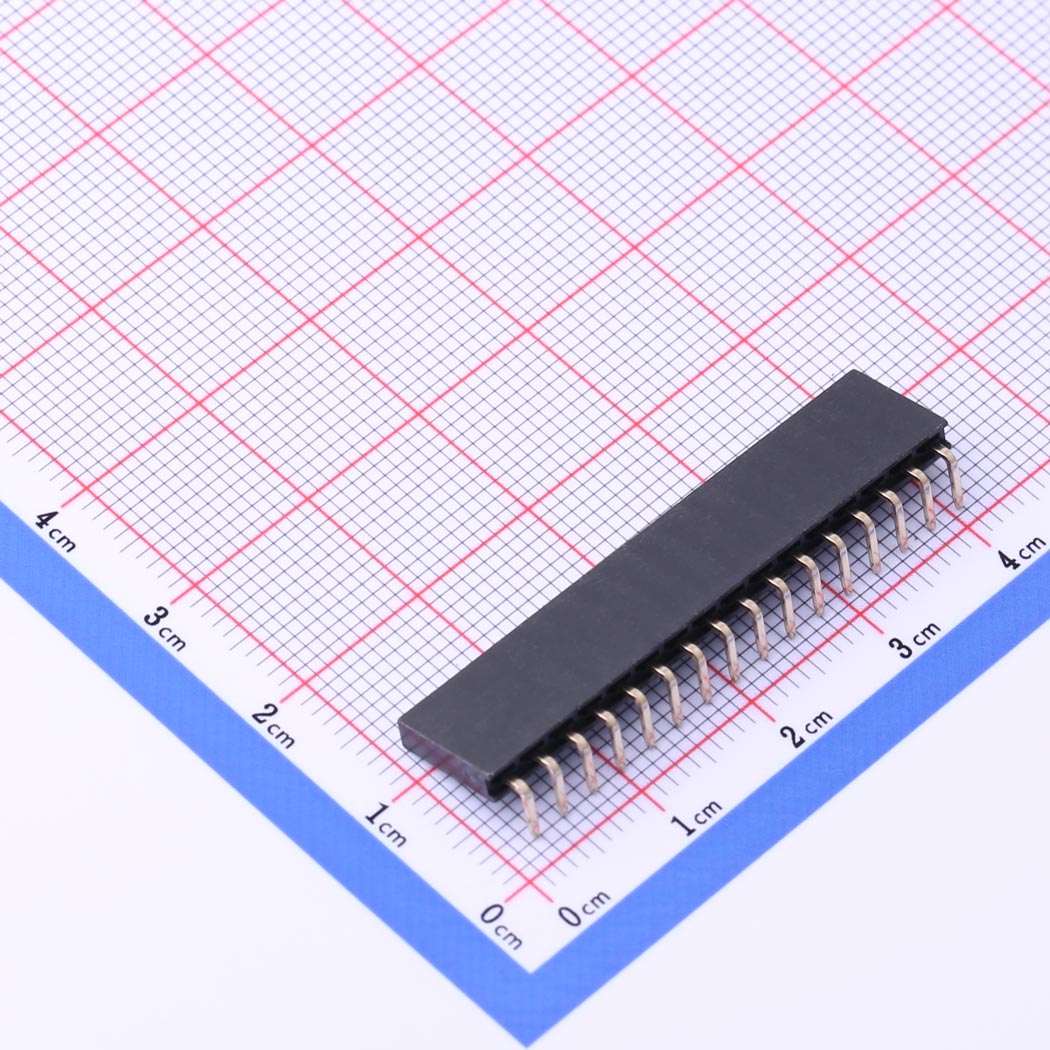

2.54mm Female Header Connector, 1X16P, 3A, KH-2.54FH90-1X16P-H8.5
Current Rating: 3A
Insulation Resistance: 1000MΩ Min
Contact Resistance: 20mΩ max
Withstanding Voltage: AC 1000V
Operating Temperature: -40°C to +105°C

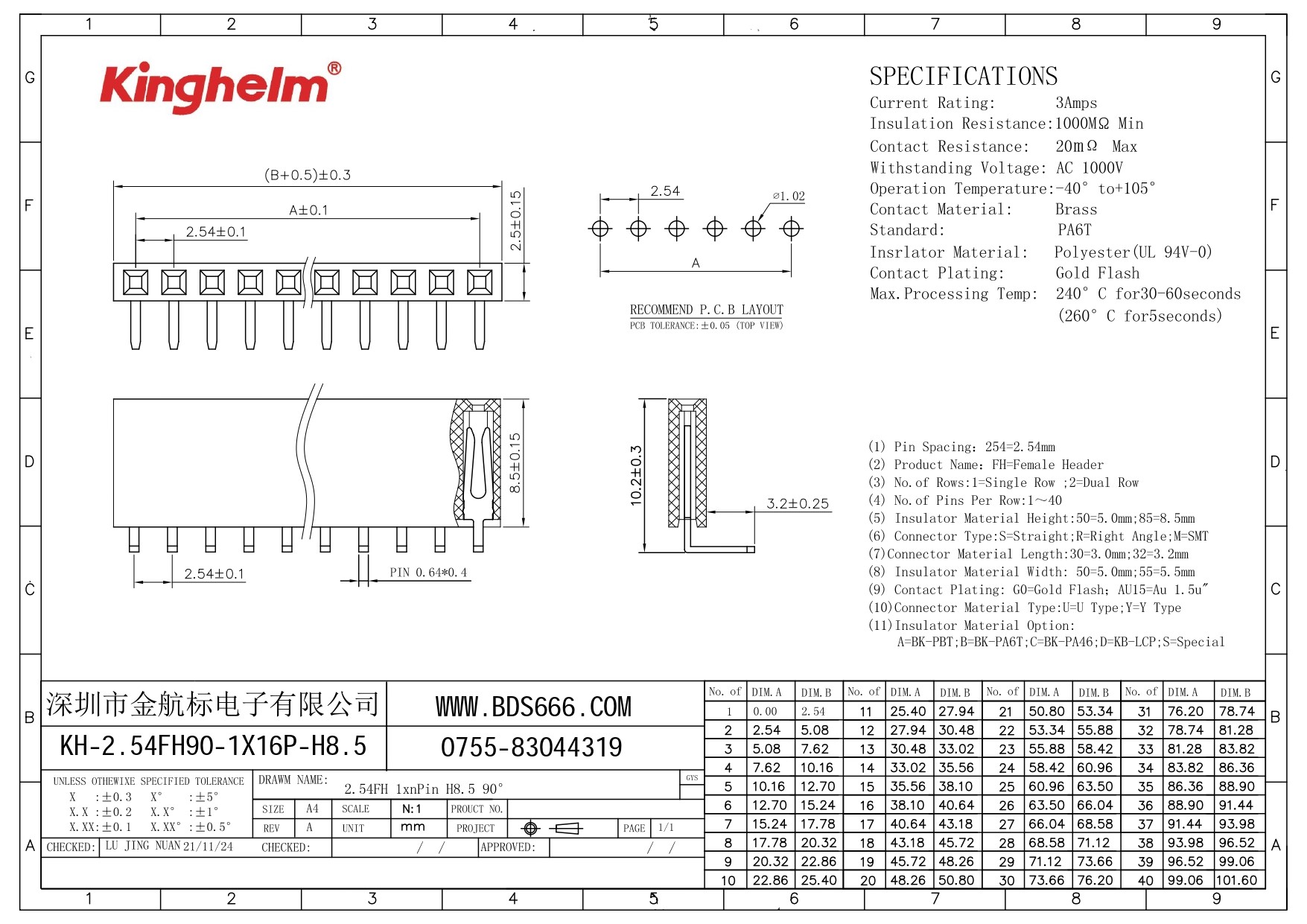

Inquiry Datasheet

Product Details

Product Benefits
● 16 pins for large data channels
● Enhanced connection stability
● Low resistance 20mΩ
● High durability materials
● Compact 2.54mm standard

Product Applications
● High-end routers
● Data center equipment
● Industrial robots
● Electric vehicle modules
● Satellite communication units


Prev：2.54mm Female Header Connector, 1X4P, 3A, KH-2.54FH90-1X4P-H8.5
Next：2.54mm Female Header Connector, 1X14P, 3A, KH-2.54FH90-1X14P-H8.5
