Home -Product -Connector/Plug-in Unit -Pin Socket -Female Header -2.54mm Female Header Connector, 1x14P, 3A, KH-A2541HWV-14P
2.54mm Female Header Connector, 1x14P, 3A, KH-A2541HWV-14P 2.54mm Female Header Connector, 1x14P, 3A, KH-A2541HWV-14P 2.54mm Female Header Connector, 1x14P, 3A, KH-A2541HWV-14P
2.54mm Female Header Connector, 1x14P, 3A, KH-A2541HWV-14P
Current Rating: 3A
Insulation Resistance: 1000MΩ Min
Contact Resistance: 20mΩ max
Withstanding Voltage: AC 1000V
Operating Temperature: -40°C to +105°C

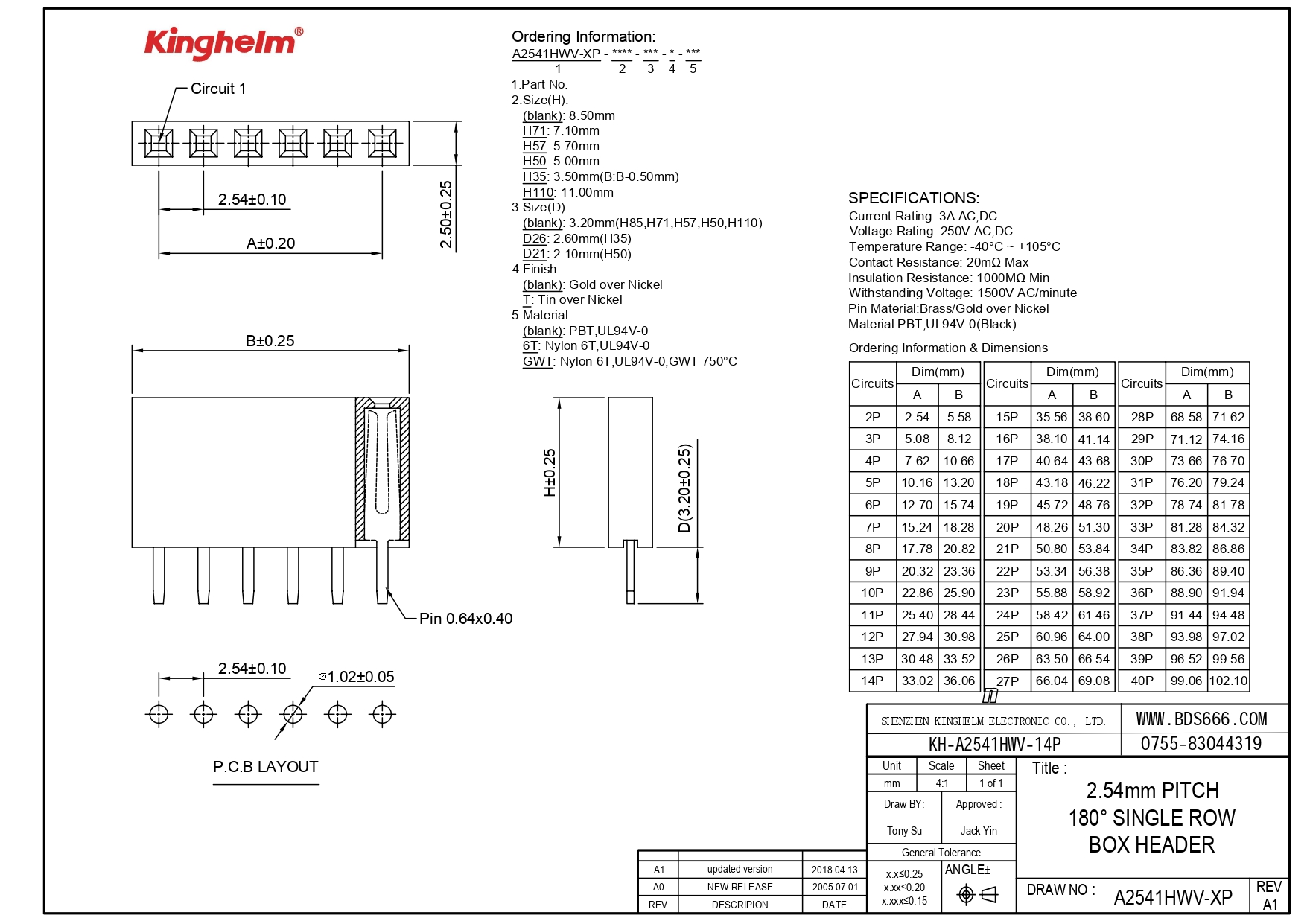

Inquiry Datasheet

Product Details

Product Benefits
● 2.54mm pitch
● 3A current rating
● 250V rated voltage
● Wide temperature range -40°C to +105°C
● Top entry design

Product Applications
● PCB board connection
● Consumer electronics
● Communication equipment
● Industrial control systems
● Automotive electronics
