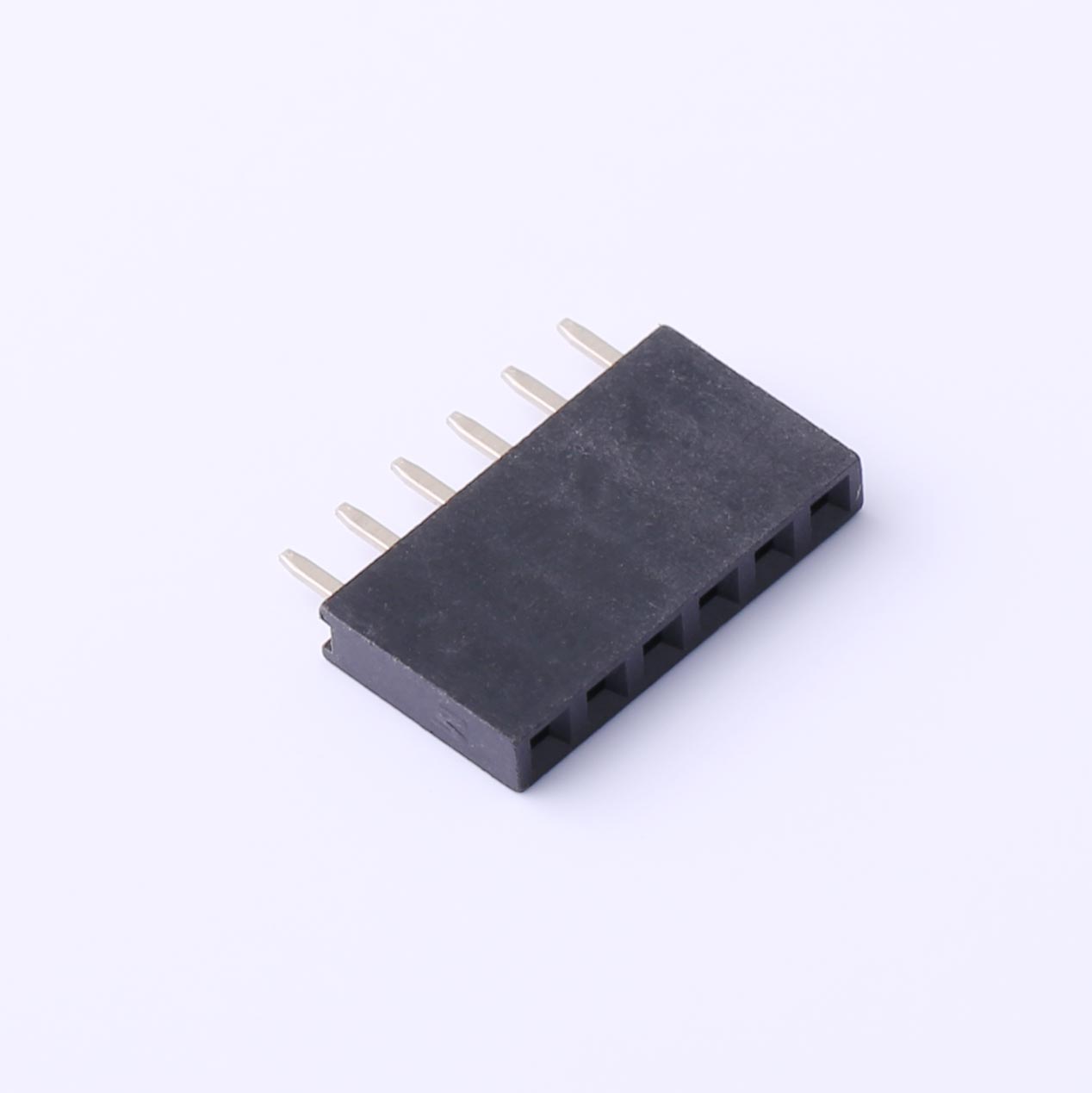

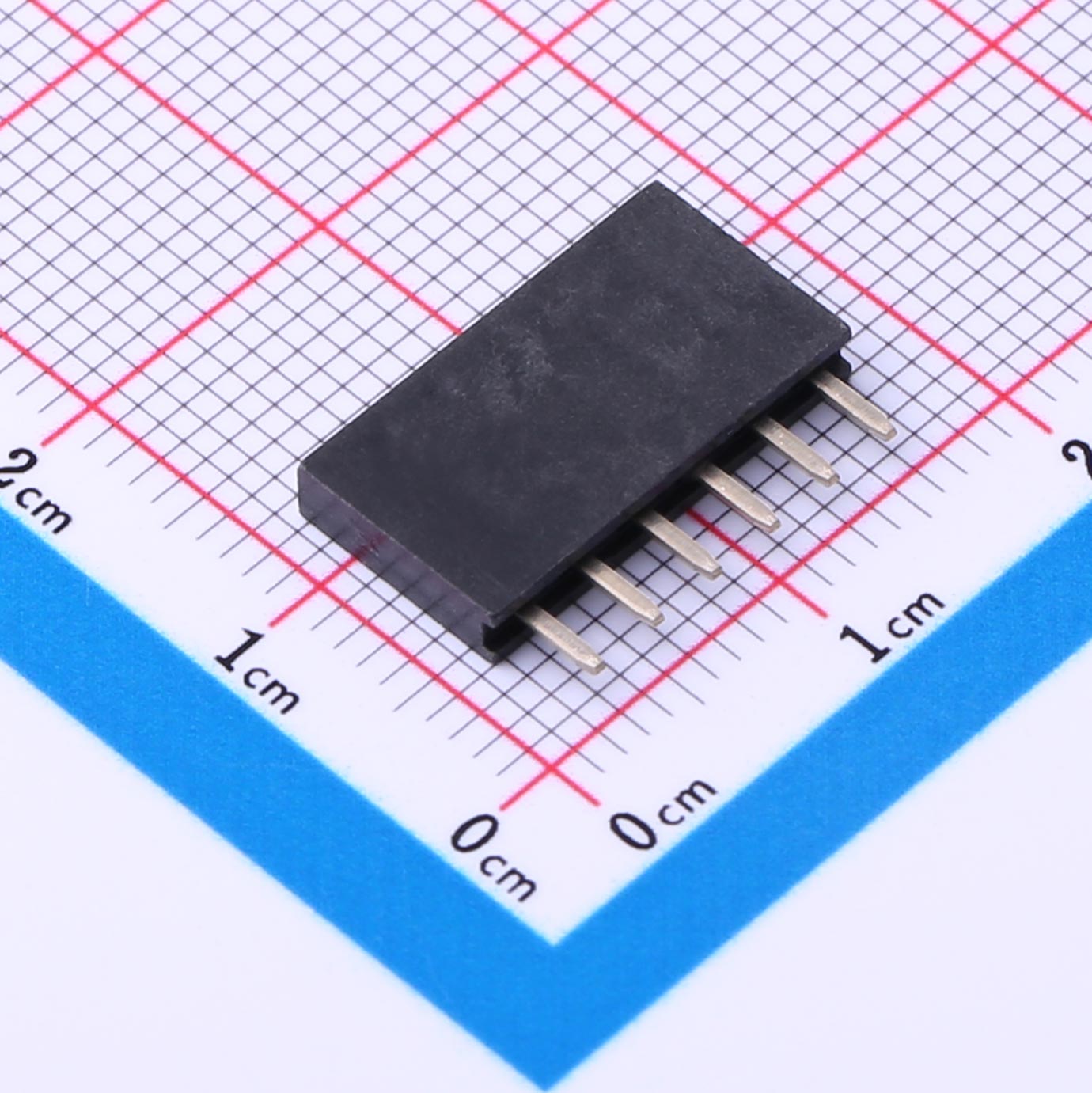

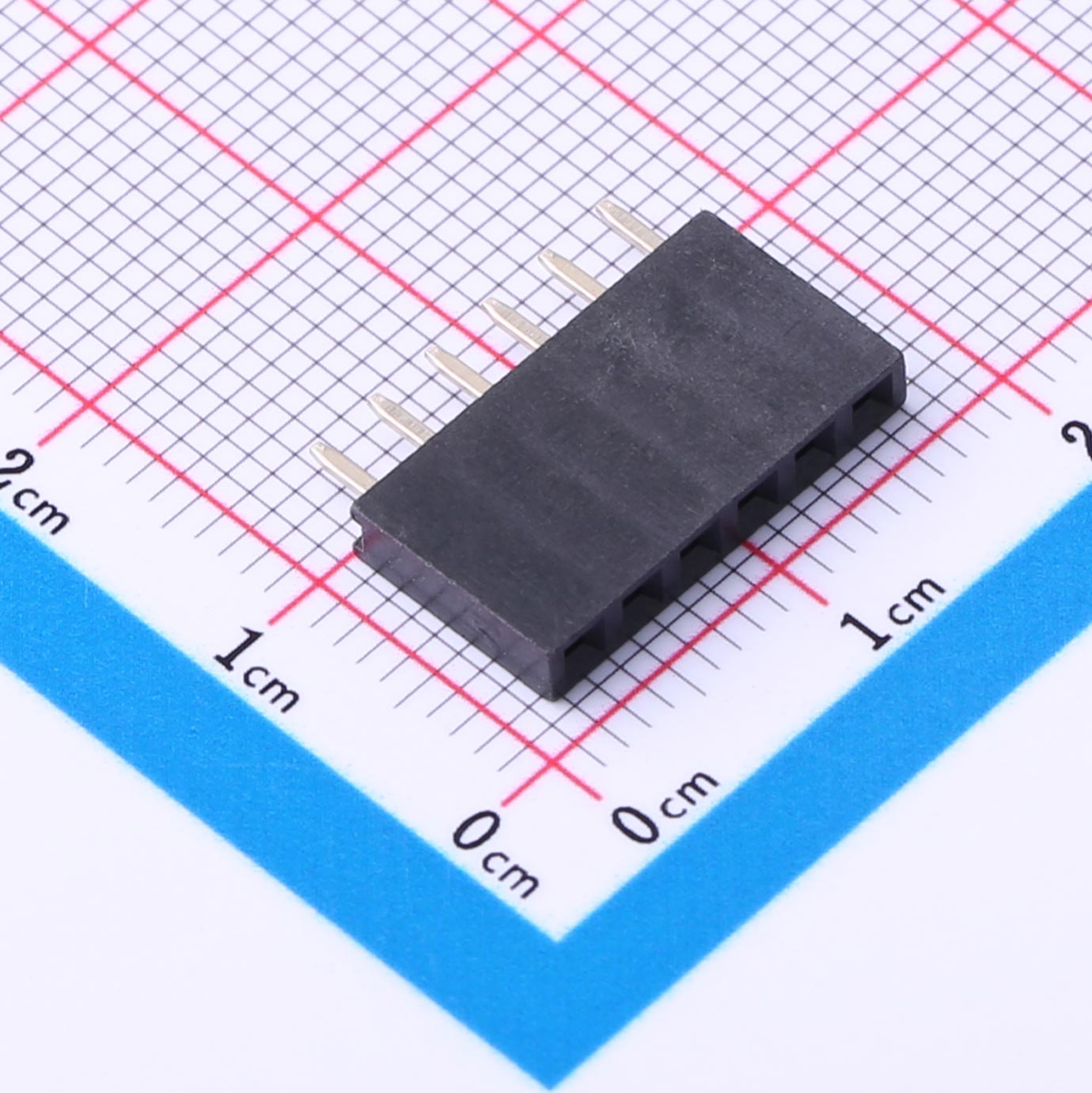

2.54mm Female Header Connector, 1X6P, 3A, KH-2.54FH-1X6P-H8.5

2.54mm Female Header Connector, 1X6P, 3A, KH-2.54FH-1X6P-H8.5

Current Rating: 3 A
Insulation Resistance: 1000MΩ Min
Contact Resistance: 20mΩ max
Withstanding Voltage: AC 1000V
Operating Temperature: -40°C to +105°C

Inquiry Datasheet

Product Details

Product Benefits
● 2.54mm pitch
● 3A current rating
● 1000MΩ insulation resistance
● 20mΩ max contact resistance
● AC 1000V withstand voltage
● -40°C to +105°C operating temperature

Product Application
● Circuit boards
● Industrial electronics
● Automotive systems
● Robotics
● Consumer electronics
