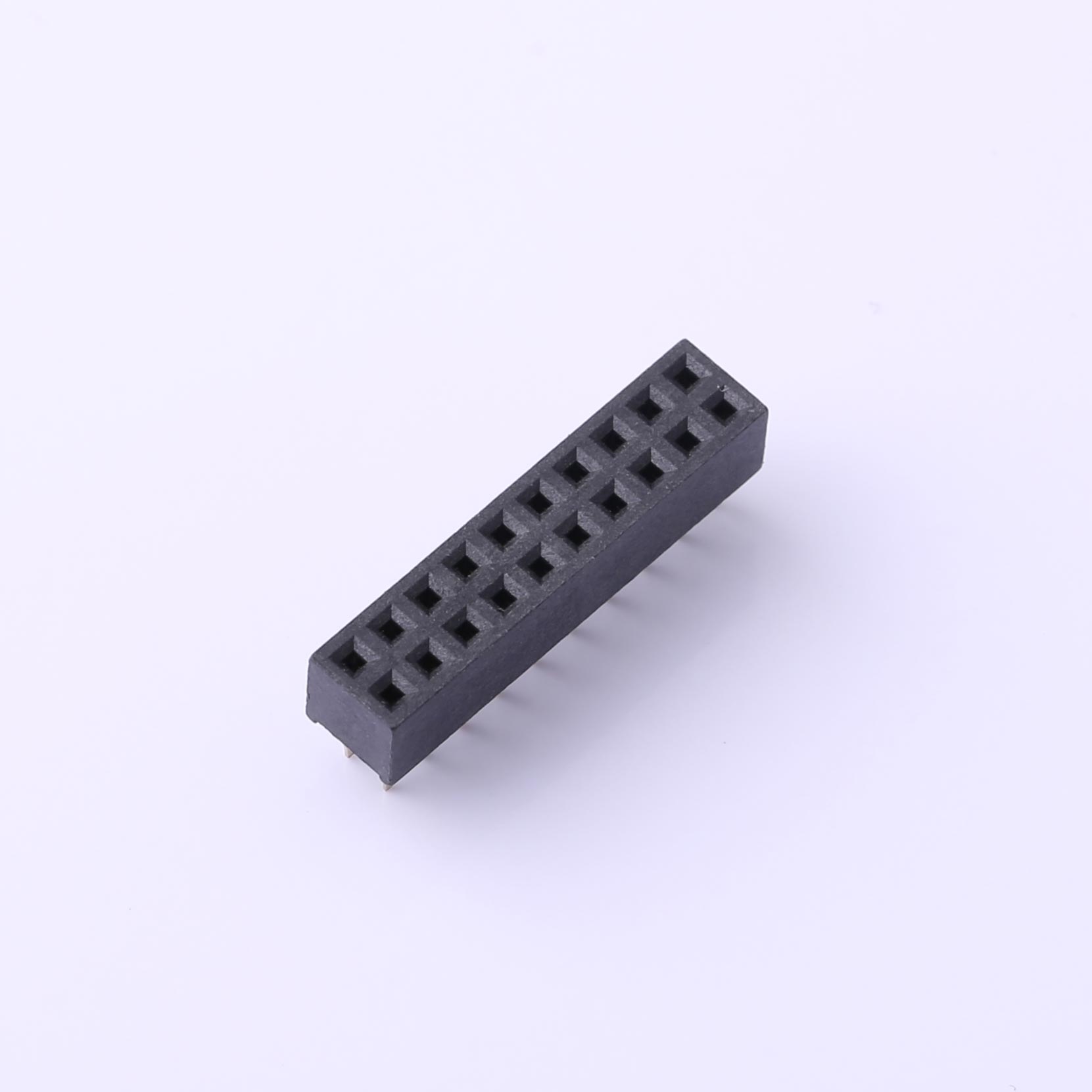

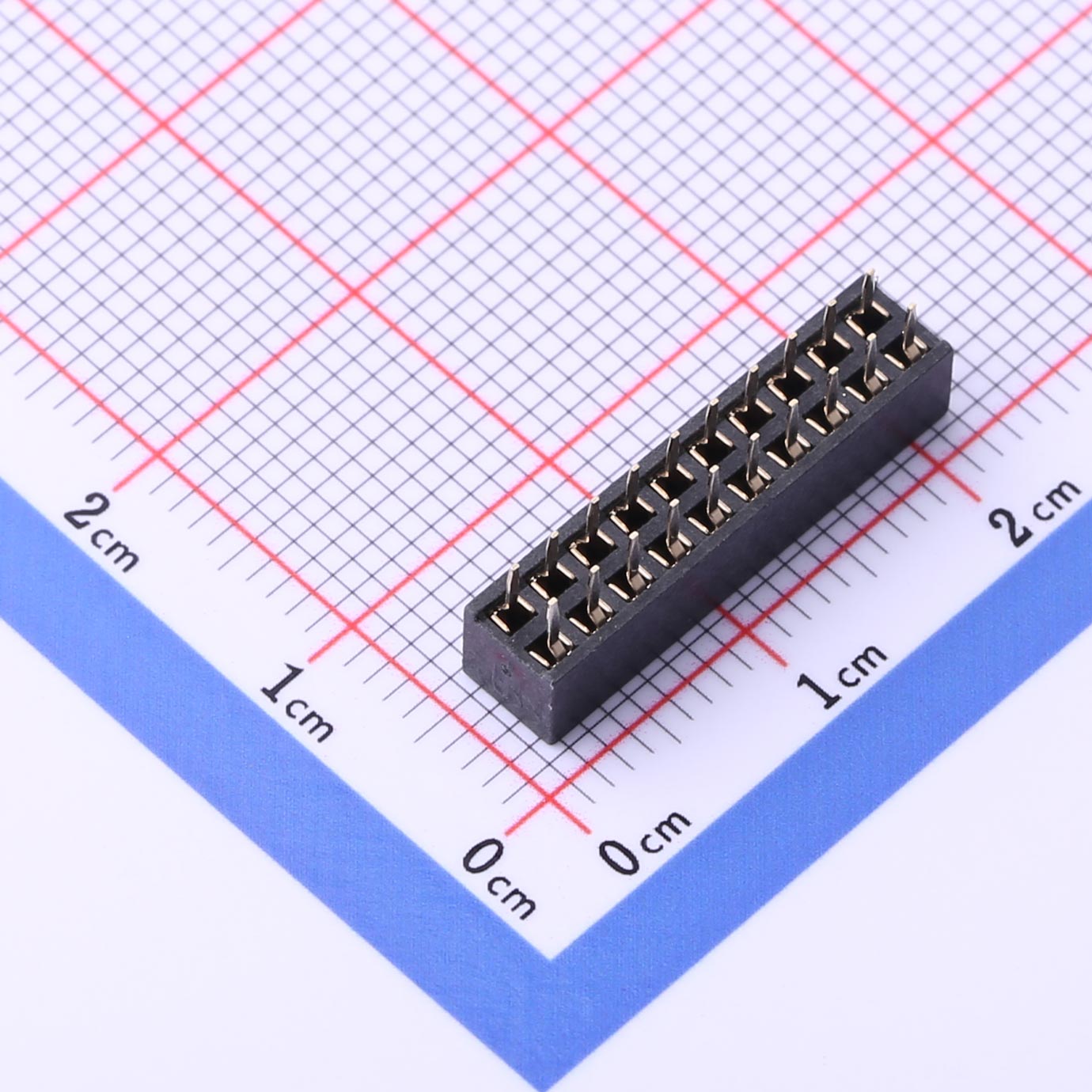

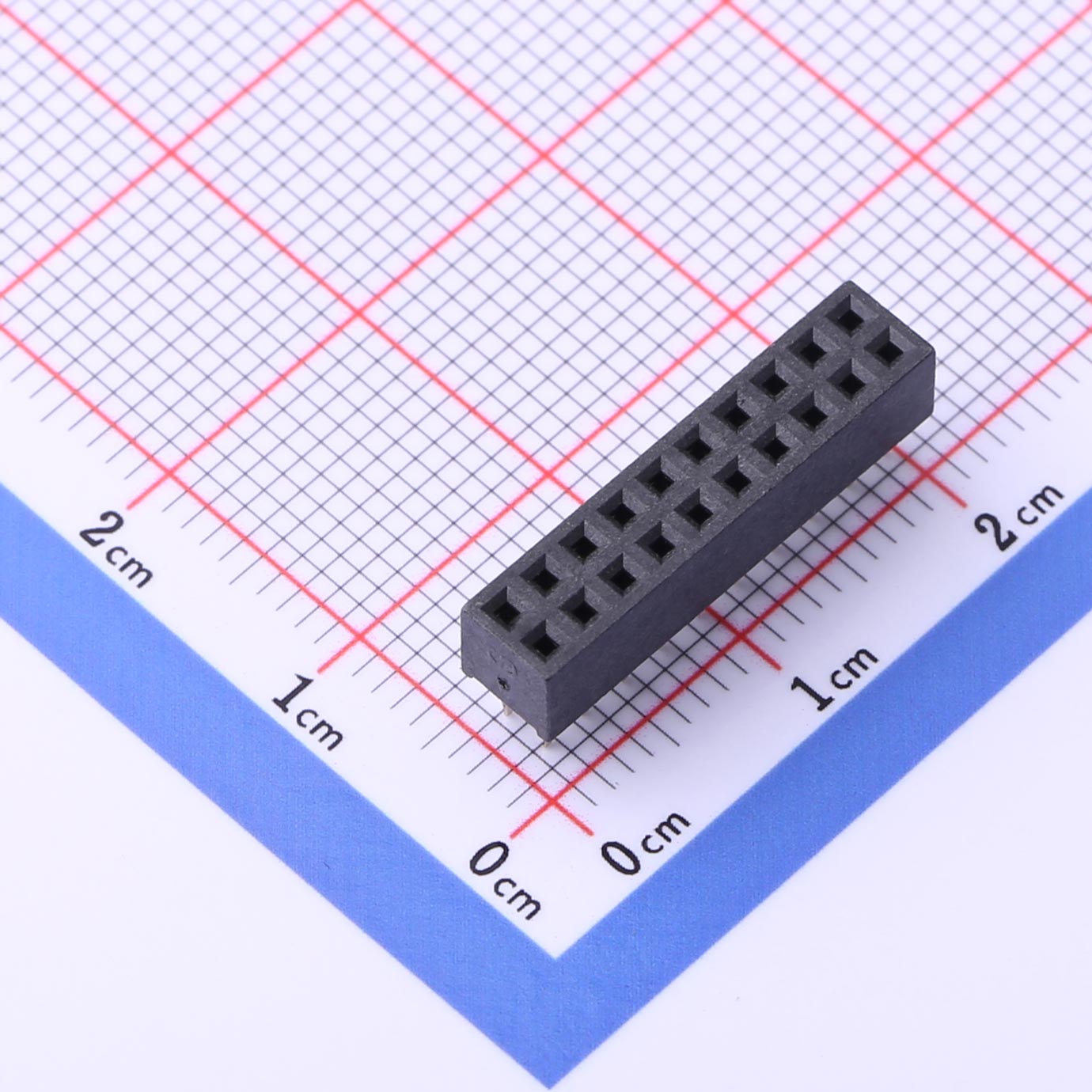

2mm Female Header Connector, 2X10P, 1.5A, KH-2FH-2X10P-H4.3

2mm Female Header Connector, 2X10P, 1.5A, KH-2FH-2X10P-H4.3

Current Rating: 1.5A
Insulation Resistance: 1000MΩ Min
Contact Resistance: 20mΩ max
Withstanding Voltage: AC 500V
Operating Temperature: -40°C to +105°C

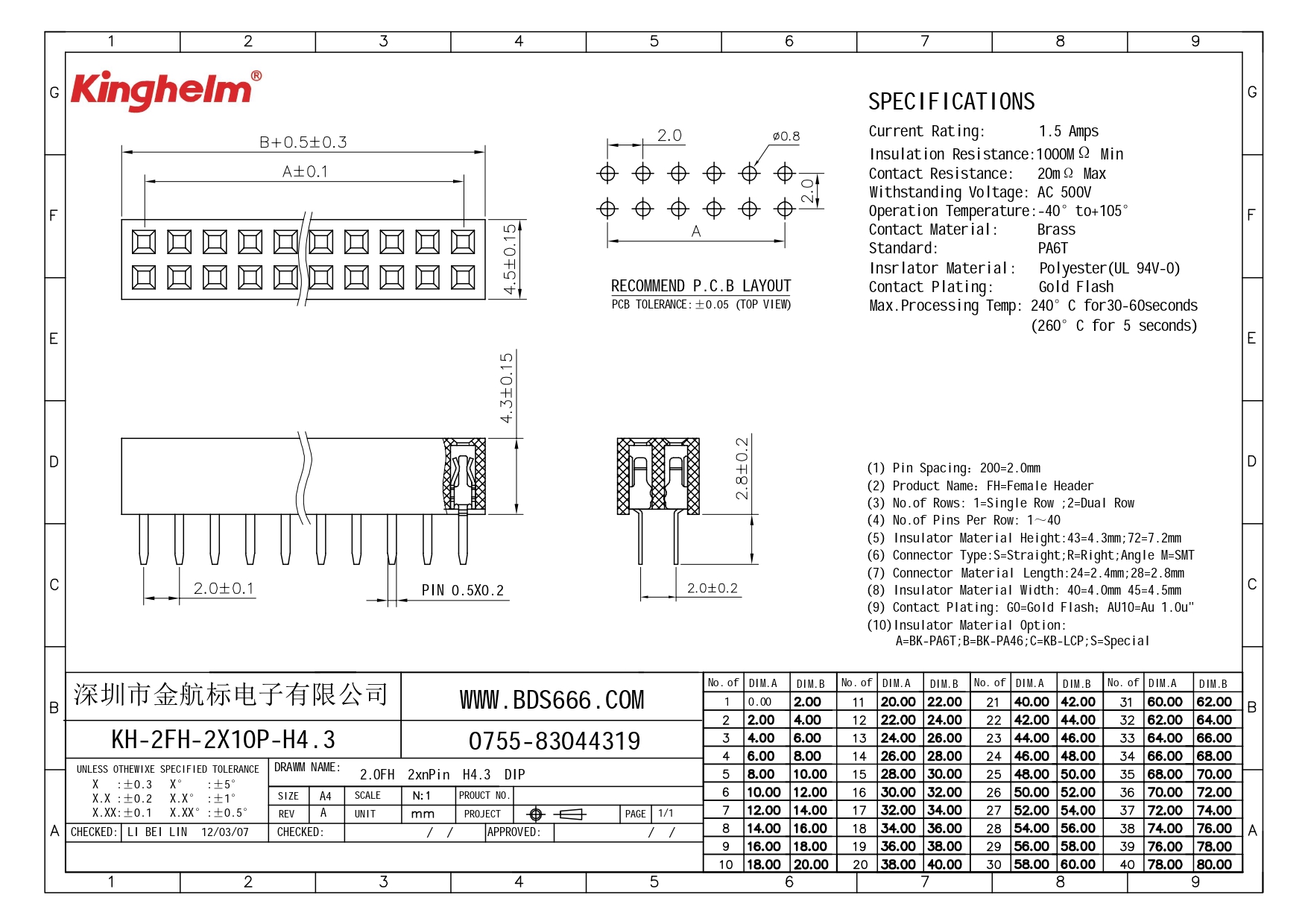

Inquiry Datasheet

Product Details

Product Benefits
● Dual row 2x10P format
● Compact 2mm spacing
● High insulation protection
● Strong mechanical stability
● SMT compatible

Product Application
● Communication base stations
● Server boards
● Smart monitoring devices
● Embedded automation
● Energy storage equipment
