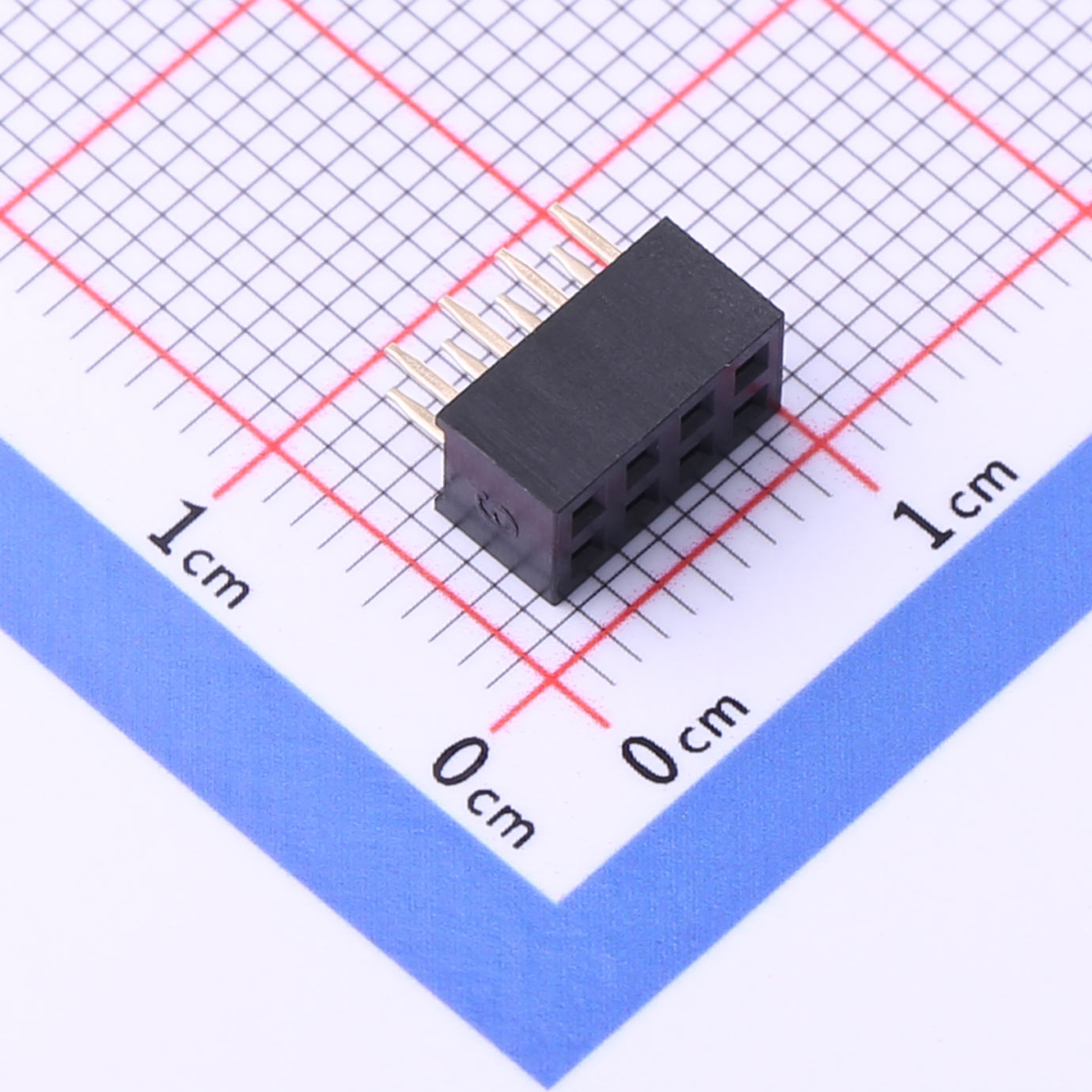

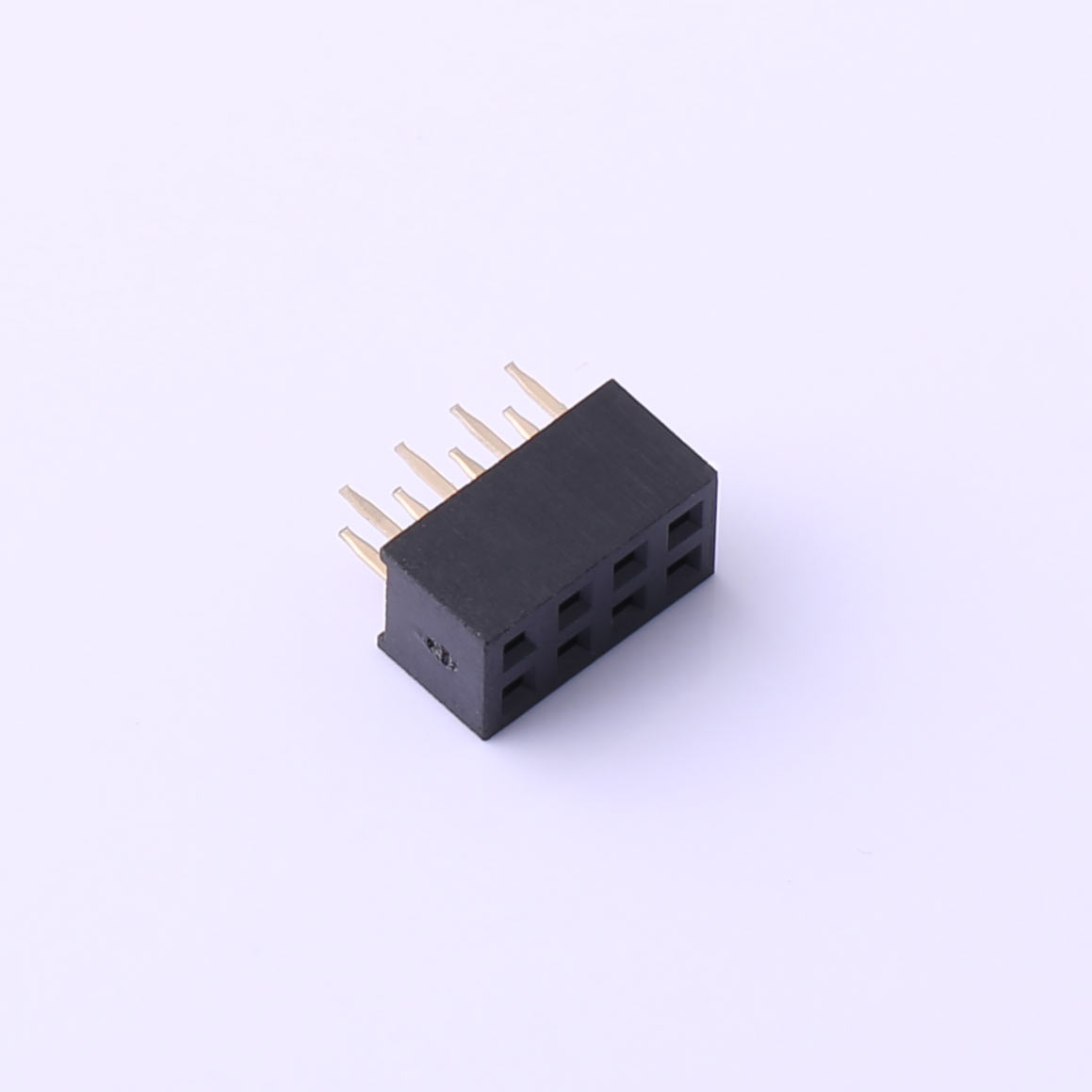

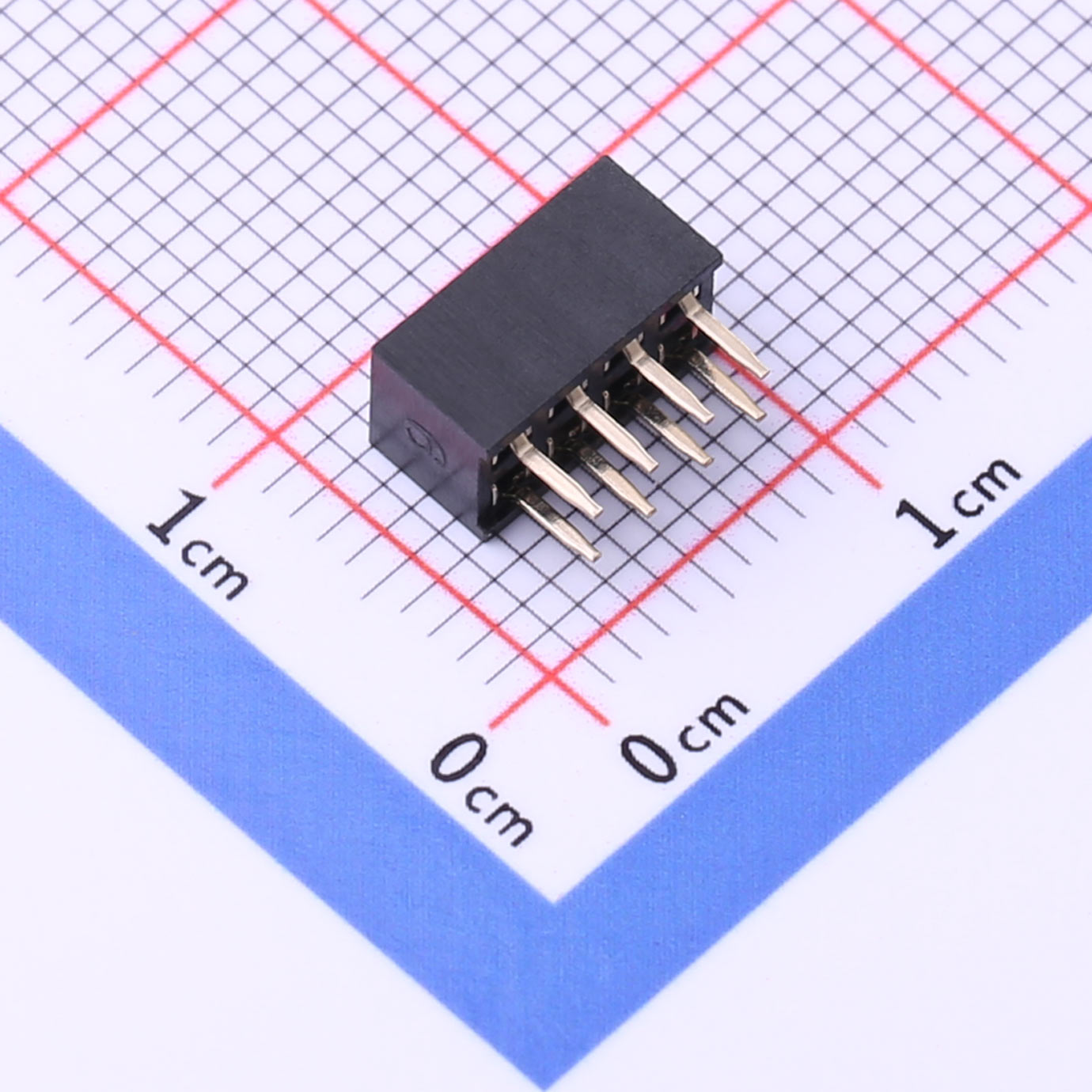

2mm Female Header Connector, 2X4P, 1.5A, KH-2FH-2X4P-H4.3

2mm Female Header Connector, 2X4P, 1.5A, KH-2FH-2X4P-H4.3

Current Rating: 1.5A
Insulation Resistance: 1000MΩ Min
Contact Resistance: 20mΩ max
Withstanding Voltage: AC 500V
Operating Temperature: -40°C to +105°C

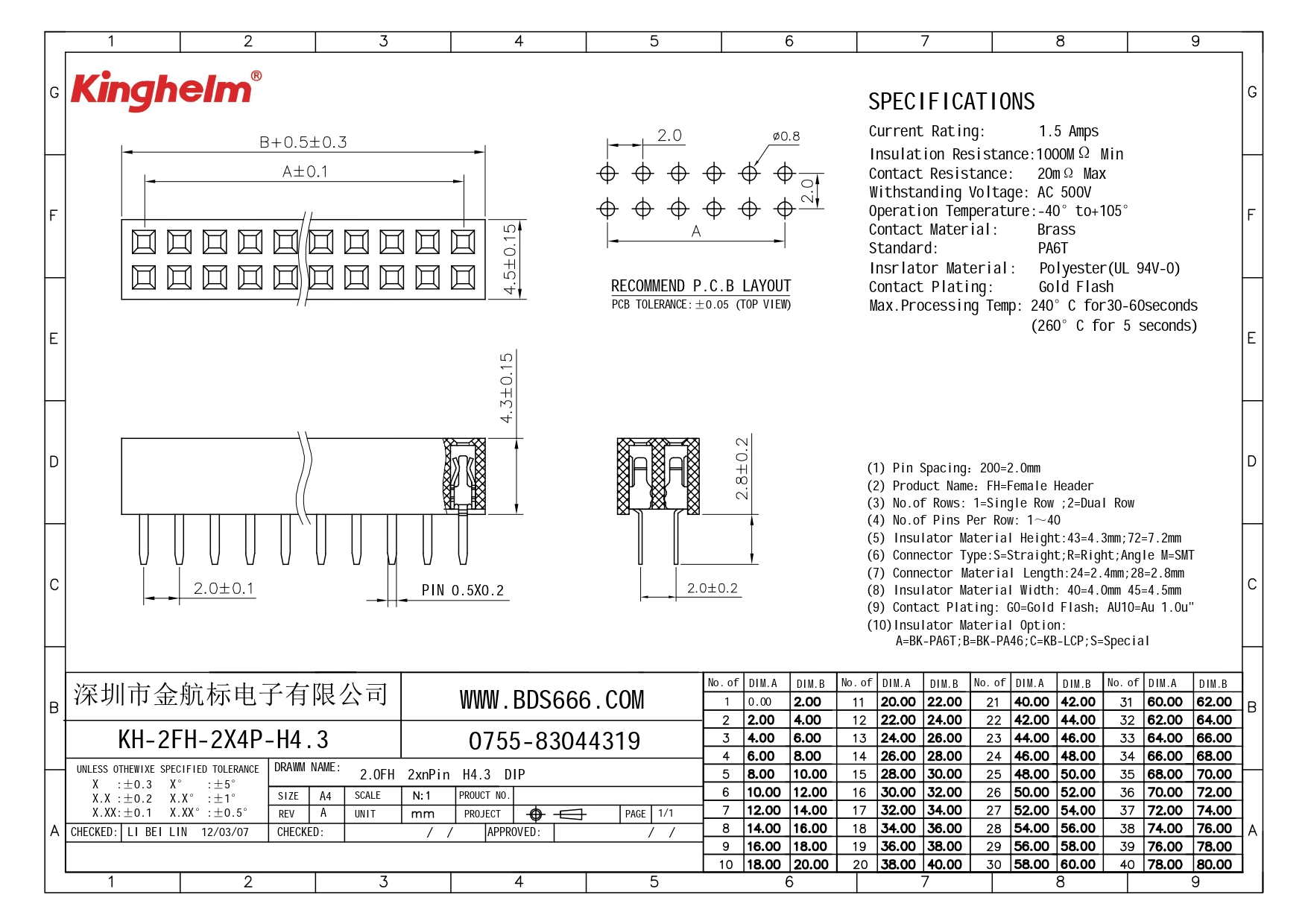

Inquiry Datasheet

Product Details

Product Benefits
● Dual row 2x4P compact type
● 2mm pitch slim design
● 500V voltage resistance
● 20mΩ low contact resistance
● Easy PCB mounting

Product Application
● Smart sensors
● Wearable medical devices
● Home automation hubs
● Consumer drones
● Mini embedded modules
