Home -Product -Connector/Plug-in Unit -Pin Socket -Female Header -2.54mm Female Header Connector, 1X3P, 3A, KH-2.54FH-1X3P-H8.5
2.54mm Female Header Connector, 1X3P, 3A, KH-2.54FH-1X3P-H8.5 2.54mm Female Header Connector, 1X3P, 3A, KH-2.54FH-1X3P-H8.5 2.54mm Female Header Connector, 1X3P, 3A, KH-2.54FH-1X3P-H8.5

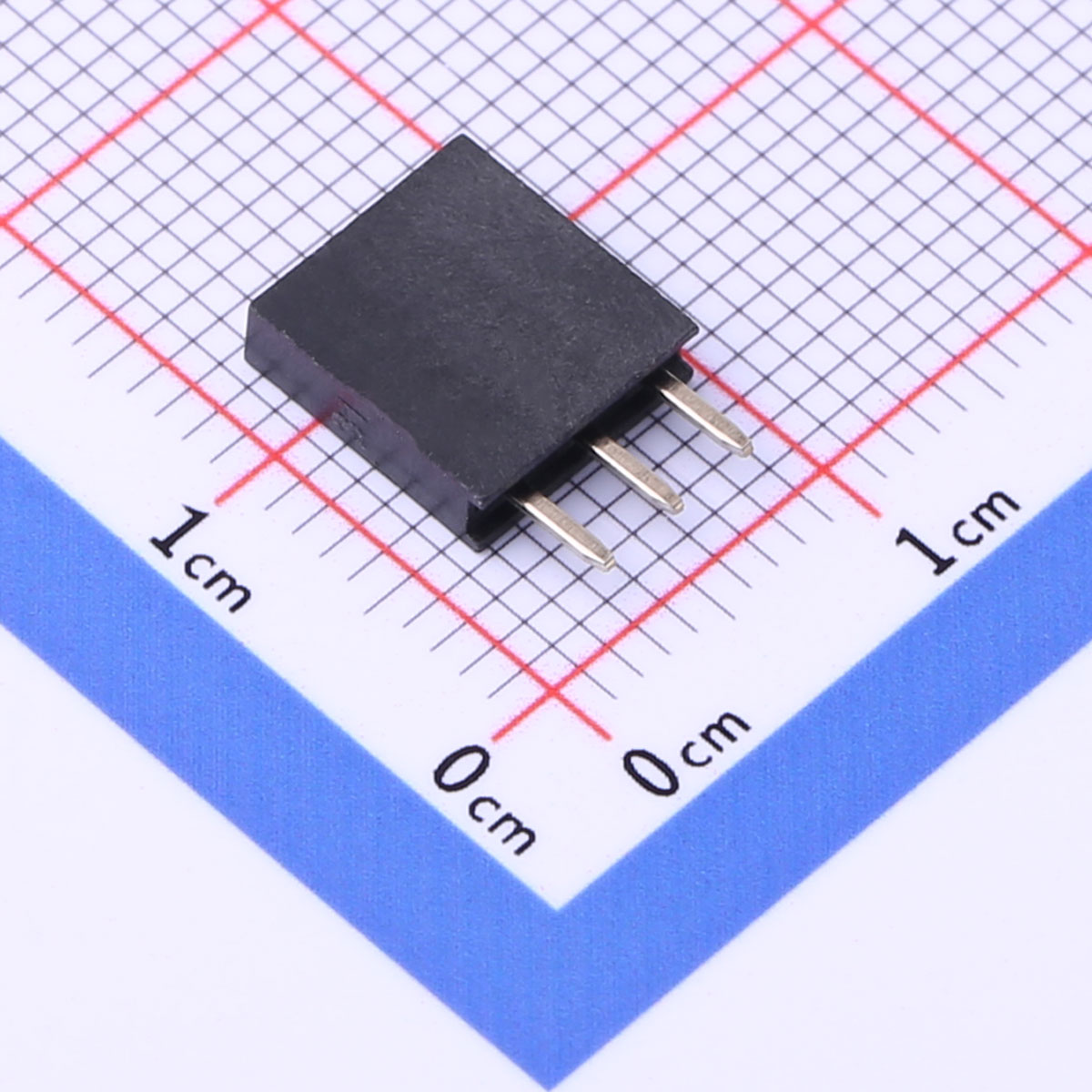

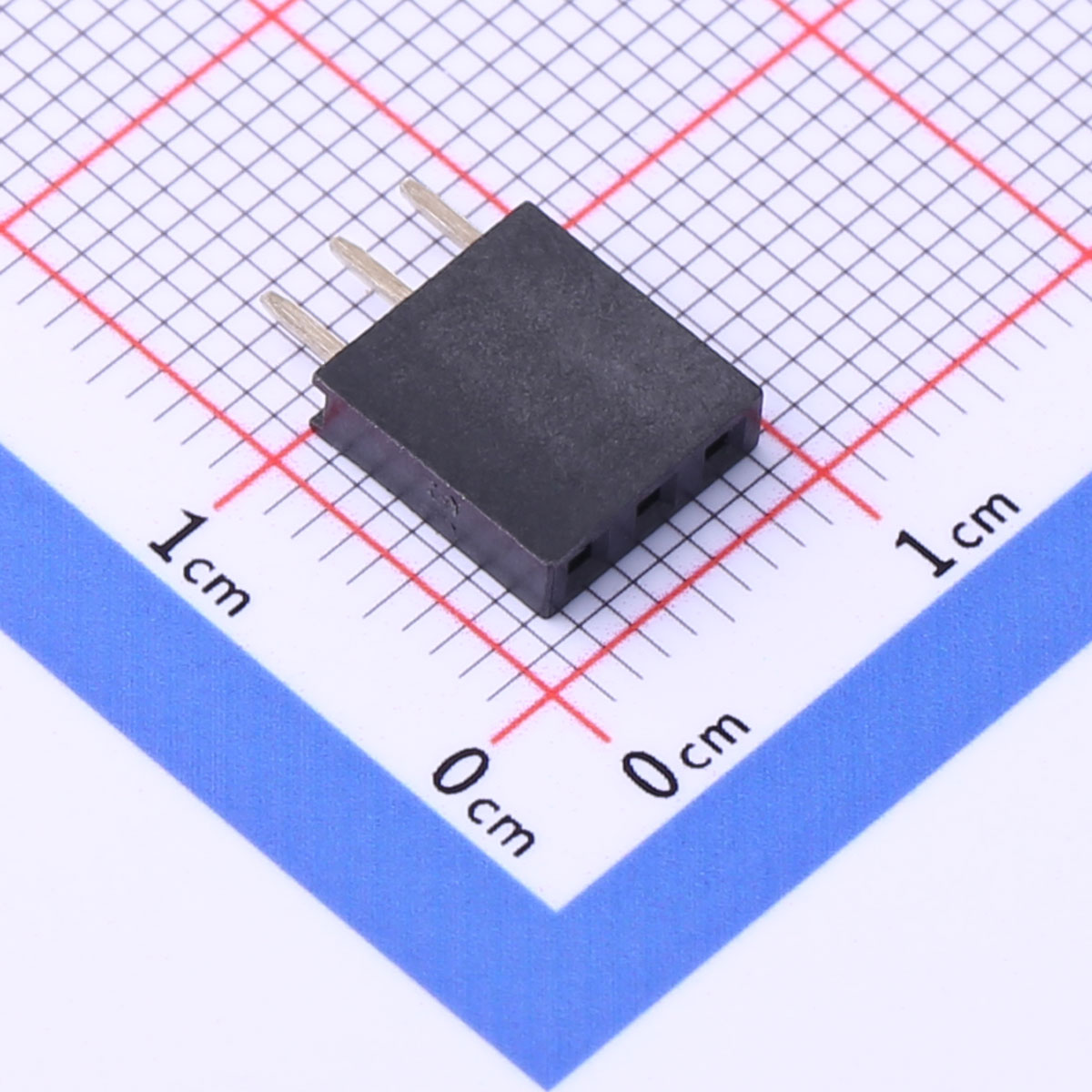

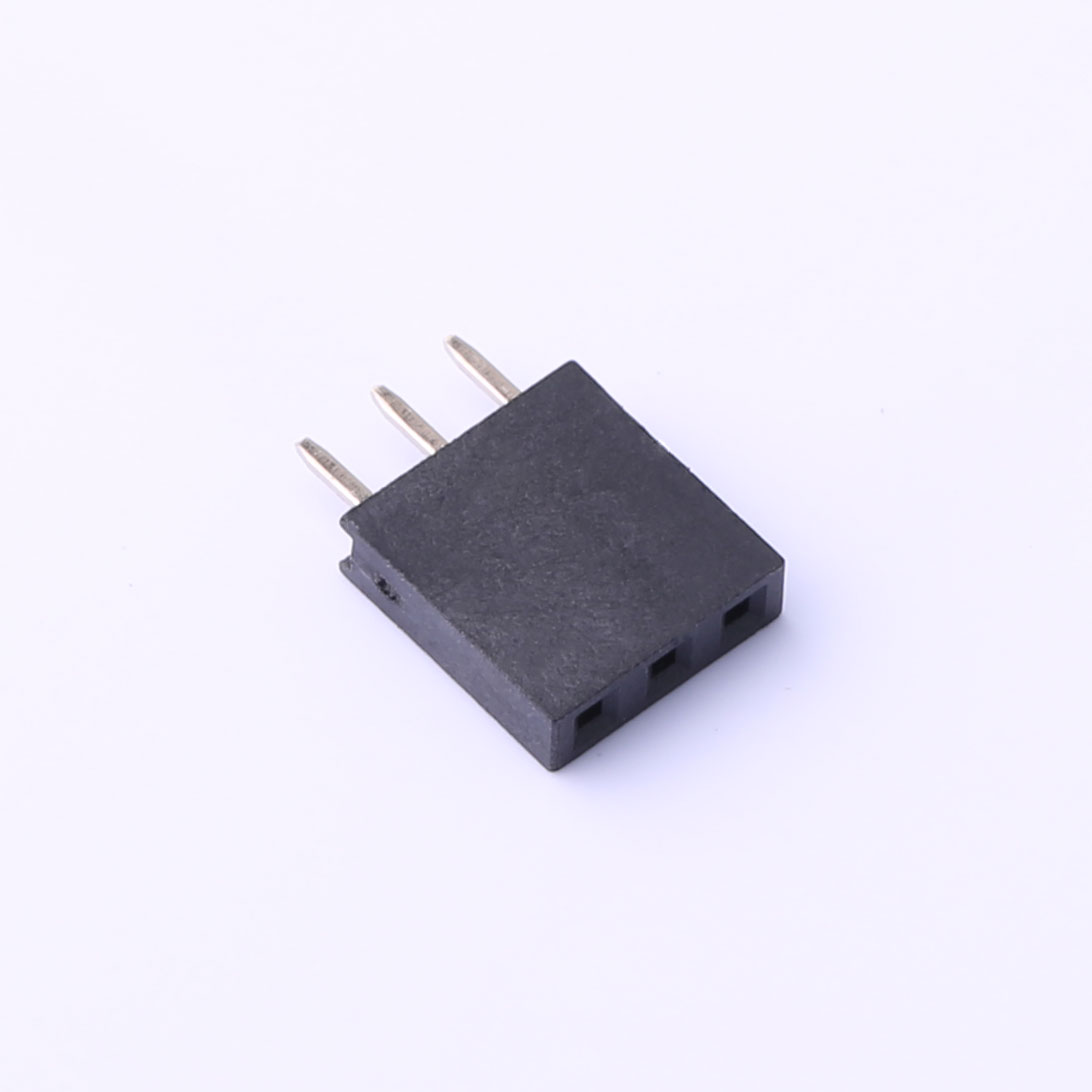

2.54mm Female Header Connector, 1X3P, 3A, KH-2.54FH-1X3P-H8.5
Current Rating: 3 A
Insulation Resistance: 1000MΩ Min
Contact Resistance: 20mΩ max
Withstanding Voltage: AC 1000V
Operating Temperature: -40°C to +105°C

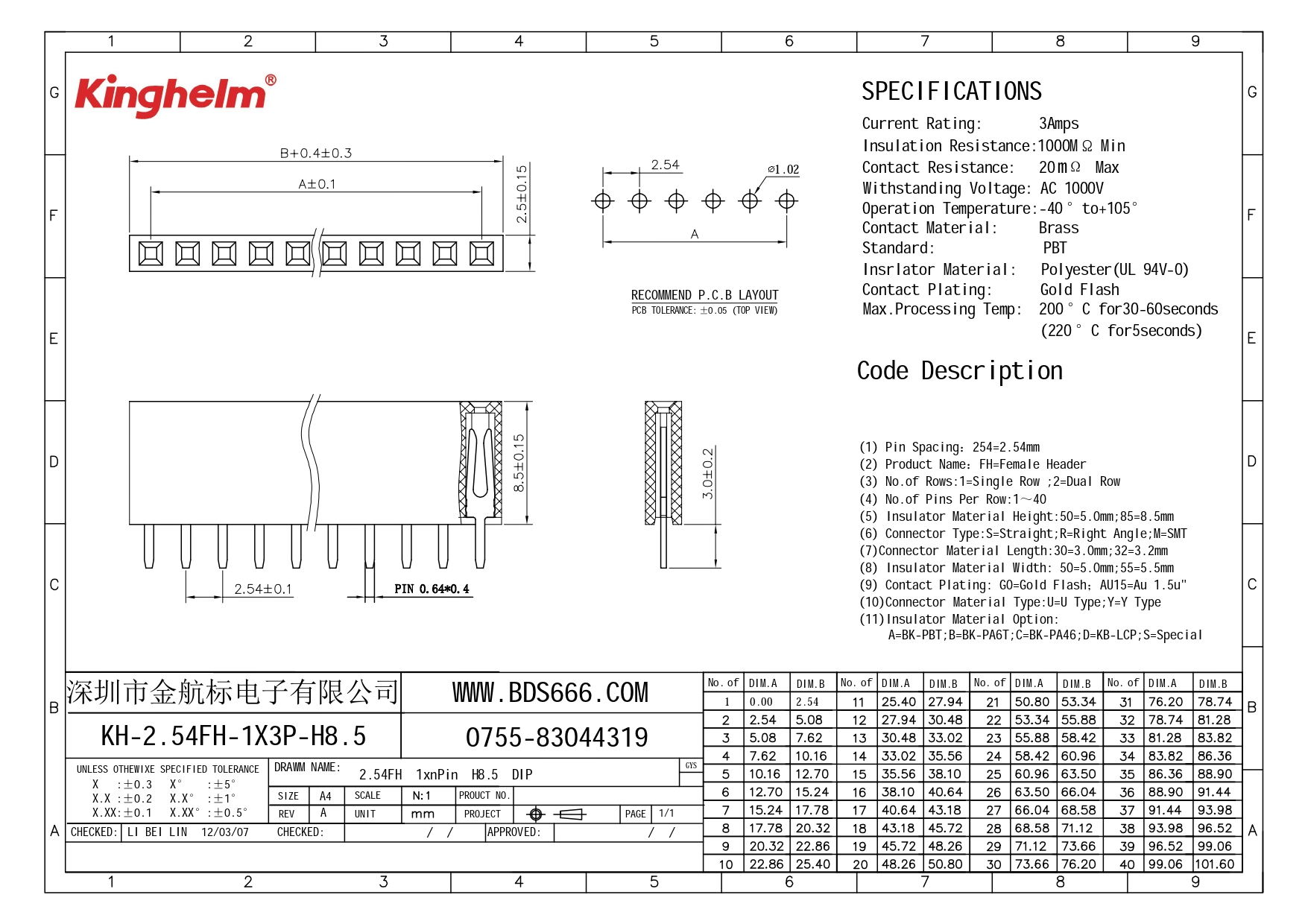

Inquiry Datasheet

Product Details

Product Benefits
● 2.54mm pitch
● 3A current rating
● 1000MΩ insulation resistance
● 20mΩ max contact resistance
● AC 1000V withstand voltage
● -40°C to +105°C operating temperature

Product Application
● Small electronics
● Power distribution boards
● Industrial connectors
● Automotive systems
● Robotics


Prev：2.54mm Female Header Connector, 1X16P, 3A, KH-2.54FH-1X16P-H8.5
Next：2.54mm Female Header Connector, 1X4P, 3A, KH-2.54FH-1X4P-H8.5
