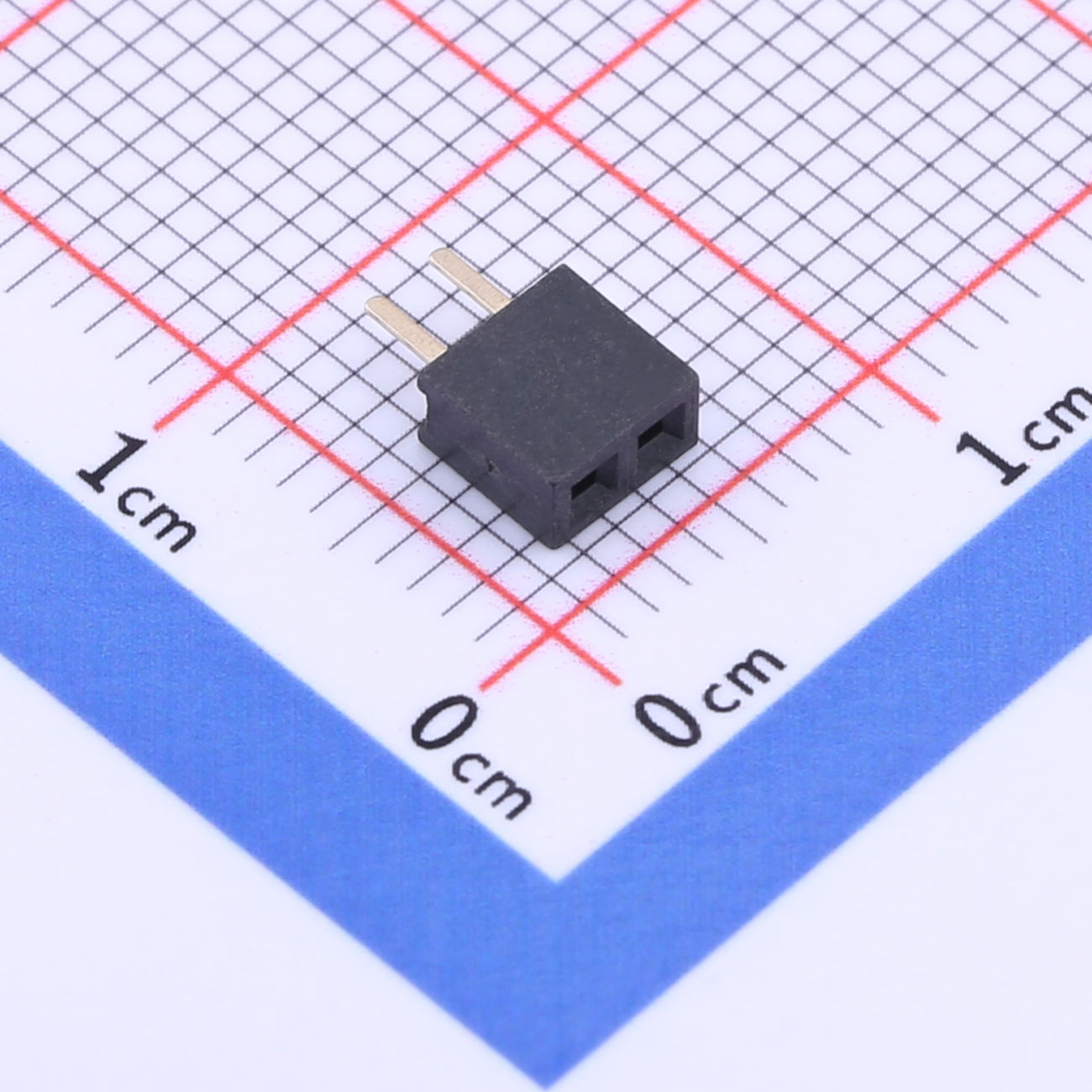

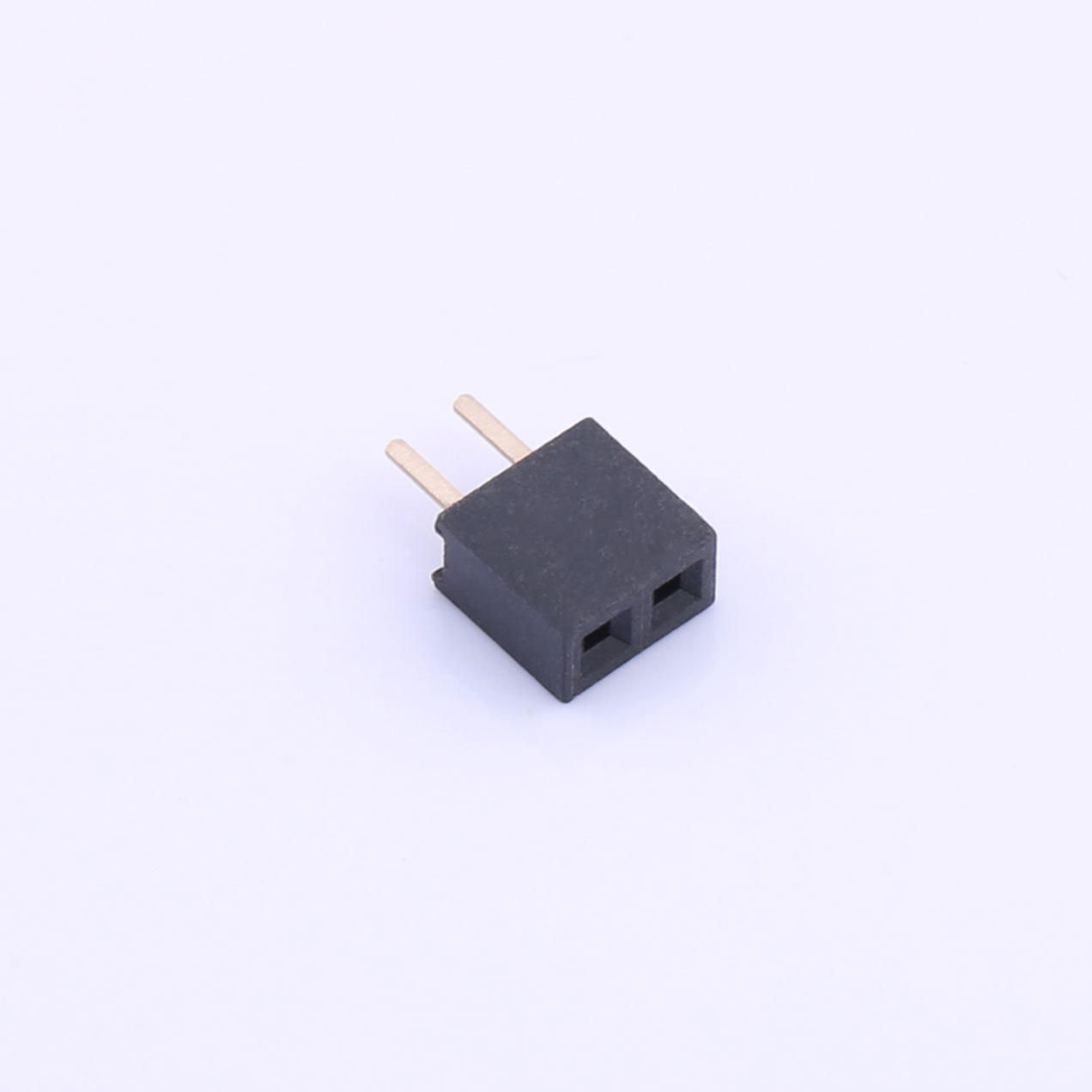

2mm Female Header Connector, 1X2P, 1.5A, KH-2FH-1X2P-H4.3

2mm Female Header Connector, 1X2P, 1.5A, KH-2FH-1X2P-H4.3

Current Rating: 1.5A
Insulation Resistance: 1000MΩ Min
Contact Resistance: 20mΩ max
Withstanding Voltage: AC 500V
Operating Temperature: -40°C to +105°C

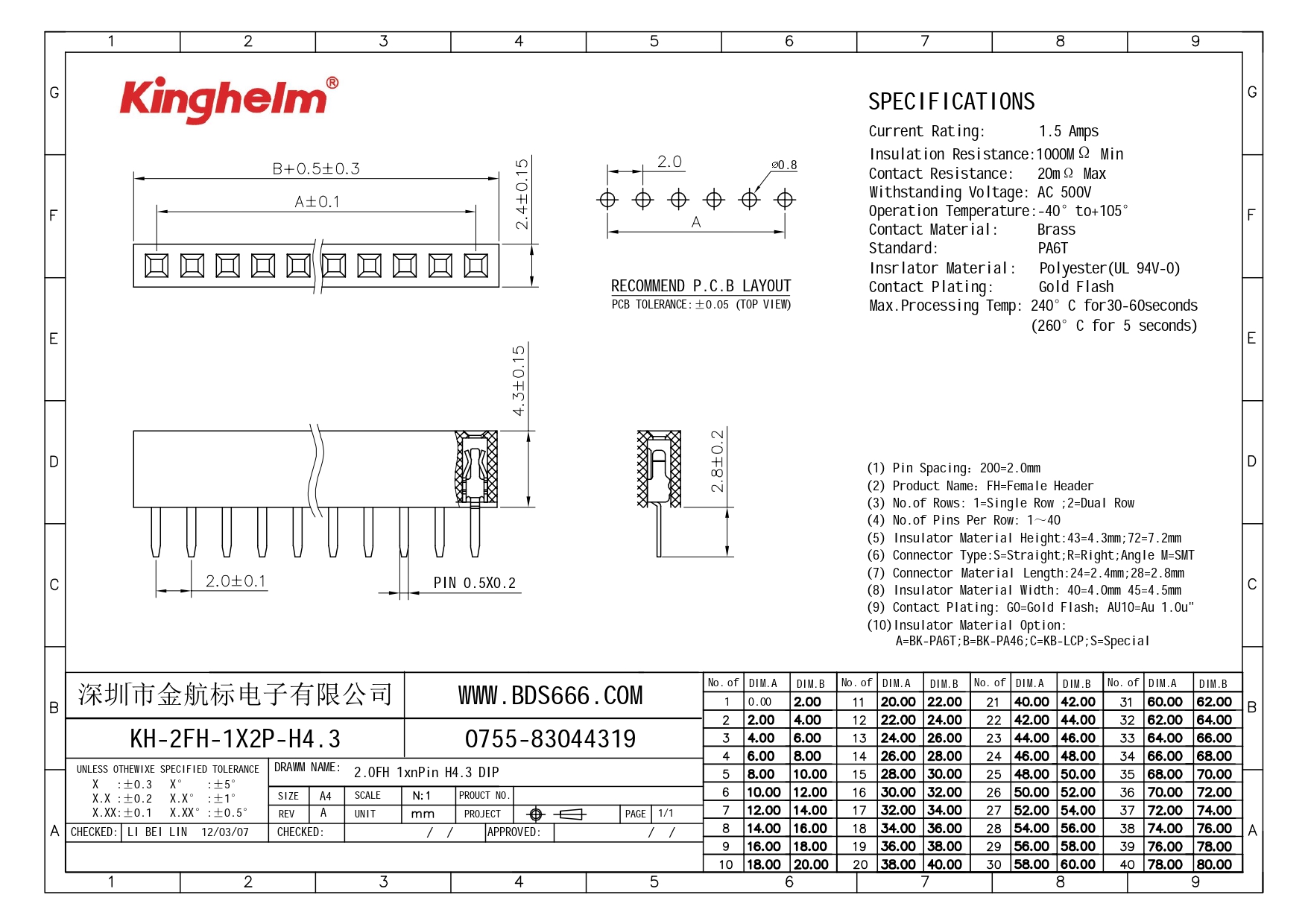

Inquiry Datasheet

Product Details

Product Benefits
● Minimalist 2 pin layout
● 2mm pitch saving space
● Strong insulation 1000MΩ
● Wide temperature tolerance
● Top entry socket

Product Application
● Wearable electronics
● Mini sensor modules
● Compact IoT devices
● Smart meters
● Battery management systems
