Home -Product -Connector/Plug-in Unit -Pin Socket -Female Header -2.54mm Female Header Connector, 1X14P, 3A, KH-2.54FH-1X14P-H8.5
2.54mm Female Header Connector, 1X14P, 3A, KH-2.54FH-1X14P-H8.5 2.54mm Female Header Connector, 1X14P, 3A, KH-2.54FH-1X14P-H8.5 2.54mm Female Header Connector, 1X14P, 3A, KH-2.54FH-1X14P-H8.5

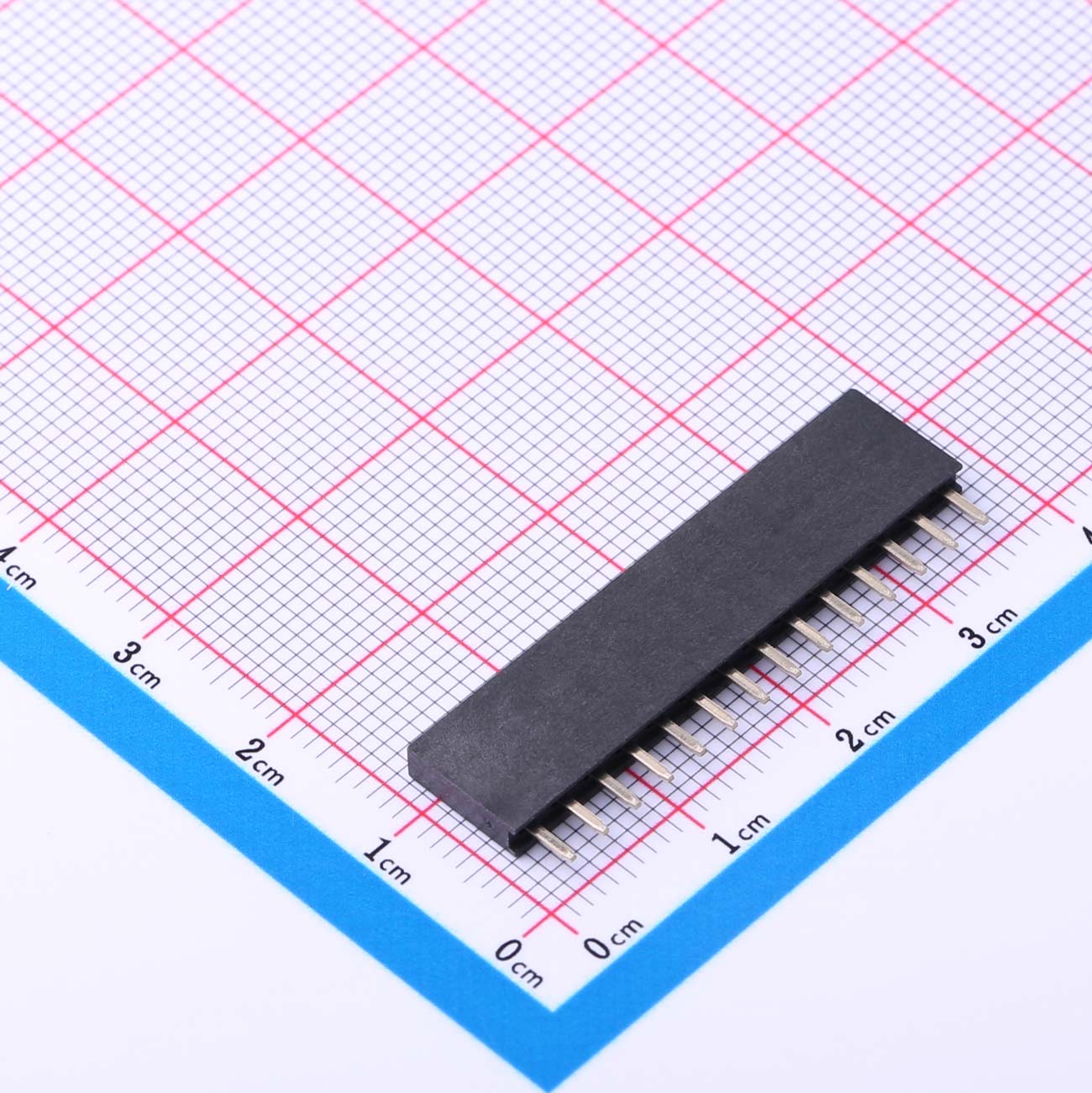

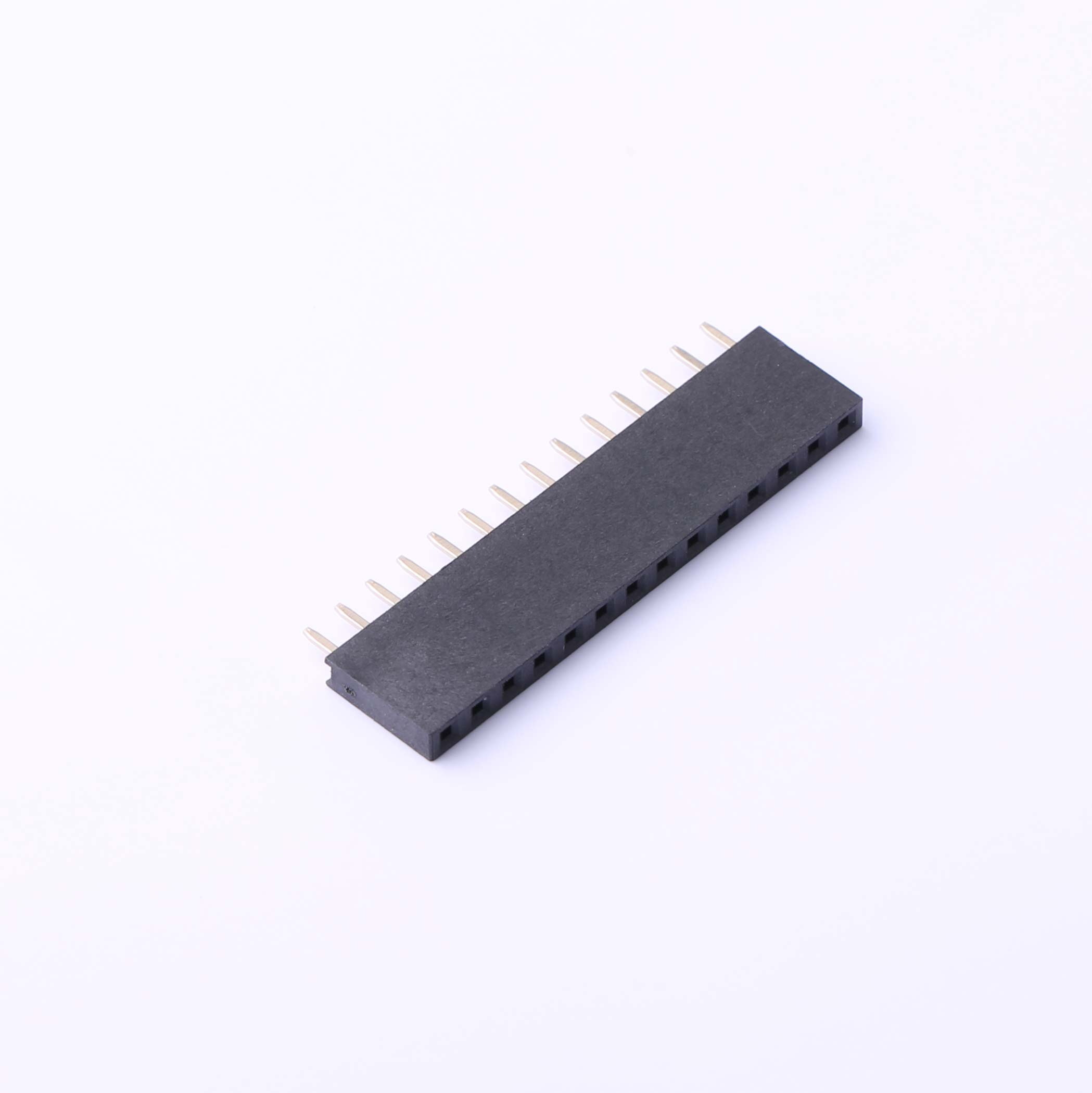

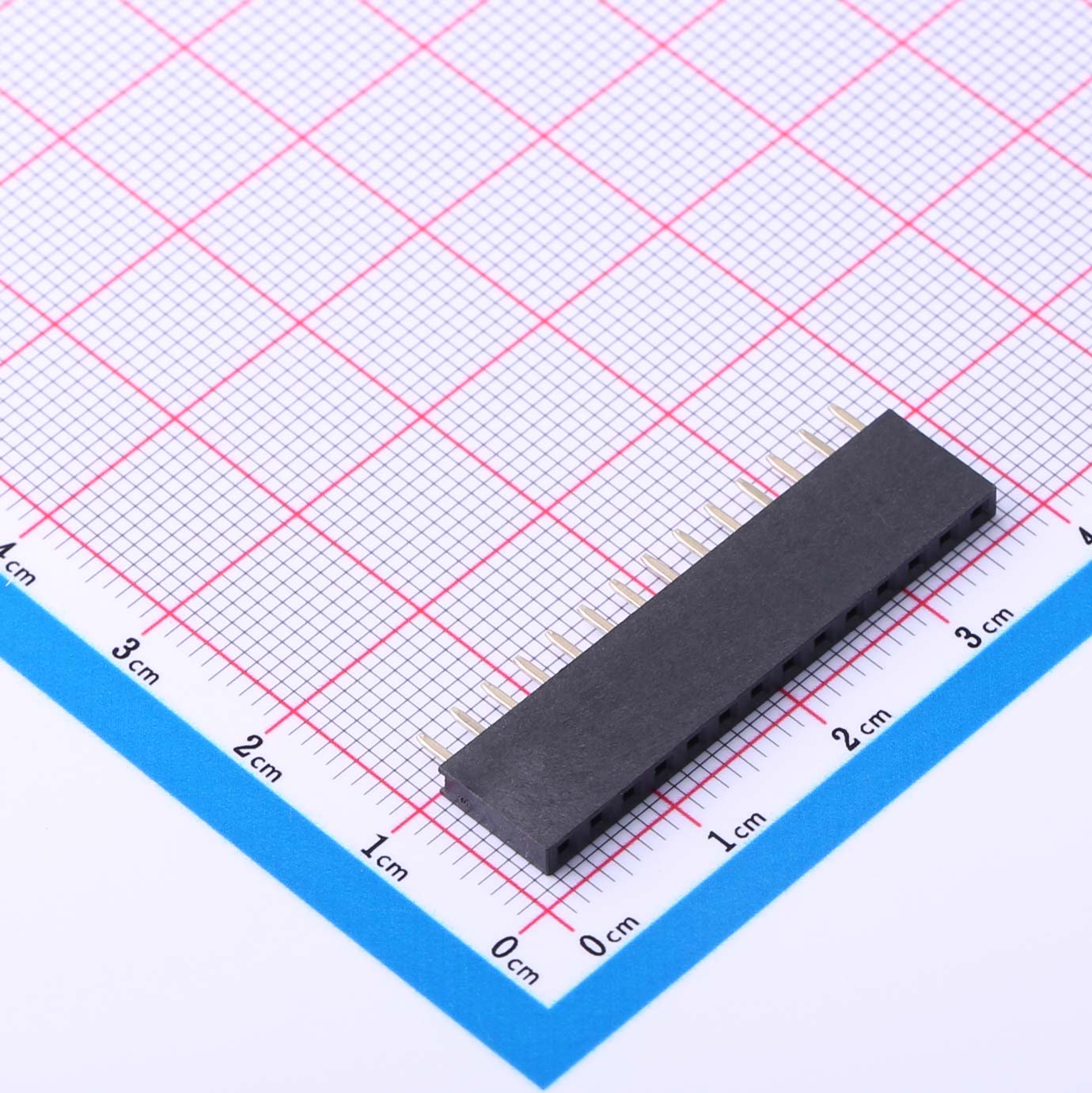

2.54mm Female Header Connector, 1X14P, 3A, KH-2.54FH-1X14P-H8.5
Current Rating: 3A
Insulation Resistance: 1000MΩ Min
Contact Resistance: 20mΩ max
Withstanding Voltage: AC 1000V
Operating Temperature: -40°C to +105°C
Inquiry Datasheet

Product Details

Product Benefits
● 2.54mm pitch
● 3A current rating
● 1000MΩ insulation resistance
● 20mΩ max contact resistance
● AC 1000V withstand voltage
● -40°C to +105°C operating temperature

Product Application
● Power distribution boards
● Industrial control systems
● Automotive electronics
● Communication devices
● Consumer appliances


Prev：2.54mm Female Header Connector, 1X9P, 3A, KH-2.54FH-1X9P-H8.5
Next：2.54mm Female Header Connector, 1X8P, 3A, KH-2.54FH-1X8P-H8.5
