RF Cable Assembly, IPEX to SMA, L=80mm, KHB(RG178)-80-28

Voltage Rating: DC 300V (10ms)
Conductance Resistance: 3.0Ω Max
Insulation Resistance: 5.0MΩ Min
Testing: 100% Electrical Testing on All Cables

Product Details

Product Description:

Electrical Specifications:

●Voltage Rating: DC 300V for 10 milliseconds

●Conductance Resistance: Maximum of 3.0 ohms

●Insulation Resistance: Minimum of 5.0 megaohms

●Quality Assurance: The cable undergoes a 100% electrical test to ensure its reliability.

●Reliability Standards: The cable is designed to have no open/short circuits, miswiring, or intermittent failures.

Material Specifications:

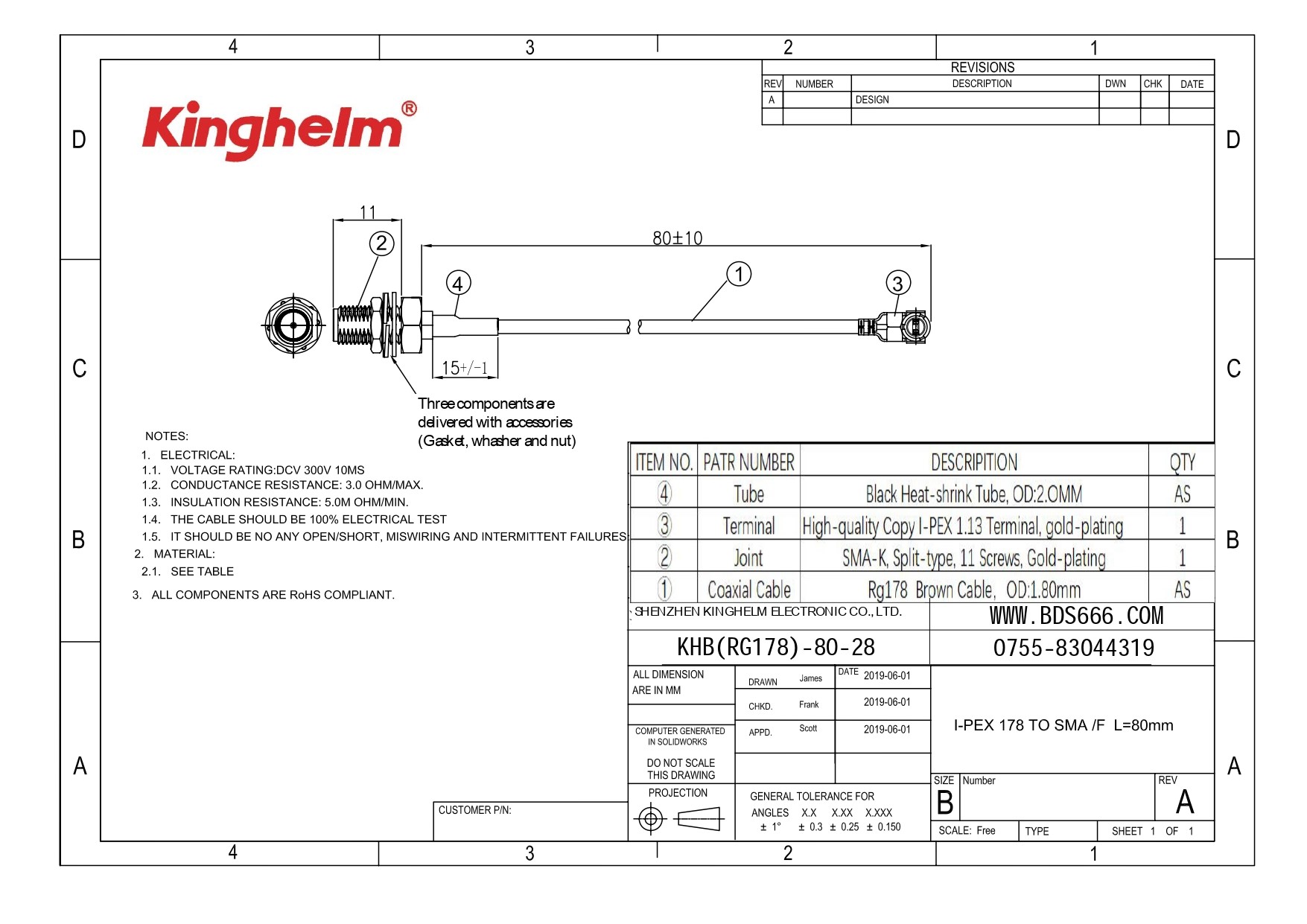

●Composition: Please refer to the provided table for detailed material information.

Compliance:

●RoHS Compliance: All components used in the cable comply with RoHS regulations, ensuring environmental safety.
