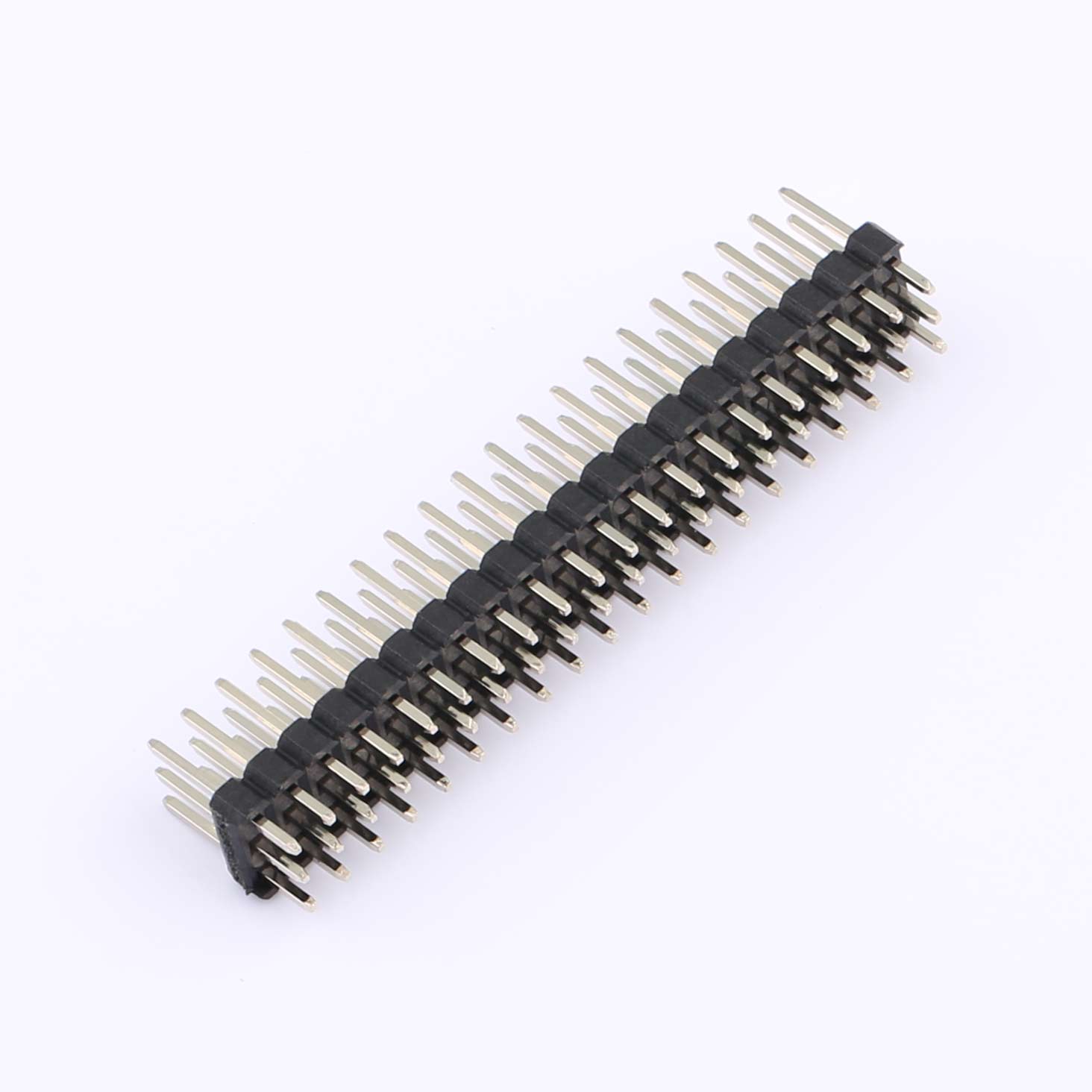

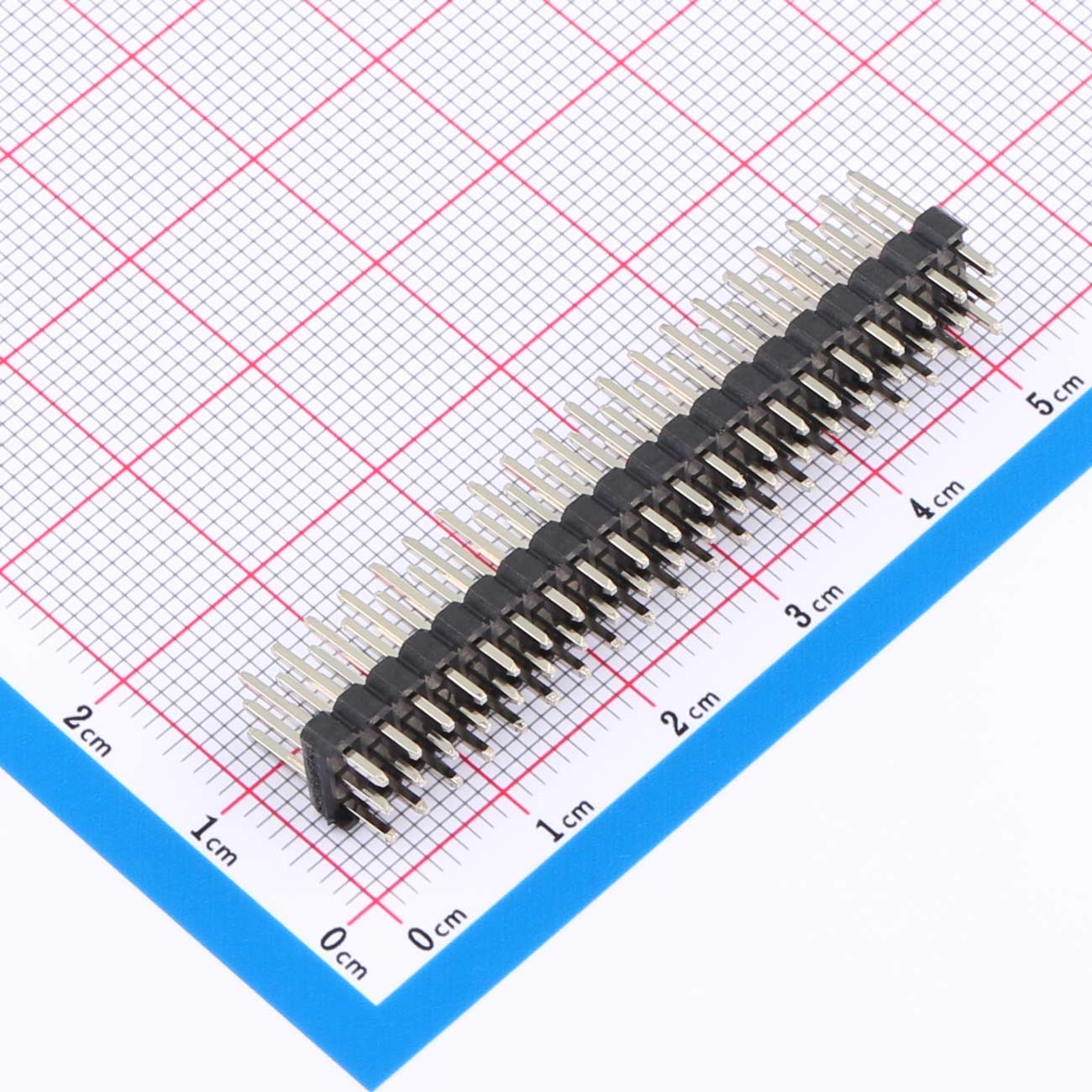

Pin Header Connector, 3x20P, 3A, KH-2.54PH180-3X20P-L11.5

Pin Header Connector, 3x20P, 3A, KH-2.54PH180-3X20P-L11.5

Current Rating: 3 Amps
Insulation Resistance: 1000 MΩ Min
Contact Resistance: 20 MΩ Max
Withstanding Voltage: AC 1000 V
Operation Temperature: -40℃ to +105℃

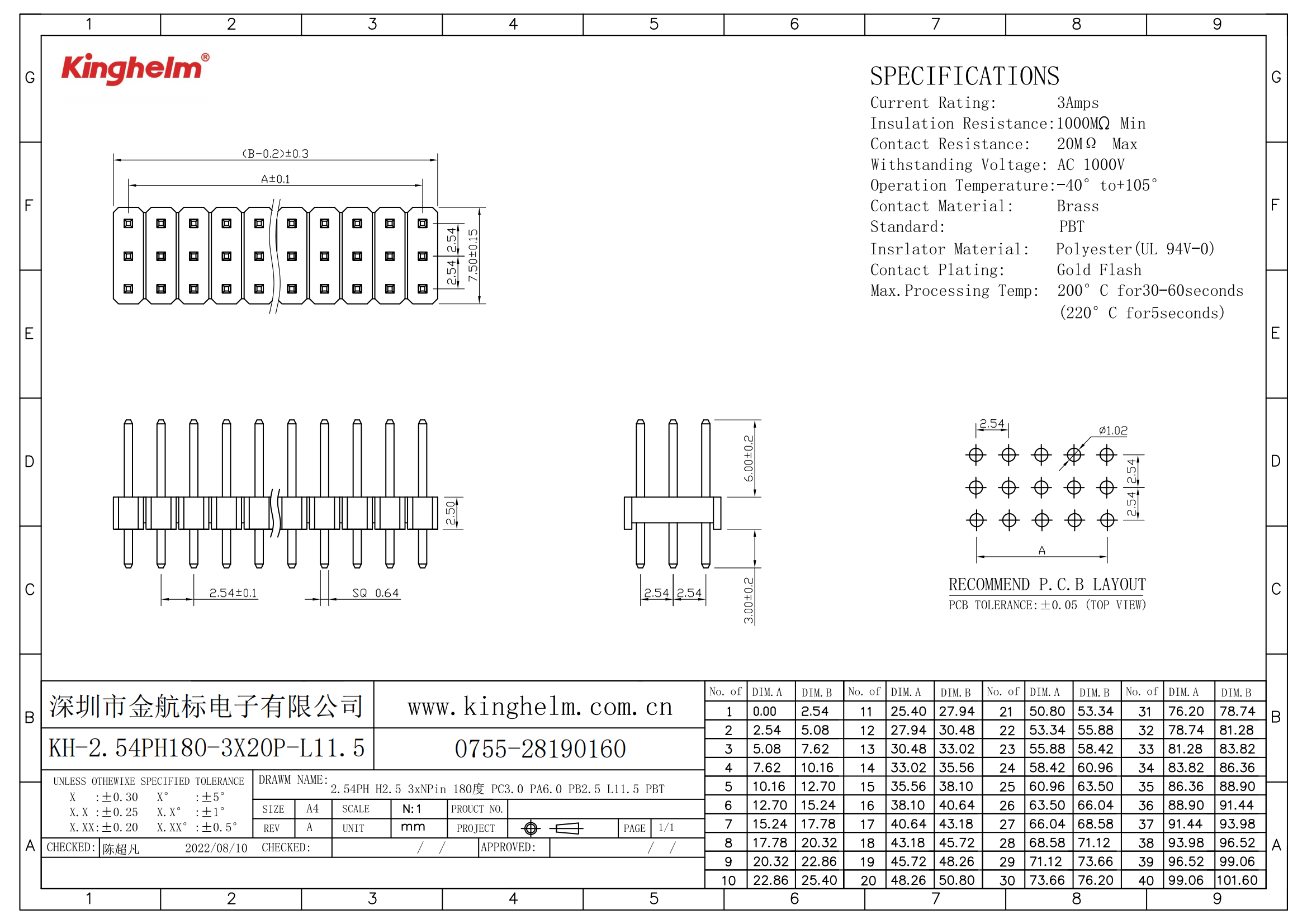

Inquiry Datasheet

Product Details

Product Benefits

●High Current Capacity

●Superior Insulation

●Low Contact Resistance

●High Voltage Tolerance

●Wide Temperature Range

Product Applications

●Industrial Control Systems

●Consumer Electronics

●Automotive Electrical Systems

●Harsh Environments

Prev：Pin Header Connector, 3x21P, 3A, KH-2.54PH180-3X21P-L11.5
Next：Pin Header Connector, 3x19P, 3A, KH-2.54PH180-3X19P-L11.5
