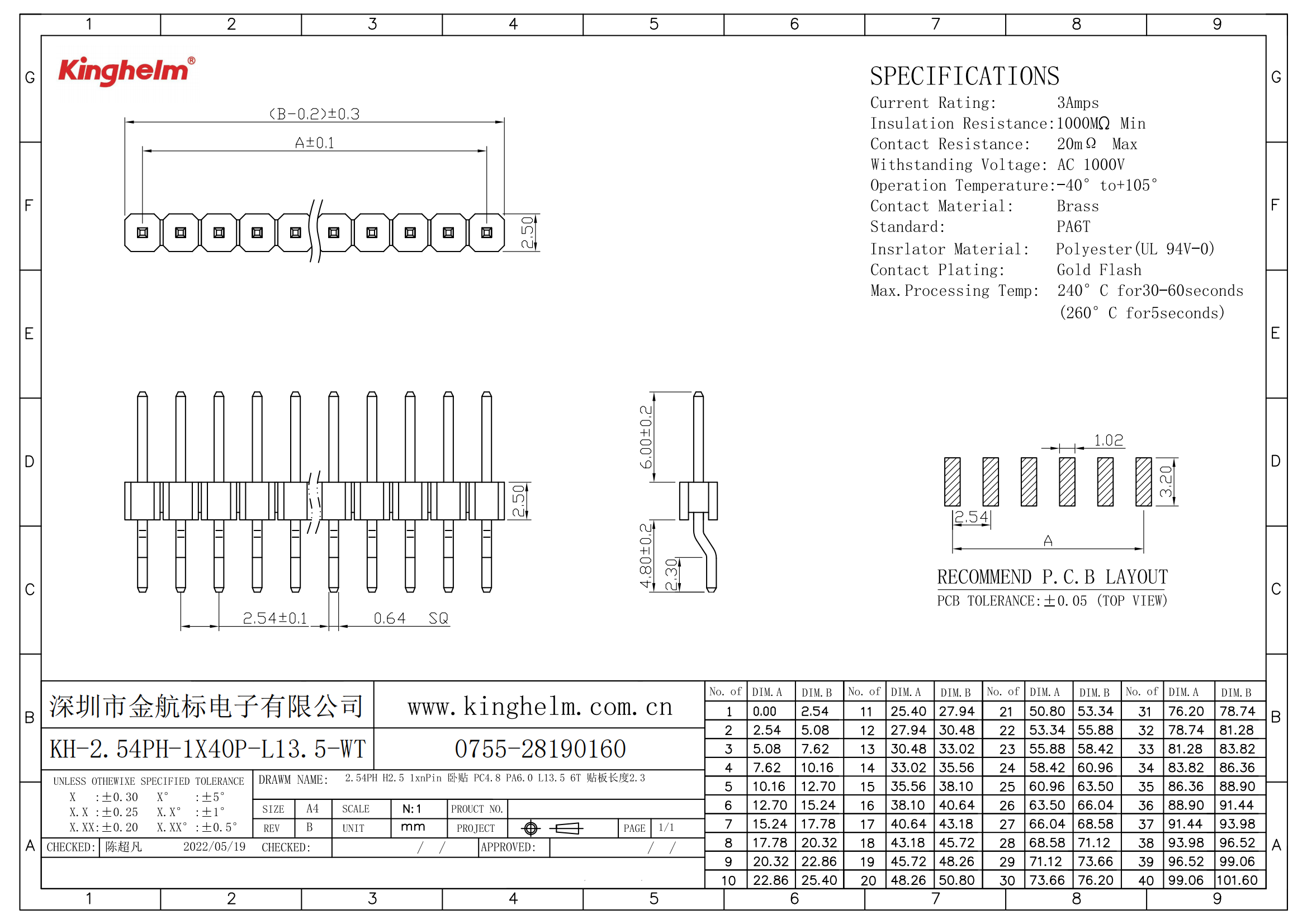

Pin Header Connector, 1x40P, 3A, KH-2.54PH-1X40P-L13.5-WT

Pin Header Connector, 1x40P, 3A, KH-2.54PH-1X40P-L13.5-WT

Current Rating: 3 Amps
Insulation Resistance: 1000 MΩ Min
Contact Resistance: 20 MΩ Max
Withstanding Voltage: AC 1000 V
Operation Temperature: -40℃ to +105℃

Inquiry Datasheet

Product Details

Product Benefits

●High Pin Count

●High Current Capacity

●Superior Insulation

●Stable Contact Performance

●High Voltage Tolerance

●Versatile Temperature Range

Product Applications

●Industrial Machinery

●Consumer Electronics

●Automotive Systems

●Telecommunications Equipment
