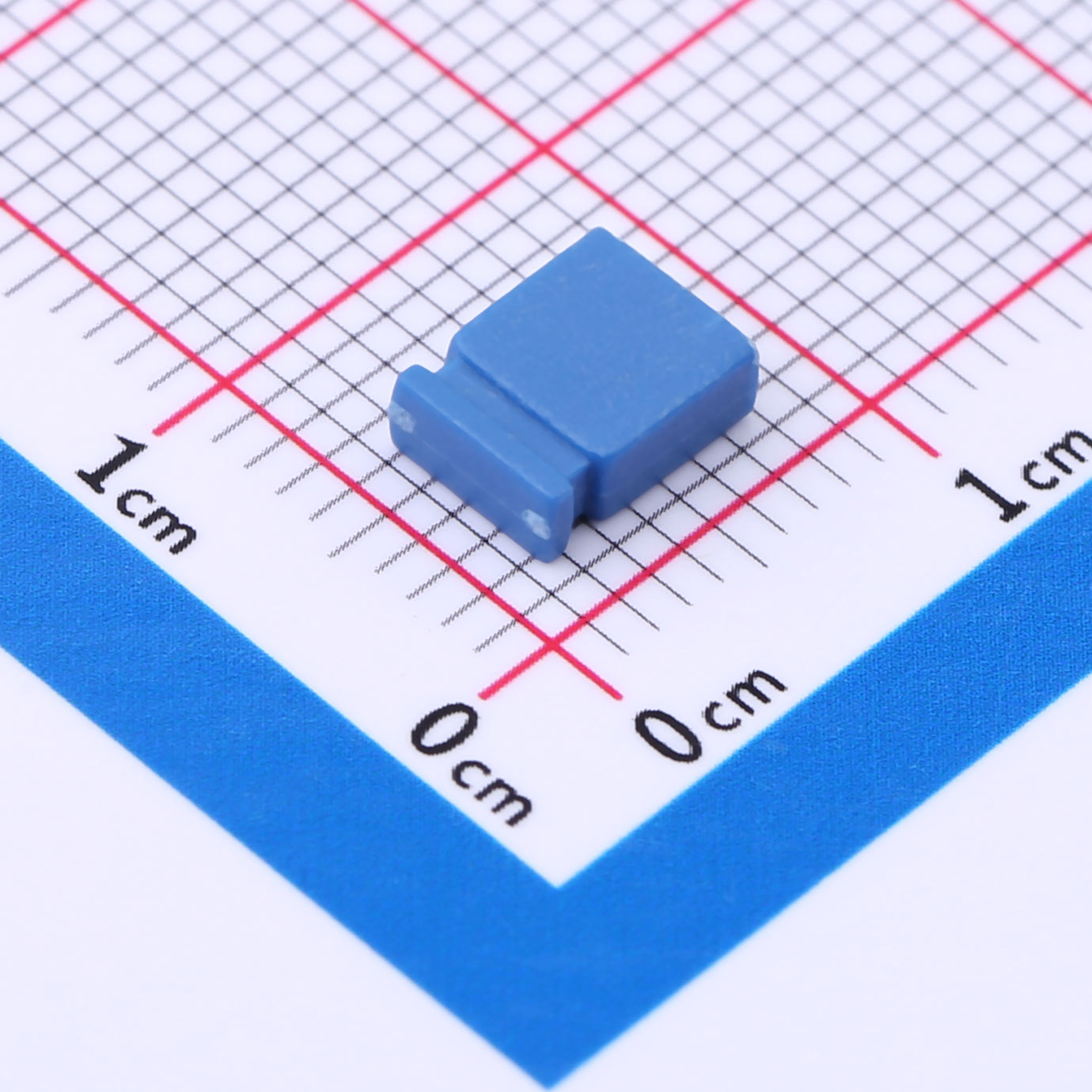

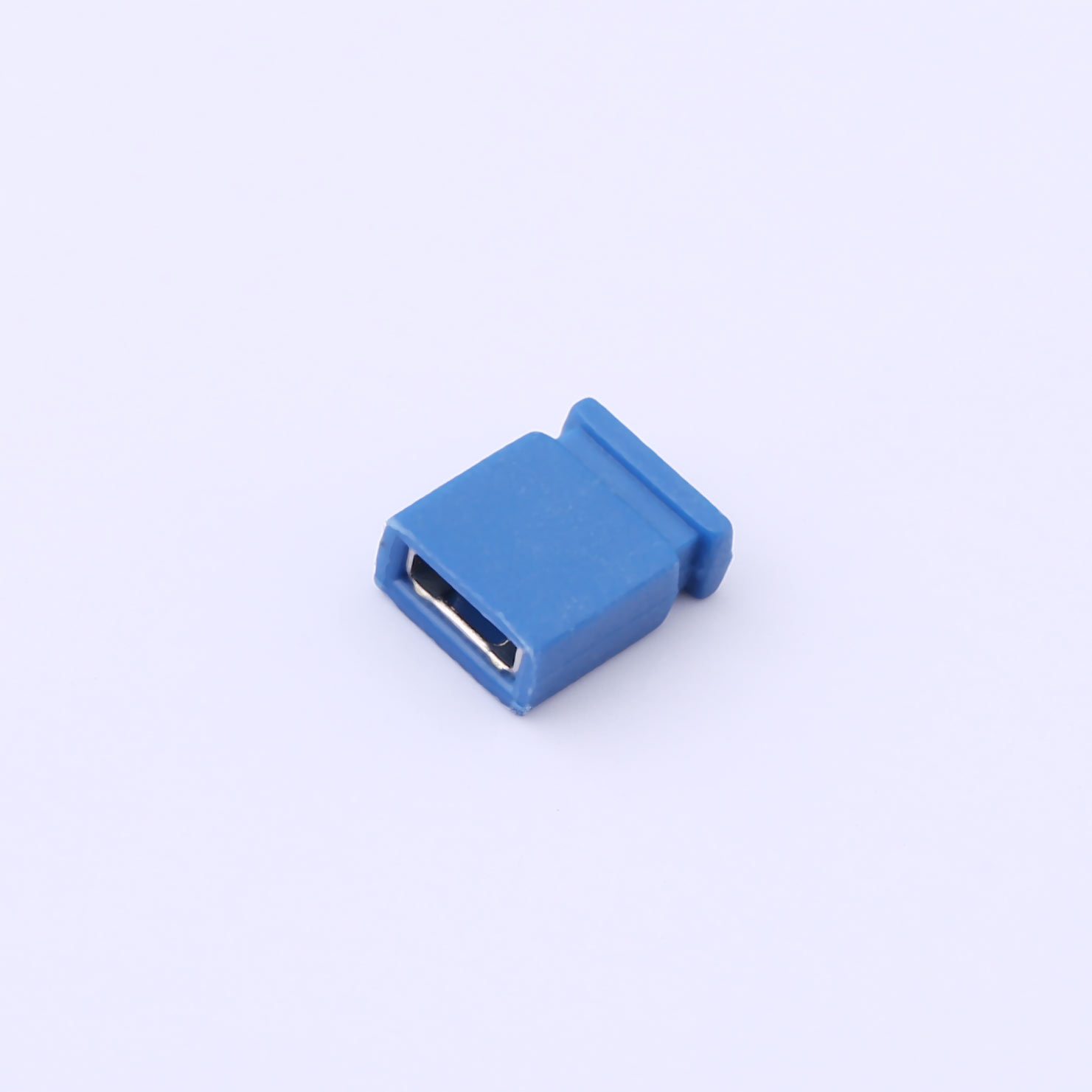

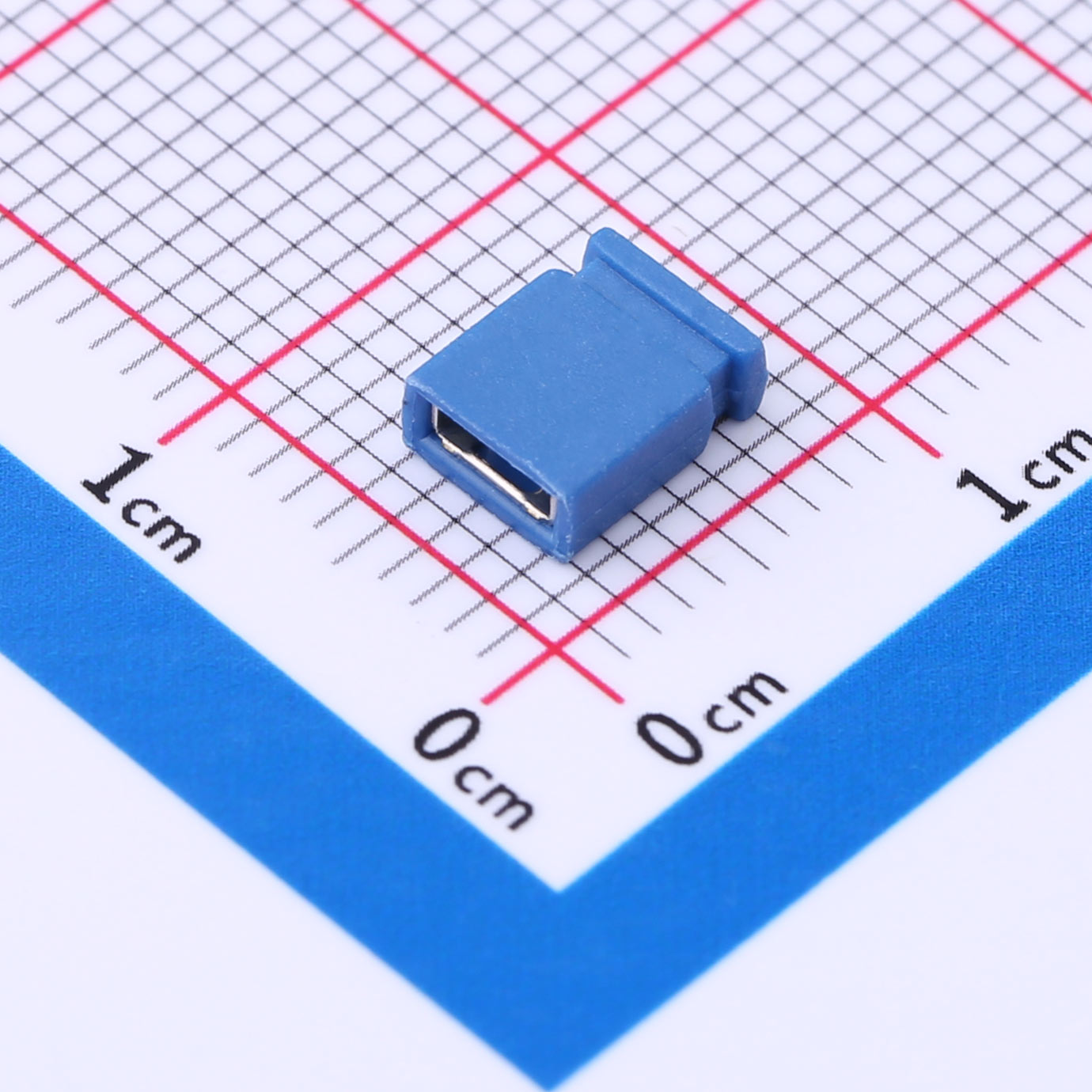

2.54mm Short Circuit Cap/Jumper Cap, Closed Top, KH-2.54TXM-BK-6.5H-B

2.54mm Short Circuit Cap/Jumper Cap, Closed Top, KH-2.54TXM-BK-6.5H-B

Current Rating: 3A Max
Contact Resistance: 30 mΩ Max
Insulation Resistance: 1000 MΩ Min
Dielectric Withstanding Voltage: AC 650V RMS at Sea Level

Inquiry Datasheet

Product Details

Product Benefits
● 2.54mm pitch for standard pin header compatibility
● 3A max current rating for reliable operation
● Low contact resistance 30 mΩ max for efficient conductivity
● 1000 MΩ minimum insulation resistance for safety
● AC 650V dielectric withstand voltage at sea level
● Closed top design for secure, stable connections
● Blue color for easy identification and organization

Product Application
● Circuit shorting for power supply configurations
● Signal routing and ground connections on PCBs
● Used in industrial equipment testing and setup
● Ideal for development and assembly of communication devices
● Power and ground link for consumer electronics
● Prototyping and circuit modification tasks
