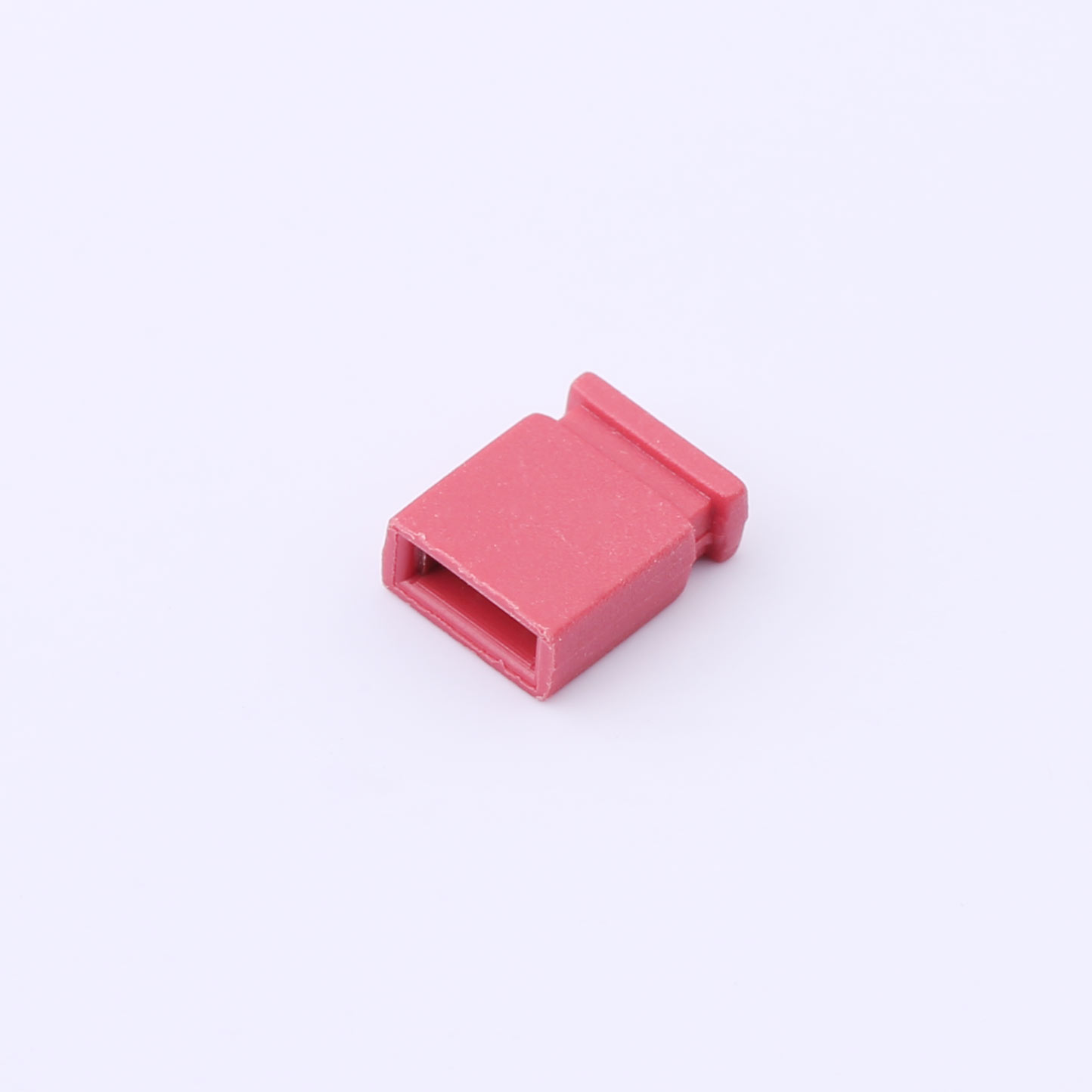

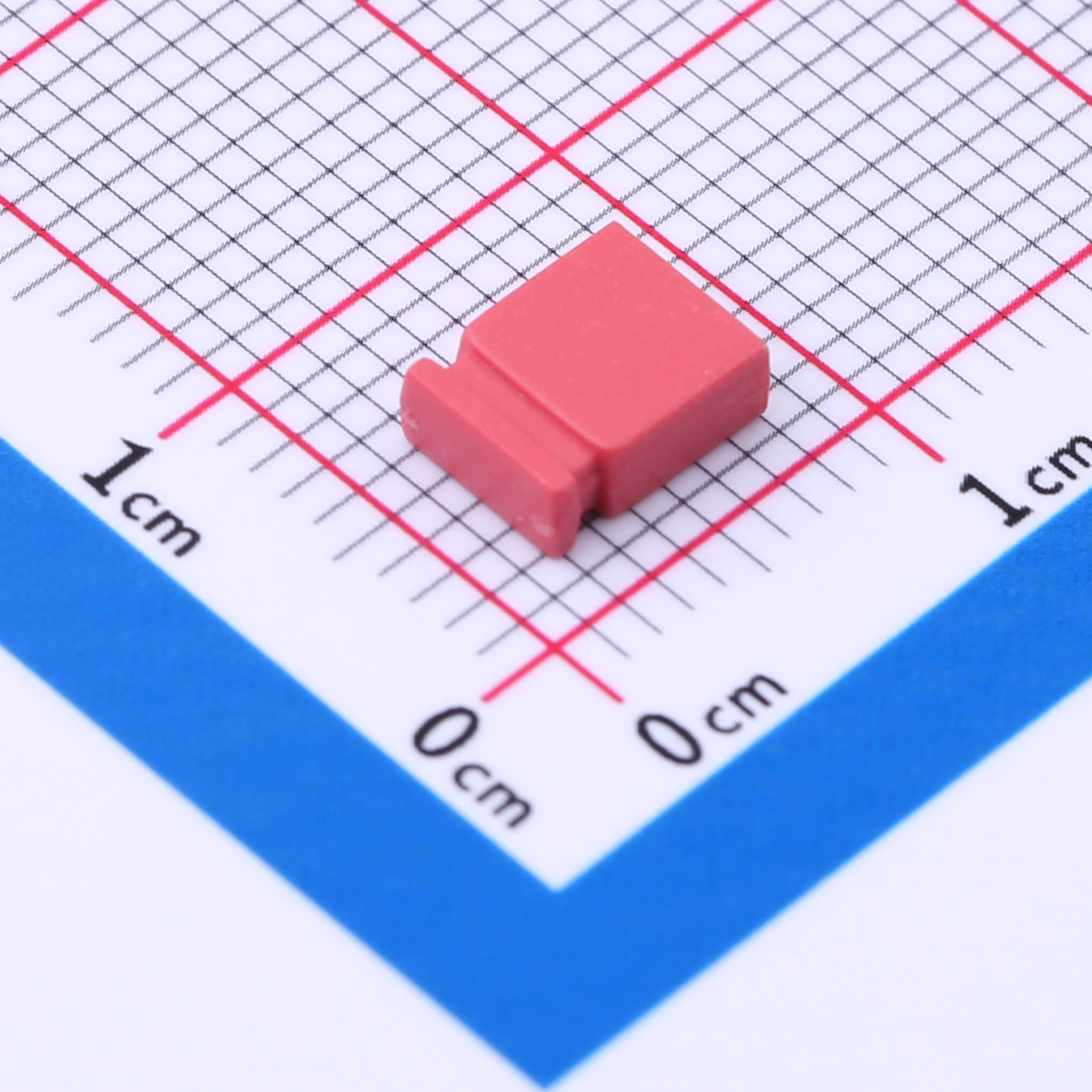

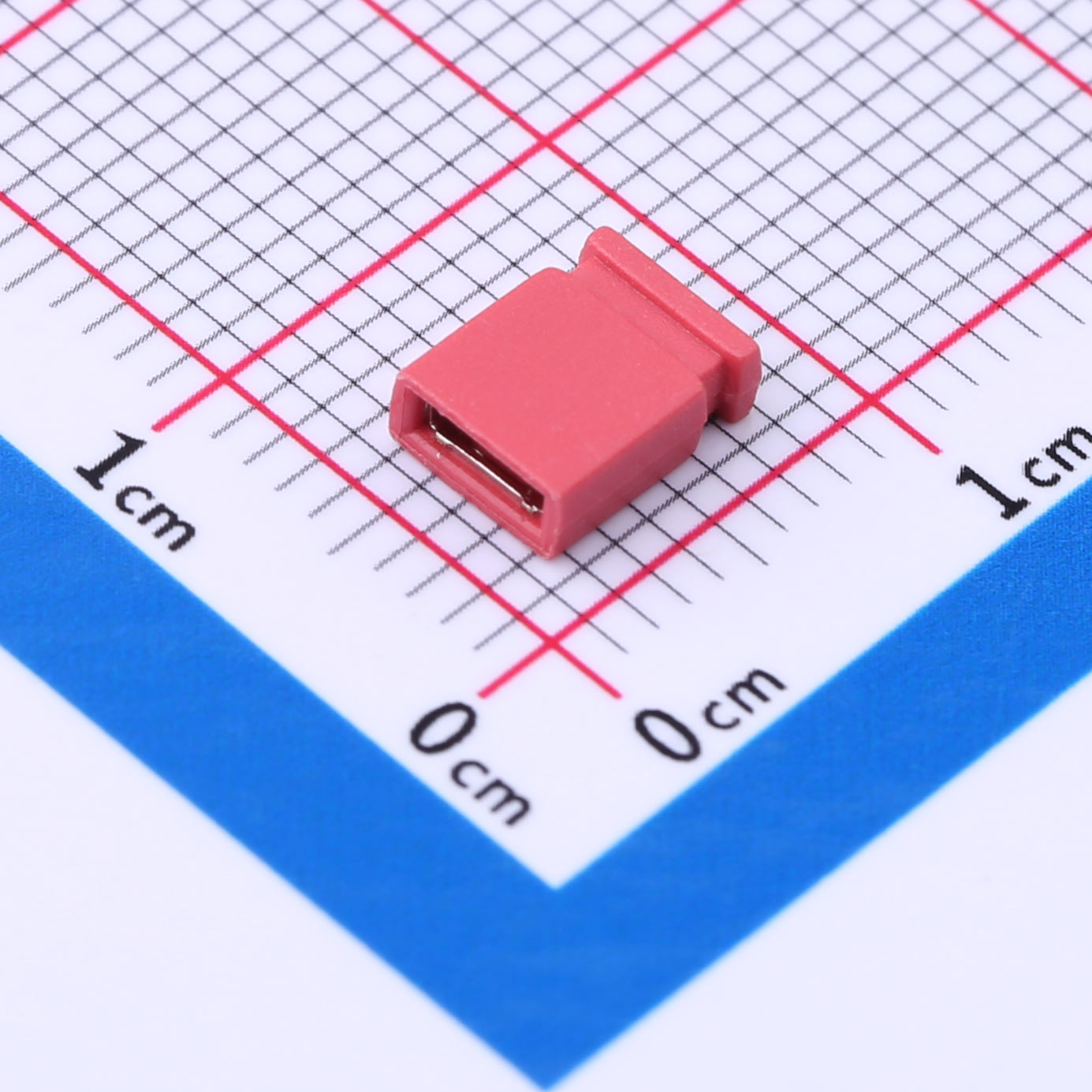

2.54mm Short Circuit Cap/Jumper Cap, Closed Top, KH-2.54TXM-BK-6.5H-R

2.54mm Short Circuit Cap/Jumper Cap, Closed Top, KH-2.54TXM-BK-6.5H-R

Current Rating: 3A Max
Contact Resistance: 30 mΩ Max
Insulation Resistance: 1000 MΩ Min
Dielectric Withstanding Voltage: AC 650V RMS at Sea Level

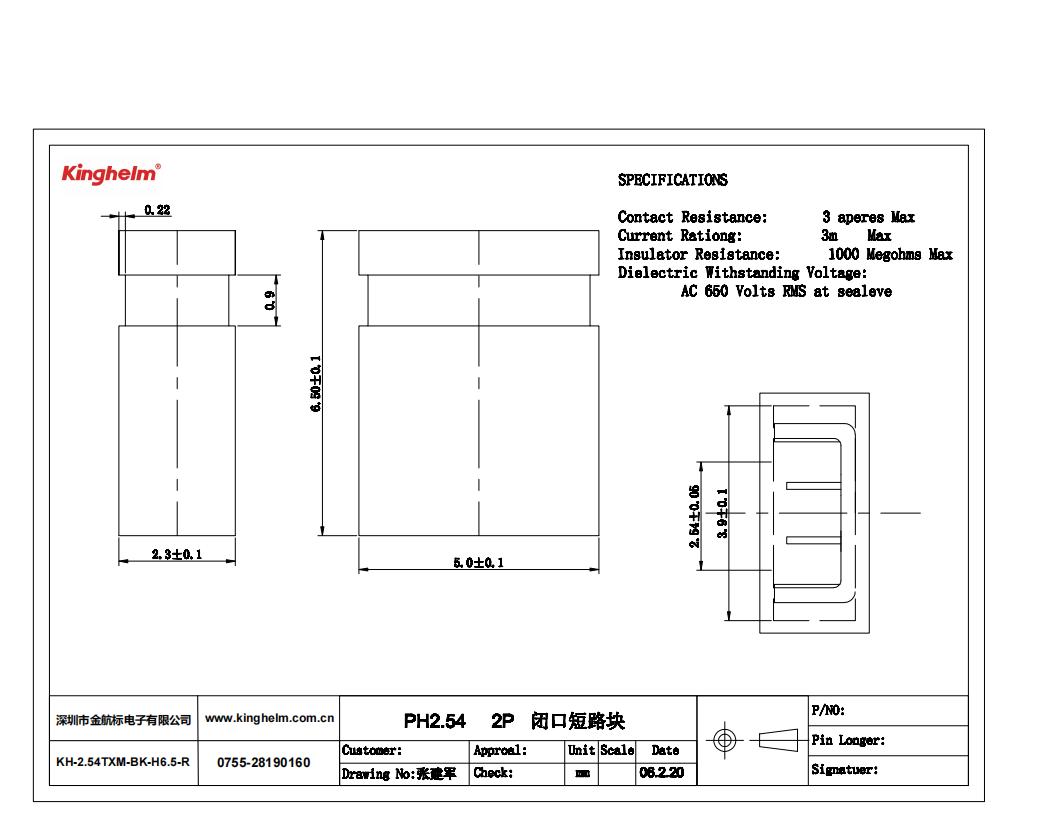

Inquiry Datasheet

Product Details

Product Benefits
● 2.54mm pitch for standard pin headers
● 3A max current rating for reliable performance
● 30 mΩ max contact resistance for efficient operation
● 1000 MΩ min insulation resistance for safety
● AC 650V dielectric withstand voltage
● Secure closed top design for stable connections
● Red color for easy identification and organization

Product Application
● Short circuit jumper for testing and troubleshooting
● Pin header bridging in development boards
● Power and ground connections on PCBs
● Circuit customization in electronics projects
● Used in industrial equipment and machinery
● Ideal for quick connections in communication devices
