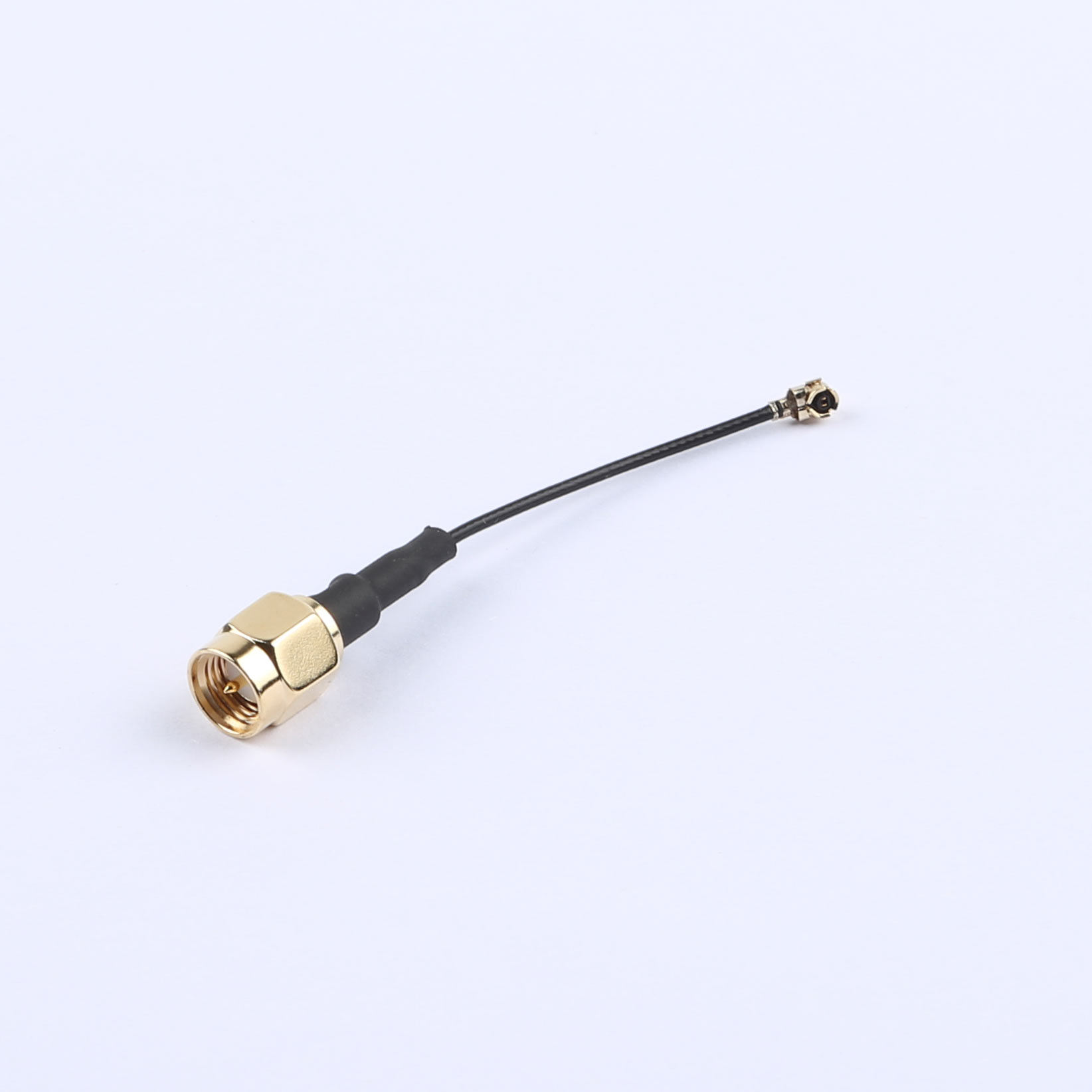

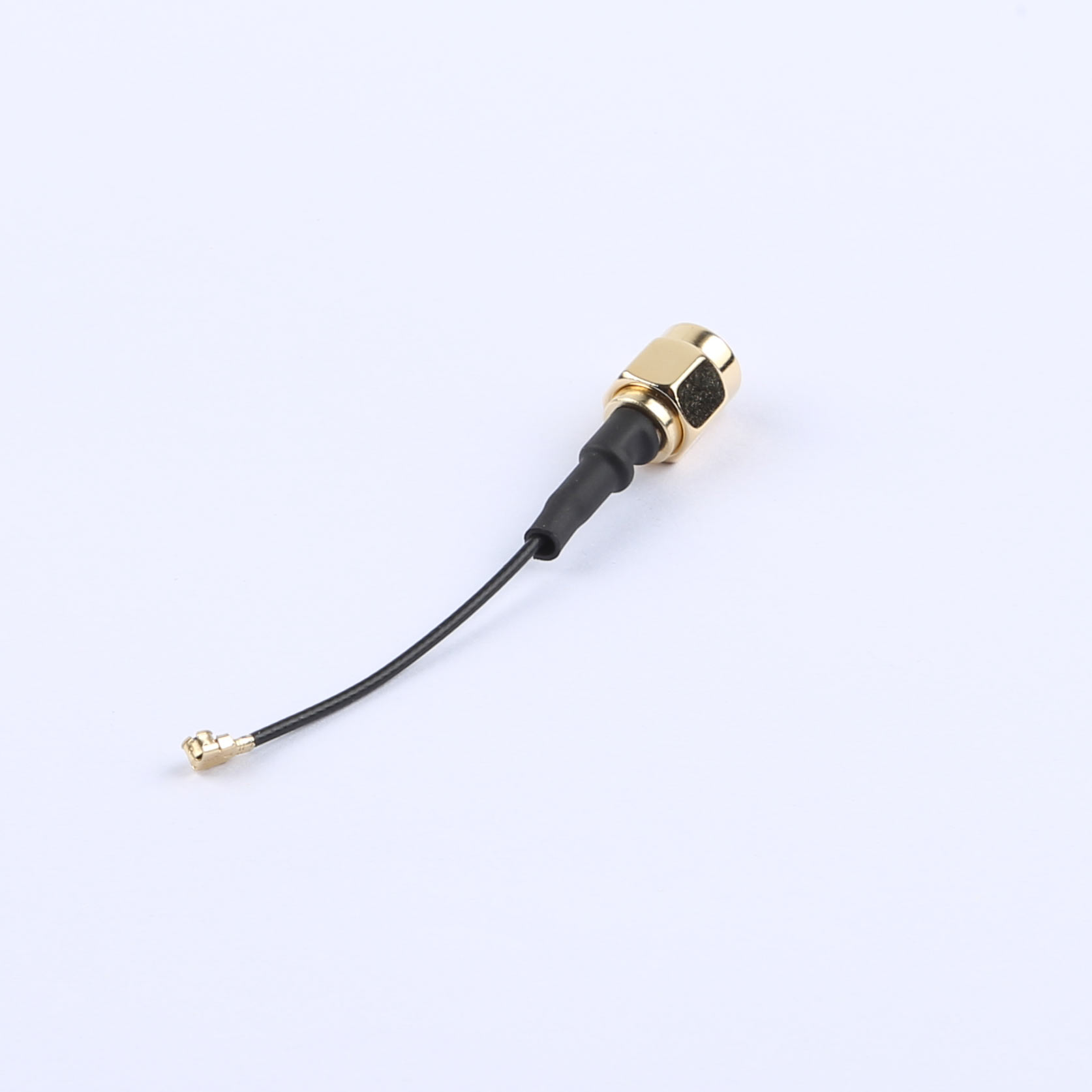

RF Cable Assembly, SMA Male to IPEX, RG1.13, 50mm, KH-SMAJ-IPEX-RG1.13-B50

Voltage Rating: DC 300V (10ms)
Contact Resistance: 3.0 Ω Max
Insulation Resistance: 5.0 MΩ Min
Coaxial Cable: RG1.13, Black, OD: 1.13 mm
All Components: RoHS Compliant

Inquiry Datasheet

Product Details

Product Description:

1. Electrical Specifications:

●Voltage Rating: The cable is rated for DC 300V with a tolerance for durations of up to 10 milliseconds, suitable for applications requiring short-term high-voltage resistance.

●Conductance Resistance: Maximum conductance resistance of 3.0 ohms per meter ensures efficient electrical conductivity and minimal power loss.

●Insulation Resistance: Minimum insulation resistance of 5.0 megaohms per meter provides reliable performance and protection against electrical leakage.

●Quality Assurance: Each cable undergoes a 100% electrical test to ensure functionality and integrity, meeting stringent quality standards.

●Reliability: Designed to be free from any open/short circuits, miswiring, and intermittent failures, ensuring a secure electrical connection.

2. Material Specifications:

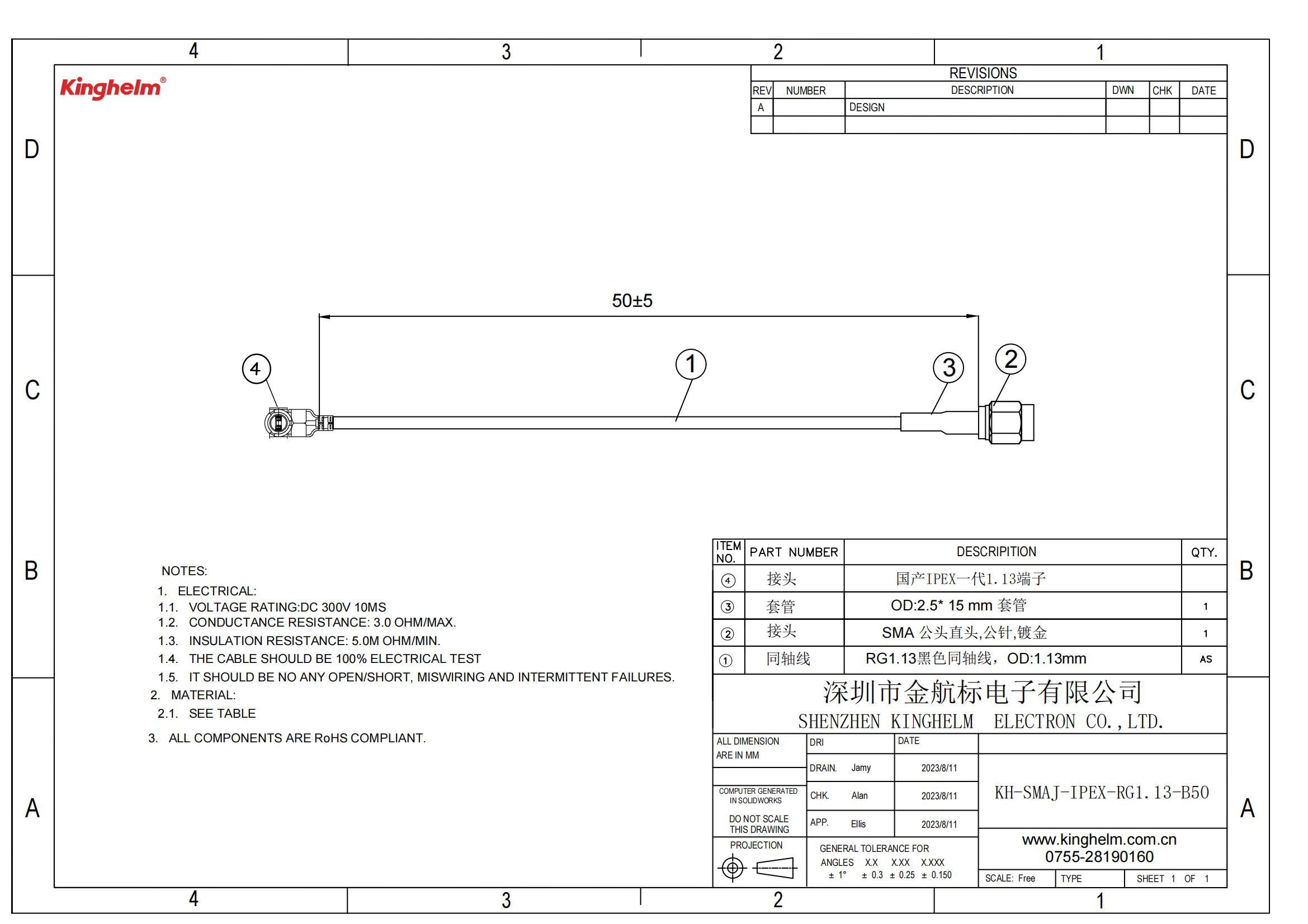

●Composition: Please refer to the provided table for detailed information on the materials used in the cable construction.

3. Compliance:

●RoHS Compliance: All components in the cable are compliant with RoHS regulations, demonstrating commitment to environmental sustainability and safety standards.
