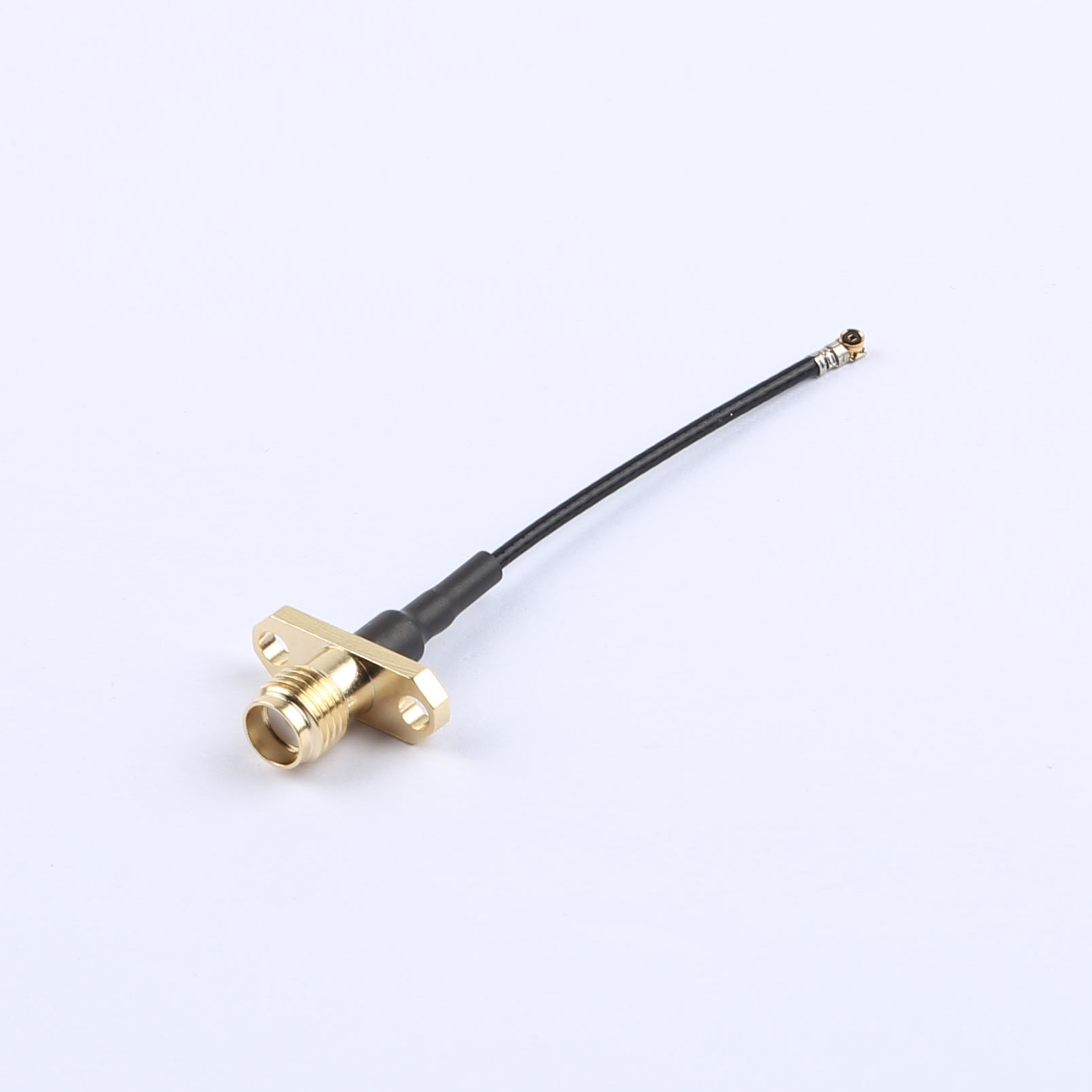

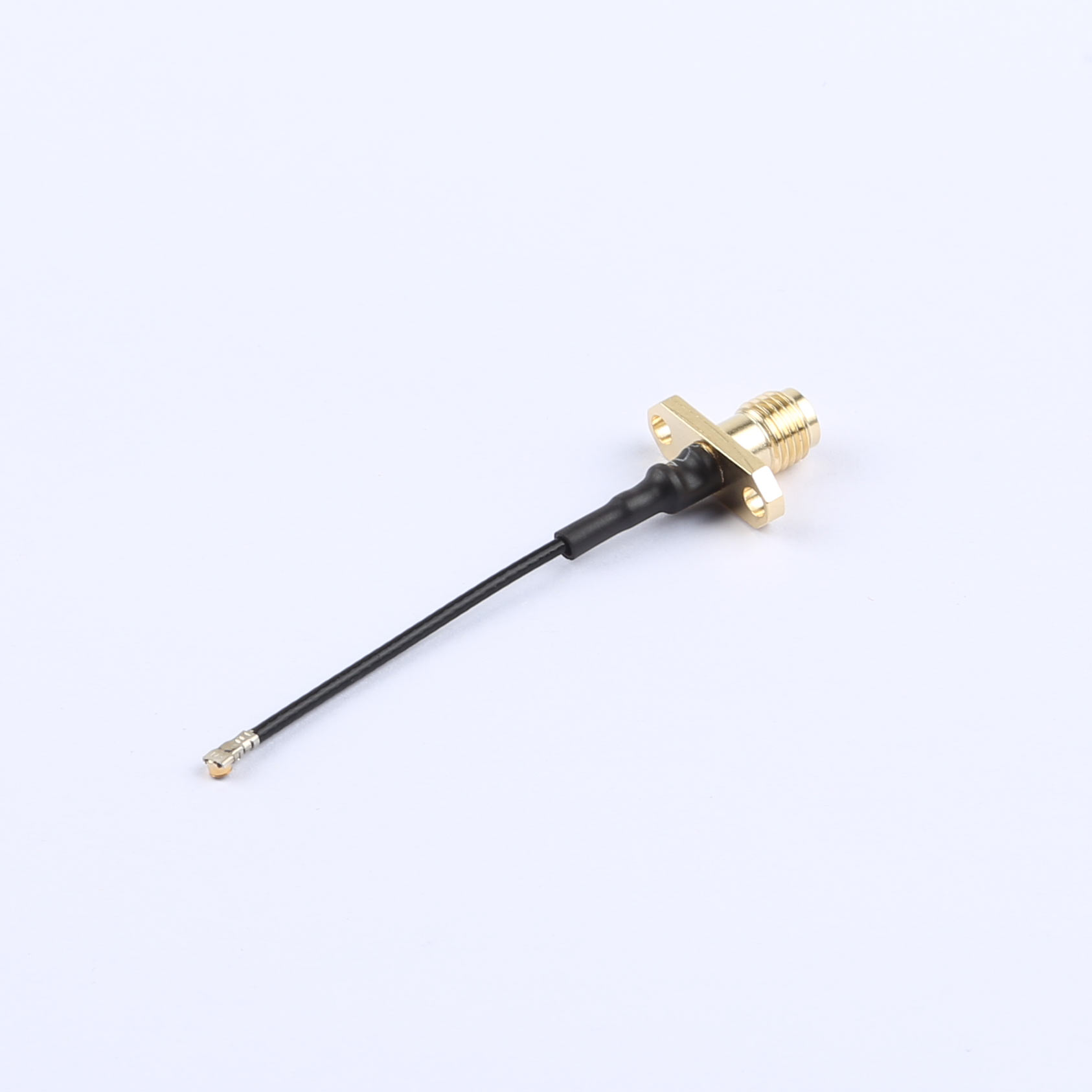

RF Cable Assembly, SMA Female to IPEX Gen 4, RG1.37, 50mm, KH-FL2SMAK-IPEX4-RG1.37-B50

Voltage Rating: DC 300V (10ms)
Contact Resistance: 3.0 Ω Max
Insulation Resistance: 5.0 MΩ Min
Input/Output: SMA to IPEX
IPEX Algebra: 4Gen

Inquiry Datasheet

Product Details

Product Description:

●Electrical Specifications:

○ Voltage Rating: The cable is designed to withstand a maximum DC voltage of 300V with a pulse duration of 10ms, ensuring safe and reliable operation within the specified voltage range.

○ Conductance Resistance: The cable assembly features a maximum conductance resistance of 3.0 Ohms, enabling efficient electrical conductivity for optimal signal transmission.

○Insulation Resistance: The cable exhibits a minimum insulation resistance of 5.0 MOhms, providing excellent insulation properties to prevent leakage and maintain electrical integrity.

○Electrical Testing: Each cable undergoes thorough 100% electrical testing to validate its performance and reliability under various conditions.

○ Quality Assurance: The cable assembly is meticulously inspected to ensure there are no open circuits, short circuits, miswiring, or intermittent failures, guaranteeing a reliable and uninterrupted electrical connection.

●Material Composition:

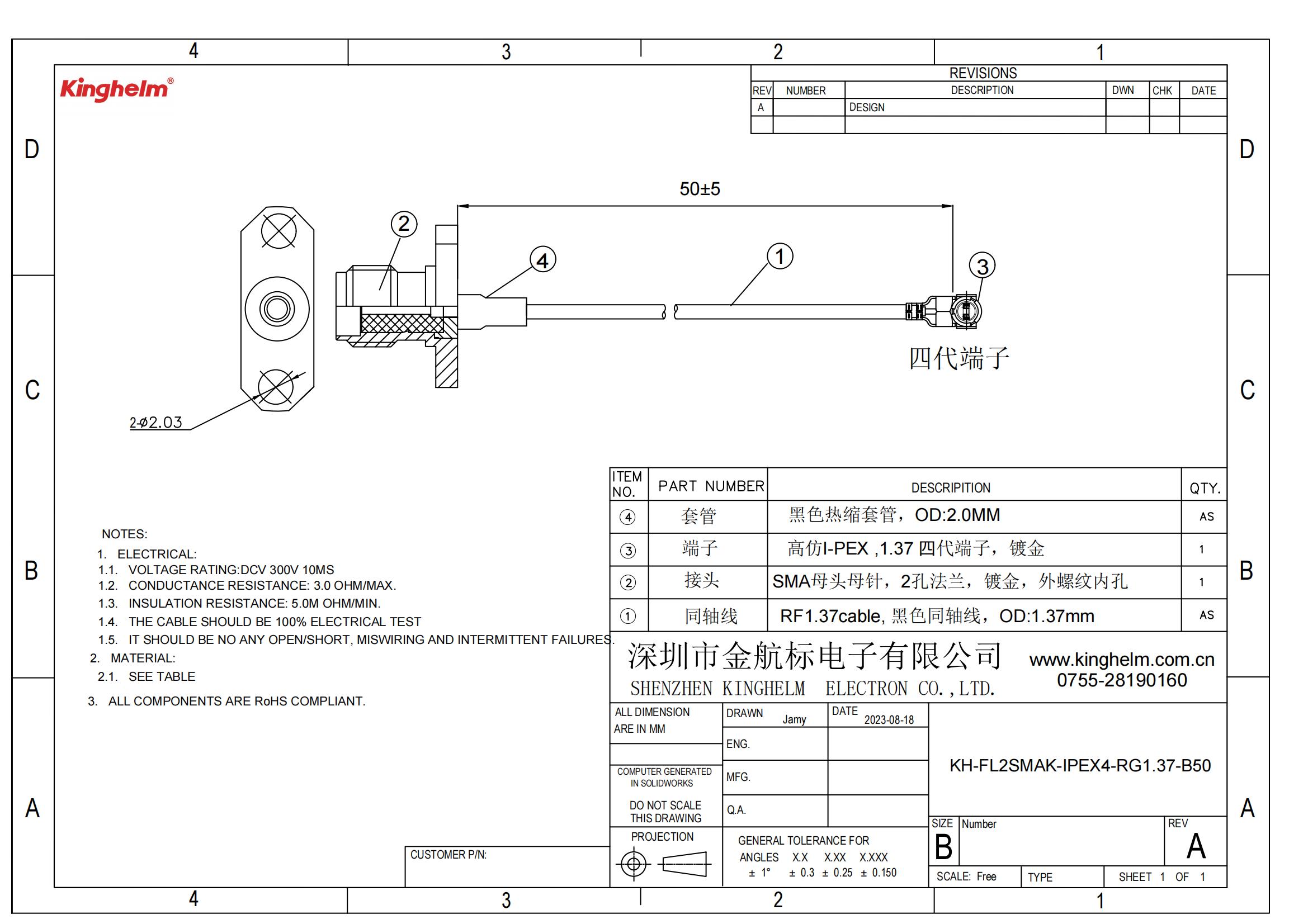

○ The materials used in the cable assembly are detailed in the accompanying table, selected for their durability, conductivity, and suitability for the intended application.

●Compliance and Standards:

○All components integrated into the cable assembly comply with RoHS regulations, demonstrating a commitment to environmental sustainability and adherence to safety standards throughout the manufacturing process.
