Electrical Specifications:

Voltage Rating: DCV 300V for a duration of 10ms

Conductance Resistance: Maximum of 3.0 Ohm

Insulation Resistance: Minimum of 5.0 MOhm

Testing Requirement: The cable undergoes thorough 100% electrical testing for quality assurance.

Quality Standard: The cable is guaranteed to be free from any open circuits, short circuits, miswiring, and intermittent failures.

Material:

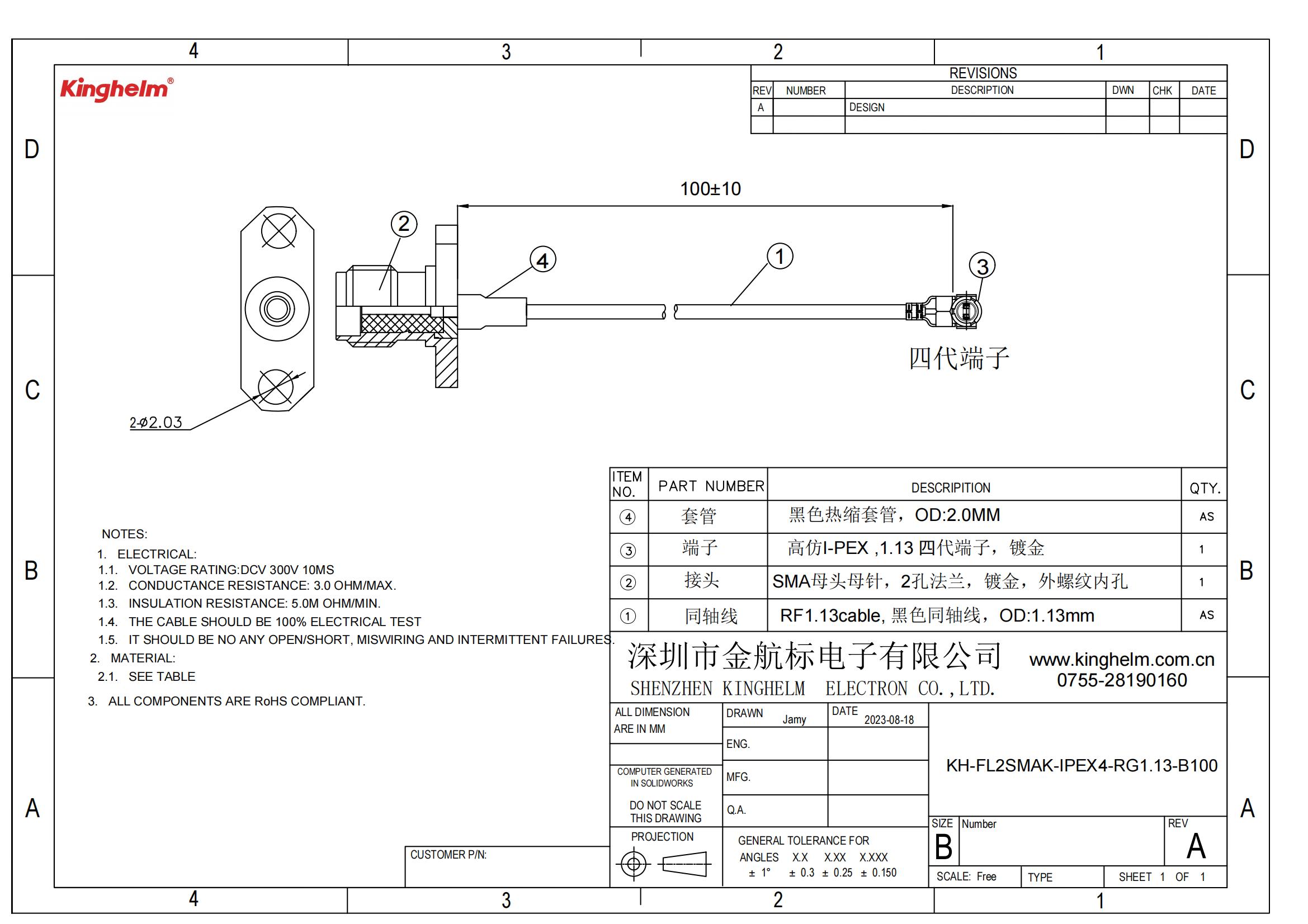

Detailed material specifications can be referred to in the accompanying table.

Compliance:

All components used in the cable assembly adhere to RoHS regulations, ensuring environmental compliance and safety standards are met.
