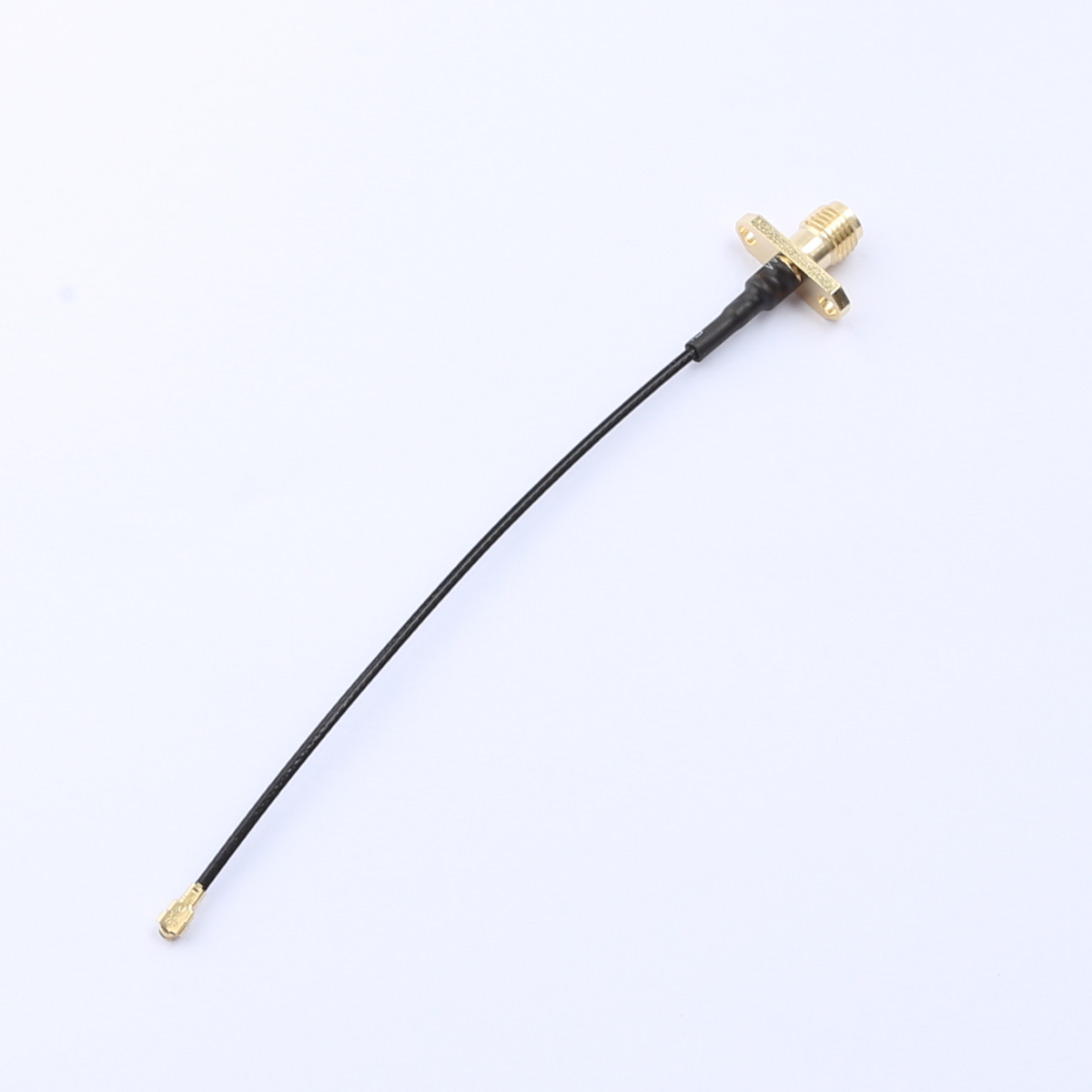

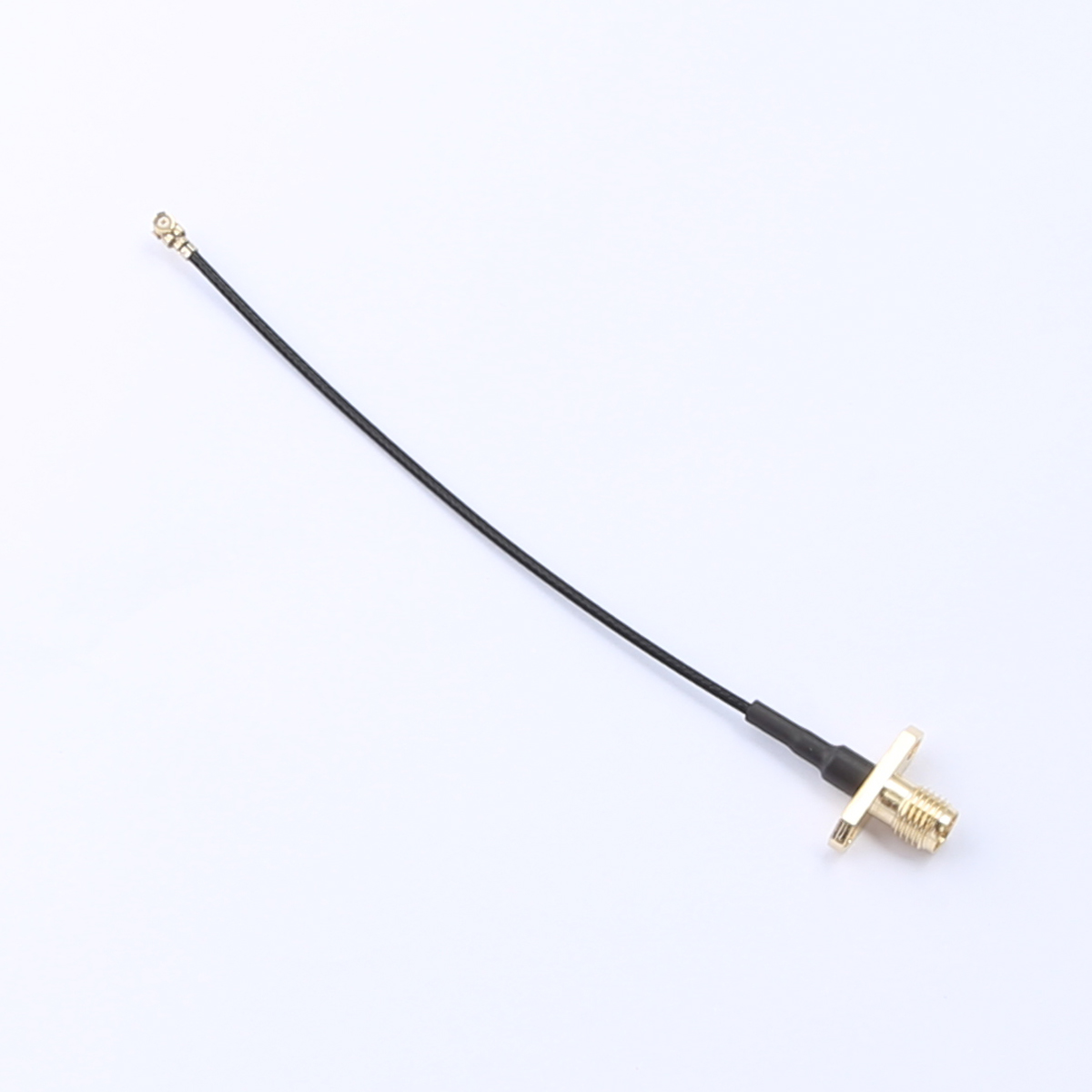

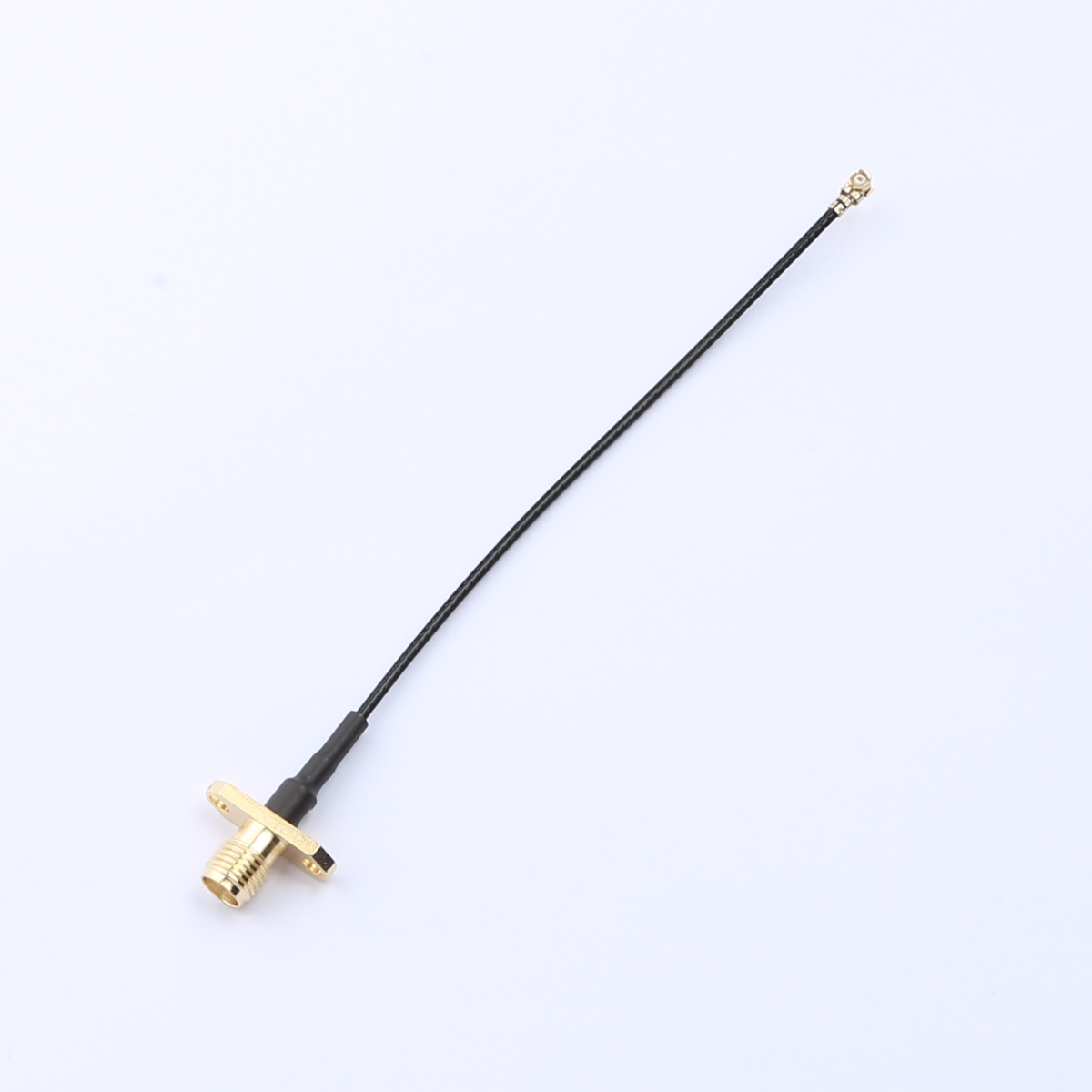

RF Cable Assembly, SMA Female to IPEX, RG1.37, 100mm, KH-FL2SMAK-IPEX-RG1.37-B100

Voltage Rating: DC 300 V (10 ms)
Contact Resistance: 3.0 Ω (Max)
Insulation Resistance:  5.0 MΩ (Min)
Coaxial Cable: RF 1.37, Black, OD: 1.37 mm
RoHS Compliance: All components compliant

Product Details

Product Description:

1. Electrical Specifications:

1.1. Voltage Rating: The cable is designed and rated for DCV 300V with a maximum duration of 10ms, ensuring safe and reliable operation within the specified voltage range.

1.2. Conductance Resistance: The cable has a maximum conductance resistance of 3.0 Ohms, providing efficient electrical conductivity to ensure proper signal transmission.

1.3. Insulation Resistance: With a minimum insulation resistance of 5.0 MOhms, the cable offers excellent insulation properties, preventing leakage and maintaining electrical integrity.

1.4. Electrical Testing: Each cable undergoes a thorough 100% electrical testing process, ensuring its performance and adherence to quality standards.

1.5. Quality Assurance: The cable is meticulously inspected to guarantee there are no open circuits, short circuits, miswiring, or intermittent failures, ensuring reliable and uninterrupted functionality.

2. Material Composition:

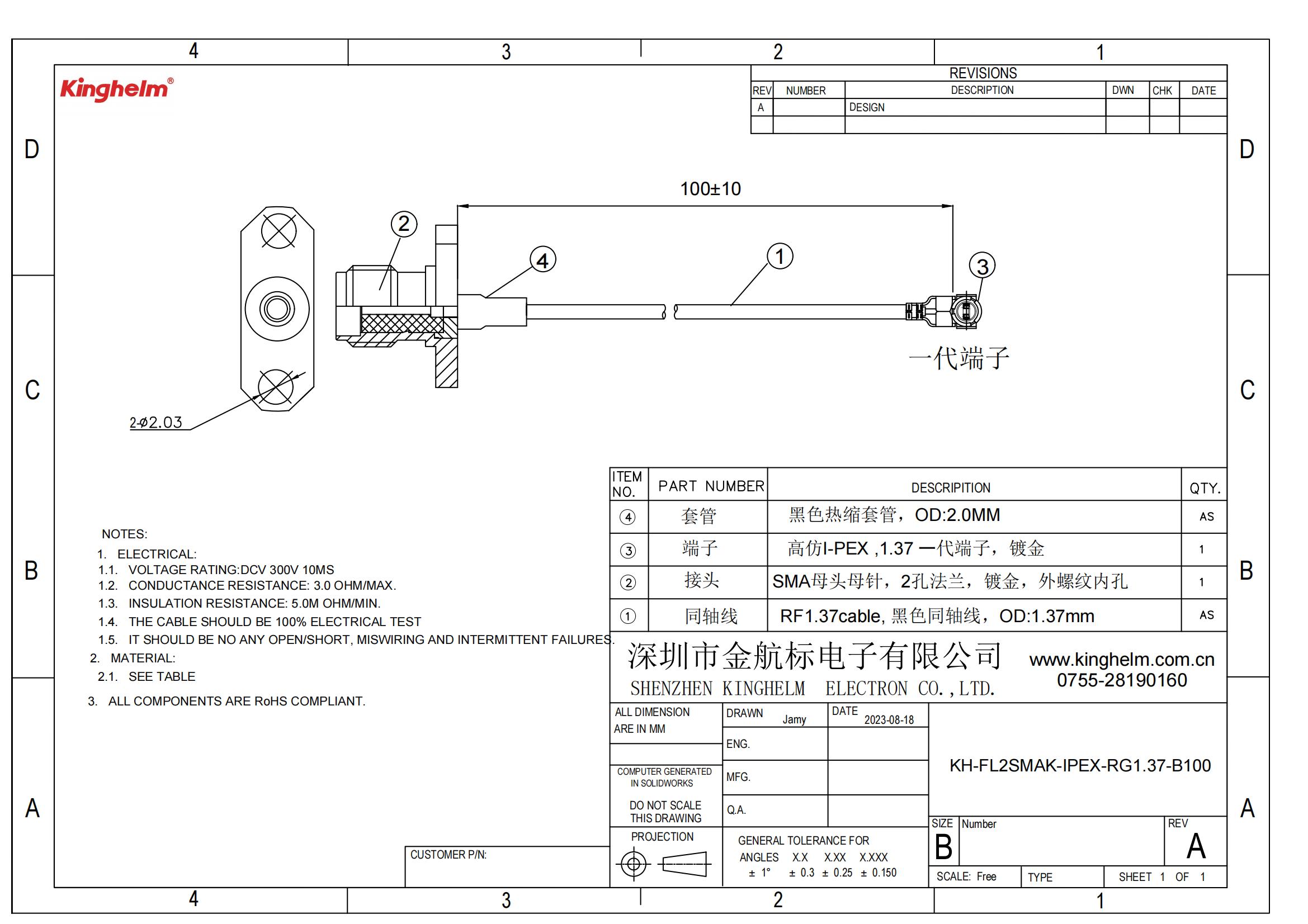

2.1. The materials used in the cable assembly adhere to the specifications provided in the accompanying table. These materials are selected for their durability, conductivity, and suitability for the intended application.

3. Compliance and Standards:

3. All components integrated into the cable assembly are compliant with RoHS regulations, emphasizing environmental sustainability and safety compliance throughout the manufacturing process.
