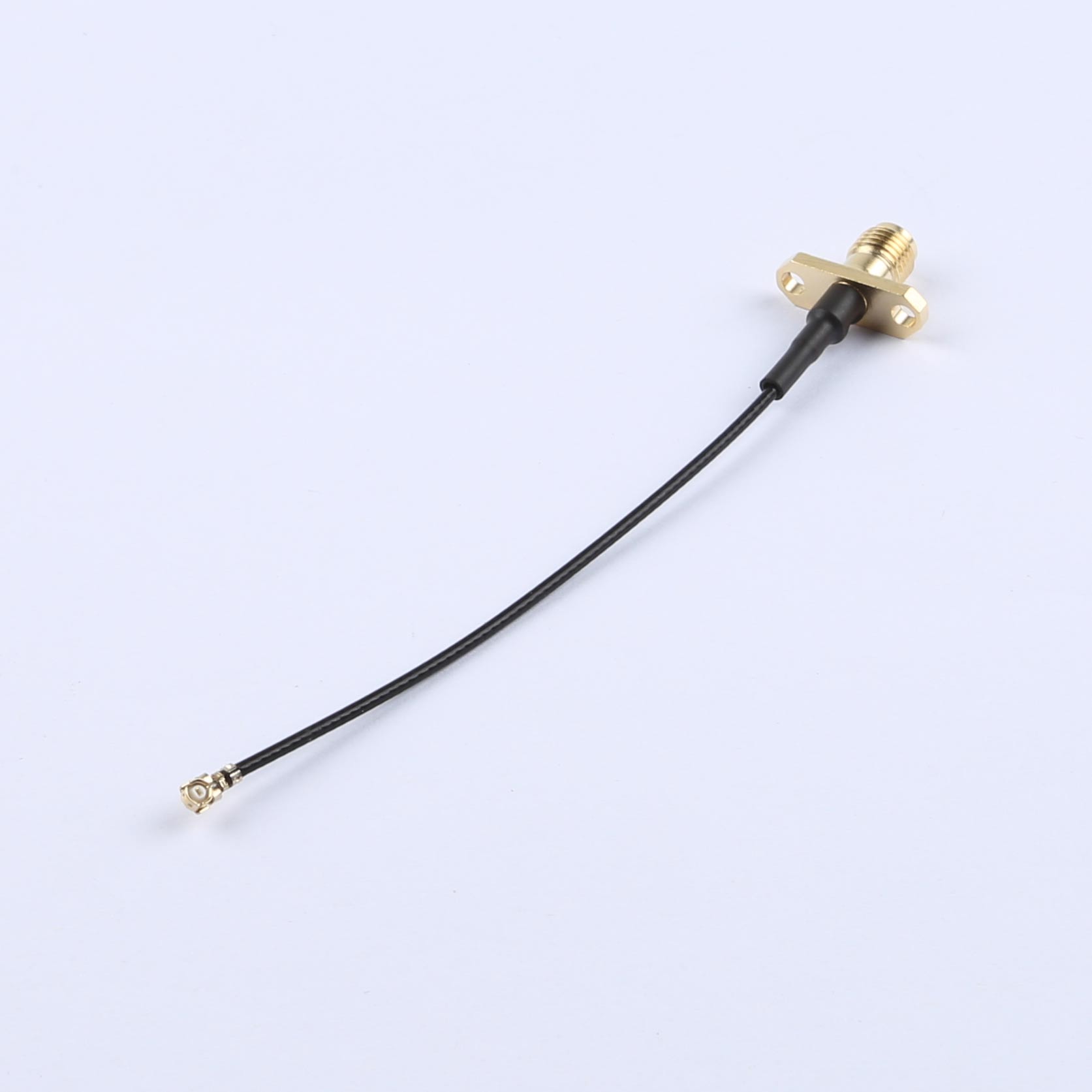

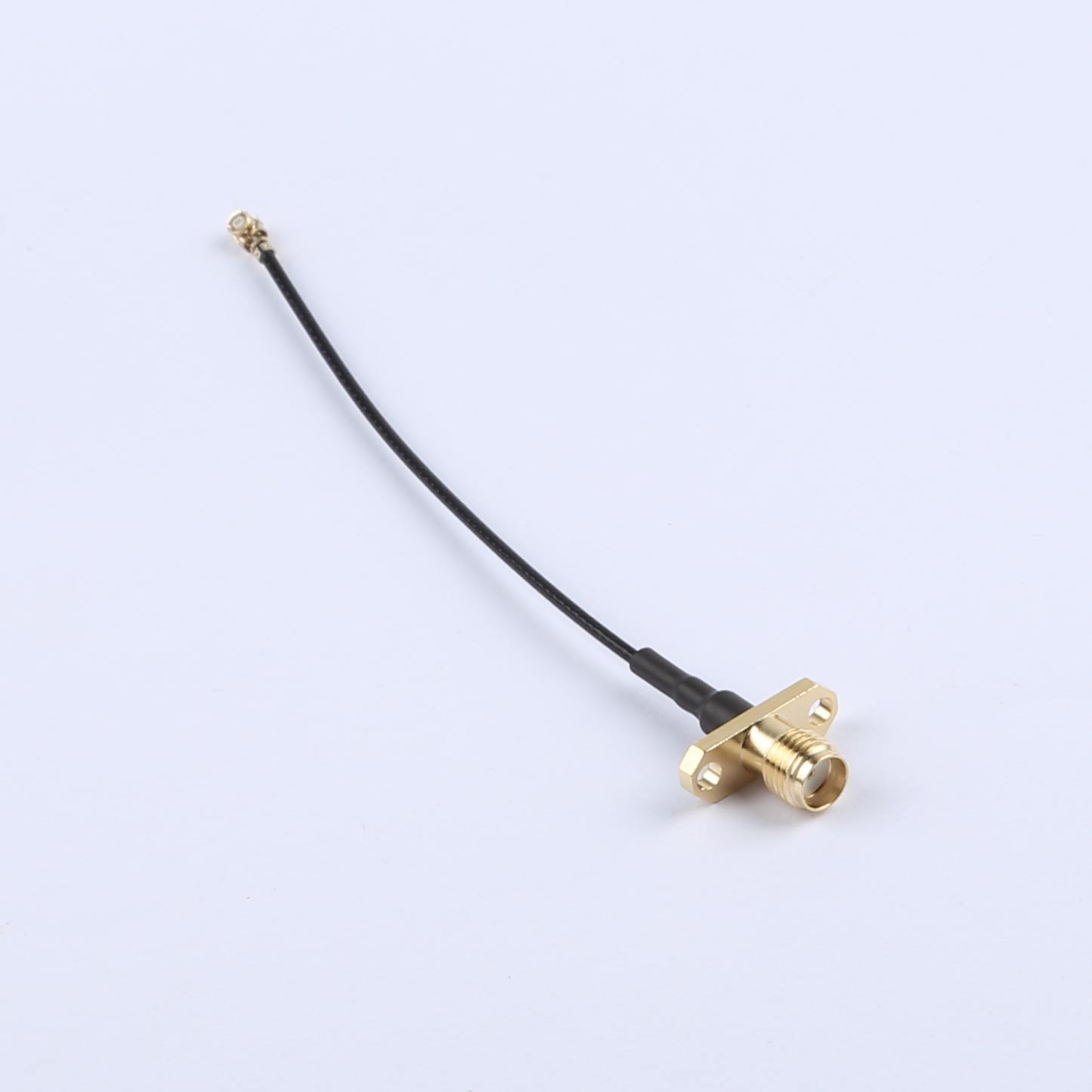

RF Cable Assembly, SMA Female to IPEX, RG1.37, 90mm, KH-FL2SMAK-IPEX-RG1.37-B90

RF Cable Assembly, SMA Female to IPEX, RG1.37, 90mm, KH-FL2SMAK-IPEX-RG1.37-B90

Voltage Rating: DC 300 V (10 ms)
Contact Resistance: 3.0 Ω (Max)
Insulation Resistance:  5.0 MΩ (Min)
Coaxial Cable: RF 1.37, Black, OD: 1.37 mm
RoHS Compliance: All components compliant

Inquiry Datasheet

Product Details

Product Description:

Electrical Specifications:

●Voltage Rating: The cable is rated for DCV 300V for a duration of 10ms, ensuring safe operation within the specified voltage limits.

●Conductance Resistance: The cable boasts a maximum conductance resistance of 3.0 Ohms, facilitating efficient electrical conductivity.

●Insulation Resistance: With a minimum insulation resistance of 5.0 MOhms, the cable guarantees proper isolation and prevents leakage for enhanced electrical safety.

●Electrical Testing: Each cable undergoes a comprehensive 100% electrical testing process to validate performance and reliability.

●Quality Assurance: The cable is meticulously inspected to ensure there are no open circuits, short circuits, miswiring, or intermittent failures, thereby guaranteeing continuous and error-free operation.

Material Composition:

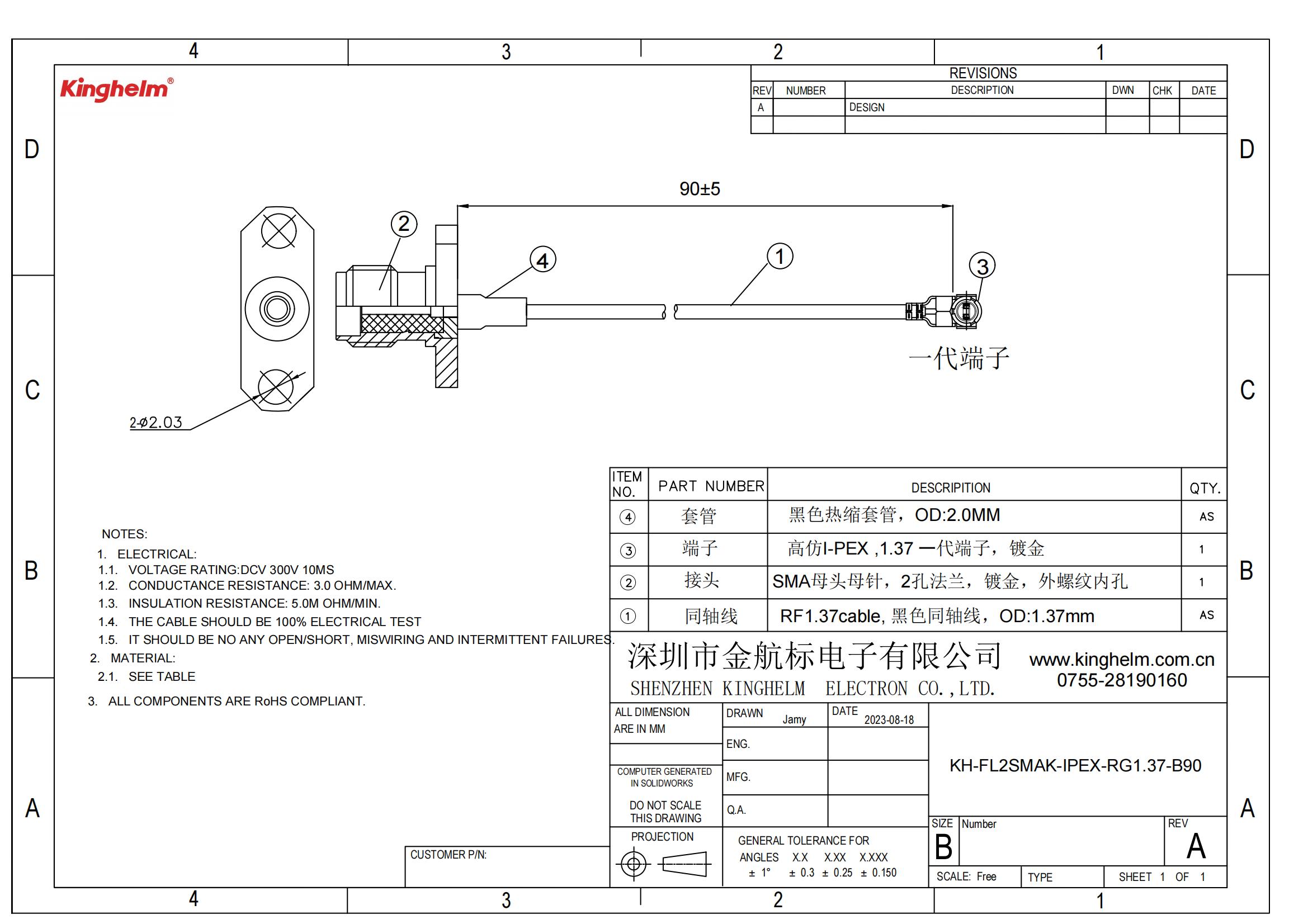

The materials utilized in the cable assembly align with the specifications provided in the accompanying table, selected for their durability, conductivity, and suitability for the intended application.

Compliance and Standards:

All components integrated into the cable assembly are compliant with RoHS regulations, emphasizing environmental responsibility and safety standards throughout the manufacturing process.
